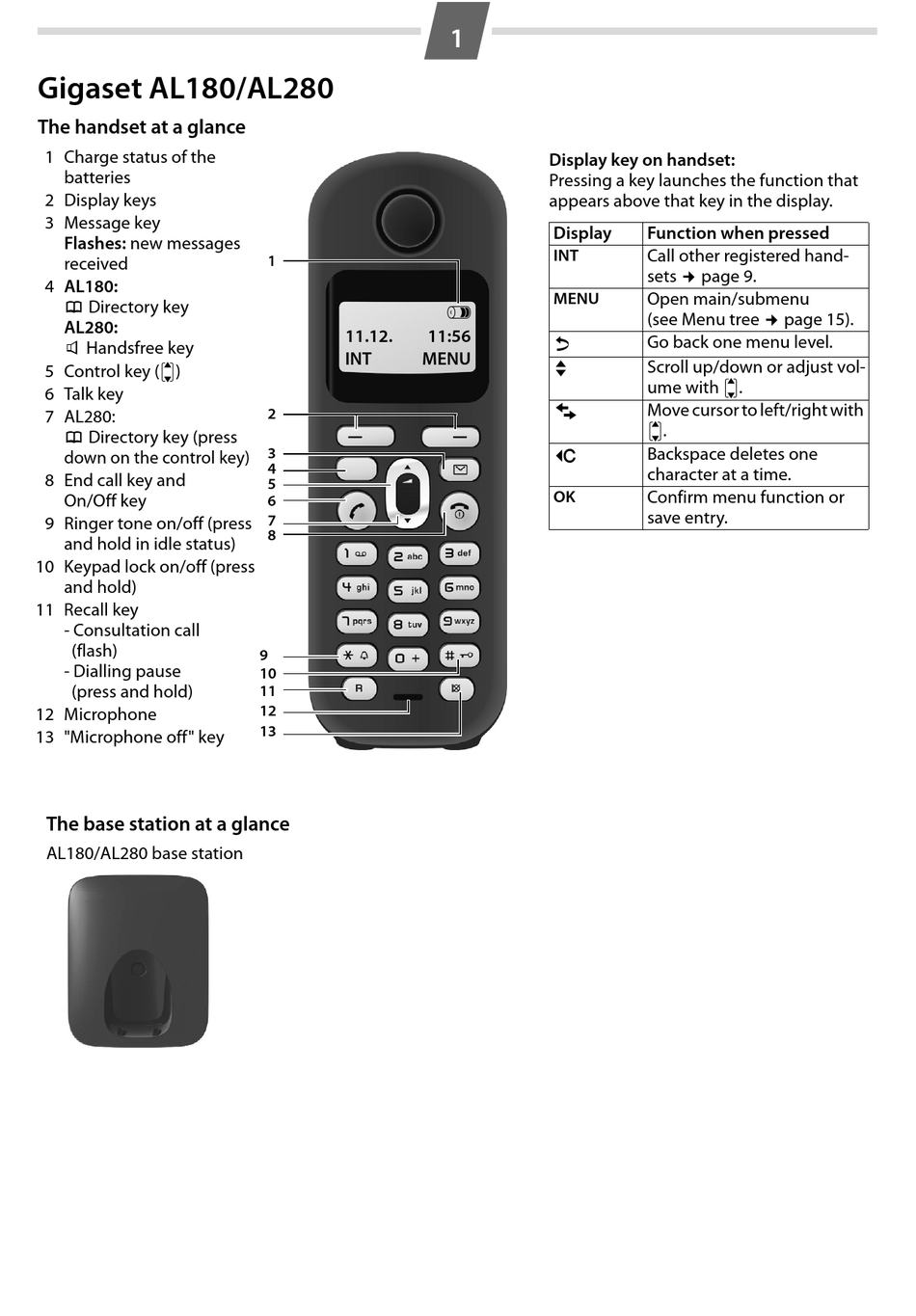

Gigaset AL180/AL280
The handset at a glance
1 Charge status of the
batteries
2 Display keys
3 Message key
Flashes: new messages
received
4 AL180:
h
Directory key
AL280:
d
Handsfree key
5 Control key (u)
6 Talk key
7 AL280:
h
Directory key (press
down on the control key)
8 End call key and
On/Off key
9 Ringer tone on/off (press
and hold in idle status)
10 Keypad lock on/off (press
and hold)
11 Recall key
- Consultation call
(flash)
- Dialling pause
(press and hold)
12 Microphone
13 "Microphone off" key
The base station at a glance
AL180/AL280 base station
1
11.12.
11:56
INT
MENU
2
3
4
5
6
7
8
9
10
11
12
13
1
Display key on handset:
Pressing a key launches the function that
appears above that key in the display.
Display
INT
V
MENU
"
U
T
˜
OK
Function when pressed
Call other registered hand-
sets ¢ page 9.
Open main/submenu
(see Menu tree ¢ page 15).
Go back one menu level.
Scroll up/down or adjust vol-
ume with u.
Move cursor to left/right with
u.
Backspace deletes one
character at a time.
Confirm menu function or
save entry.
