3231354/3
Installation and Maintenance Instructions
IM-P323-35 CH Issue 3
SX80 and SX90
Controllers

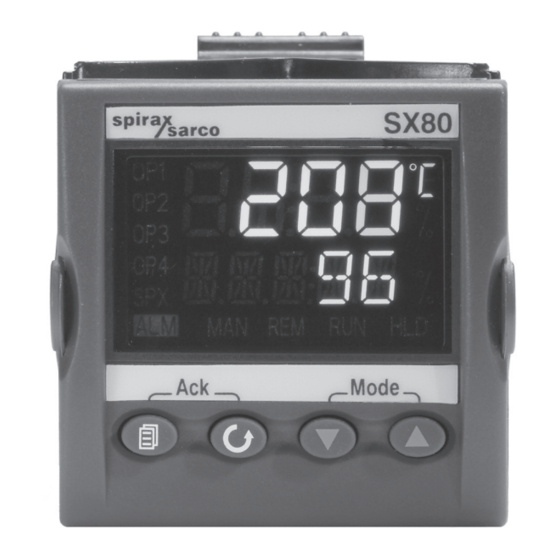

SX80
SX90
IM-P323-35
1. Installation and basic
operation
2. Step 2: Wiring
3. Safety and EMC
information
4. Switch on
5. Operator level 2
6. Access to further
parameters
7. Controller block diagram
8. Process (temperature or
pressure) input
9. Output parameters
10. Setpoint generator
11. Control
12. Alarms
13. Timer
14. Recipe
15. Digital communications
16. Calibration
17. Access parameters
18. Appendix A technical
specification
19. Parameter index
20. General index
© Copyright 2013
Printed in France
CH Issue 3
1
