Hall
MicroPower™ High Speed Drill
Instruction Manual
(6020-026 / 6021-026)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Hall MicroPower High Speed Drill and is the answer not in the manual?

Questions and answers

Summary of Contents for ConMed Hall MicroPower High Speed Drill

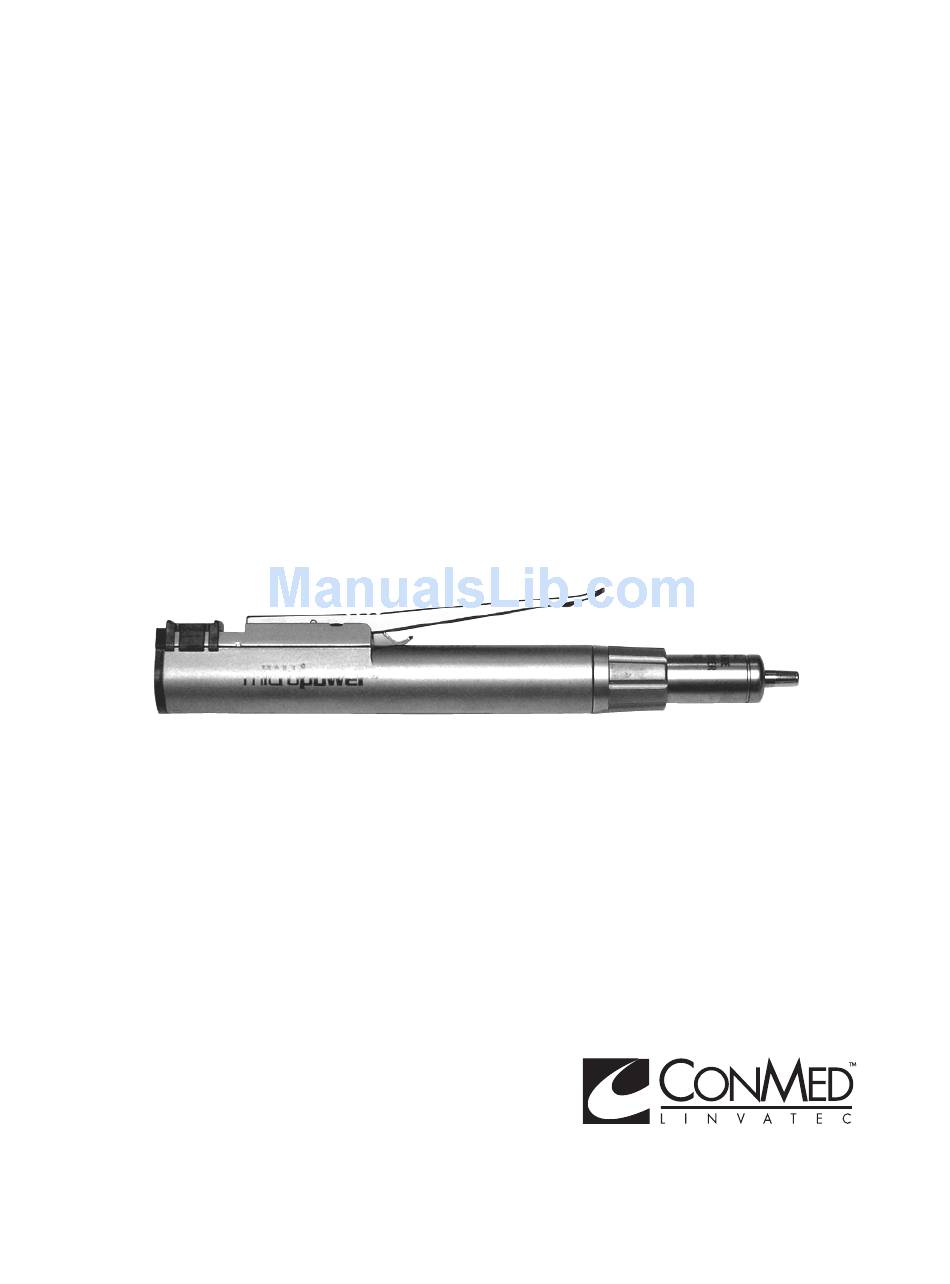

  • Page 1 ® Hall MicroPower™ High Speed Drill Instruction Manual (6020-026 / 6021-026)
  • Page 2 ConMed Linvatec. ConMed Linvatec reserves the right to revise this publication and to make changes from time to time in the contents hereof without obligation to notify any person of such revision or changes, unless otherwise required by law.

  • Page 3: Table Of Contents

    Table of Contents Page INTRODUCTION Intended Use ............1 Warnings and Cautions.
  • Page 4 Table of Contents Page MAINTENANCE Cleaning and Sterilizing ..........21 3.1.1 Cleaning Precautions .

  • Page 5: Introduction

    INTRODUCTION Warnings and Cautions t is recommended that personnel study this This equipment is designed for use by medical manual before attempting to operate, clean professionals completely familiar with the or sterilize the MicroPower™ High Speed required techniques and instructions for use of Drill and accessories.

  • Page 6: Cautions

    NOTE: Bur and neuro guards are to be 2. Use only associated ConMed Linvatec returned to the factory or a ConMed attachments and accessories (i.e. drill bits) Linvatec authorized service facility for rou- as defined within the descriptions of each tine maintenance every six (6) months.

  • Page 7: Symbol Definitions

    (See “3.1 Cleaning and Sterilizing” No user service recommended. on page 21 ). Refer servicing to qualified 13. Do not use in the presence of flammable ConMed Linvatec service per- sonnel. anesthetics, gases, disinfecting agents, cleaning solutions, or any material suscepti- Indicates product component ble to ignition due to electrical sparking.

  • Page 8: Micropower High Speed Drill

    MicroPower High Speed Drill ❹ ❸ ❶ ❷ High Speed Drill (6020-026 / 6021-026) ❶ Bur Lock Collar — Rotate to lock or unlock a bur. ❷ Activation Lever — Depress to operate the handpiece. The activation lever can be removed for leverless operation on the 6020-026 handpiece (Reference “2.3.4 Removing the Detachable Handpiece...

  • Page 9: Irrigation Tubing Set (E9418) For Use With The Micropower High Speed Drill

    ❷ ❶ ❸ ❹ ❺ E9418 Irrigation Tubing Set ❺ Irrigator Tip — Accepts various irrigation Irrigation Tubing Set (E9418) for tips (See “4.4 Handpieces, Attachments use with the MicroPower High and Accessories” on page 30 ) for the Speed Drill MicroPower High Speed Drill for fluid distribution to the surgical site.

  • Page 10: Handpiece Installation And Operation

    To remove the handpiece cord: HANDPIECE (a) Press the latch and remove the cord INSTALLATION and from the handpiece. OPERATION Handpiece Cord Installation 1. To attach the handpiece cord: (a) Ensure pins on cord and handpiece are completely dry prior to connecting. (b) Insert the handpiece cord into the cord receptacle of the handpiece.

  • Page 11: Hall Bur Guard Assembly Instructions

    Hall Bur Guard Assembly Instructions WARNINGS: 1. Do not operate the drill without the appropriate bur guard. Always use a bur of the proper length. The tip of the bur guard should cover the safe line on the bur, if applicable. Without the stabilization that the proper guard provides, the bur can break and be propelled with great force.

  • Page 12: Tissue Retractor Guard (1387-022)

    Photo below shows the Tissue Retractor Guard. 2.2.1 Assembly Instructions for the: • Medium Bur Guard (1375-012) • Long Bur Guard (1375-011) • Cloward Extra-Long Bur Guard (1375-023) • Tissue Retractor Guard (1387-022) Prior to installing a bur, but only while NOTE: When using the Tissue Retractor using the 1375-012 Medium Bur Guard, it...
  • Page 13 • Under prolonged use or intense cutting, (c) Insert the bur to the safe line or until the tip of the SmartGuard Protector the bur seats completely if no safe line Sleeve may turn pink while the rest of the is observed.

  • Page 14: Assembly Instructions For The Laminectomy Bur Guard (1375-020)

    (b) Insert the laminectomy bur into the 2.2.2 Assembly Instructions for the handpiece until the bur seats Laminectomy Bur Guard completely. (1375-020) NOTES: 1. Use the 5092-103 Long Carbide Bur with the 1375-020 Laminectomy Bur Guard. 2. The Laminectomy burs are the only burs that can be inserted prior to placing the appropriate bur guard on the handpiece.

  • Page 15: Assembly Instructions For The 20° (1375-032) And 20° Extra Long (1375-033) Angle Attachments

    3. Slide the attachment over the end of the 2.2.3 Assembly Instructions for the drill. Ensure it is seated completely. 20° (1375-032) and 20° Extra Long (1375-033) Angle Attachments NOTE: Use only long burs (5092 series) in the 1375-032, 20° Angle Attachment and extra long burs (5093 series) in the 1375-033, 20°...

  • Page 16: Angle (1375-036) Attachments

    To insert a bur: 2.2.4 Assembly Instructions for the (a) Place the bur in the opening of the • 70° Contra-Angle with attachment. Surgical Head (1375-034) • 70° Contra-Angle with Dental Head (1375-035) • 90° Angle (1375-036) Attachments NOTE: Use only short burs (5090 series) and extra short burs (5089 series) with these attachments.

  • Page 17: Handpiece Operation

    Handpiece Operation 2.3.1 Tubing Set Attachment (E9418) for the MicroPower High Speed Drill WARNING: When not in use and prior to connecting or removing attachments and The E9418 Tubing Set is used to provide accessories, always place the handpiece in its irrigation for blades, bits and burs while using safe, or off position, if applicable.

  • Page 18: Preoperative Functional Test For The Micropower High Speed Drill

    Any operating diffi- played on the controller). culties should be reported to your local Sales Representative or ConMed Linvatec Customer Service. 1. Before operating the drill, check for: • any loose or missing parts •...

  • Page 19: High Speed Drill Attachments And Accessories

    Without any user input selections, the 2.3.3 High Speed Drill Attachments handpiece will initially operate at its default and Accessories setting. (b) Depress the handpiece Activation CAUTION: Do not operate the MicroPower Lever or the preferred footswitch High Speed Drill without the proper bur pedal.

  • Page 20: Removing The Detachable Handpiece Activation Lever

    (b) Depress the ribbed portion of the 2.3.4 Removing the Detachable detachable Activation Lever. Push Handpiece Activation Lever towards the “SAFE/RUN” Slide until it disengages from the handpiece. CAUTIONS: 1. Before attempting to remove the detachable Handpiece Activation Lever, ALWAYS place the “SAFE/RUN” Slide in the “SAFE”...

  • Page 21: Footswitch Operation

    NOTE: There is no oscillate mode with Footswitch Operation these drills. WARNINGS: 1. To avoid unintentional handpiece activation, unplug the footswitch when using a levered handpiece. When the footswitch is attached to the controller it will remain active. 2. The handpiece and footswitch operate on a first come, first served basis.

  • Page 22: Handpiece Cord Button Operation

    Handpiece Cord Button Operation The Advantage, PowerPro and E9000 Controllers allow the user complete system control from within the sterile field. Speed settings can be changed using the handpiece cord button. 1. To enter the Speed menu, press the handpiece cord button either two or three times, quickly.

  • Page 23: Maintenance

    MicroPower System instruments and will pro- vide competent and efficient service. Service at ConMed Linvatec at the indicated service inter- vals is mandatory to keep your product warran- ties in effect. Any services and/or repairs done...
  • Page 24 Table 2: Maintenance Schedule Catalog (Months) Number Product Description 6020-026 MicroPower High Speed Drill (Removable Lever) • 6021-026 MicroPower High Speed Drill (Permanent Lever) • 1375-032 20° Angle Attachment • 1375-033 Extra-Long 20° Angle Attachment • 1375-034 70° Contra Angle Attachment w/ Dental Head •...

  • Page 25: Cleaning And Sterilizing

    3. Do not lubricate any handpieces. controller prior to cleaning. 3. Ensure the handpiece cord is securely fas- 4. ConMed Linvatec does not recom- tened to the handpiece during cleaning. mend immersing any of our hand- 4. With the nose of the handpiece facing...

  • Page 26: Attachment Lubricating Instructions

    6. Keeping the nose of the handpiece pointed Before using, shake the can well. Read all downward, rinse under running water to the information and instructions on the remove all traces of soap. Rinse all attach- spray can label. ments likewise. If the spray nozzle is not attached, securely attach it to the spray can dispenser.

  • Page 27: Sterilization Information

    NOTES: 3.1.4 Sterilization Information 1. The following guidelines do not guarantee that the device is sterile after team sterilization is safe and effective and the procedure. Your institution is still has no contraindications for its use in ster- responsible for the normal sterility ilizing powered surgical handpieces, assurance validation.
  • Page 28 All handpieces and attachments may be processed in a pre-vacuum steam sterilizer (Steam Pre-vacuum) or in a gravity (downward) displacement sterilizer (Steam Gravity). Place handpiece(s), handpiece cord(s), and/or attachments/accessories in an appropriate instrument tray or a fully perfo- rated, wrapped container, when applicable. Follow the recommended minimum sterilization exposure times listed on the following pages.

  • Page 29: Troubleshooting

    ♦ Removable activation lever ♦ partially connected. Completely connect the activation is displayed on the lever (See “2.3.4 Removing the controller. Detachable Handpiece Activa- ♦ Faulty handpiece. tion Lever” on page 16). ♦ Return handpiece to ConMed Linvatec for service.

  • Page 30: Bur Guard Testing Procedure

    Medium Bur Guard (1375-012) Testing NOTE: Bur and neuro guards are to be Prior to testing, remove the guard from the returned to the factory or a ConMed handpiece. Linvatec authorized service facility for routine maintenance every six (6) months.
  • Page 31 • Overheating might occur if bearings are 6. To install a bur: worn or are not kept clean. If overheat- (a) Select a proper length bur for the ing occurs while a SmartGuard Protector guard. Sleeve is attached to the Medium Bur (b) Ensure the bur lock is in the unlocked Guard, the SmartGuard Protector Sleeve position.
  • Page 32 7. Operate the handpiece for at least 30 sec- onds. Stop the handpiece and carefully feel the end of the guard where the guard encases the shaft of the bur for overheating. If overheating is noticed, return the guard for service. Or, if the SmartGuard Protector Sleeve changes color from PURPLE to PINK, immediately discontinue use of the bur guard.

  • Page 33: Technical Specifications And Accessories

    TECHNICAL SPECIFICATIONS and ACCESSORIES System Environmental Requirements Operating: Ambient Operating Temperature: + 50°F to 104°F (+ 10°C to + 40°C) Relative Humidity: 30% to 75% Atmospheric Pressure: 700 hPa to 1060 hPa Transport and Storage: Ambient Temperature: - 40°F to 158°F (- 40°C to + 70°C) Relative Humidity: 10% to 100% including condensation Atmospheric Pressure:...

  • Page 34: Handpieces, Attachments And Accessories

    Handpieces, Attachments and Accessories Description Handpieces and Footswitches 6020-026 MicroPower High Speed Drill, Detachable Lever 6021-026 MicroPower High Speed Drill, Permanent Lever 5020-053 Two Pedal Footswitch C9863 Three Pedal Footswitch MicroPower Guards & Attachments 1375-012 Medium Bur Guard 1375-011 Long Bur Guard 1375-023 Cloward Extra Long Bur Guard 1375-032...
  • Page 35 Description MicroPower Miscellaneous 1375-037 Pana Spray 5020-057 Replacement Safety Slide 5020-058 Handpiece Replacement Lever 5053-008 Bur Rack 5053-124 Cleaning Brush MicroPower Irrigation Accessories 5040-130 Reusable Irrigation Handpiece Clip 5040-200 Reusable Medium Bur Tip 5040-201 Reusable External 70° & 90° Angle Tip 5040-202 Reusable Long Bur Tip 5040-203...
  • Page 40 Linvatec Europe B1070-Brussels, Belgium 0123 All rights reserved. Printed in USA W41-116-004 Rev. A 03/2006...

This manual is also suitable for:

Hall micropower 6020-026Hall micropower 6021-026
