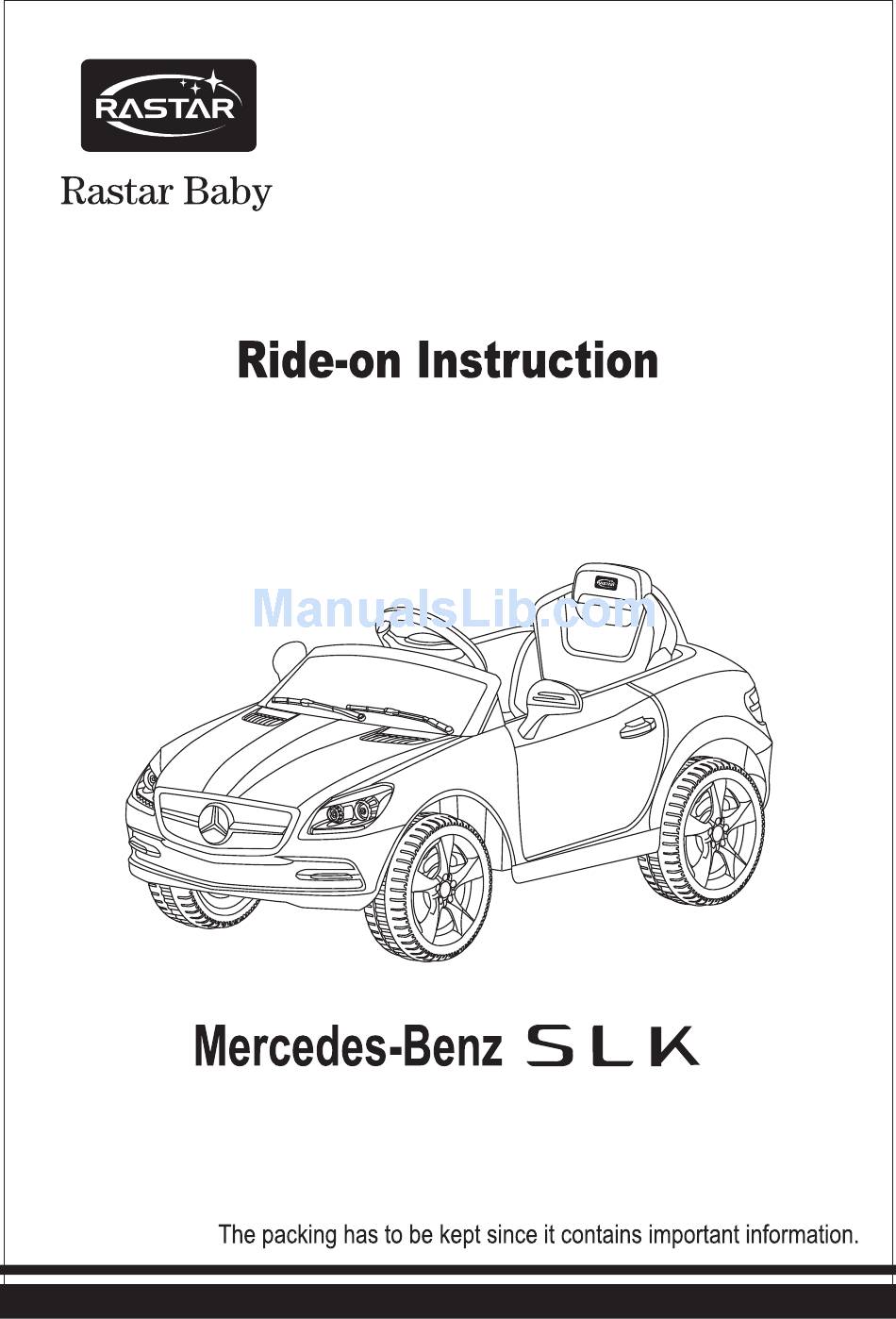

rastar mercedes-benz slk Instruction Manual
  1. Manuals
  2. Brands
  3. rastar Manuals
  4. Toy
  5. mercedes-benz slk
  6. Instruction manual

rastar mercedes-benz slk Instruction Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Advertisement

Table of Contents
loading

Related Manuals for rastar mercedes-benz slk

Summary of Contents for rastar mercedes-benz slk

  • Page 2: Table Of Contents

    CONTENTS ABOUT “RASTAR BABY” PRODUCT SPECIFICATION PARTS ASSEMBLY TRANSMITTER BATTERY REPLACEMENT NORMAL OPERATION STORAGE BATTERY MAINTENANCE OPERATING FUNCTION OVERCURRENT PROTECTOR WARNING MALFUNCTION SHOOTING GUIDE RIDE-ON ELETRICAL ILLUSTRATION MAINTENANCE ABOUT “RASTAR BABY” PRODUCT Thank you for purchasing our products. We have devoted ourselves to creating comfortable and safe electronic remote control toys, and creating a colorful childhood for your children.

  • Page 3: Specification

    SPECIFICATION 110x57.8x49cm Size: For child: Age 3-8 Max.weight loaded 25kg Net Weight 10.3kg Power Rechargeable Speed 3-4km/h Battery 6V 7Ah lead-acid / 6V 10Ah lead-acid / 6V 12Ah lead-acid Power supply Input:AC220V 50Hz Output:DC6V 500mA/1000mA Charging period Charged for 8-12h/time Run for 1-1.5h Rechargeable times More than 300...
  • Page 4 Notice: 6 pieces of protector respectively cover on the ends of front/rear axle and steering whee. Please remove the protectors before assembly.

  • Page 5: Assembly

    ASSEMBLY Press the ends 1 Install wheel of clip, then install the clip to the locking point of rear axle. 15 17 cut off the cable tie Remove the protector(23) on front axle. 1） 2 Orderly install gasket(17), wheel core(14), wheel(5), clip(15), rim cover(6) to front and rear axle, and press tightly.
  • Page 6 2、Install battery and power supply Picture1 Picture2 Battery position Jack Interface 1）Install battery(11) on the battery position. 2）Put battery cover(16) onto two screws holes; lock up with screw(18). 3）Plug the interface to the jack, connect the red terminal and the Black terminal respectively to the anode and cathode of battery.
  • Page 7 4、Install steering wheel Picture1 Picture3 Picture2 Wire claw Interface Jack Remove the protector(23) on steering axle. 1） Install the steering wheel(2) to the designated position by using screw pin(19) 2） and hexnut(13), see picture 1. Plug the steering wheel interface to the jack, see picture 2. 3）...

  • Page 8: Transmitter Battery Replacement

    7.Please make periodical inspection for storage battery, especially for adapter wires and plugs. 8.Please turn off the switch when the ride-on is not in use. Please make full charging after long-term suspended. 9.ONLY use the charger supplied by Rastar or Rastar Baby.

  • Page 9: Storage Battery Maintenance

    30 days. This will ensure the normal use of the battery, otherwise, the battery can not be charged. 5.For safety, please ONLY use the battery supplied by Rastar or Rastar Baby, whichhas been protected with polarity anti-reverse structure.

  • Page 10: Overcurrent Protector

    Ride-on Function Spare Switch is under the dash board. Key Hole Volume Switch Headlight Switch MP3 Socket Forward Radio control / Battery operated Stop Mode Switch Reverse Pedal Switch Insert the key into the key hole, then turn the key until you hear a click sound. Forward: press “forward”, step on pedal switch, ride-on will move forward.

  • Page 11: Warning

    WARNING Please read carefully since it contains important information. 1.Children are not allowed to operate charging. It should be operated by adult. 2.Ride-on operation should be under adults’ supervision. 3.This product should be assembled by adult; or checked by adult to make sure proper assembly.

  • Page 12: Malfunction Shooting Guide

    7.Take out batteries if ride-on is not in use for an extended preriod in case liquid leakage. Remove batteries when they are used up. 8.Supply terminals are not to be short-circuit. 9.This ride-on is not for children under 36 months since it may have small parts that can detach during running.

  • Page 13: Maintenance

    MAINTENANCE 1. This product comes with maintenance service. 2. Maintenance fee is required for product malfunction caused by improper operation or man-made factor, or if it has exceeded guarantee. 3. Maintenance service can be provided by the sellor and us. Invoice, maintenance record and malfunctioning product/part(s) will be required.
  • Page 14 "Mercedes-Benz", and the design of the enclosed product are subject to intellectual property protection owned by Daimler AG.They are used by Rastar (HK) Industrial Company Limitedunder license. Licensee: RASTAR (HK) INDUSTRIAL COMPANY LIMITED Manufacturer: FUJIAN XINGHUI BABY SUPPLIES CO.,LTD. Add : North Area, Zhaoan Industrial Park, Zhangzhou, Fujian, China.
