kinetic road machine Instruction Manual

kinetic road machine instruction manual

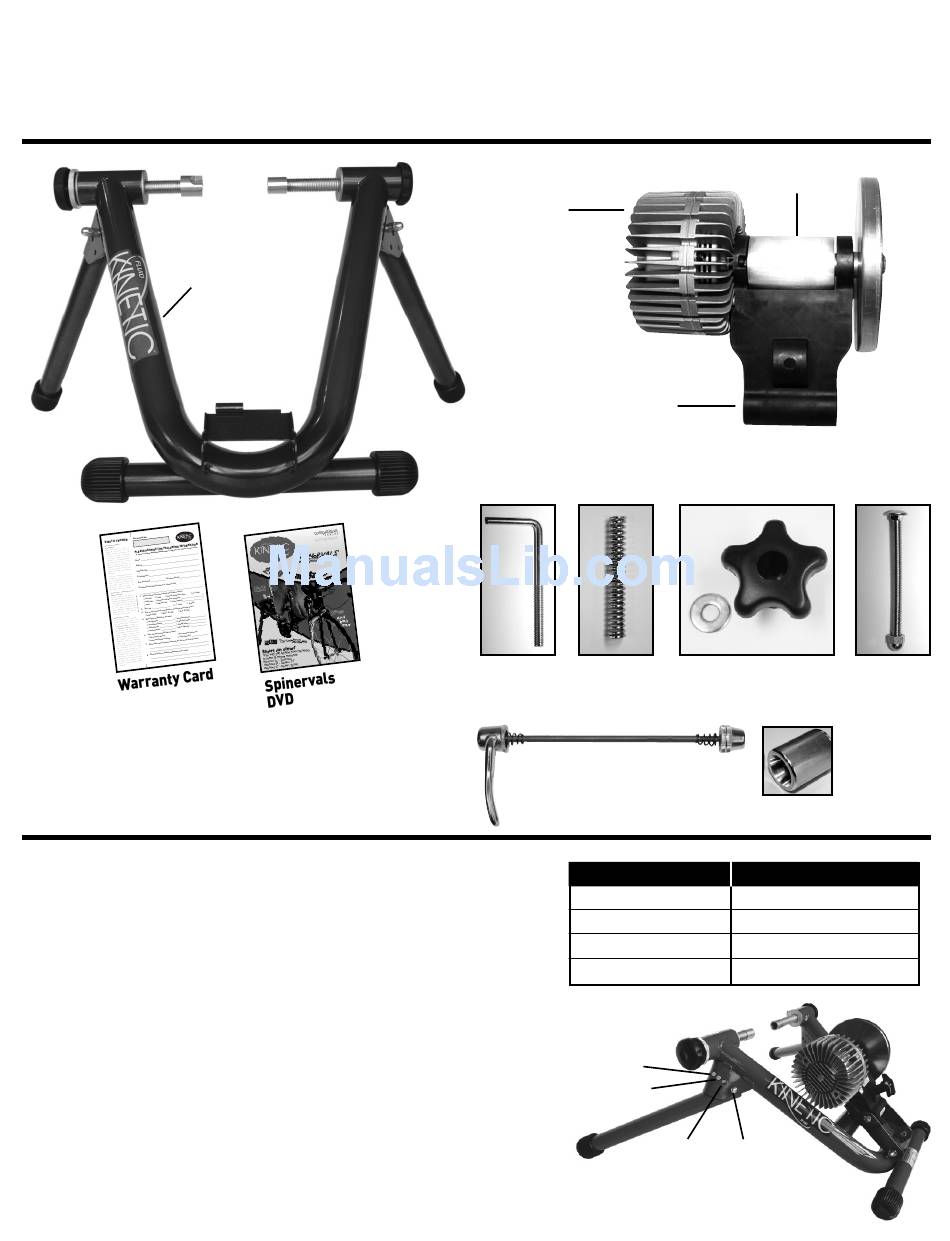

components
Part A
Folding Frame
PLEASE NOTE: If any of the components listed are missing,
please call our Customer Service hotline at 877-226-7824.

adjustable folding legs

Your Kinetic Trainer is designed for use with road, mountain, BMX and
recumbent bikes. Before adjusting these legs, you must know your bike's
wheel size, which is printed on the sidewall of every tire.
The folding legs have four mounting positions. When shipped from the factory,
the leg is mounted in Position 1 on the main frame and will function with all
tire sizes. However, to lower the drive wheel and maintain good riding position
it is best to adjust the leg position to match your tire size. Ideally, your bike
tire should be approximately 1-1
to determine the recommended leg position.
Use wrenches to remove the acorn nut. Remove bolt. Select appropriate hole
and insert bolt through frame and leg. Attach acorn nut and tighten securely
until some resistance is felt in the movement of the folding leg. Repeat on
opposite side. The appropriate leg position may vary for some wheel
diameters because of tire thickness. Choose the setting that positions the bike
as level as possible. See chart at right.
When unpacking, check that the following components are present.
1
/ " from the floor. Use the chart shown here
2
Part B
Resistance
Unit
Yoke
Because we test each trainer there will be tire marks on the roller.
Part C Part D
L-Bolt Spring
Part M
Skewer
frame position maximum tire o.d
Position 1
Position 2
Position 3
Position 4
Position 1
Position 2
Position 3
Roller
Part E Adjustment Part F
Knob & Washer
Mounting
Bolt & Nut
Part N
Small
Cone
Cup
28.75"
27.04"
23.80"
20.90"
Position 4
