ReadyMadeRC – FPV1000 DVR (Digital Video Recorder)
www.ReadyMadeRC.com
RMRC FPV1000 DVR:

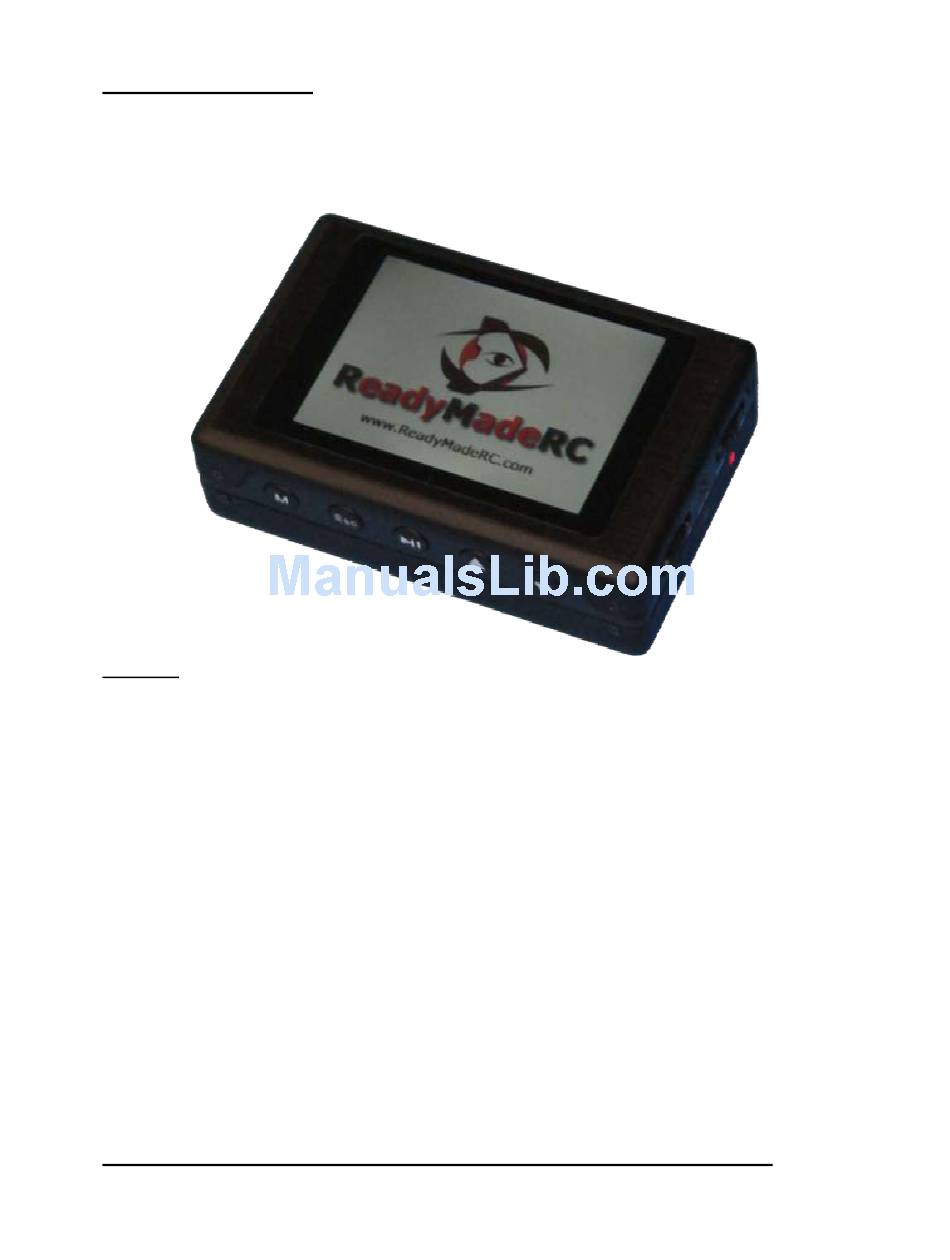

The RMRC FPV1000 DVR is a "Digital Video Recorder" used to capture
standard definition video signals to an SD card. A common use for this DVR is to
record ground station footage of flying or driving in FPV.
Includes:
1) DVR
2) 3.7v 1000mAh Lithium Battery
3) Soft Carrying Case
4) 2 AV in/Out cables one with a +5v barrel connector supplied from the DVR's
internal power
5) "Quick Record" remote switch
6) US plug style wall wart charger
7) USB Cable
8) 1 Bare Ground station Accessory Cable (fits A/V and remote switch plug)
9) IR Remote Control
RMRC FPV1000 DVR Breakdown (from left to right on each surface):
1 of 12
Advertisement
Subscribe to Our Youtube Channel
Summary of Contents for RMRC FPV1000
- Page 1 RMRC FPV1000 DVR: The RMRC FPV1000 DVR is a "Digital Video Recorder" used to capture standard definition video signals to an SD card. A common use for this DVR is to record ground station footage of flying or driving in FPV.
- Page 2 ReadyMadeRC – FPV1000 DVR (Digital Video Recorder) www.ReadyMadeRC.com 1) Screen (front) - Where the DVR video and On Screen Display (OSD) info will be presented 2 of 12...
- Page 3 ReadyMadeRC – FPV1000 DVR (Digital Video Recorder) www.ReadyMadeRC.com 2) Top: a) Lock – When in lock mode this function prevents button changes from changing states in the DVR b) Reset – Used to reboot the unit if there is a system crash. A paperclip can be inserted into the hole gently to reset the unit c) AV Out –...
- Page 4 ReadyMadeRC – FPV1000 DVR (Digital Video Recorder) www.ReadyMadeRC.com 3) Bottom: a) "M" = "Menu" control – Used once powered to access the menu settings b) "Esc" = "Escape" – Used once in the menu when within sub folders to step back as far as the menu c) “>II”...
- Page 5 ReadyMadeRC – FPV1000 DVR (Digital Video Recorder) www.ReadyMadeRC.com 4) Left: a) IR Port – Allowing for control with an IR controller b) SD Card Slot – For up to 32GB SD Card, Class 10 recommended c) Speaker/Mic Port – Within the unit is a playback speaker and internal...
- Page 6 ReadyMadeRC – FPV1000 DVR (Digital Video Recorder) www.ReadyMadeRC.com 5) Right: a) "On/Off" Switch – Used to power on and off the unit for "Standard Record Mode" b) "AV In" – Audio/Video input from audio/video source c) "Stop Rec" – Starts and stops recording in "Standard Record Mode"...
- Page 7 ReadyMadeRC – FPV1000 DVR (Digital Video Recorder) www.ReadyMadeRC.com 6) Back: a) “Battery Door” – Reveals the internal battery b) "Battery” – Inside the battery bay 7 of 12...
- Page 8 ReadyMadeRC – FPV1000 DVR (Digital Video Recorder) www.ReadyMadeRC.com Navigating the DVR: 1) Power up the unit and press the "M" for menu control 2) You can use the up and down buttons to navigate through the menu options and press "Play/Pause" to select an option.
- Page 9 ReadyMadeRC – FPV1000 DVR (Digital Video Recorder) www.ReadyMadeRC.com i) Firmware Update – No, Yes j) SD Card Info – All [space], Free [space] k) Default Setup – No, Yes l) Version – Lists the firmware version installed 3) Event Playback – For this section if there are files recorded they will be listed...
- Page 10 ReadyMadeRC – FPV1000 DVR (Digital Video Recorder) www.ReadyMadeRC.com Using the DVR Recording: The RMRC DVR has two methods to begin recording: "Quick Record" or "Standard Record Mode" 1) Quick Start Mode Quick Start Mode utilizes the push button switch connected to the A/V out port: With the DVR off and the "Quick Record"...
- Page 11 ReadyMadeRC – FPV1000 DVR (Digital Video Recorder) www.ReadyMadeRC.com 2) Standard Record Mode Standard Record Mode requires the user to hold the side power switch from off to on for 2 seconds and the unit will power up lighting the DVR screen and the side red light.
- Page 12 ReadyMadeRC – FPV1000 DVR (Digital Video Recorder) www.ReadyMadeRC.com 2 seconds and the screen should turn on and the DVR show up on the connected computer as a digital camera might. 12 of 12...
