Summary of Contents for Edge CE-670-FDV SERIES

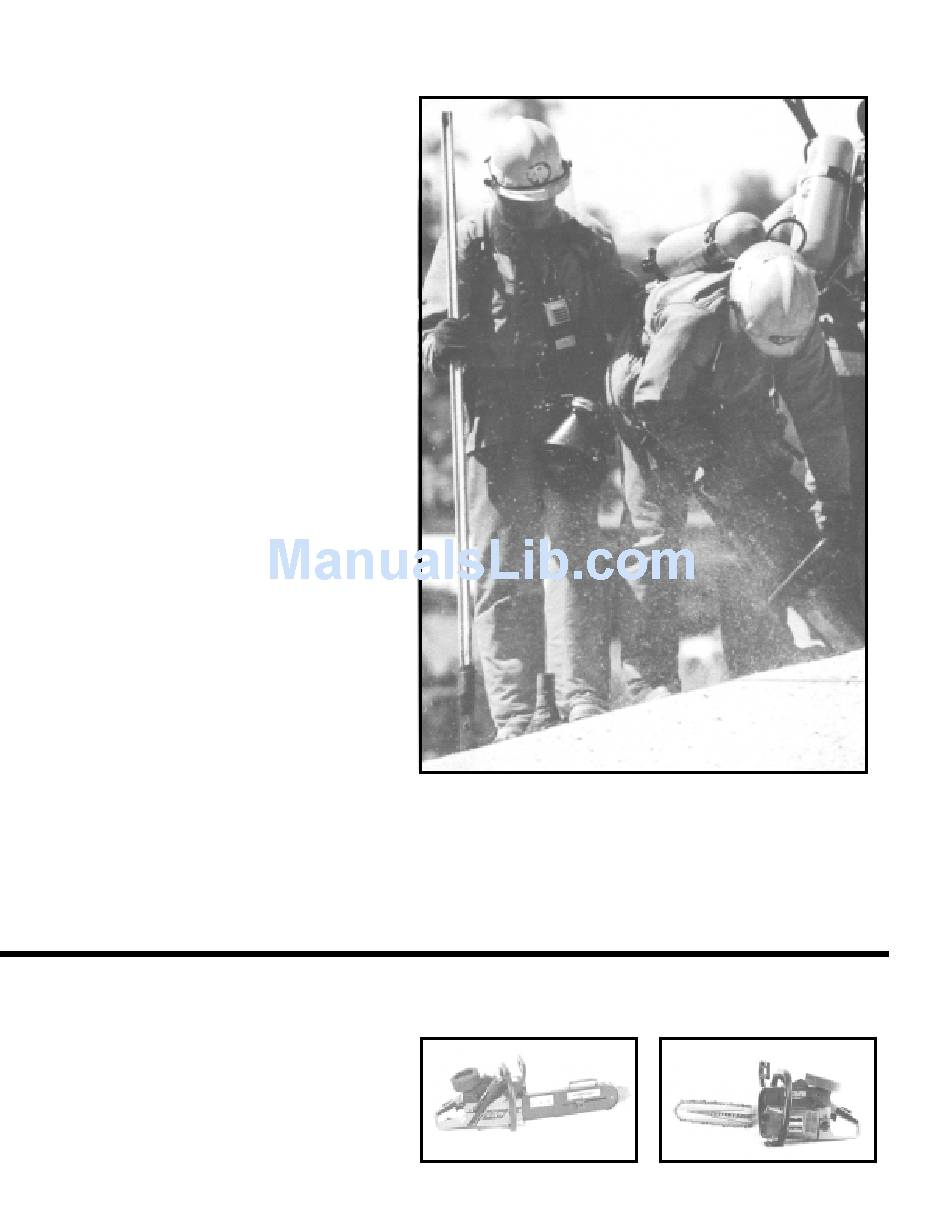

- Page 1 CUTTERS EDGE Ventilation Saws CE-670-FDV SERIES GUARD/DEPTH GAUGE SERIES CE-670-FDV/D6 CE-670-FDV/D8...
- Page 2 For information, contact Edge Industries, Inc. Notice of Liability: The information in this manual is distributed on an “As Is” basis, without warranty. Edge Industries, Inc. shall have no liability to any person or entity with respect to any liability, loss, or damage caused or alledged to be caused directly or indirectly by the instructions contained in this manual.
- Page 3 Cutters Edge Ventilation Saws Operation & Maintenance CUTTERS EDGE P.O. Box 846 3855 23rd Street Baker City, Oregon 97814...
-
Page 4: Table Of Contents
Cutters Edge Ventilation Saws Operation & Maintenance Table of Contents INTRODUCTION KICKBACK WARNING DESCRIPTION Part One SET-UP 8-16 D6 & D8 GUARD / DEPTH GUAGE Part Two OPERATION 17-20 Part Three MAINTENANCE 21-23 SPECIFICATIONS PARTS & ACCESSORIES WARRANTY ORDER FORMS... -
Page 5: Cutters Edge Ventilation Saws
This manual is provided to assist you in learning the safe and proper set-up, operation and maintenance of your new Cutters Edge Ventilation Saw. However, you should not attempt to use this tool without knowledge of the safe and proper application of ventilation saws in fighting fires. - Page 6 There are two types of kickback that can be encountered with the improper use of a chainsaw or the Cutters Edge Ventilation Saw. Both types are the result of an equal and opposite reaction that occurs when the chain is suddenly stopped. This kickback movement is so fast that the operator cannot react quickly enough to avoid serious injury.
- Page 7 OPERATION & MAINTENANCE YOUR CUTTERS EDGE VENTILATION SAW When you receive your Cutters Edge Ventilation Saw, check that all of the following are included in the box: Power Head Funnel Loop of Fire Department Style Carbide-Tipped Chain Bar Scabbard Fire Department Style Guide Bar...
-
Page 8: Set-Up
Part One Set-Up This section will cover assembly of the saw and prepara- tion for operation. All necessary tools and equipment have been included with your saw. THE CHAIN BRAKE The saw is shipped with the chain brake engaged. This chain brake is designed to stop the rotation of the chain in l ess than one-twentieth of a second. - Page 9 OPERATION & MAINTENANCE THE BAR PLATES THE CHAIN COMPONENTS Now remove the outer bar plate. Note that the two bar Before installing the chain, take a moment to become fa- plates are similar (Fig. 5) but that the inner bar plate has an miliar with the components of the chain (Fig.
- Page 10 Lay the saw on its side and remove the fuel tank cap. Fill with a fresh mixture of high octane leaded or unleaded gasoline and Cutters Edge Synthetic 2-Cycle Oil or a high quality two-cycle oil. Replace the cap. NOTE:...
- Page 11 This anti-rust, anti-wear formula is recom- mended for use on all ventilation saws and other conven- tional chainsaw. Grip the top handle firmly and step on the outer edge of the THE FILTERS back handle (Fig. 13). Remove the pre-filter and spray it lightly with filter oil. Then reinstall it on the filter.
- Page 12 Now your Cutters Edge Ventilation Saw is assembled and properly prepared for use. Fig. 15. The chain will sag when hot.
- Page 13 Cutters Edge D-8, whether you are all but that chain at the tip exposed for cutting. i nstalling it on a new Cutters Edge Saw or upgrading your The D-8 allows you to set a specific depth of cut, preventing older Cutters Edge Saw.
- Page 14 D-8. The standoffs will pop into the holes in cover, guide bar and chain according to the instructions in the D-8 and the guide bar. your Cutters Edge Ventilation Saw Operations and Main- tenance Manual. The Slotted Guide Bar...
- Page 15 Position the outer section properly, with the spacers be- extension. tween the cutters on the chain. Tap it into place. Your Cutters Edge Ventilation Saw with the D-8 Guard/ The Adjusting Knobs Depth Gauge installed is now ready for use.
- Page 16 Notice of Liability: The information in this manual is distributed on an "As Is" basis, without warranty. Edge Industries, Inc. shall have no liability to any person or entity with respect to any liability, loss, or damage caused or alleged to be caused directly or indirectly by the instructions contained in this manual.
-
Page 17: Operation
Ventilation Saw will be available for service. In the field, you should follow certain procedures for the use of your saw to insure safe and efficient operation. The basic rules for safe operation of your Cutters Edge Ventilation Saw include: 1) Wear full turn-outs with gloves, face shield or goggles. - Page 18 18 / CUTTERS EDGE VENTILATION SAWS PENETRATION CUT ONE-STEP STARTING PROCEDURE To begin your penetration cut, hold the saw at an angle of Since you have properly warmed up the saw, you can start approximately forty-five degrees to the roof (Fig. 18). This it now using the One-Step Starting Procedure.
- Page 19 There are many types of ventilation cuts. We will demon- strate some of them for your reference. For more informa- tion about the principles and techniques of ventilation, please refer to the Cutters Edge Training Video and its supplemental manual. We also recommend the book "VENTILATION METHODS AND TECHNIQUES"...
- Page 20 23). Fig. 25. Trench cut. CUTTING OTHER MATERIALS Your Cutters Edge Ventilation Saw may be used to cut many other materials and in conventional applications, such as downed trees, storm damage, windfalls, cutting Fig. 23. Use the rafters as the pivot points.
-
Page 21: Part Three
Remove the guide bar and inner bar plate. Wipe all debris from them. Clean out the groove using a bar cleaning tool, the edge of a bar plate, or a putty knife. Also be sure to thoroughly clean the oil holes on both sides of the bar. If there is excess buildup on the bar, clean it off with solvent. - Page 22 22 / CUTTERS EDGE VENTILATION SAWS NOTE We recommend lubricating your sprocket tip as soon as safely possible after cutting, while the bar is still hot. If this is not possible, you may run the saw to heat up the sprocket tip and lute it before starting the cleaning procedure.
-
Page 23: Maintenance
- as with all tools - they have their limitations. With Fig. 30. The top cover. proper care and, especially, common sense, your Cutters Edge Ventilation Saw will give you many years of outstand- ing performance and reliability. NOTE If you should have questions about the operation and/or... - Page 24 BEARINGS: Heavy-duty deep-groove ball bearings on crank TYPE: Automatic, adjustable shaft, needle cages on connecting rod & piston pin LUBRICANT: Cutters Edge Bar & Chain Oil; High quality MAX. ENGINE SPEED: 12,500 RPM "Bar & Chain Oil" OIL TANK CAPACITY: 15.2 fl. oz. (0.45 I)
- Page 25 RIGHT SIDE #RK-B3E-R LEFT SIDE #RK-B3E-L PRESETS (Package of 25) #PS-B3E TIESTRAPS(Package of 25) #TS-B3E DRIVELINKS(Package of 25) #DL-B3E CHAIN SPINNER #CS1025 CHAIN BREAKER #CB1020 CHAIN SHARPENER with DIAMOND WHEEL #CG1136 FOR BULK CHAIN CONTACT CUTTERS EDGE OR YOUR LOCAL DEALER.
- Page 26 6. Responsibilities of me purchaser under this Warranty: A. To deliver or ship the saw covered under this Warranty to the dealer from whom it was originally purchased or to an Edge Industries, Inc.Ñ autho- rized servicer center. Time limits on warranties are measured to the date of delivery or shipment.
- Page 27 Fire Technology Services 22422 Sunlight Creek El Toro, CA 92630 ORDER FORM CUTTERS EDGE TRAINING VIDEO Please send me ( ) copy (copies) of the Cutters Edge Training Video, plus the Supplemental Manual. Name:____________________________________________________________________ Street:____________________________________________________________________ City, State & Zip:____________________________________________________________ Phone:________________________________ Amount Enclosed:_____________________ Each copy of the Training Video and Supplemental Manual is $50.00, plus $3.00 for...
- Page 28 Division of Edge Industries, Inc. Cutters Edge Offices East Coast Service Center P.O. Box 846 Eastern Fire Equipment Services 3855 23rd Street 326 Pleasant View Rd. Baker City, Oregon 97814 New Cumberland, PA 17070 Telephone: 541-524-9999 Tel: 717-412-7746 Fax: 541-524-9996 Email: office@efesinc.com...
