TemperZone HAN-L5 Operating Instructions

SELECTABLE RE-START AFTER POWER FAILURE

The HAN-L5 controller can be field set by the building occupier for the following function.
a) Auto re-start after power failure.
b) No re-start after power failure.
Setting of the control for one of the above options is as follows.
a) Auto re-start after power failure.
Note: Batteries must be installed for this function to operate.
1) Press time clock override button and move display bar under time display to "ON"
position or to "AUTO" position following "ON" position.
In this setup mode should a power failure occur, the control will automatically re-start
the air conditioner. This will take place even if the control is switched off when the
power failure occurs.
b) No re-start after power failure.
Note: Without batteries installed this setting is not required.
With batteries installed set the control in the following sequence.
1) Press timer override button and move display bar to "OFF" position. In this position the
control will not restart after a power failure.
2) If auto start/stop programs are set.
Press override button and move bar to "OFF" then to "AUTO" position.
After this sequence the control will not restart after a power failure unless the time is
within a program "ON" time.

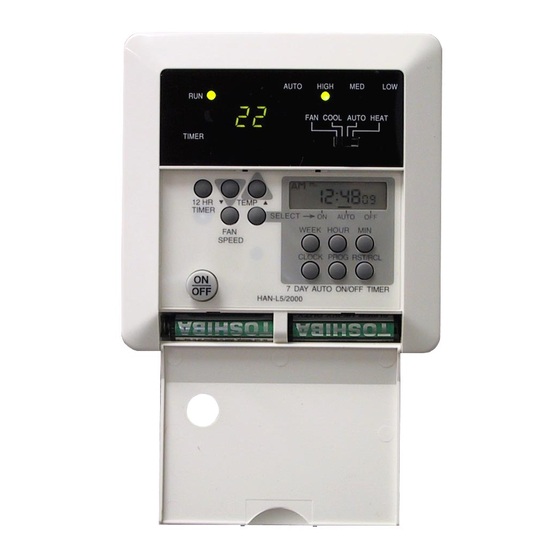

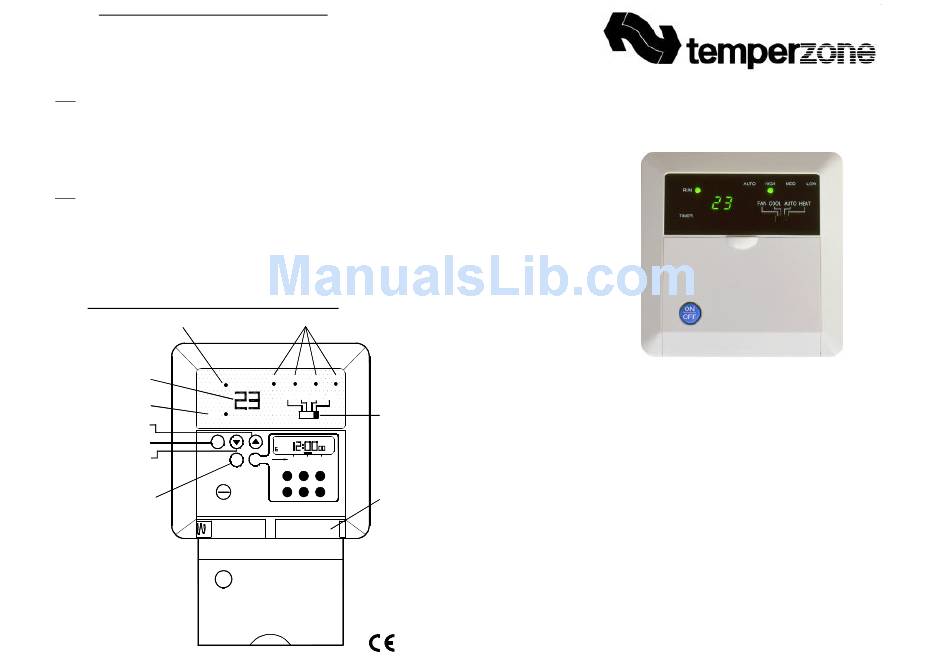

DIAGRAM OF HAN-L5 WITH FRONT DOOR OPEN

SYSTEM ON LIGHT
LED DISPLAY
COUNT DOWN TIMER ON
TEMPERATURE UP
SET COUNT DOWN TIMER
TEMPERATURE DOWN
FAN SPEED SELECT
FAN SPEED INDICATORS
AUTO HIGH MED LOW
RUN
FAN COOL AUTO HEAT
MODE SWITCH
TIMER
AM Mo Tu We Th Fr Sa Su
12HR
TIMER
ON
FAN
ON AUTO OFF
OVERRIDE
SPEED
WEEK HOUR MIN
CLOCK PROG RST/RCL
ON
OFF
BATTERIES
7 DAY AUTO ON/OFF TIMER
HAN-L5
AIR CONDITIONER OPERATING
INSTRUCTIONS
HAN-L5 MICROPROCESSOR CONTROLLER
Congratulations on your purchase of a quality air conditioning system. Your
air conditioning system is equipped with the latest HAN-L5 microprocessor
system controller. The HAN-L5 is a sophisticated controller incorporating
advanced trend optimising software to maintain a high level of comfort
control. To cater for the various climatic conditions you can select fan only
for air circulation, heat or cool operation or if you prefer set the control to
auto for fully automatic temperature control. As the controller is pre-
programmed for your comfort, operation of the control is conveniently easy.
The HAN-L5 also features 2 easy to use timer functions. A count down
timer providing delay stop or delay start feature and can be set for 1 to 12
hours. A 7 day time clock is also incorporated which allows auto start/stop
settings. A total of 6 ON/OFF setting times can be selected. The 7 day time
clock has battery back up to prevent loss of settings should the main power
supply be turned off.
Full operational instructions are provided in the following.
