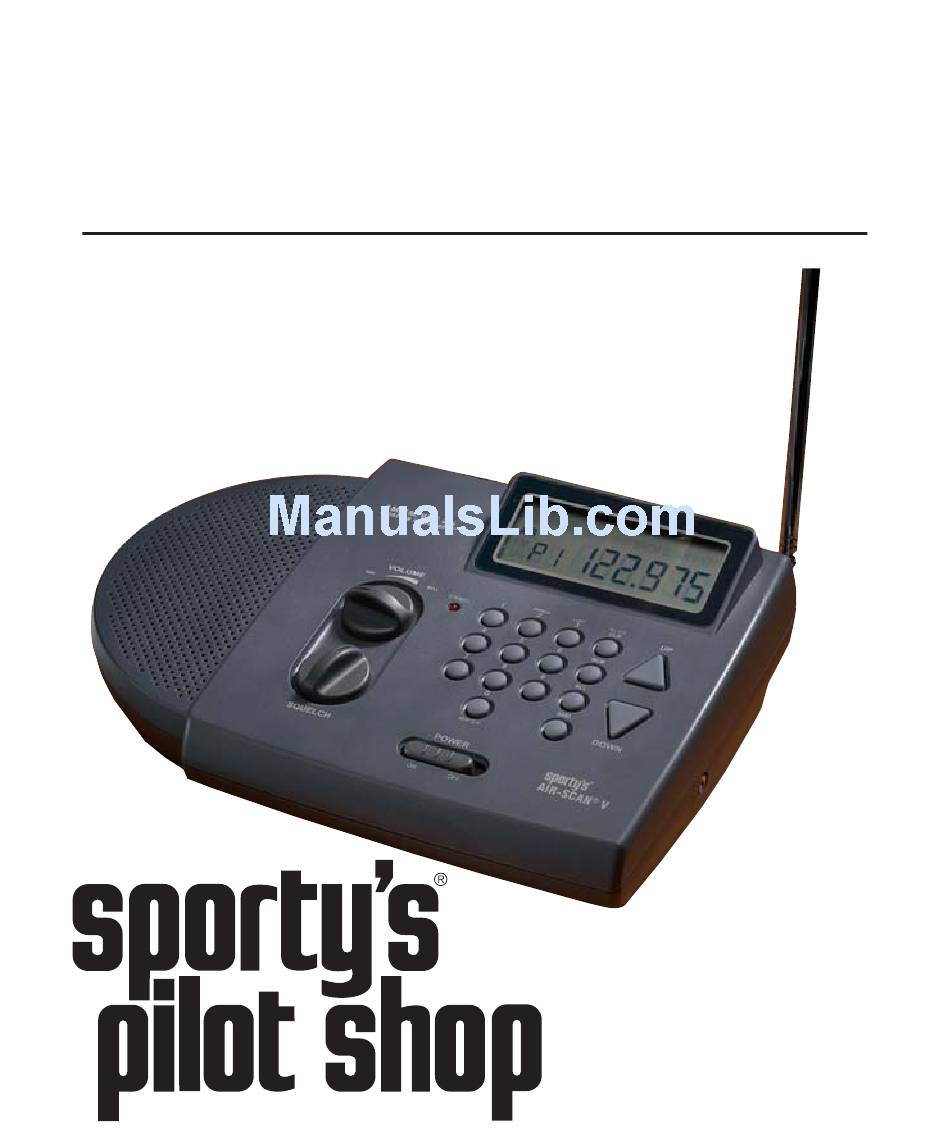

- Page 1 Sporty’s ® Air-Scan ® Scanner with AM/FM Radio & Aviation Interrupt ™ Operator’s Manual © 2004 Sportsman’s Market, Inc.
-
Page 2: The Fcc Wants You To Know
The FCC wants you to know This equipment has been tested and found to comply with the limits for a scanning receiver, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. - Page 3 3. Select AM, FM or AIR (AVIATION) by pushing the Band key until the desired band appears on the screen. 4. Using the keypad, enter the desired frequency. 5. Listen and enjoy. Directions for Sporty's ® Exclusive Aviation Interrupt ™...
-
Page 4: Table Of Contents
Table of Contents General Information ..........3 Introduction. -
Page 5: General Information
Sporty's Air-Scan V is a desktop scanner with AM/FM/Aviation radio and an exclusive Aviation Interrupt™ feature. It is ideal for use in your home, office or hangar. -
Page 6: Warranty
Sporty's Pilot Shop, Clermont County/Sporty's Airport, Batavia, Ohio 45103-9747. NOTE: When returning your unit for warranty service, do NOT include any accessories. If your Air-Scan V is no longer under warranty, you may still have it serviced at Sporty's ® . Call Sporty's Customer Service at 513.735.9000 for instructions. - Page 7 • Never touch an external antenna when the danger of lightning is present. • Abrasive cleaners or chemical solvents may mar or damage the case. Clean the transceiver with a soft cloth dampened with a mild detergent solution. • If operating the radio at temperatures outside the range of -20°F to 122°F (-30°C to 50°C), the LCD (screen) may not display the selected frequency.
-
Page 8: Controls
Controls front view i,j, VOLUME INTERRUPT LIGHT ALL CLR STEREO DOWN BAND POWER SQUELCH ® ®... - Page 9 Controls right view rear view bottom view...
-
Page 10: Front View
This section serves only to identify and briefly describe the Air-Scan ® V's external features. Please see the Operating Instructions section for detailed instructions on the use of the Air-Scan V. Front View (A) Squelch Rotate clockwise to increase squelch and counterclockwise to decrease squelch on the Aviation Band. -
Page 11: Right Side View
(L) Memory Key This key is used while storing frequencies in one of the five memory channels. (M) Recall Key This key is used to recall stored frequencies from the five memory channels. (N) Band Key This key is used to select the band (AM, FM or Aviation). (O) Light Key This key activates the back lighting for the screen. -
Page 12: Rear View
Rear View (S) DC Adapter (T) Speaker Bottom View (U) Battery Cover... -
Page 13: Operating Instructions
Operating Instructions Manual Frequency Selection The Air-Scan ® V will receive 2,280 Aviation frequencies (118.000 MHz to 142.975 MHz), 118 AM frequencies (530 kHz to 1700 kHz) and 102 FM frequencies (87.7 MHz to 107.9 MHz). The frequency currently selected and band are always displayed on the Air-Scan V's screen. 122.975 From the example above, the Air-Scan V is receiving 122.975 MHz. -
Page 14: Frequency Search
Frequency Search To manually search through the frequency range of any of the bands (AM, FM or Aviation), the Up key or Down key may be pressed at any time to select the next higher or lower frequency. This uses 10 kHz steps in the AM frequency range, 100 kHz steps in the FM frequency range and 8.33 kHz steps in the Aviation frequency range. -
Page 15: Frequency Memory
Frequency Memory The Air-Scan ® V has five memory channels on the Aviation band numbered 1 to 5 to store those aviation frequencies used most often and for use with the Aviation Interrupt ™ feature. NOTE: In Aviation Interrupt mode, memory channel 1 has priority over everything, including all other memory channels. -
Page 16: Memory Recall
Once the desired memory channel is selected, press the Memory key and the frequency will be stored. If you are overwriting an existing memory channel, the Air-Scan ® V will beep to let you know that a frequency is already stored there. You must push the Memory key a second time to store the new frequency. -
Page 17: Memory Scan
followed by the Up key for every frequency change instead of having to enter each frequency manually. While in the Recall mode the only entries accepted are entries between 1 and 5, the Up or Down key, the Clear key or the Light key. All other inputs cause the Air-Scan V to beep. Remember, you may press the Clear key at any time to exit the Recall mode. - Page 18 NOTE: It is very important that the squelch be properly adjusted prior to initiating a memory scan. The background static received with the squelch off may be strong enough to disrupt a scan. If a scan gets "stuck" on a frequency with too much background noise, increase the squelch or press and hold the Up or Down key for one second to skip that frequency and resume scanning.
-
Page 19: Memory Clear
Memory Clear To clear or erase a memory channel, select the Aviation band (press the Band key until AIR appears on the screen), press and hold the Clear key followed by the Memory key. Release the keys when MEM CLR is displayed on the top line of the screen. MEM CLR 122.975 The first memory channel with a stored frequency will be displayed on the bottom line of the... - Page 20 To activate Aviation Interrupt ™ , select an AM or FM frequency you wish to listen to, then press the Priority key (2 key). While you listen to your AM or FM broadcast, the Air-Scan ® V silently scans up to five memory channels for activity. If broadcast activity is found on any of these channels, the Air-Scan V interrupts the original AM or FM broadcast and plays the aviation transmission.
-
Page 21: Low Battery
Low Battery Indicator When the batteries need to be replaced, BATT will be displayed at the top of the screen and the displayed frequency will flash. BATT 122.975 Screen Lighting Press and release the Light key (3 key) to activate the Air-Scan ®... -
Page 22: Accessories
Accessories Any of the following accessories may be ordered on the Internet at sportys.com or by calling Sporty's Pilot Shop at 1.800.SPORTYS (776.7897) or 513.735.9000, or faxing 513.735.9200. Rooftop Aviation Antenna (#8107A) Includes antenna, hardware for mounting, and 50 ft. of cable. -
Page 23: Specifications
Specifications General Receive Frequencies 2,280 Aviation frequencies from 118.000 MHz to 142.975 MHz 118 AM Frequencies from 530 kHz to 1630 kHz 102 FM Frequencies from 87.7 MHz to 107.9 MHz Memory/Priority Channels Five channels numbered 1 to 5 on Aviation band Weight (including antenna) 2.65 lb with batteries 1.75 lb without batteries... - Page 24 Sensitivity Aviation Band 20µV for 20dB (stn)/n) with 1 kHz 60% Modulation AM 20.0µV for 20dB (stn/n) with 1 kHz 60% Modulation FM 5.0µV for 20dB (stn/n) with 1 kHz 45 kHz Modulation Selectivity Aviation Band < 40dB at ± 3kHz at -6dB AM <...
- Page 26 • fax your order to 1.800.359.7794 list products #SP-125A and #5555A This coupon is valid for the purchaser of Sporty's Air-Scan V and entitles them to $20 off the price of Sporty's portable Air-Scan 125 when purchased within 60 days of the original Air-Scan V.
