Summary of Contents for Star Pool THP05

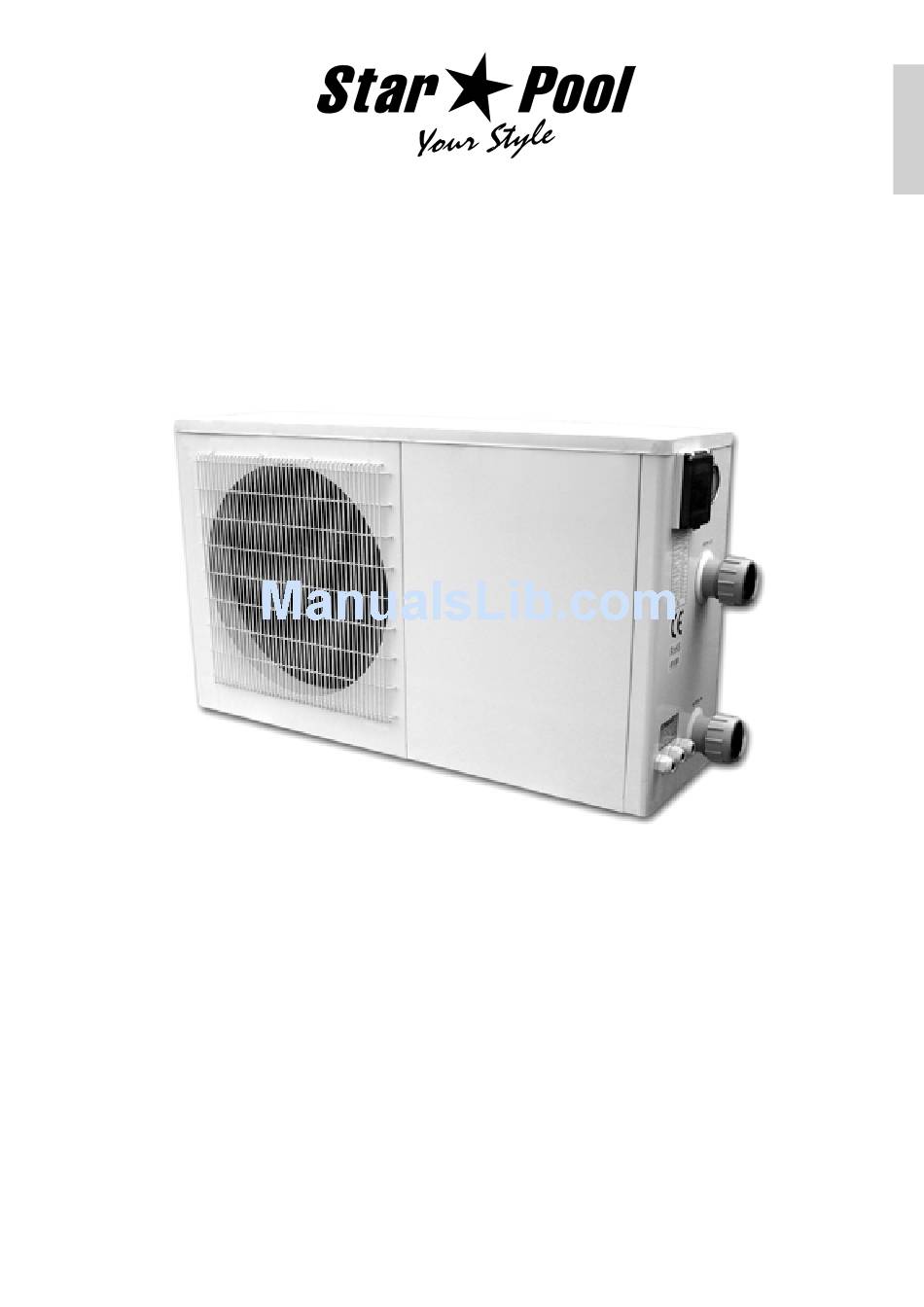

- Page 1 HEATING PUMP FOR SWIMMING POOLS (THP05 - THP30s) INSTALLATION AND USER MANUAL...
-
Page 2: Table Of Contents
Contents Applications ..............4 Characteristics ..............4 III. Technical parameters .............4 Dimensions ..............5 Directions for installation ..........6 Operating instructions ...........8 VII. Testing ................10 VIII. Safety precautions ............10 Maintenance ..............11 Solving common malfunctions ........11 Thank you for choosing our product and trusting our company. To ensure that using this product brings you joy, please read the instructions carefully and follow the user manual exactly before use, to prevent equipment damage or unnecessary injuries. -
Page 3: Applications
4. Protection against high and low pressures 5. Automatically switches off when it goes below the minimum temperature 6. Forced anti-freezing with regulation temperatures 7. Air pump of international trademark 8. Easy installation and operation III. Technical parameters Model THP05 THP06 THP09 THP12 THP16 THP23 THP23s... -
Page 4: Dimensions
IV. Dimensions Model THP05 THP06 THP09 THP12 1000 THP16 1000 THP23 1120 THP30S 1180 Dimensions shown above are in mm. Note: The picture shown above is a diagram of technical conditions for pool heating. It serves only as a reference for the technician during the installation and adjustment of the equipment. -
Page 5: Directions For Installation
V. Directions for installation 1. Diagram of water piping connections (Warning: diagram serves only as an illustration, pipeline confi guration is only referential) Diagram of pool heating piping Water into the pool Water treatment apparatus Drai- nage Infl ow Signal cable Pump Mains supply Infl... - Page 6 Pool terminal block Mains supply (secured by the customer) Earthing Power supply Note: Pool heater must be correctly earthed. Equipment protection alternatives and cable specifi cations MODEL THP05 THP06 THP09 THP12 THP16 THP23 THP23s THP30s Rated current A Circuit breaker...
-
Page 7: Operating Instructions
3. Installation instructions and requirements Pool heating must be installed by a skilled team. Users must not install it independently because it could cause injury, or damage to the equipment. A. Installation 1) Pool heating must be installed in a place with good ventilation; 2) The frame must be prepared with screws (M10) into the concrete base or brackets. - Page 8 CLOCK TIME SWITCHED ON TIME SWITCHED OFF AUTO/EH COOLING HEATING 1. Operating display A. The display shows the time when the equipment is off B. The display shows water temperature in the pool when the equipment is off 2. Adjusting water temperature A.
-
Page 9: Testing
VII. Testing 1. Examination before use A. Check installation of the whole apparatus and pipeline connections according to the relevant plan. B. Check the electrical connection according to the relevant diagram, check earth connection. C. Check that the equipment’s main switch is switched-off. D. -
Page 10: Maintenance
IX. Maintenance A. Before examination and repair disconnect the heater’s power supply. B. In winter, drain the water from the equipment and disconnect the power supply to prevent damage to the equipment. Cover the casing with plastic sheeting which will protect it from dust. C. - Page 11 Guarantee conditions Guarantee conditions are in accordance with business and guarantee conditions of your supplier. Product safe liquidation after service life expiring Ensure ecological liquidation by specialized fi rm at products service life expiring Claims and service Complains and claims are proceeded according to proper law about consumer protection. In the event of inquest irremovable mistakes will turn on his supplier.
