Summary of Contents for E-Stim Systems ABox
-
Page 1: Index

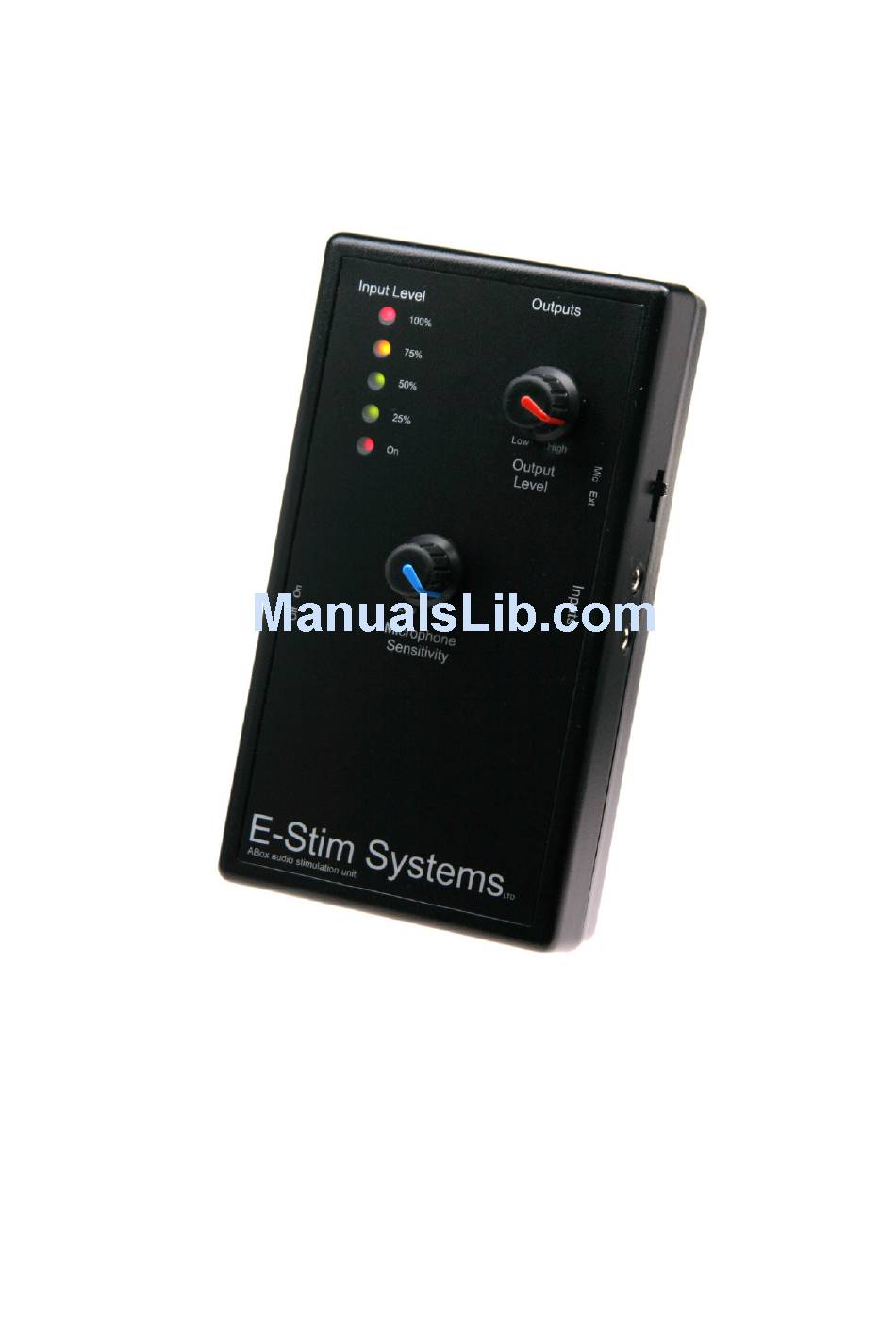

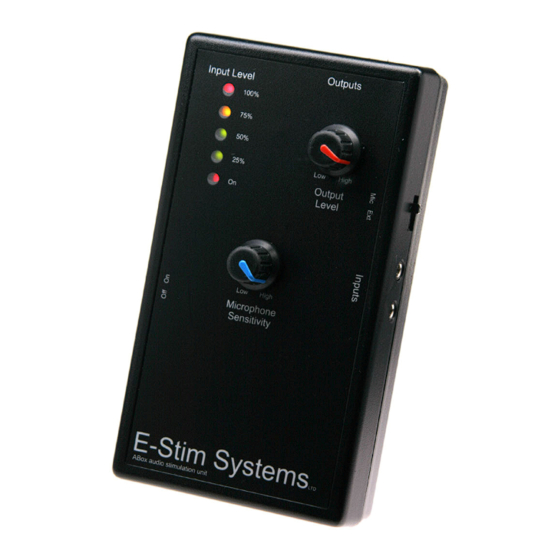

™ ABox Audio Based Electro Stimulation Control Unit User Manual Issue 3.3 April 2010... -
Page 2: Table Of Contents
Index INDEX WELCOME Key Features WHAT IS THE ABOX™? Voice Control Audio Stimulation FITTING A BATTERY TESTING Testing the microphone input. Battery Low Condition Testing Stereo input Audio Monitoring Frequency Response Ideal Levels USING THE ABOX™ Internal Microphone CAUTION USER CONTROLS... - Page 3 Copyright Notice...
-
Page 4: Welcome
Welcome Congratulations on purchasing an E-Stim Systems ABox™. Given sufficient care your ABox™ unit should give you many years of erotic sound driven electro stimulated pleasure. Before starting always read the instructions and ensure you are completely familiar with all of the controls and the safety warnings prior to use. - Page 5 OPERATION.
-
Page 6: What Is The Abox
Solo players will appreciate the stereo input. Select your favorite Stim track, plug in and lie back. The only way to get the best out of your ABox™ is to experiment. BDSM players can spend hours with the microphone input, putting new meaning to the demand for silence, whilst using the ABox™... -
Page 7: Fitting A Battery
E-Stim ABox™ unit NiMh re-chargeable, with a terminal voltage of 8.4V or above may be used with a possible reduction in output power. In the event the ABox™ is not being used for a period of time, remove the battery. -
Page 8: Testing
Testing For details of the positions of the relevant controls see following pages. Before use it is strongly recommended that the user test the ABox™ to ascertain its basic functionality. Testing the microphone input. Ensure the unit is switched off, then fit a battery. (See previous page for battery fitting instructions) Set the Output Level Control and Microphone Sensitivity to minimum. -
Page 9: Audio Monitoring
Audio Monitoring The Stereo input has two sockets wired in parallel. This allows you to connect a pair of headphones to monitor the input levels, however this will increase the loading on your audio device and may not be suitable for all audio devices. The Audio monitoring facility is not available for use with the internal microphone. -
Page 10: Using The Abox
Turn the unit off, set the output level control to minimum and connect a suitable electrode via one of the output jacks. Connect an electrode to a suitable section of the body. (DO NOT CONNECT THE E-Stim Systems ABox™ UNIT OR ANY ELECTRICAL DEVICE TO ANY LOCATION ABOVE THE WAIST (ACROSS THE ARMS COUNTS AS ABOVE THE WAIST!), BUT ESPECIALLY DO NOT CONNECT ACROSS THE HEART, CHEST, NECK OR HEAD. -
Page 11: Caution
Opening the control box will invalidate your guarantee. The connection cables will be come detached from the E-Stim ABox™ if pulled. This is a safety feature as disconnection will result in the voltage being removed from the electrodes. -
Page 12: User Controls
A two position slide switch is mounted on the left side of the unit. Slid towards the top of the ABox™ the unit is switched on, slid towards the bottom of the unit it is switched off. The power status of the unit is indicated by the position of the switch, and the power on LED. -
Page 13: Output Level Control
Inputs The ABox™ is fitted with two 3.5mm stereo sockets, designed for connection to a headphone socket of an audio device such as a MP3 player, portable CD player. For safety reasons we do not recommend you connect the ABox™ unit to any device that is mains powered, i.e. -
Page 14: Accessories
Additional Notes Storage In the event that the E-Stim Systems ABox™ unit is not going to be used for a period of time always remove the battery to avoid any possibility of damage being caused by battery leakage. Cleaning DO NOT use solvents to clean the ABox™... -
Page 15: Specifications
Specifications Channels/ Outputs Single Channel, Dual output via mono 3.5mm sockets. Inputs Dual 3.5mm stereo jacks, wired in parallel. Input Impedance 33,000 Ohms Input Sensitivity 500mV , 200 to 5000Hz Display 5 High Brightness Light Emitting Diodes indicating input level and Power On. 2 –... -
Page 16: Problems
Problems? In the unlikely event you have problems with the operation of your E-Stim Systems ABox™, send an email to info@e-stim.co.uk quoting the serial number and the problem you have encountered. There are no user serviceable parts inside and the breaking of any seals with invalidate your guarantee. All units are guaranteed (parts and labour) against failure caused by manufacturing defects for a period of 12 months from date of purchase. -
Page 17: Certificate Of Conformity
The FCC requires the user to be notified that any changes or modifications made to the device that are not expressly approved by E-Stim Systems Ltd may void the users authority to operate the equipment. - Page 18 Page intentionally left blank...
- Page 19 Page intentionally left blank...
- Page 20 Page intentionally left blank...
