READ AND FOLLOW ALL INSTRUCTIONS CAREFULLY

SAFETY PRECAUTIONS

CAUTION
1.
The SAVI Note is a low voltage LED accessory and should never be electrically
connected to any power source other than a Nexxus M4 controller. Failure to
comply will either damage or destroy the SAVI Note and void the warranty.
2.
There are no user servicable components in the SAVI Note.

INSTALLATION INSTRUCTIONS

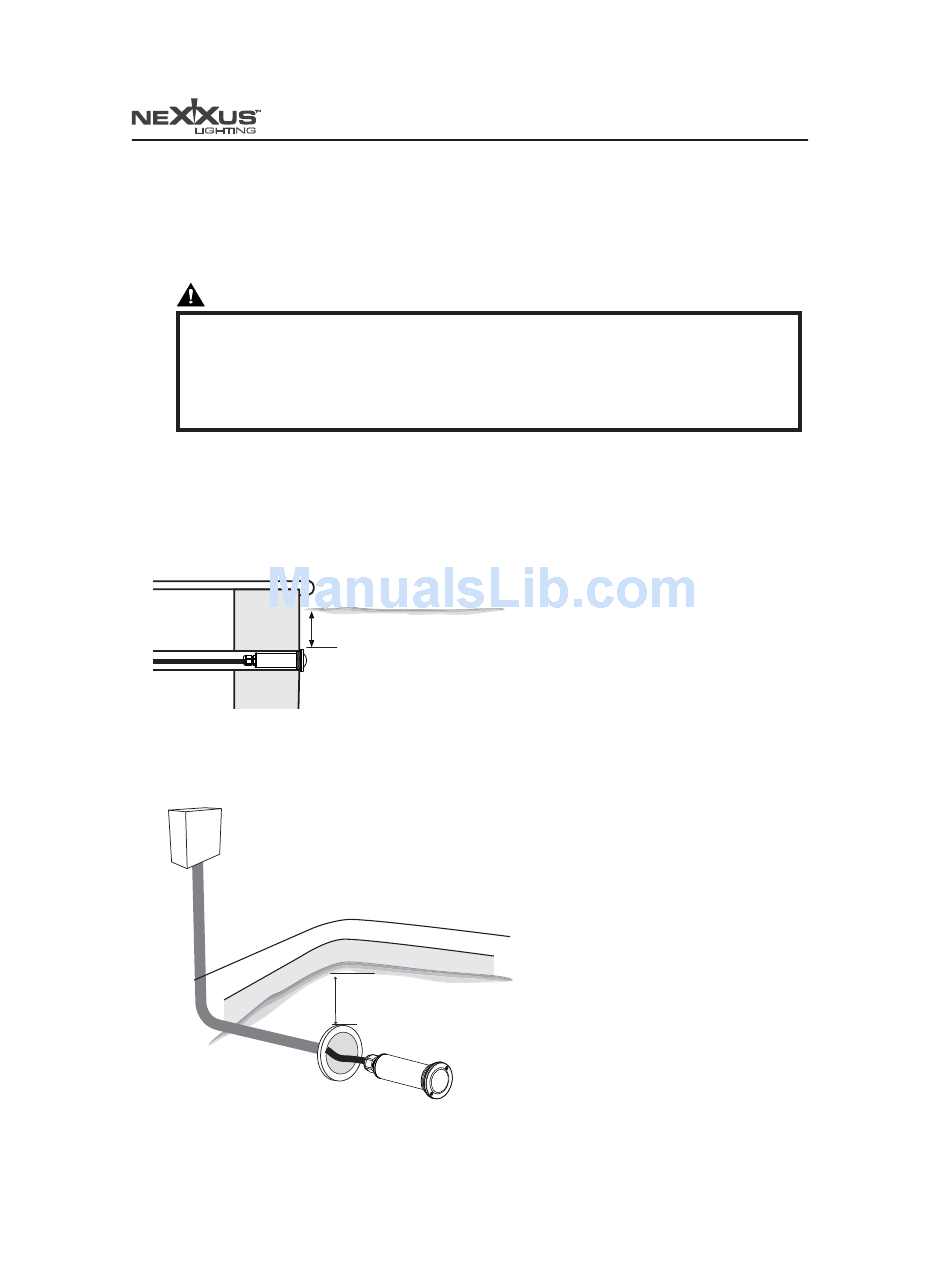

M4 Controller
Conduit to M4
N L , I . ■ 9400 S P
EXXUS IGHTING NC OUTHRIDGE ARK
4" MIN. FROM WATER
LEVEL TO TOP OF LENS
4" MIN. FROM WATER LEVEL TO
TOP OF LENS
SAVI Note
C , S 200 ■ O , F 32819 ■ USA ■
OURT UITE RLANDO LORIDA

STEP 1

The light fixture must be installed
in or on a wall of the pool (or water
feature) with the top of the lens
opening not less than 4 inches
(10.16cm) below the normal water
level of the pool except when
the fixture is installed in an area
of the swimming pool that is not
used for swimming and the lens is
adequately guarded to prevent any
person from contacting it.

STEP 2

Snake the 4-conductor electric
cord through the conduit outlet
of the wall fitting, into the conduit
and up to the M4 controller. DO
NOT CUT EXCESS CORD. Leave
adequate cord in the conduit (Do
NOT wrap cord around fixture) so
that the fixture will be able to be
raised to the deck if required. Cut
off extra cord after, allowing for
service and length of run to box.
Pull the fixture snug to the wall
fitting.
