Summary of Contents for Replay XD ReView

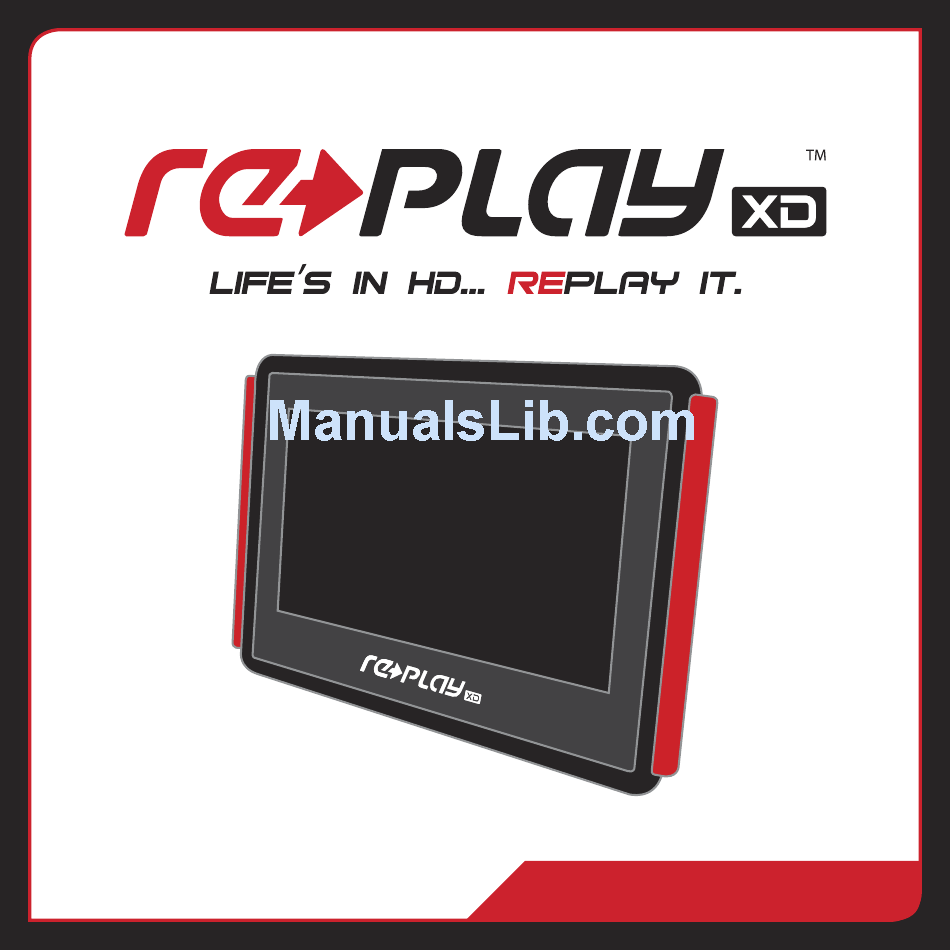

- Page 1 Q U I CK S TA R T G U I D E...
- Page 3 Replay XD ReView Field Monitor (A) Brightness Button (B) Audio Out 3.5 mm Stereo Jack (C) HDMI In (D) USB Mini 8-pin (Charge Only) (E) USB Mini (Charge Only) (F) Power On/Off LED (G) Power On/Off Button (H) Volume Button...
- Page 4 1. Plug the HDMI cable from your Replay XD1080 camera or other HDMI capable video camera into the HDMI port (C) of the ReView Field Monitor 2. Press the Power On/Off button (G) to power on. 3. Press the Brightness button [+ or -] (A) to adjust the LCD brightness 4.
- Page 5 1. Power on the ReView Field Monitor to check the battery status. A battery icon will appear at the right side of the screen. Please recharge if necessary. 2. To charge make sure the power is off 3. Plug a standard Mini USB cable into the ReView Field Monitor USB Mini port (E).
-
Page 6: Warranty
STABLE IMAGING SOLUTIONS, LLC. LIMITED WARRANTY WHAT THE WARRANTY COVERS Stable Imaging Solutions, LLC. (SIS) warrants for 180 days from the date of purchase of product it will be free from defects in material and workmanship. WHAT IT DOES NOT COVER This warranty does not cover damage due to: • Accidents of any kind • Exposure to pressure, extreme temperatures (outside of -20ºC to 45ºC), and submersion in water. - Page 7 • SIS is indemnified from consequential or indirect loss, damage, injury, or death resulting from the use of SIS products. • All trademarks and registered trademarks mentioned herein are recognized as the property of their respective holders. Replay XD , ReView Field Monitor is a product of Stable Imaging Solutions, LLC. in California. ® www.Replayxd.com ©2011 Stable Imaging Solutions, LLC., Replay XD...
- Page 8 FCC Compliance Statement This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Radio and TV Interference This equipment has been tested and found to comply with the limits for a Class B digital device in accordance with the specifications in Part 15 of FCC rules.
-
Page 9: Specifications
Replay XD ReView Field Monitor LCD: 4.3 in, 480 x 272 TFT Display INPUT: HDMI Type A Connector RESOLUTION: Support Full HD 1080p @ 30Hz BUILT-IN SPEAKER: 0.8W (Mono) EARPHONE JACK: 3.5 mm Audio Jack (Stereo) LED INDICATOR: Power On / Charging... - Page 10 HardCore Billet Flat VHB Mount HardCore Billet Tripod Mount VIEW ALL OF OUR ACCESSORIES AT WWW.REPLAYXD.COM Aluminum SuctionCup Mount VHB SnapTrays - 5 Pack ProLens 37mm Adapter Replay XD1080 Hardwire Kit Replay XD Mic Replay XD Tshirt ACCESS O R I ES...
- Page 12 Replay XD a fine brand of Stable Imaging Solutions, LLC. Sales & Technical Support: Phone: 1-805-480-9800 Sales: sales@replayxd.com Support: support@replayxd.com Office & Administration: Monday–Friday, 8am–5pm (PST) Corporate Address: Stable Imaging Solutions, LLC. 3709 Old Conejo Road Newbury Park, CA 91320...
