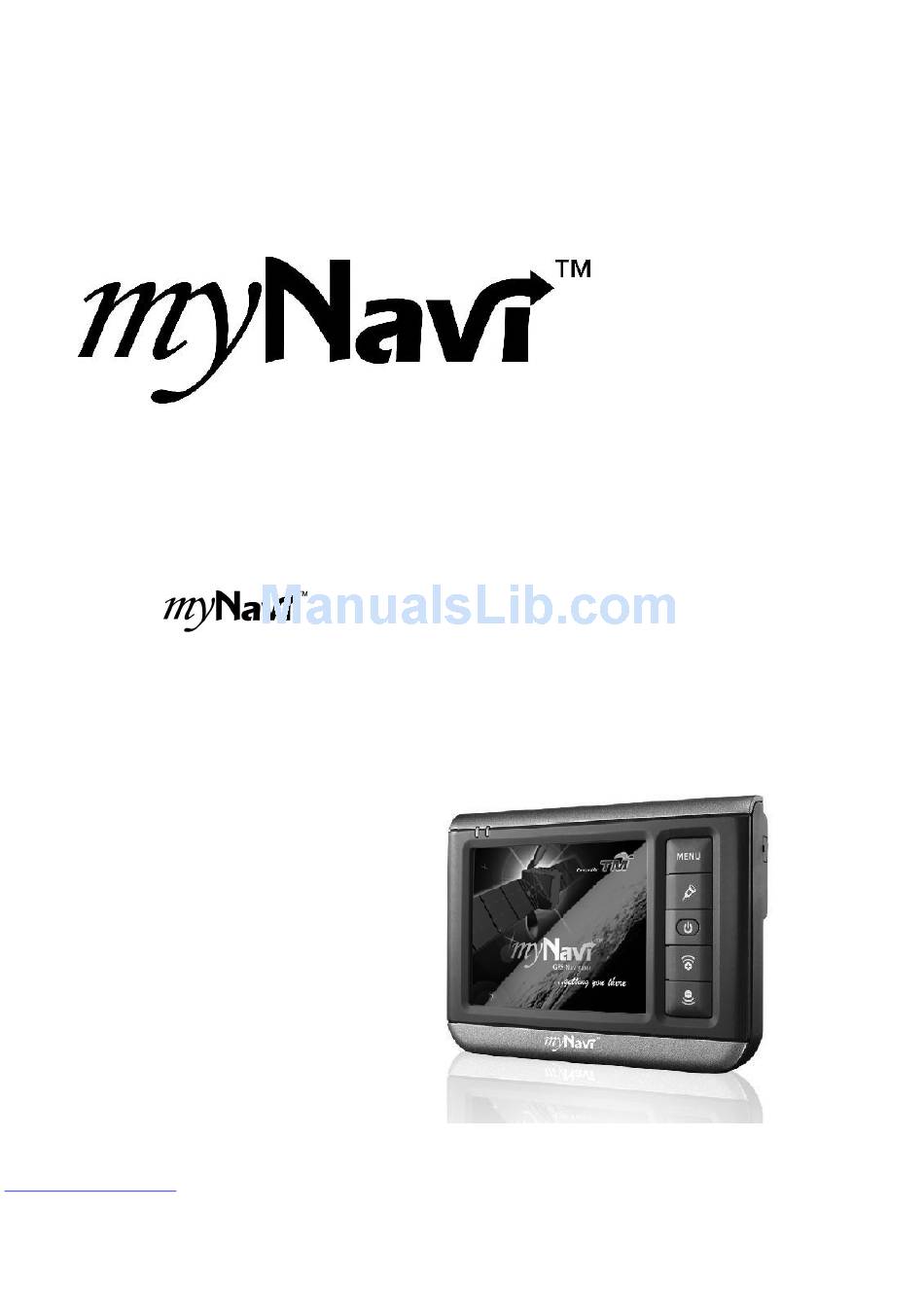

myNavi A800 User Manual

Mynavi a800 navigator

Hide thumbs

Table Of Contents

Table of Contents

Quick Links

Download this manual

AMTEL CELLULAR SDN BHD

No. 5, Jalan PJS 7/19,

Bandar Sunway, 46150,

Petaling Jaya, Selangor,

Malaysia

www.mynavi.com.my

Note :

'myNavi' and '... getting you there' are trademarks of Amtel Cellular Sdn Bhd

ii)

All other trademarks belongs to each registered companies.

iii)

The contents of the manual may be modified without further notice.

A 800

... getting you there

A800 Hardware User Manual

Version 1.10

- 1 -

... getting you there

Table of Contents

Need help?

Do you have a question about the A800 and is the answer not in the manual?

Questions and answers

Summary of Contents for myNavi A800

Page 1 Bandar Sunway, 46150, Petaling Jaya, Selangor, Malaysia www.mynavi.com.my Note : ‘myNavi’ and ‘… getting you there’ are trademarks of Amtel Cellular Sdn Bhd ... getting you there All other trademarks belongs to each registered companies. - 1 - iii) The contents of the manual may be modified without further notice.
Page 2 A 800 TERMS & CONDITIONS 1. The maps data and/or preloaded software (“Software”) in this device are licensed by third parties to Amtel Cellular Sdn Bhd (“The Company”). The Software is sub-licensed on a limited, non-exclusive, non-transferable and revocable basis for use by you solely on this device only and is not sold together with the device.
Page 3 The system is subject to changes which may affect the performance and accuracy of the GPS navigator devices. 8. The use of the device is at the User’s own risk. myNavi and the Company is not liable for any fines, penalties, damages or loss whether direct, indirect, incidental, special,...
Page 4 This User Manual describes Getting started, Setting up, Navigating, Using the MP3 player, and common Warning screens of your myNavi A800. Read this guide in its entirety before attempting to use or configure the device. Before getting started, check that each item listed below in the package contents is accounted for and observe the outward features of the device.
Page 5 A 800 Precautions and Notices For your own safety, do not operate the controls of the product while  driving. When you get off the car, do not leave your device on the dashboard that  is subject to direct sunlight. The overheating of the battery can cause malfunction and/or danger.
Page 6: Table Of Contents
A 800 INDEX Usage Guideline for Extended Battery Life Getting to know your myNavi A800 Connecting External Antenna (Optional) Connecting the In-Car Charger Connecting to USB and charging the device Connecting to Travel Adaptor and Charging the Battery Using Your Device in a Vehicle...
Page 7: Usage Guideline For Extended Battery Life
A 800 Usage Guideline for Extended Battery Life For optimal performance of the Li-polymer battery, take note of the following: This unit contains a non user replaceable internal Li-polymer battery. The  battery can inflate and release hazardous chemicals. To reduce the risk of fire or burns, do not disassemble, crush, puncture, or dispose of in fire or water.
Page 8: Getting To Know Your Mynavi A800
A 800 Getting to know your myNavi A800 Outward features (front) Component Description Power and Charge Static amber to indicate that external power is connected and Indicator charging. Flashing red to indicate battery power is low. GPS Indicator Flashes green to indicate that the GPS is positioning, and stops flashing when the GPS completes positioning.
Page 9 A 800 Outward features (back) Component Description GPS Receiver Receives signals from the GPS satellites overhead. Make sure that it has a clear view of the sky. Speaker Sends out music, sounds and voice. SD/MMC Card Accepts a SD (Secure Digital) card for accessing data such as MP3 Slot music.
Page 10 A 800 Outward features Component Description Return to Opens the Main Menu of your device. menu When in the map screen: destination You could add your favorite destination to bookmark by press this button. Power button Use the power button to turn on and off your device. When you press the power button to turn off the unit, your device actually enters a suspend state and the system stops operating.
Page 11: Connecting External Antenna (Optional)
A 800 Connecting External Antenna (Optional) Place the device in such a way that the external antenna wire is routed conveniently out the driver's side window. The magnetized antenna casing will attach firmly to the roof of your car. Connecting external GPS active antenna (Optional Accessory) Connecting the In-Car Charger Connecting the In-Car Charger The car charger supplies power to your device when you are using the device...
Page 12: Connecting To Usb And Charging The Device
A 800 CAUTION: In-Car charger output is 12V DC, do not use this car charger for other device. 1. Connect one end of the In-Car charger to the power connector of your device. 2. Connect the other end to the cigarette lighter in the car to power and charge your device.
Page 13: Connecting To Travel Adaptor And Charging The Battery
A 800 Connecting to Travel Adaptor and Charging the Battery Connecting Travel Adaptor When charging the battery for the first 3 consecutive times, you should charge it for at least 8 hours. 1. Slide and click the correct connector converter onto the Travel Adaptor. 2.
Page 14: Using Your Device In A Vehicle
A 800 Using Your Device in a Vehicle Using the Cradle & Holder Mounting on the Windshield 1. Assemble the Holder and the Cradle. 2. Clean the windshield where you will apply the suction cup. Then, attach the suction cup firmly to the windshield and press the locking tab to secure the cup.
Page 15 A 800 CAUTION: Select an appropriate location for the Cradle & Holder. Never place the  Holder where the driver’s field of vision is blocked. If the car’s windshield is tinted with a reflective coating, an external  antenna (optional) may be needed to route the antenna to the top of the car through a window.
Page 16: Getting Started
Getting started Find the Master power switch on the back of the device, toggle it to ON (push upward), and press the Power button to turn on your myNavi A800 navigator. Note: When using the device later, if the device controls fail to respond, you can also use the Reset button switch to restart the device.
Page 17 A 800 Then the Time setup screen to view the time zone settings screen. Tap the arrow buttons to view the time zone selection. For the time zones affected by seasonal daylight saving time, use the arrows to select on/off. Time zone Then tap the Next to view the Date and Clock setting screen.
Page 18 A 800 Next, a calibration screen will appear. The calibration screen will only appear on the initial start up and afterward can be accessed via Main menu > Setup > Calibration. Press and briefly hold a stylus or any similar non-marking instrument on the center of the target.
Page 19: Setting Up
A 800 Setting up The Main menu displays power information and the main features of the myNavi A800 which include touch screen icons for Navigation, MP3 player, Setup, Photo and Movie. Main menu Tap the Setup icon on the main menu to display the setup screen. Use the...
Page 20: Language
A 800 CAUTION: Power button is disabled when lock switch is switched to lock position. To power on device, lock switch must switch to unlock position. Lock Switch Setting up - Language From the Main menu, tap Setup > Language to view the language settings screen.
Page 21: Calibration
A 800 Setting up – Calibration From the Main menu, tap Setup > Calibration to view the calibration settings screen. To calibrate the touch screen icons, tap Calibration, and follow the instructions on the calibration screen. To return to the setup screen tap Return.
Page 22: Backlight
A 800 Setting up - Backlight Tap Main menu > Setup > Backlight to view the backlight settings screen. Set the backlight brightness level for either day mode or night mode with the arrow icons. Taping the left arrow will decrease brightness and the right arrow will increase it.
Page 23 A 800 Auto Backlight Mode ... getting you there - 23 -...
Page 24: Time
A 800 Setting up - Time From the Main menu, tap Setup > Time to view the time zone settings screen. Tap the arrow buttons to view the time zone selection. For the time zones affected by seasonal daylight saving time, use the arrows to select on/off.
Page 25: About / Factory Reset
A 800 Setting up – About/Factory reset From the Main menu, tap Setup > About/Factory reset to view the about/factory reset screen. The about screen displays system information relating to the main features of the device, including the OS, navigation, music, photo and movie software vendors and versions.
Page 26: Navigating
A 800 Navigating On the Main menu, tap Navigation to launch the navigation software. Main menu Using the MP3 player Using the player's controls From the Main menu tap MP3 to view the MP3 player. The MP3 player has onscreen music playback control buttons controls for: o Seek bar, play/pause, stop, next, previous and volume control.
Page 27 A 800 Using the music library Tap the icon to open the Music library screen. Then tap All music > to add the contents of the SD/MMC card to the music library. Music library The MP3 and WMA files on the SD/MMC card will be added to the Library automatically and classified into All Music, Artists, Albums, and Genres.
Page 28: Using The Movie Player
A 800 My Favorites On the My Favorites list, you can select tracks to listen to, add or subtract them from the list, and update the list with the SD/MMC card's music files. Using the Movie player Using the player's controls From the Main menu tap Video to view the video player UI.
Page 29 A 800 Using the Movie library Tap the icon to open the Movie library screen. Then tap All movie > icon to add the contents of the SD/MMC card to the library. Movie library Supported file types include ASF, WMV, MPEG and AVI (Microsoft MPEG-4, RLE and MPEG1 codec) files.
Page 30: Using The Photo Viewer
A 800 Using the Photo viewer Using the viewer's controls From the Main menu tap Photo to view the photo library UI. The UI has onscreen playback controls for: o Home, return to previous page, slide show, next/previous and select. Photo library The SD/MMC card's contents will automatically be displayed on the Photo library UI.
Page 31: Common Warning Screens
A 800 Photo Viewer Common warning screens Common warning screens include: Lost external power warning  USB connection warning  SD/MMC Card removed warning  USB connection warning Lost external power warning SD card missing warning ... getting you there - 31 -...
Page 32: System Specifications
A 800 System Specifications Category Item Specifications General Model myNavi A800 Colours Black Dimensions 119 x 83 x 21 - 24mm Weight 190 grams Hardware Samsung S3C2440, 400Mhz Memory RAM 64MB, Flash ROM 32 Power DC 12V 1A Support USB charger from Mini-USB port...
Page 33 A 800 For the latest version of this manual, please visit www.mynavi.com.my ... getting you there - 33 -...
