Summary of Contents for GE Lighting DALI 64668

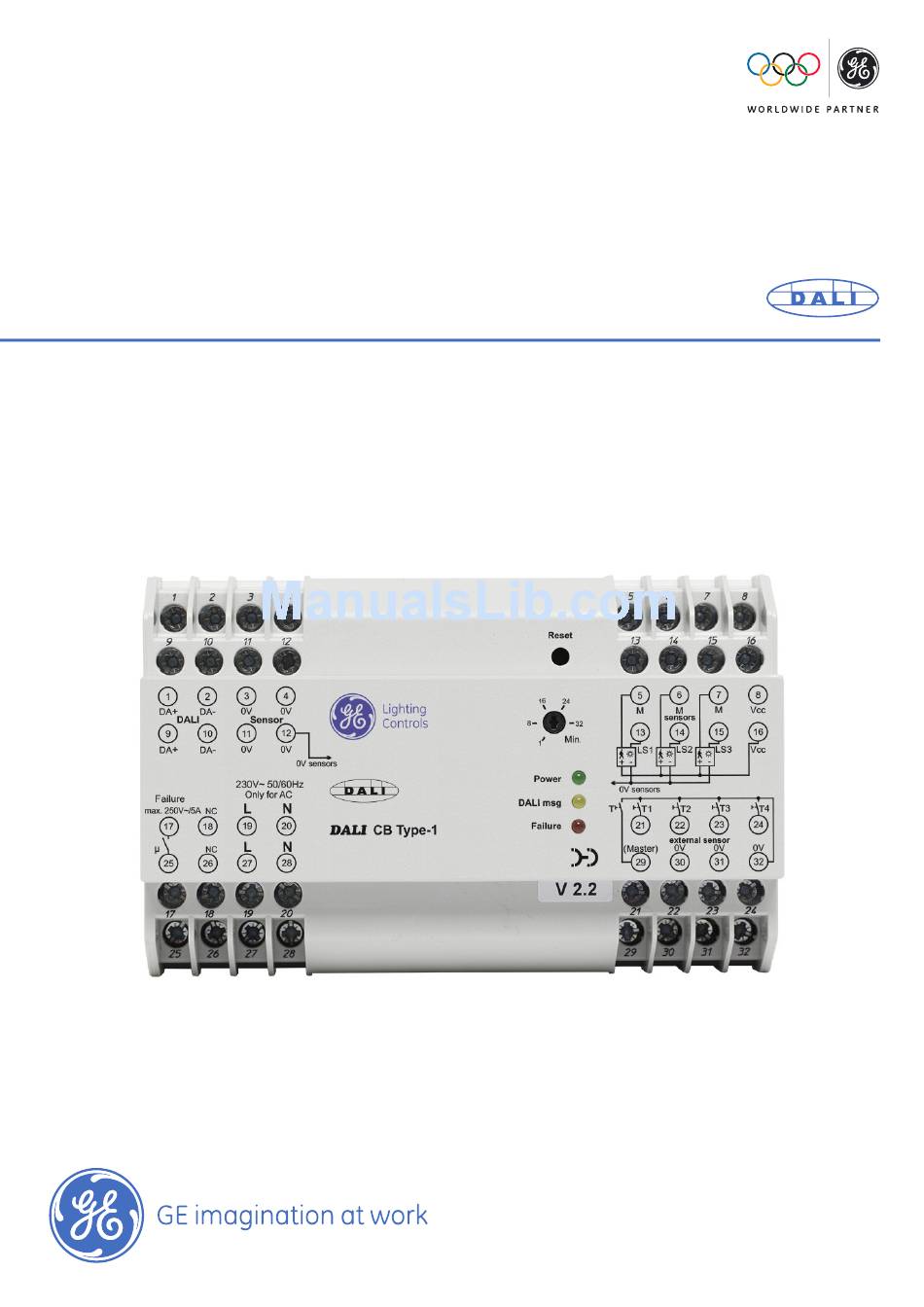

- Page 1 Lighting Operating instructions DALI Indoor Lighting Control Solution Type : DALI Type 1 SKU: 64668...
-
Page 2: Table Of Contents
Contents Page Applications and function Setting up Construction site mode Button test Basic setting/reset Group assignment: Group test, Changing groups System messages ON, DALI faults, DALI lamp faults Operation Master sum function Individual group function Scenes: Storing scenes, Calling up scenes Sensors Light sensors/ daylight depending lighting control (scene 1) Light/motion sensors, presence detection... -
Page 3: Applications And Function
Applications and functions The DALI CB Type 1 is a multifunctional control unit for cost-effective easy-to-use lighting control. It can be used for both closed-loop control (daylight/presence-dependent) and open-loop control. The Type 1 Controller enables four luminaire groups to be freely configured and four different scenes (separate light settings for the entire room) to be set up and stored on the basis of individual brightness settings for these luminaires. -
Page 4: Setting Up
Setting up Construction site mode: The entire system can be operated at any time with the master button (master sum function) whether it has been configured or not. Briefly pressing the button switches all the DALI units on or off. Holding the button down will adjust the brightness of the lamps connected to all the DALI units (up or down). -
Page 5: System Messages
For example: A unit identified by the controller is to be assigned to group 3. The user first presses switch T2. All the units belonging to group 2 then switch their lamps to maximum brightness. The user realises this is the wrong assignment and presses switch T3 instead. -
Page 6: Operation
Operation Master sum function Pressing the master button causes all the DALI units connected to the controller to be switch on or off together; holding down the central button adjusts the brightness of the lamps connected to the units (up or down). The master button always acts on the entire system. -
Page 7: Light/Motion Sensors, Presence Detection
To cover more than one area more efficiently light sensors can be connected in parallel to a light sensor input. An average value is formed from the individual values of the sensors. If there is enough daylight available the relevant groups are dimmed to their minimum values and switch off after 10 min- utes. -
Page 8: Technical Data
Technical data Type: DALI Type 1 SKU: 64668 Power input: approx. 4W - 9W depending on load Fuse protection: unit/fault contact external 6A Operating temperature: 0°C to 45°C Protection class: II (total insulation) Type of protection: IP20 Pollution severity: 2 (dry not conductive) - Floating rely contact (make contact) max. -
Page 9: Dali Interface On The Controller
The relevant wiring requirements governing cable routes, insulation, fusing and Cable routes: minimum cross-sections must be observed. Insulation casing Snap-on mounting for rails, for surface mounting and installa- Design: tion in distributor Dimensions: WxHxD=140x90x61mm (8TE) Weight: approx. 550g Labelling: see wiring diagrams and information printed on unit Terminal assignment: If incorrectly connected there is a risk of failure, malfunction or destruction Notes... -
Page 10: Wiring Diagrams With Brief Descriptions
Wiring diagrams DALI CB Type 1 without sensors Lighting control Mains 230V ac 50/60Hz Signal lamp (optional) 230V ac 19 27 20 28 To the DALI units error sensors (ECGs, converters, etc.) DALI CB Type 1 Master T2 T3 Controls •... -
Page 11: Dali Controller With A Light Sensor At Ls1: Group 1 Lighting Control
DALI Controller with a light sensor at LS1 Lighting scene 1: Group 1 lighting control Mains 230V ac 50/60Hz MS-R LS 0V Vcc Signal lamp (optional) 230V ac 19 27 20 28 To the DALI units error sensors (ECGs, converters, etc.) DALI CB Type 1 Master T2 T3... -
Page 12: Dali Controller With Two Light And Motion Sensors Connected In Parallel At Ls1
DALI Controller with two light and motion sensors connected in parallel at LS1 Lighting scene 1: Group 1 lighting control with averaging Presence detection with extension of detection area Mains 230V ac 50/60Hz MS-C MS-C M LS 0V Vcc M LS 0V Vcc Signal lamp (optional) 230V ac... -
Page 13: Dali Controller With Three Light And Motion Sensors At Ls1-Ls3
DALI Controller with three light and motion sensors at LS1 to LS3 Lighting scene 1: Lighting control of group 1, group 2 and group 3 (e.g. 3 sets of strip lighting) Presence detection with extension of detection area Mains 230V ac 50/60Hz MS-C MS-C MS-C... -
Page 14: Locking Setting Up And Scene Storage
Accessories Electrical control components Electronic control gear with DALI interface 1-10V DALI Converter 64932 etc. User control components Standard switches (make contacts with basic insulation) Operating panels (make contacts with basic insulation) Sensors Light sensor (active) MS-R 64669 Light and motion sensor (active) MS-C 64670 Locking setting up and scene storage The group assignment during setting up and the scene storage can be locked individually or in com-... -
Page 15: Space For User Entries On The Configuration, Arrangement And Set-Up
Space for user entries on the configuration, arrangement and set-up Area/designation Unit ref./number Sensor ref./number Group 1 at LS 1 Group 2 at LS 2 Group 3 at LS 3 Group 4 none (open-loop control group) Area/designation/number Master button(s) Scenes/designation Switch(es) T1 Switch(es) T2 Switch(es) T3... - Page 16 DALI - Type 1 DALI - Type 1 offers digital lighting control for modern versatile lighting Brief overview: • Easy-to-use lighting control system for a wide range of applications • Based on standard components (commercially available switches) • No external aid (PC/software) required for programming (instant operation possible on construction site mode) •...
- Page 17 EMEA: Information provided is subject to change without notice. Please verify all details with GE. All values are design or typical values when GE Lighting GE Hungary Kft. measured under laboratory conditions, and GE makes no warranty or General Electric company Váci út 77.
