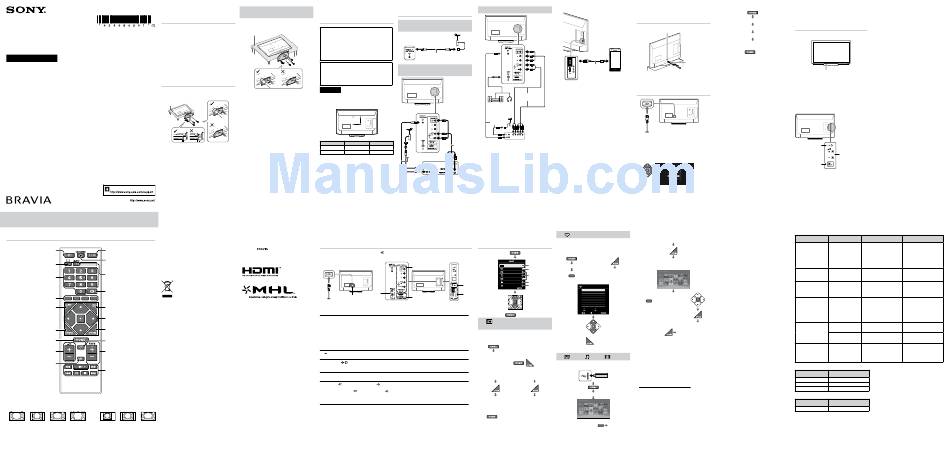

Checking the
accessories
Table-Top Stand (1)*
Fixing screws for Table-Top Stand (M4 × 16) (3)
Remote control (1)
Television
AC power cord (mains lead) (1)
Size AAA batteries (R03 type) (2)
Operating Instructions (this manual) and other
documents
Operating Instructions
* Refer to the supplied Table-Top Stand leaflet to assemble
the Table-Top Stand.
1: Attaching the Table-
Top Stand
• If using an electric screwdriver, set the tightening torque at
approximately 1.2 N·m (12 kgf·cm).
Thick and
soft cloth
Customer support
© 2014 Sony Corporation Printed in China
KLV-24P422B/ 24P412B / 22P402B
Overview of the remote
Introduction
Thank you for choosing this Sony product. Before operating the TV,
please read this manual thoroughly and retain it for future reference.
~
•
The illustrations used in this manual may differ depending on your
TV model.
Turns the TV on or switch to standby
•
Selects input source.
The illustrations of the remote control used in this manual are of the
mode.
RM-GA025 unless otherwise stated.
•
Before operating the TV, please read Safety Information. Retain this
manual for future reference.
Selects the language.
Switches to a TV display when
Location of the identification label
displaying external input.
Labels for TV Model No., Power Supply rating (in accordance with
applicable safety regulation) and Manufacturing date are located on the
rear of the TV.
Dual Sound.
In TV mode: Selects channels.
Disposal of the TV set
Disposal of Old Electrical & Electronic
Equipment (Applicable in the European
Union and other European countries with
Selects the desired wide mode.
separate collection systems)
Available when operation guide
appears on the screen.
This symbol is on the remote control.
Sets the desired time frame to turn
Displays information about the
programme/input.
off TV automatically.
Selects, adjusts or confirmed
selected items.
Returns to the previous screen.
Displays a list of shortcuts to some
In USB mode: Stops the playback.
setting menus.
Returns to the previous channel or
Displays or cancels the menu.
input watched (for more than 15
seconds).
In TV mode: Selects the next or
Adjusts volume.
previous channel.
Mute or restore sound.
Operates USB compatible
equipment that is connected to
the TV.
x
To change the Wide Mode
For TV, Video, Component or HDMI (except PC input)/ MHL
HDMI PC Input (PC timing)
Wide Zoom*
Normal
Full
Zoom*
Normal
Full 1
Full 2
* Parts of the top and bottom of the picture may be cut off.
~
• Some options may not be available depending on the signal source.
2: Mounting the TV on
3: Connections
Detaching the Table-Top Stand
from the TV
the wall
~
Connecting an antenna (aerial)/
• Do not remove the Table-Top Stand for any reason other
than to wall-mount the TV.
cable
To Customers
Thick and soft cloth
Sufficient expertise is required for installing this
product. Be sure to subcontract the installation
to Sony dealers or licensed contractors and pay
special attention to safety during the installation.
Sony is not liable for any damages or injury caused
by mishandling or improper installation, or installing
any other than the specified product. Your Statutory
Antenna (aerial) cable (not supplied)
Rights (if any) are not affected.
To Sony Dealers and Contractors
Connecting an antenna (aerial)/
Sufficient expertise is required for installing this
product. Be sure to read this instruction manual
cable and VCR
thoroughly to do the installation work safely. Sony
is not liable for any damages or injury caused by
mishandling or improper installation.
Precautions
• Detach the Table-Top Stand from the TV. For details, refer
to (Detaching the Table-Top Stand from the TV).
Wall mount location
B
A
Dimension
A (mm)
B (mm)
22
100
100
24
100
100
Antenna (aerial) cable
(not supplied)
Viewing pictures from the connected
Trademark information
•
The terms HDMI and HDMI High-Definition Multimedia Interface, and
the HDMI Logo are trademarks or registered trademarks of HDMI
equipment
Licensing LLC in the United States and other countries.
•
Manufactured under license from Dolby Laboratories. Dolby and the
double-D symbol are trademarks of Dolby Laboratories.
•
"BRAVIA" and
are trademarks of Sony Corporation.
•
MHL, Mobile High-Definition Link and the MHL Logo are trademarks or
Turn on the connected equipment, then press
on the remote control or CH/INPUT on the TV to display the
registered trademarks of MHL Licensing, LLC.
connected equipment list.
•
Blu-ray Disc is a trademark.
Rear View
E
C
D
A
*
1
Terminals and labels may vary depending on TV model.
HDMI IN 2 supports only KLV-24P412B.
HDMI IN 2 / MHL supports only KLV-24P422B.
A HDMI IN 1, HDMI IN 2 / MHL and HDMI IN 2 (Home Theatre systems, Camcorder, Blu-ray Disc player, DVD
player, PC with HDMI output and Mobile device).
Connect to the HDMI IN jack if the equipment has an HDMI jack.
If the equipment is compatible with MHL, connect the MHL jack of the equipment to the HDMI IN 2 / MHL jack
through a MHL - HDMI cable (not supplied).
~
• The HDMI jacks can support PC timing in HDMI PC mode. Refer to (PC input signal reference chart for HDMI IN 1, 2)
next to "PC settings".
• Be sure to use only an authorized HDMI cable bearing the HDMI logo, or an authorized MHL cable bearing the MHL
logo.
B (Digital still camera, Camcorder, USB storage media)
Access photo/music/video files stored on a USB device.
C AUDIO OUT
/ (Stereo systems, Headphone)
Connect with an audio cable or headphones. You can listen to TV sound through your stereo system or
headphones. You can select "Variable" or "Fixed" in the "Audio Out" menu.
D
AC IN 110 V – 240 V AC, 50/60 Hz
E VIDEO IN
/COMPONENT IN/AUDIO
(DVD player, VCR, Video game equipment, S VHS/Hi8/DVC
camcorder, DVD player with component output)
Connect to the VIDEO IN
jack and the AUDIO
jacks. If you connect mono equipment, connect to the L
(MONO) jack.
For better picture quality, component connection is recommended if your DVD player has a component video
output. Connect to the COMPONENT IN jacks.
x
Connecting MHL device (KLV-24P422B only)
Connecting audio/video devices
Use authorized
MHL cable with
MHL logo (not
MHL device
supplied)
The MHL (Mobile High-Definition Link) enables the TV
to communicate with a connected MHL-compatible
device. The TV can charge the connected MHL-
AV cable
compatible device while playing photo/music/video
(not supplied)
from it. You can use the TV remote control to control the
connected MHL-compatible device.
~
• If "Auto Input Change (MHL)" is set to "On", the TV
Antenna
automatically switches to HDMI 2 / MHL from other input
(aerial)
when MHL-compatible device is connected to HDMI IN 2
cable (not
/ MHL jack. The availability of "Auto Input Change (MHL)"
supplied)
depends on whether the MHL-compatible device can
support this feature.
• You can continue normal usage of the connected MHL-
compatible device (such as receiving calls) depending on
its capability.
AV cable
• Some remote control functions may not be available
(not
DVD recorder
depending on features of the connected MHL-compatible
supplied)
device. Please refer to the device manual for details.
• This product is officially MHL-certified for operation
with other MHL-certified devices. If you encounter any
problems when using the MHL function, please consult the
device manufacturer for support.
VCR
Using Menu
2 Favourites
Functions
Store up to 18 channels or external inputs.
x
To add a current channel or external inputs
into Favourites list
1
2
1
OR
Photo Frame Mode
"Favourites"
Favourites
2
"Add to Favourites"
red
Music
3
CH/
Video
INPUT
4
x
To watch a channel or external input
FM Radio
B
Settings
5
Favourites
Exit
TV
9
*1
A
Add
Delete
Select
Confirm
Exit
• To exit Home menu:
1 Photo Frame Mode
(KLV-24P422B only)
Display Photo, Music and Clock calendar at the same
time.
~
• To exit Favourites List:
x
To enter Photo Frame Mode
• When you run the "Auto Tuning", only the programme
channels in your Favourites list will be cleared.
"Photo Frame Mode"
3 Photo/
Music/
Video
~
• To exit Photo Frame mode:
/
Playback photo/music/video files via USB devices.
Side View
x
To select Photo/
x
To select Display
Music
Mode
In Photo Frame Mode
In Photo Frame Mode
"Photo"/"Music"/"Video"
"Image
"Display Mode"
Selection"/ "Music
Selection"
~
• You are also able to select Photo/Music/Display Mode
from
t "Settings" t "Set-up" t "Photo Frame
Settings".
z
red
• If more than one USB detected:
"Device
Selection".
• If you connect the USB device when "USB Auto Start"
is set to "On", the thumbnail view of photo/music/video
appears automatically.
4: Preventing the TV
3
To select TV position:
Overview of the
from toppling over
TV controls and
"Settings"
indicators
"Set-up"
Anchor bolts (M4) (not supplied)
"AV Set-up"
Front View
"TV Position"
~
• To exit "Set-up" menu:
Strong cord
(not supplied)
Power/Standby indicator
• Lights up in red when in
5: Performing the
standby.
• Lights up in green when
initial setup
the TV is turned on.
• Flashes while the remote is
being operated.
~
1
• Do not put anything over the sensor, doing so may affect
its function.
Back View
~
• When the TV is in standby mode (the "/1 (standby)
Power
indicator on the TV front panel is red), press "/1 on the
remote to turn on the TV.
Turns the TV on or
switch to standby
• Make sure that the TV is completely turned off before
unplugging the AC power cord (mains lead). Unplugging
mode.
the AC power cord (mains lead) while the TV is turned on
may cause the TV to malfunction.
CH/INPUT
• Press button until
2
"Rr Programme +/-"
appears and selects
channels with Volume
button.
• Press button until "Rr
Input select" appears
and selects input
Follow the instructions on the screen.
source with Volume
button.
~
• You can also tune channels manually.
• Language options vary depending on model.
• Select "Home" from "Location" for the best TV settings to
use the TV in the home.
x
To adjust the picture and sound setting
USB Video format
(Video)
Extension
When playing video
.avi
"Picture" / "Sound"
x
To play a photo as slideshow (Photo)
.wmv
.asf
.mp4
.mov
.3gp
green
OR
.mkv
"Slideshow"
.mpg
~
.mpeg
• To stop slideshow:
"Stop Slideshow"
.vob
.vro
~
• While the TV is accessing the data on the USB device, do
not turn off the TV or connected USB device, disconnect
the USB cable, or remove the USB device.
• Sony will not be held liable for any damage to, or loss of,
.ts
data on the recording media due to a malfunction of any
.m2ts
connected devices or the TV.
• The file name and folder name may not display correctly
in some cases.
• When you connect a Sony digital still camera, set the
USB Music format
camera's USB connection mode to Auto or Mass Storage.
For more information about USB connection mode, refer to
Extension
the instructions supplied with your digital camera.
• Check the website below for updated information about
.mp3
compatible USB devices.
.wma
http://www.sony-asia.com/bravia/flash.html
• Use a USB storage device that is compliant with USB
.wav
mass storage device class standards.
USB Photo format
Extension
.jpg, .jpe, .jpeg
DCF2.0 or EXIF2.21 supported.
~
• Playback of the above file formats is not guaranteed.
• The USB device supports FAT16, FAT32 and NTFS.
Volume
• Adjusts volume.
• Moves through
options up or down
when selecting
channels or input
source.
Container
Video Codec
Audio Codec
PCM
MPEG1
AC3
MPEG2
MPEG1 Layer1/2
XviD
MPEG2 AAC
AVI
MPEG4
MPEG4 AAC
H.264
MPEG4 HE-AAC
MJPEG
WMA V8
MP3
WMVV9
Xvid
MP3
ASF
MPEG4
WMA V8
VC-1
MPEG1 Layer1/2
MPEG4
MP3
H.264
MP4
MPEG2 AAC
H.263
MPEG4 AAC
MJPEG
MPEG HE-AAC
PCM
MP3
WMVV9
MPEG1 Layer1/2
MPEG4
MPEG2 AAC
MKV
H.264
MPEG4 AAC
VC-1
MPEG4 HE-AAC
AC3
WMA V8
MPEG1 Layer1/2
MPEG1
MPEG1
MP3
AC3
MPEG1 Layer1/2
MPEG1
MPEG2PS
MP3
MPEG2
AC3
MPEG1 Layer1/2
MP3
MPEG2
MPEG2 AAC
MPEG2TS
H.264
MPEG4 HE-AAC
VC-1
AC3
MPEG4 AAC
Audio Codec
MPEG1 Audio Layer 3
WMA V8
LPCM
Image Codec
JPEG
Need help?
Do you have a question about the Bravia KLV-24P422B and is the answer not in the manual?
Questions and answers
