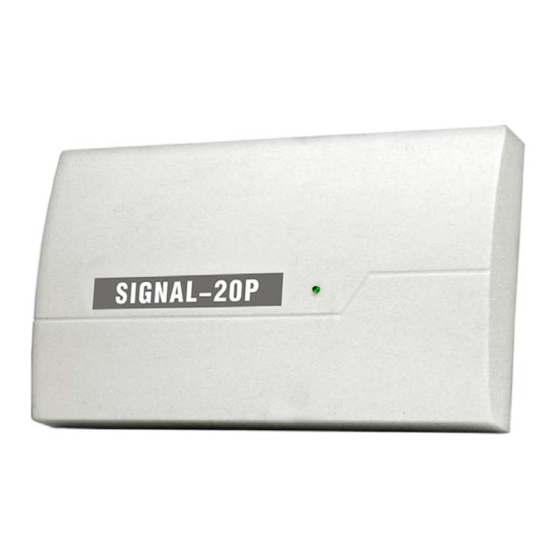

bolid SIGNAL-20P User Manual

Intrusion&fire alarm addressable 20-loop control device
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
SIGNAL-20P
Intrusion&Fire Alarm
Addressable 20-Loop Control Device
Installer's and User's manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SIGNAL-20P and is the answer not in the manual?

Questions and answers

Related Manuals for bolid SIGNAL-20P

Summary of Contents for bolid SIGNAL-20P

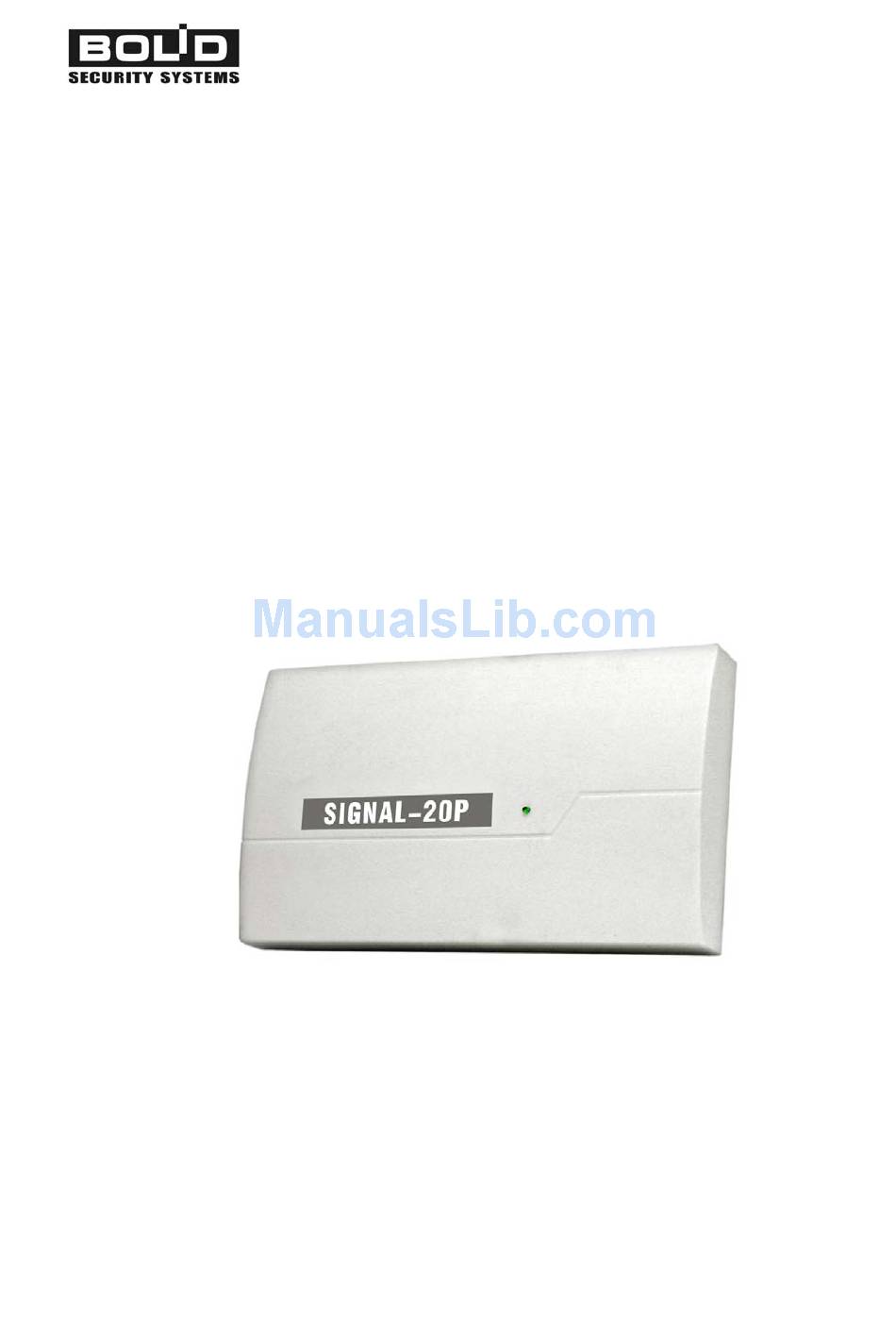

  • Page 1 SIGNAL-20P Intrusion&Fire Alarm Addressable 20-Loop Control Device Installer’s and User’s manual...
  • Page 2 INTRUSION&FIRE ALARM ADDRESSABLE 20-LOOP CONTROL DEVICE ATTENTION! To modify configuration parameters use the program “uprog.exe” 4.0.0.904 of version or higher.

  • Page 3: Table Of Contents

    SIGNAL-20P DESCRIPTION Table of contents 1 Description....................5 2 Specifications ..................6 3 Delivery set .................... 10 4 Design and Operating Principles ............10 4.1 Alarm loops ..................11 4.1.1 The loop configuration parameters ............ 11 4.1.1.1 Loop Type..................13 4.1.1.2...
  • Page 4 8 Manufacturer data ..................49 Appendix А. SIGNAL-20P dimensions............. 50 Appendix B. SIGNAL-20P block scheme..........51 Appendix C. SIGNAL-20P connection diagram........52 Appendix D. SIGNAL-20P testing connection diagram......53 Appendix E. Including the detectors into the loops ....... 54 Warranty ..................... 57...

  • Page 5: Description

    1 DESCRIPTION The multi-purpose Intrusion&Fire Alarm Addressable 20-Loop Control Device SIGNAL-20P (hereinafter referred to as device) is designated for usage as a part of integrated safety system to protect shops, pay-offices, banks, establishments, plants and other objects from fire and intrusion threats.

  • Page 6: Specifications

    INTRUSION&FIRE ALARM ADDRESSABLE 20-LOOP CONTROL DEVICE mended to use RIP-12 or RIP-24 uninterruptible power supplies manufac- tured by NVP BOLID Company. The device is to be mounted inside the premises and is destined for clock round duration. The device must not be used in aggressive medium or dust condition, or in dangerous space.
  • Page 7 SIGNAL-20P SPECIFICATIONS The device would generate messages and transmit them to the net controller through the RS-485 interface for some events listed below, with data transfer rate being equal to 9600 bps and transmission type being half-duplex: “ARMED” - Detector status monitoring has been turned “ARM FAILED”...
  • Page 8 INTRUSION&FIRE ALARM ADDRESSABLE 20-LOOP CONTROL DEVICE If the computer is used as net controller then the device has to com- municate with it through the RS-232/RS-485 converter (such as PI-GR, S2000-PI or S2000-USB) or S2000/S2000M console manufactured by NVP BOLID. If the device has disconnected from the net controller during mes- sage generation the event report would be stored in the device non-volatile memory.
  • Page 9 SIGNAL-20P SPECIFICATIONS can be considered as linearly increasing together with the detector con- sumed current increments. So the device useful current can be calculated in accordance with the formulas: The supply voltage being equal to 12 V, I = 3,33×i + 400 [мА] The supply voltage being equal to 24 V, I = 1,67×i + 200 [мА]...

  • Page 10: Delivery Set

    INTRUSION&FIRE ALARM ADDRESSABLE 20-LOOP CONTROL DEVICE 3 DELIVERY SET Following is the list of the SIGNAL-20P accessories included in stan- dard delivery: The SIGNAL-20P Intrusion&Fire Alarm Addressable 20-Loop Control Device itself This Installer’s and User’s Manual The component set including: 20 resistances С2-33Н-0,5-4,7 кОhм±5%...

  • Page 11: Alarm Loops

    SIGNAL-20P DESIGN AND OPERATING PRINCIPLES The processor controls device operating as whole: − subsequently requests alarm loops and monitors their statuses measuring their resistances − controls the internal light indicators, relay and loop power dump unit − receives the commands from net controller and transmits mes-...
  • Page 12 INTRUSION&FIRE ALARM ADDRESSABLE 20-LOOP CONTROL DEVICE Parameter Description Range name from 0 to 254 s The delay for transitions from Intrusion/ 255 means Off (don’t transit “ENTRY ALARM” to “INTRUSION Fire “Fire Alarm” or “Intrusion Alarm” ALARM” or from “FIRE Delay after one detector PREALARM”...

  • Page 13: Loop Type

    SIGNAL-20P DESIGN AND OPERATING PRINCIPLES Parameter Description Range name Burglary alarm loop transits into 300 ms “Intrusion Alarm” mode when it has On/Off Integration been broken for more than 300 ms Burglary alarm loop doesn’t transit 10% Devia- into “Intrusion Alarm” mode when...
  • Page 14 INTRUSION&FIRE ALARM ADDRESSABLE 20-LOOP CONTROL DEVICE this loop enters the “Fire Prealarm” status. If the second actuating has not occurred within 55 seconds the alarm loop returns to the “Armed” status. From the “Fire Prealarm” mode the device can transit to the “Fire alarm” mode if the second detector has been actuated or “Intrusion/Fire Delay”...
  • Page 15 SIGNAL-20P DESIGN AND OPERATING PRINCIPLES The type 2 alarm loop resolving time is determined in accordance with the requirements of the section 4.1.2. The compatibility of loop resistance and the corresponding status can be shown at the Table 3. The diagram of connection the fire smoke (normally opened) and heat (normally closed) detectors to the type 2 alarm loop is contained into the Appendix E.
  • Page 16 INTRUSION&FIRE ALARM ADDRESSABLE 20-LOOP CONTROL DEVICE “Armed” – the alarm loop is monitored and its resistance is in normal range. “Disarmed” - the alarm loop is not monitored. “Arm delay” – the arming delay has not yet been elapsed. “Intrusion alarm” – the detector breaking has been fixed. “Arm Failed”...
  • Page 17 SIGNAL-20P DESIGN AND OPERATING PRINCIPLES The diagram of connection burglary detector with tamper check to the type 5 alarm loop is contained into the Appendix E. The type 6 is the auxiliary alarm loop. The auxiliary alarm loop is intended to control the status, actuations and operability of extinguishing equipment and to control the detectors or other equipment independent from burglary or fire alarming.
  • Page 18 INTRUSION&FIRE ALARM ADDRESSABLE 20-LOOP CONTROL DEVICE “Armed” – the alarm loop is monitored and the resistance is in normal range. “Disarmed” - the alarm loop is not monitored. “Arm Delay” – the arming delay has not yet been elapsed. “Entry Alarm” – the loop breaking has been fixed. “Intrusion Alarm”...
  • Page 19 SIGNAL-20P DESIGN AND OPERATING PRINCIPLES This type alarm loop resolving time is 70 ms or 300 ms depending on “300 ms Integration” parameter value. The compatibility of loop resistance and the corresponding status can be shown at the Table 3.

  • Page 20: Arming Delay

    INTRUSION&FIRE ALARM ADDRESSABLE 20-LOOP CONTROL DEVICE 4.1.1.2 Arming Delay The parameter "Arming Delay" defines the number of seconds you want the device to wait before arming the alarm loop after having received the corresponding command. Nonzero "Arming Delay" is normally used for entering alarm loop when after entering arming command it should be pos- sible for some time to break this loop without alarm going off.

  • Page 21: Non-Disarming

    SIGNAL-20P DESIGN AND OPERATING PRINCIPLES 4.1.1.5 Non-disarming The parameter "Non disarming" prohibits loop disarming. This pa- rameter is used to prevent fire or alarming loop incident disarming, e.g. by net controller command. If alarm loop is entering “Intrusion Alarm”, “Silent Alarm”, “Fire Prealarm”, “Fire Alarm”...

  • Page 22: Fire Loop Requery Blocking

    INTRUSION&FIRE ALARM ADDRESSABLE 20-LOOP CONTROL DEVICE riod given for this alarm loop. For the executive programs 9 (LAMP), 10 (Alarm output 1), 13 (Fire output), 14 (Output FAULT), 15 (Fire LAMP) and 16 (Alarm output 2) that are documented in Table 5 these parameters are ignored and relays switch straight after the alarm loop status having been changed.
  • Page 23 SIGNAL-20P DESIGN AND OPERATING PRINCIPLES Loop type Alarm loop statuses Loop trbl Fire alarm Loop trbl Fire Loop trbl short prealarm open (actuation of (alarm loop smoke (loop has (Actuation of (alarm short detector) been re- heat detec- loop circuit)

  • Page 24: Resolving Time

    INTRUSION&FIRE ALARM ADDRESSABLE 20-LOOP CONTROL DEVICE Loop type Alarm loop statuses Silent alarm (attack) Loop trbl rst from 2,2 to 5,4 kОhм less then 1,8 kОhм or more than Alarming 6,6 kОhм Status 1* Status 2* Status 3* Status 4* Status 5* less then from R1...

  • Page 25: Relays

    SIGNAL-20P DESIGN AND OPERATING PRINCIPLES Im = 3 mA for loops of 1, 4, 6, 7, 11 and 12 types Im = 1,2 mA for loops of 2 type I is the current consumed by detector in operating mode If the type 1 loop is in use (that is fire smoke loop with double actua- tion recognition) then detectors have to keep their operability when the voltage has dropped to 12 V.

  • Page 26: Relay Centralized Control

    INTRUSION&FIRE ALARM ADDRESSABLE 20-LOOP CONTROL DEVICE If the device loops are assigned with the relays then control com- mands via RS-485 interface will be ignored and the local relay control will be in use. In such a manner the relay local control has priority over the centralized control.
  • Page 27 SIGNAL-20P DESIGN AND OPERATING PRINCIPLES The “Relay Control Program” parameter defines the relay control method realized via alarm loops (in case of local control) or initial relay status from power start up moment until the receiving of the first control command via RS-485 interface (in case of centralized control).
  • Page 28 INTRUSION&FIRE ALARM ADDRESSABLE 20-LOOP CONTROL DEVICE № Program name Program description Initial status If ‘Fire prealarm’ switches in interrupted mode (0,25 s ON and 0,75 s OFF) If ‘Intrusion alarm’, ‘Entry alarm’ or ‘Arm failed’ switches in interrupted mode (0,5 s ON and 0,5 s OFF) If “Fire trouble”...
  • Page 29 SIGNAL-20P DESIGN AND OPERATING PRINCIPLES № Program name Program description Initial status ‘Fire LAMP’ In case of ‘Fire alarm’ switches in inter- rupted mode (0,25 s ON and 0,25 s OFF) In case of ‘Fire prealarm’ switches in in- terrupted mode (0,25 s ON and 0,75 s OFF) In cases of ‘Intrusion alarm’, ‘Entry alarm’...
  • Page 30 INTRUSION&FIRE ALARM ADDRESSABLE 20-LOOP CONTROL DEVICE № Program name Program description Initial status ‘Turn off for a given If at least one loop is in the state ‘Auxil- time when auxiliary iary alarm’ switches the relay OFF for a alarm’ given time ‘Turn on when Turn the relay ON if at least one as-...

  • Page 31: Settings

    SIGNAL-20P DESIGN AND OPERATING PRINCIPLES № Program name Program description Initial status If an alarm loop has entered “High tem- "Turn on with perature” status**, that is, the tempera- temperature ture has exceeded "temperature high" increasing" threshold then switches ON If an alarm loop has entered “Low tem-...

  • Page 32: Voltage Analysis

    INTRUSION&FIRE ALARM ADDRESSABLE 20-LOOP CONTROL DEVICE Parameter Description Range Defines the value of delay for the device to response for the net From 1,5 ms to Interface controller request that has been 500 ms in incre- Response Delay received through the interface ments of 1/8 s RS-485 4.3.1 Voltage Analysis...

  • Page 33: Device Operation Modes

    SIGNAL-20P DESIGN AND OPERATING PRINCIPLES 4.4 Device operation modes The device is designed to operate in following available modes: − Technical readiness mode − Operating mode − “Power Failed” mode − Diagnostic mode − “Device Failed” mode The device “Ready” indicator statuses corresponding to various de- vice operation modes are shown by the Table 8.

  • Page 34: Diagnostic Mode

    INTRUSION&FIRE ALARM ADDRESSABLE 20-LOOP CONTROL DEVICE doesn’t response to the queries of the net controller which displays the “FAIL RS485 LINE” message. If the device has entered the “Device Failed” mode the “Ready” indi- cator switches in the interrupted mode with high frequency (8Hz). In case of entering the “Device Failed”...

  • Page 35: Application

    SIGNAL-20P APPLICATION 5 APPLICATION 5.1 Preparation 5.1.1 Protective measures There are no dangerous voltage circuits within the device. The mounting and maintaining of the device shall be executed under power–off conditions. 5.1.2 Device mounting The device can be mounted to the wall or to other places on prem- ises being protected from atmospheric fallouts and mechanical damages.

  • Page 36: Changing The Device Default Settings

    INTRUSION&FIRE ALARM ADDRESSABLE 20-LOOP CONTROL DEVICE 485 interface segment. The number of in-series S2000-PI repeaters (the number of segments) is not restricted. 5.1.4 Changing the device default settings In Orion networking operation mode the device has to be assigned with the unique net address in the range from 1 to 127. To do this, connect the device to the net controller, with other devices being disconnected from the RS-485 interface.
  • Page 37 SIGNAL-20P APPLICATION Loop Configuration Parameters (see Notes) Notes а) Following are parameters denotes by digits: 1 - Loop Type 2 - Arming Delay 3 - Loop Analysis Delay after Reset 4 - Intrusion/Fire Delay 5 - Relay 1 Control Delay...

  • Page 38: Fire Alarm Operations

    INTRUSION&FIRE ALARM ADDRESSABLE 20-LOOP CONTROL DEVICE Relay number Parameter name Relay Control 8192 8192 8192 8192 Time Circuit Check Type ATTENTION! The parameter changes have come into effect after device power reset. The power reset is not necessary for Net Address and Interface Response Delay changing.
  • Page 39 SIGNAL-20P APPLICATION "Fire Signal" if one smoke (normally opened) detector included into − the type 1 or type 2 alarm loop has actuated "Fire Prealarm" if one heat (normally closed) detector included into − the type 2 or type 3 alarm loop has actuated "Fire Alarm"...

  • Page 40: Burglary Alarm Operations

    INTRUSION&FIRE ALARM ADDRESSABLE 20-LOOP CONTROL DEVICE 5.3 Burglary alarm operations Depending on alarm loop type the device enables several burglary alarm modes: Burglary alarm (the loop type 4) − Burglary alarm with tamper check (the loop type 5) − Entering alarm −...

  • Page 41: Entering Alarm Mode

    SIGNAL-20P APPLICATION "Intrusion Alarm" − “Loop Trbl Short” − “Tamper Alarm” − "Armed", "Arm Delay", "Arm Failed" and “Intrusion Alarm” statuses are similarly to the corresponding statuses of the type 4 loop as mentioned above in 5.3.1 section. Alarm loop transits from “Disarmed” to “Intrusion Alarm” mode for at least 300 ms when detector tamper contacts have opened.

  • Page 42: Auxiliary Alarm Application

    INTRUSION&FIRE ALARM ADDRESSABLE 20-LOOP CONTROL DEVICE "Disarmed" − "Arm Delay" − "Arm Failed" − "Silent Alarm" − "Armed", "Arm Delay" and "Arm Failed" statuses are similarly to the corresponding statuses of the type 4 loop as mentioned above in 5.3.1 sec- tion.

  • Page 43: Type 12 Auxiliary Alarm Loops

    SIGNAL-20P APPLICATION - 11 (ASPT) - 12 (SIREN) - 33 (ASPT-1) - 34 (ASPT-A) - 35 (ASPT-A1 Blocking of the relay control in case of auxiliary loop breaking impli- cates that - the relay doesn’t switch on in accordance with given tactics if the...
  • Page 44 INTRUSION&FIRE ALARM ADDRESSABLE 20-LOOP CONTROL DEVICE The alarm loop entering into the “Armed”, “Disarmed”, “Aux Zone Re- store” or any “Restore…” status, this status resolving time (recovery time) is equal to the “Arming Delay” period. The programmable auxiliary alarm loop status codes are enumerated in Table 12.
  • Page 45 SIGNAL-20P APPLICATION Status Status Message code below the emergency threshold TEMPERATURE Temperature has normal value NORM HEAT SENSOR The heat sensor failure has detected FAIL The detector status is not monitored DISARMED Entry zone alarm ENTRY ALARM The pump has started...

  • Page 46: Alarm Loop Arming And Disarming

    INTRUSION&FIRE ALARM ADDRESSABLE 20-LOOP CONTROL DEVICE where is the alarm loop resistance loop ACD is the device metered resistance in analogue-digital con- verter terms This formula allows adequately calculating of loop resistance in range from 0,1 to 50 kOhm. 5.5 Alarm loop arming and disarming The device enables any loop arming or disarming by means of net controller.

  • Page 47: Maintenance

    SIGNAL-20P MAINTENANCE Partition status Reader indicator mode Light color "Intrusion Alarm", "Fire Alarm", "Fire Prealarm", Blinks with 2 Hz frequency Yellow "Arm Failed" "Fire Trouble" Blinks with 5 Hz frequency Yellow If the presented identifier is unknown or has low authority level the net controller denies the access and the device indicate this event by triple flashes and subsequent turning on with red light.

  • Page 48: Testing In Diagnostic Mode

    INTRUSION&FIRE ALARM ADDRESSABLE 20-LOOP CONTROL DEVICE c) Verify the device useful current being not exceeded values pre- sented by the Table 1. d) Verify the S2000/S2000M console displaying the occurring events, such as: - “RST RS485 LINE” in case of device has been detected - “DEVICE RESTART”...

  • Page 49: Storage

    SIGNAL-20P STORAGE 7 STORAGE There must not be any acids or alkalis vapor, aggressive gas or other noxious agent with corrosive effect on premises where the device is sto- ried. The device storage life in package has to be no more then 6 months.

  • Page 50: Appendix А. Signal-20P Dimensions

    INTRUSION&FIRE ALARM ADDRESSABLE 20-LOOP CONTROL DEVICE Appendix А. SIGNAL-20P dimensions All dimensions are defined in millimeters.

  • Page 51: Appendix B. Signal-20P Block Scheme

    APPENDIX B. SIGNAL-20P BLOCK SCHEME Appendix B. SIGNAL-20P block scheme loop 1 commu- interface RS-485 tator loop20 switching processor relays (1, 2, 3) loop power dump unit circuit control outputs (4, 5) voltage converter voltage converter "Ready" indicator power supply U1...

  • Page 52: Appendix C. Signal-20P Connection Diagram

    INTRUSION&FIRE ALARM ADDRESSABLE 20-LOOP CONTROL DEVICE Appendix C. SIGNAL-20P connection diagram...

  • Page 53: Appendix D. Signal-20P Testing Connection Diagram

    APPENDIX D. SIGNAL-20P TESTING CONNECTION DIAGRAM Appendix D. SIGNAL-20P testing connection diagram...

  • Page 54: Appendix E. Including The Detectors Into The Loops

    INTRUSION&FIRE ALARM ADDRESSABLE 20-LOOP CONTROL DEVICE Appendix E. Including the detectors into the loops Type 1 (fire smoke alarm loop with double actuating recognition) Rt – terminal resistor 4,7 kОhm lo o p + Ra – additional resistor SD – fire smoke detector lo o p - Table 14: Additional resistance preferred values for various detectors IP212-...
  • Page 55 APPENDIX E. INCLUDING THE DETECTORS INTO THE LOOPS Type 3 Type 5 (fire heat alarm loop with double ac- (burglary with tamper check) tuating recognition) loop+ 8,2k loop+ loop- loop- L1 – tamper lead HD – heat detector L2 – detector lead Rsh = 4,7 kOhm Rt = 4,7 kOhm Scheme of smoke detector...
  • Page 56 INTRUSION&FIRE ALARM ADDRESSABLE 20-LOOP CONTROL DEVICE Smoke detector simulation Heat detector simulation IPR 513-3 detector connection...

  • Page 57: Warranty

    Manufacturer warrants its product to be in conformance with specifica- tion under normal transportation, storage, mounting and maintenance. Manufacturer warrants Signal-20P product to be free from defects in materials and workmanship for 18 months since putting in to operation, but no more then 24 months since production under normal use and service.
