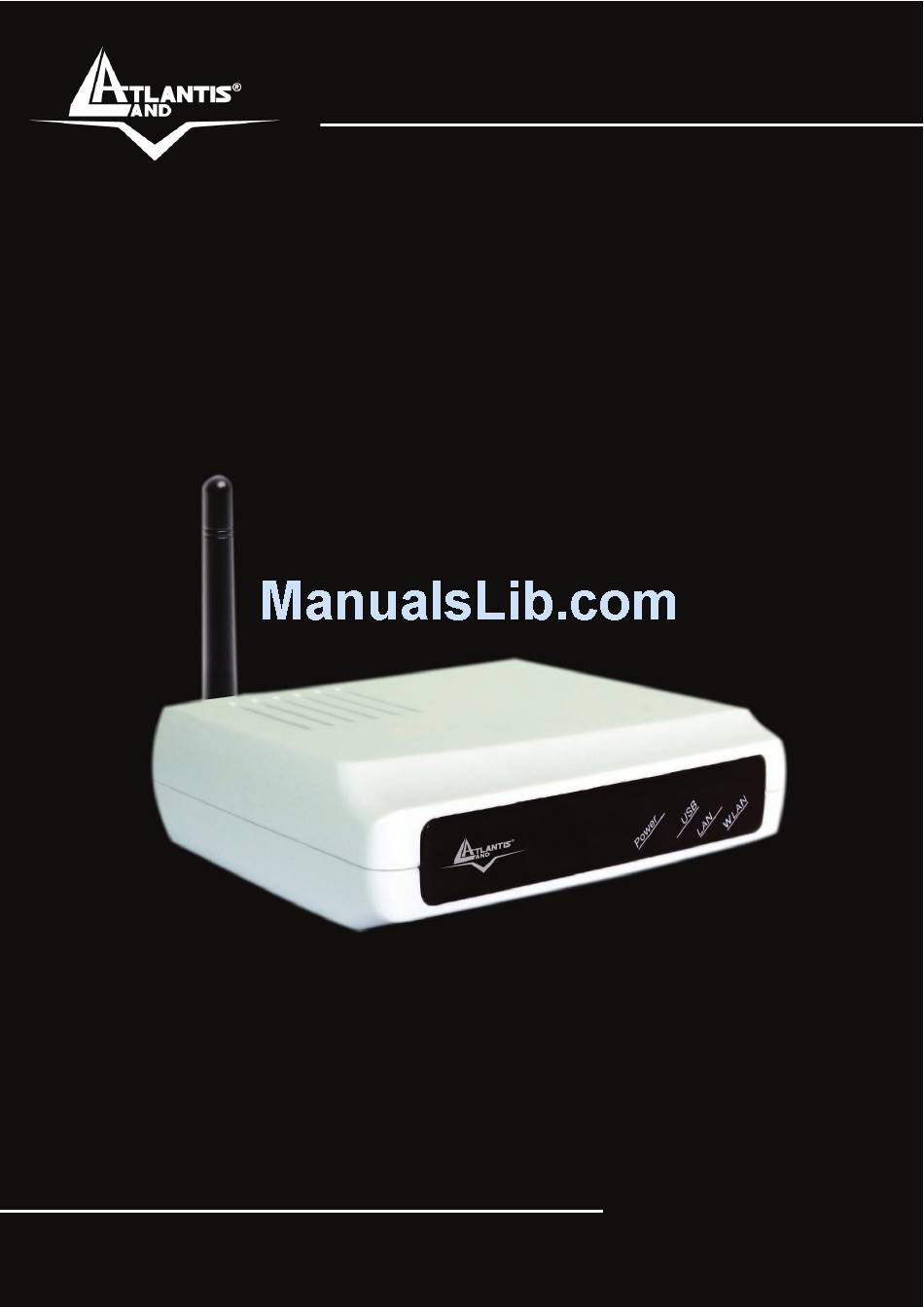

- Page 1 NetServer Pro Wireless USB 2.0 Print Server A02-PSU-W54 MANUAL A02-PSU-W54_ME01 Where solutions begin Company certified ISO 9001:2000...
- Page 2 ENGLISH This product is covered by Atlantis Land 3 years Fast-Swap warranty. For more detailed informations please refer to the web site www.atlantis-land.com. For more detailed instructions on configuring and using this device, please refer to the online manual.
- Page 3 WARRANTY. Copyright The Atlantis Land logo is a registered trademark of Atlantis Land SpA. All other names mentioned mat be trademarks or registered trademarks of their respective owners. Subject to change without notice. No liability for...
-
Page 4: Table Of Contents
INDEX INDEX 1.1 About this Guide................10 1.2 Package contents................11 1.3 System Requirements............... 11 1.4 General Features ................11 1.5 The Front Panel LEDs ..............13 1.6 The Rear Ports.................. 14 1.7 Default Settings................. 14 1.8 Cabling ....................15 1.9 Using The Utilities ................ - Page 5 Windows™ 98SE/2000/ME/XP are trademarks of Microsoft® Corp. Pentium is trademark of Intel. All copyright reserved. The Atlantis Land logo is a registered trademark of Atlantis Land SpA. All other names mentioned mat be trademarks or registered trademarks of their respective owners.
- Page 6 NetServer Pro Manufacturer and its authorized resellers or distributors will assume no liability for any damage or violation of government regulations arising from failing to comply with these guidelines. CE Mark Warning This is a Class B product. In a domestic environment, this product may cause radio interference, in which case the user may be required to take adequate measures.
- Page 7 NetServer Pro (safety). This equipment may be used in all European Union contries and in all countries applying Directive 1999/5/CE, without restriction, with the exception of the following countries: France: When this equipment is used outdoors, output power is limited to within the frequency bans listed on the chart.
-
Page 8: About This Guide
NetServer Pro Congratulations on purchasing Atlantis Land NetServer Pro, the easiest and fastest way to deploy printers on your network. This compact print server can connect your network through an Access Point under the infrastructure mode, or can be used in ad-hoc mode for direct communication between PC/Notebook and print server anywhere you wish to locate wireless printer services. -
Page 9: Package Contents
Unpack the package and check all the items carefully, and be certain that you have: Atlantis Land NetServer Pro, CDRom with manual and PS-Utility, Quick Start Guide, Power Adapter AC-DC (5V, 2.5A) If any item contained is damaged or missing, please contact your local dealer immediately. - Page 10 NetServer Pro Windows-based administrative program makes it possible to set up in a few steps Latest MIB-II (RFC 1213) for SNMP standard management Offer LPR program for TCP/IP printing in Windows 95/98/ME IP assignment support for DHCP, BOOTP and RARP Support Web configuration Provide Flash memory for easy firmware upgrade Auto fallback data rate under noisy environment or longer range...
-
Page 11: The Front Panel Leds
NetServer Pro 1.5 The Front Panel LEDs Meaning A steady light confirms that the NetServer Power Pro is powered on. Steady light confirms that the print server has a good connection to a printer. When it blinks, the printer connected is printing. -
Page 12: The Rear Ports
NetServer Pro Steady light confirms that the print server has a good connection to your wireless network. WLAN When it blinks (briefly dark), the print server is receiving/ transmitting data from/to the wireless network. 1.6 The Rear Ports Port Meaning The NetServer’s Pro rear panel features an RJ-45 connector for connections to 10Base-T Ethernet cabling or 100Base-... -
Page 13: Cabling
NetServer Pro 1.8 Cabling Follow these steps for a trouble-free start of the print server operations with NetServer Pro. 1. Confirm proper operation of the printer to be connected to the print server. 2. When you have confirmed proper operation of the printer, turn off its power. -
Page 14: Using The Utilities
NetServer Pro The following diagram explains the application of NetServer Pro. 1.9 Using The Utilities This section describes the software utilities for the NetServer Pro: PS-Utility PS Wizard... -
Page 15: Installing Ps-Utility
NetServer Pro 1.9.1 Installing PS-Utility Follow the procedure outlined below to install PS-Utility: 1. Insert the NetServer Pro’s Installation CD into the CD-Rom drive. 2. Click Install Utility from the Auto-Run menu screen. 3. Once executed, the Setup program will extract files to launch the InstallShield Wizard;... - Page 16 NetServer Pro 1. Device List: Display the connected print server within the network. 2. Control Buttons: Setup Wizard, Change IP Address, Update Firmware, Show Web Setup, Factory Reset, Print Test, Discover Device, About, and Close. 3. Information Field: Display the basic information of the selected print server in the Device List.
-
Page 17: Setting Up Windows Xp Tcp/Ip Printing
NetServer Pro Search the available devices: click the Discover Device button to re-search the connected print server within the network. Resume the default settings: click the Factory Reset button to reload the factory settings of NetServer Pro. Update Firmware: click the Update Firmware button to update the firmware of NetServer Pro. -
Page 18: Web Configuration
NetServer Pro 1.10 Web Configuration You can access and manage the NetServer Pro through: 1) the enclosed software PS-Utility, and 2) a web browser. This chapter describes the second method – the Web Configuration Utility, and explains how to set up your print server with the web browser. -
Page 19: Management
NetServer Pro 1.10.1 Management System As shown above, the System displays the status of your print server and network. Device Status: The information about the print server, including the firmware version, MAC/IP address, and up time, can be found in this field. Printer Status: The items in this field display the information of the printer, such as the given name for the printer, speed, printer status, and status of your printing tasks, etc. - Page 20 NetServer Pro Ethernet Status: You can monitor the networking status in this field, including the network connection, speed, and the packets status Clicking Refresh will update the information. Wireless Click the Wireless item in the left column to display the information of the wireless LAN.
- Page 21 NetServer Pro Network Click the Network item to display the information of the LAN. Auto IP: This field contains the current settings of TCP/IP, including DHCP/BOOTP, UPnP, and MAC Rendezvous. The items in this field are configured in Configuration -> Network -> TCP/IP. TCP/IP Printing: In this field, you can monitor the status of your printing tasks through TCP/IP.
- Page 22 NetServer Pro Microsoft Network Printing: In this field, you can monitor the status of your printing tasks through Microsoft Network. MAC AppleTalk Printing: In this field, you can monitor the status of your printing tasks through MAC AppleTalk. Clicking Refresh will update the information.
- Page 23 NetServer Pro User Click the User item in the left column to display the user(s) information. Users Printing Log: The items in this field display the user(s) information, which include the user(s) MAC address, IP address, name, and status of printing tasks.
-
Page 24: Configuration
NetServer Pro 1.10.2 Configuration System Click the System item to set the NetServer Pro’s system information. System Device: In this field, you can configure the basic information of your print server. Server Name: Assign a name to the print server. Location (optional): Assign a location for the print server Admin Contact (optional): Assign the Admin Username for the print server. - Page 25 NetServer Pro PJL (Print Job Language) has certain job requirements that must be met to work correctly. For more information, please refer to your printer’s manual. Wireless Click the Wireless item to set the NetServer Pro’s wireless interface and his security methods. Wireless Interface: In this field, you can configure the basic information of NetMaster Pro’s wireless interface.
- Page 26 NetServer Pro Connection Mode: You can select two connection mode: Infrastructure: Connects compatibly configured wireless AP or router in a WLAN. Ad-Hoc: Connect to compatibly configured wireless clients in the peer-to-peer mode. SSID: Assign the SSID in this box. You can manually input the name or select one from the pull-down menu.
- Page 27 NetServer Pro Advanced Setting: This field allows you to configure more settings, including: Beacon Interval: Enter the number of beacon interval time in millisecond. Preamble: This option allows you to set the length of preamble. Long: it is set to 144 bits Short: it is set to 72 bits.
- Page 28 NetServer Pro Manually Assign: This option allows you to set the IP address manually; should enter related information in the following boxes, including IP Address, Subnet Mask, and Default Gateway. Automatically Assign: This option allow NetServer Pro to give an IP address automatically from a DHCP Server existing on your network.
- Page 29 NetServer Pro AppleTalk Zone: Enter the AppleTalk Zone name in the box. USB: In the following options, enter the related configuration, such as the printer type. Chooser Name: Display the NetServer Pro’s Port name. Printer Type: Enter the printer’s type in this box. PostScript Level: Select from the pull-down menu (Level 1 or Level 2).
- Page 30 NetServer Pro option (Yes or No). Clicking Save will save settings. Define User: You can add/delete the user(s) to/from the User List. The User List at the bottom of the screen displays the current defined user and related information for the print server Add User: This fields contain some options that allow you to configure User setting.
- Page 31 NetServer Pro E-Mail Click the E-Mail item to set parameters to use E-Mail Notifications system and for E-mail printing. E-mail Account: You can assign an E-mail address to the print server, so that your mail of the account can be printed out directly through the printer (ASCII text only).
- Page 32 NetServer Pro E-Mail Notification: You can set the print server to send an alter message when the printer status changes through E-mail. To enable this function, set the Enable e-mail notification for printer status changing option to Yes. Then, input the administrator’s E-mail address in the Admin E-mail Address box.
-
Page 33: Tools
NetServer Pro Community 1/2/3: Enter a name in the Name box, and configure the Access Right by selecting Read Only or Read/Write from the pull-down menu. Clicking Save will save settings. 1.10.3 Tools Print Test Print Test: Click Test to print a test page. - Page 34 NetServer Pro E-Mail Test E-Mail Account: Click Test to send a test E-mail to the given administrator’s E-mail address. To use Test E-Mail Account you have to enable E-Mail Notifications functions in Configuration -> E-mail -> E-Mail Notifications Receive E-Mail: Click Yes to immediately check and receive E-mail, and then print out the mail when available.
- Page 35 NetServer Pro Reset Reset: Click Yes to immediately restart the NetServer Pro. Factory Reset...
- Page 36 Fimrware Upgrade Firmware Upgrade: When a new version of firmware is available (e.g. downloading from Atlantis Land website www.atlantis-land.com), you can upgrade the firmware of your NetServer Pro. Click Browse to point to the firmware file, and then click Upgrade.
- Page 37 NetServer Pro When uploading software to the NetServer, it is important not to interrupt the Web browser by closing the window or loading a new page. If the browser is interrupted, it may corrupt the software Backup Backup Device Configuration to File: Click Backup to backup your current configuration of NetServer Pro to file and then save in the computer.
-
Page 38: Help
NetServer Pro 1.10.4 Help This screen displays the information of NetServer Pro. -
Page 39: Printing In Windows 98Se/Me
NetServer Pro 1.11 Printing in Windows 98SE/ME The NetServer Pro can provide print services to TCP/IP networks using the lpr/lpd network printing protocol. Most U systems are capable of supporting lpd, as is Windows NT/2000. This LPR for TCP/IP Printing client gives Windows 98SE/Me workstations the ability to print using the lpr/lpd printing protocol. - Page 40 NetServer Pro 6. When Windows asks you to select a network client, click the Have Disk... button. 7. Insert the NetServer Pro CD in your computer’s CD-Rom, enter the proper pathname (for example , D:\lpr), and click OK. 8. Select the LPR for TCP/IP Printing client and click OK 9.
-
Page 41: Adding Lpr Printer Ports
NetServer Pro 1.11.2 Adding LPR Printer Ports Once you have installed the client, and have enabled TCP/IP printing for NetServer Pro, then you need to add a printer port for each printer you will be printing to using the lpr/lpd protocol. To add a printer port: 1. - Page 42 NetServer Pro 4. Click the Add Port... button to add a new lpd-accessible printer port. 5. Enter the IP address of NetServer Pro and the name of the printer port that you will be printing to, then press OK. 6. Click OK to leave the LPR for TCP/IP Printing Properties window.
-
Page 43: Printing From Windows 98Se/Me
NetServer Pro 1.11.3 Printing from Windows 98SE/Me After you have added the necessary printer ports, you can add a printer device for printing to the port. To enable printing to an lpr-accessible printer port from Windows 98SE/Me: From the Start menu, choose the Settings submenu, then the Printers item within it. - Page 44 NetServer Pro 5. Enter the name of the port, as displayed in the LPR for TCP/IP Printing Port List.
- Page 45 NetServer Pro 6. Alternatively, you can click Browse... and locate the printer port. TCP/IP printing ports are located under the Entire Network icon, within the Print Servers - TCP/IP LPR icon. 7. Press OK when you have located the proper printer port. 8.
- Page 46 NetServer Pro 10. Windows will then ask for a name for the new printer, and ask whether or not you want to set the printer as the Windows default printer. Click Finish (or Next) to continue. 11. Windows may ask you whether or not you wish to print a test page to make sure that the printer will work correctly.
-
Page 47: Setting Tcp/Ip Printing Settings
NetServer Pro 1.11.4 Setting TCP/IP Printing Settings The lpr client’s Properties dialog allows you to change several of the client’s settings. To change these settings: 1. From the Start menu, choose the Settings submenu, then the Control Panel item within it. Windows will display the Control Panel folder. - Page 48 NetServer Pro 4. Click on the Settings tab to access the lpr client settings. Change the settings as necessary, and press OK to let the changes take effect. 5. The parameters are as follows: Communication Timeout: Determines how long, in seconds, the system will wait before determining that it has lost connection with lpr/lpd print servers.
-
Page 49: Printing In Windows 2000/Xp
NetServer Pro 1.12 Printing in Windows 2000/XP 1.12.1 Setting Up Windows 2000 TCP/IP Printing Following is the correct procedure for setting up TCP/IP LPR printing under Windows 2000. 1. Click Start > Settings > Printers. 2. Double Click Add Printer 3. - Page 50 NetServer Pro 5. Click Next 6. Input the IP Address of the NetServer Pro, and the Port name of the Port that will be printed to, then click Next.
- Page 51 NetServer Pro 7. Select Custom, and click Settings. 8. Select LPR, and put the Port name in the field labeled Queue Name. 9. Then Click OK.
- Page 52 NetServer Pro 10. Click Finish 11. The Printer Install Wizard will now prompt for drivers. Select the correct Make and Model, or click Have Disk, to provide the Manufacturer’s Driver Disk.
- Page 53 NetServer Pro 12. Click Next. 13. Select a Printer Name.
- Page 54 NetServer Pro 14. Sharing can be enabled here. 15. Also, a Test Page can be printed to confirm proper configuration.
- Page 55 NetServer Pro 16. When the Test Page has been printed, click Finish to complete the installation.
-
Page 56: Setting Up Windows Xp Tcp/Ip Printing
NetServer Pro 1.12.2 Setting Up Windows XP TCP/IP Printing Following is the correct procedure for setting up TCP/IP LPR printing under Windows XP. 1. Click Start -> Printer and Faxes 2. Double Click Add a Printer 3. Click Next... - Page 57 NetServer Pro 4. Select Local Printer 5. Create a new Standard TCP/IP Port...
- Page 58 NetServer Pro 6. Click Next 7. Input the IP Address of the Print Server, and the Port name of the Port that will be printed to, then click Next.
- Page 59 NetServer Pro 8. Select Custom, and click Settings. 9. Select LPR, and put the Port name in the field labeled Queue Name. Then Click OK. 10. Click Next.
- Page 60 NetServer Pro 11. Click Finish 12. The Printer Install Wizard will now prompt for drivers. Select the correct Make and Model, or click Have Disk, to provide the Manufacturer’s Driver Disk.
- Page 61 NetServer Pro 13. Click Next. 14. Select a Printer Name.
- Page 62 NetServer Pro 15. A Test Page can be printed to confirm proper configuration. 16. When the test page has been printed, click Finish to complete the installation.
-
Page 63: Printing In Mac Os
NetServer Pro 1.13 Printing in MAC OS 1.13.1 Rendezvous Uses in MAC OS 10.2 The latest version of MAC OS provides a new feature that is called Rendezvous. Rendezvous is a revolutionary networking technology standard that lets you create an instant network of computers and devices, which can be used throughout Mac OS 10.2 to provide innovative ways to share files and printers and even contact other people on the network. - Page 64 NetServer Pro 2. Select Rendezvous from the pop-up menu. 3. When clicking the Rendezvous item, the following window appears to display the connected Rendezvous-enabled printers Connected...
- Page 65 NetServer Pro 4. Select the desired printer, and the following pop-up menu displays the printer’s manufacturer. Select Generic. 5. The printer is installed into the system successfully.
-
Page 66: Technical Features
NetServer Pro 1.14 Technical Features Advanced Features Compact pocket size. Compliant with USB 2.0 high-speed printing. Fast 54Mbps WLAN connectivity based on IEEE 802.11g wireless high-speed standard. Multi protocol support is ideal for shared printing in mixed-LAN environments. Windows-based administrative program makes it possible to set up in a few steps. - Page 67 NetServer Pro System Hardware: SDRAM: 8M Byte Flash ROM: 2M Byte 5V DC power adapter LED Indicator: Power, USB, LAN, WLAN Wireless Networking Network Standards: Wireless LAN standard IEEE802.11g. Network Data Transfer Rate: 54Mbps with fallback to 48, 36, 24, 18, 12, 11, 9, 6, 5.5, 2, and 1Mbps.
-
Page 68: Support
CDRom. If you continue to have problems you should contact the dealer where you bought this device. If you have any other questions you can contact the Atlantis Land company directly at the following address: Atlantis Land SpA Viale De Gasperi, 122 20017 Mazzo di Rho(MI) Tel: +39. - Page 69 NetServer Pro...
