TigerStop
I n s t a l l a t i o n & U s e r ' s G u i d e v 4 . 1
June 2009
CONTACT:
TigerStop LLC,
Tel: 360 448-6102 ● Fax: 360 260-0755 ● Website: www.tigerstop.com ● Email: service@tigerstop.com
© 2009 TigerStop LLC
®
Ethernet-to-Serial Converter
Assembly Plant, 12909 NE 95
th
St., Vancouver, WA 98682 U.S.A.
ESC 4.1
TigerStop Version 5.03+
Advertisement
Table of Contents
Summary of Contents for TigerStop Ethernet-to-Serial

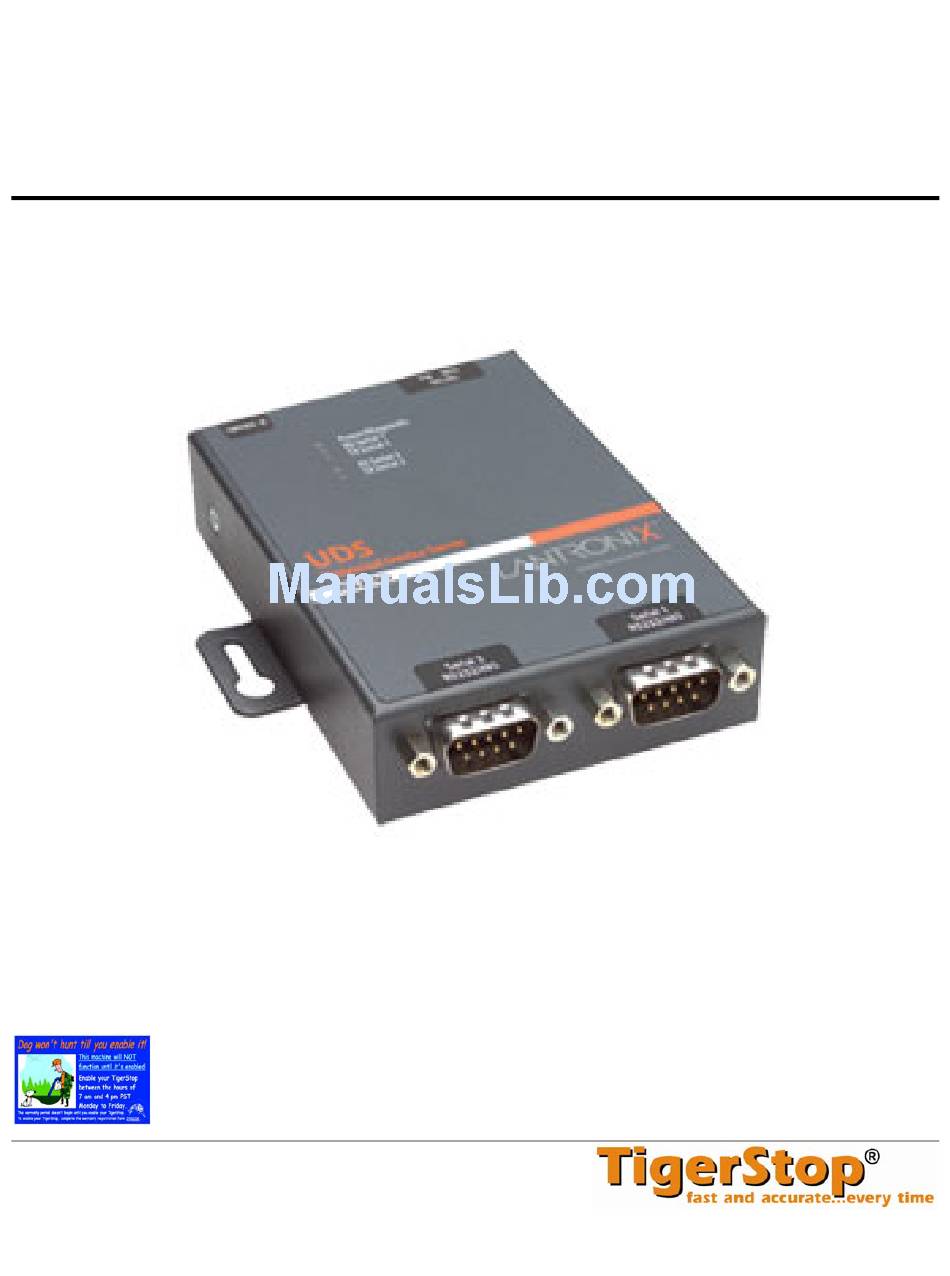

- Page 1 I n s t a l l a t i o n & U s e r ’ s G u i d e v 4 . 1 June 2009 TigerStop Version 5.03+ CONTACT: TigerStop LLC, Assembly Plant, 12909 NE 95 St., Vancouver, WA 98682 U.S.A. Tel: 360 448-6102 ● Fax: 360 260-0755 ● Website: www.tigerstop.com ● Email: service@tigerstop.com © 2009 TigerStop LLC...
-
Page 3: Ethernet To Serial Converter
TigerStop enabled with the TigerSet, Optimizer, or Download software packages. Workflow Manager 5.4 (or TigerLink version 5.0 or higher) The connection to the TigerStop requires a straight-through serial cable with Fig. 3 a male DB25 connector on one end, and a female DB9 connector on the other end. -
Page 4: Installation And Setup
Installation and Setup Controller Setup On the TigerStop side of the installation, the controller has no specific setup requirements, but the user must know the controller’s baud rate. The default setting is 115200, but this can be checked or changed in the System Menu. - Page 5 ESC unit with the serial cable provided. 2. Connect a category 5 ethernet cable to the RJ45 port. 3. For units provided by TigerStop, use the power supply that is included in the packaging. Note The required input voltage is 9-30 VDC (center +) or 9-24 VAC (1.5W maximum...
- Page 6 Ethernet Device Installer To use the ESC Ethernet-to-Serial Converter, some software on the accompanying CD must first be installed and run on your computer. The ESC comes with a Quick Start Guide from Lantronix (Fig. 1) and a CD (Fig. 2). Everything you need to know about the Ethernet-to-Serial Converter can be found in the TigerStop Fig.
- Page 7 Ethernet Device Installer to "Just me," according to your preference. Click Next. 7. The Installation Complete screen displays last. Click Close to exit.
-
Page 8: Assign The Ip Address
Run the Ethernet Device Installer Assign the IP Address 1. Click the START button on the task bar and select All Programs > Lantronix > DeviceInstaller > DeviceInstaller (Fig. 1). Fig. 1 Fig. 2 2. The Device Installer window (Fig. 2) appears, displaying in the left pane a directory tree and in the right pane all the UDS devices on the network. - Page 9 Run the Ethernet Device Installer Fig. 4 4. Adjust the selections (Fig. 4), if necessary and click Next. Fig. 5 5. Click Assign (Fig. 5) to complete the IP address assignment. Fig. 6 6. When the task shows as Completed successfully, click Finish (Fig. 6) to exit.
- Page 10 ESC Installation & User's Guide Appendix: IP Addressing IP addresses are classified as Class A, B and C, and the ranges are: Class A = 1.0.0.0 ~ 126.0.0.0 Class B = 128.0.0.0 ~ 191.255.0.0 Class C = 192.0.1.0 ~ 223.255.255.0 Reserved address ranges for private (non-routed) use: 10.0.0.0 ~ 10.255.255.255 172.16.0.0 ~ 172.31.255.255...
- Page 11 Configure the Ethernet Adaptor 1. Click the START button on the task bar and select All Programs > Lantronix > DeviceInstaller > DeviceInstaller (Fig. 1). Fig. 1 Fig. 2 2. Double click on a UDS to open a window with 3 tabs: Device Details, Web Configuration and Telnet Configuration (Fig.
- Page 12 ESC Installation & User's Guide Fig. 3 3. Click Edit Settings. The Port Properties screen (Fig. 4) displays.
- Page 13 Configure the Ethernet Adaptor Fig. 4 4. Click the Advanced tab. The Advanced tab (Figs. 5-6) displays all the port properties in detail. Fig. 5...
- Page 14 ESC Installation & User's Guide Fig. 6 5. In the 1. Serial Settings (Fig. 12) parameters, change Baud Rate to 115,200 as shown in the example, or to whatever baud rate is set in the controller. 6. In the 3. Passive Connection (Fig. 12) parameters, change Local Port to 14001, and click The Local Port needs to be 11000 higher than the port setting in the Redirector.
- Page 15 The Ethernet Redirector Install the Ethernet Redirector from the CD Insert the CD into your CD-ROM drive. When the UDS Lantronix Redirector Install Shield Wizard opens. Device Server window displays, click Redirector to install it. Click Next. Redirector Setup prepares the Install Shield Wizard and Install Shield Wizard opens.
- Page 16 ESC Installation & User's Guide Choose destination for Redirector, either the default, or Install Shield Wizard installs the Redirector. browse and create your own. When finished, click Next. When installation is complete, select either Yes restart computer now, or No restart computer later, and click Finish. The computer must be rebooted to use the Redirector.
- Page 17 Launch the Redirector Start the Redirector Click the START button on the task bar and select All Programs > Lantronix > Redirector > Configuration. The Lantronix Redirector Configuration screen (Fig. 1) will display. Fig. 1 - Redirector Configuration screen Redirector Configuration buttons: 1.
- Page 18 ESC Installation & User's Guide Fig. 3 - The Com Setup button dialog box. Fig. 4 - The Port Settings button dialog box. Fig. 5 - The Add IP button dialog box. Fig. 6 - The Disconnect button dialog box. Open the Com Port Redirector and set up the virtual com ports.
-
Page 19: Esc Troubleshooting
Contact TigerStop Customer Support If you are not successful in correcting the problem, contact TigerStop Customer Service. Our service technicians are available during regular business hours at our assembly plant in Vancouver, WA, U.S.A. All incoming service calls and/or email are acknowledged, and most...
