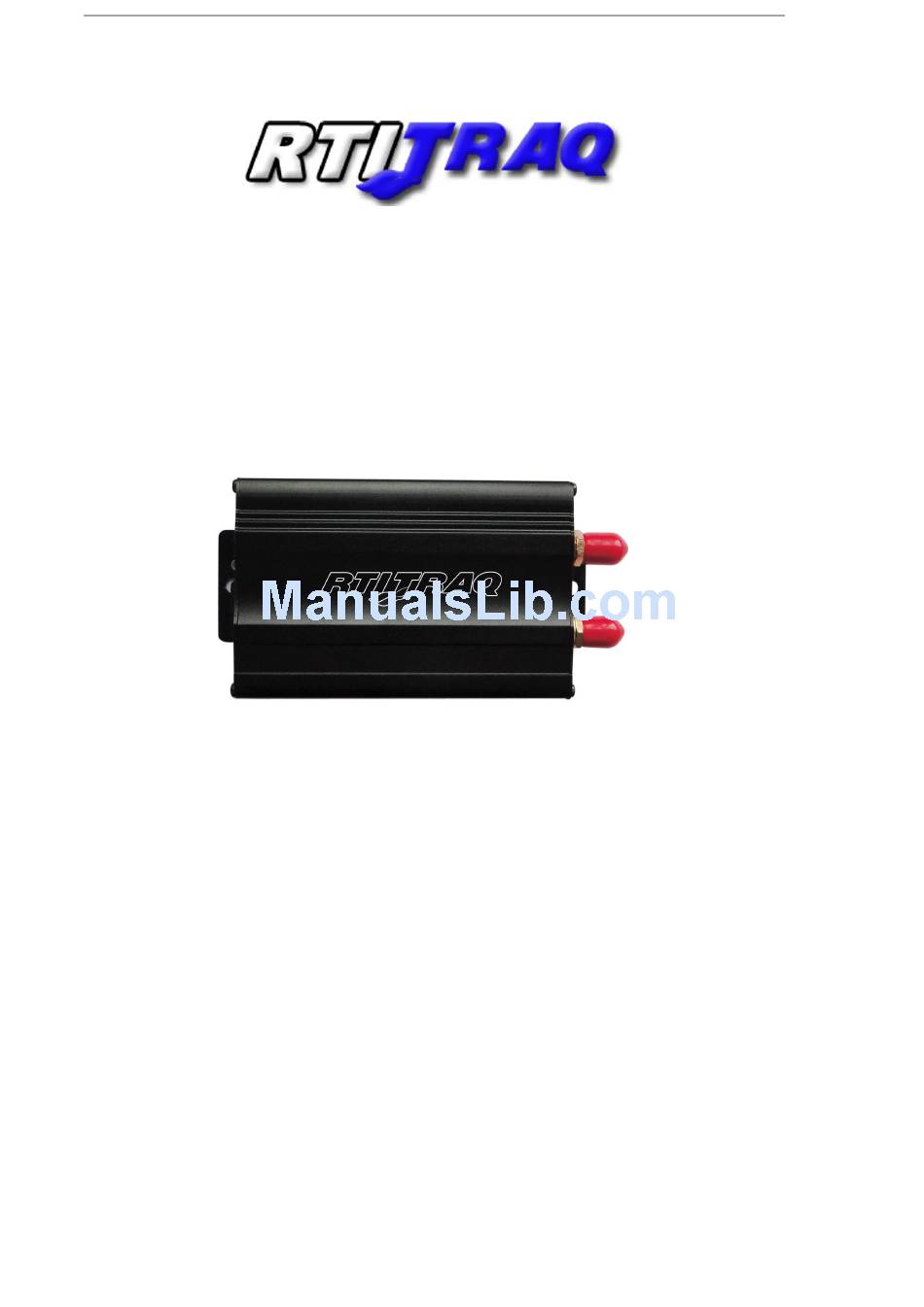

Model 103 GSM/GPRS/GPS Vehicle Tracker
Thank you for purchasing RTITraq. Please read this manual carefully before using
this product, to ensure proper operation. Please note that all specifications and
information contained herein are subject to change without prior notice. Any
changes will be integrated into the latest release. The manufacturer assumes no
responsibility for any errors or omissions in this document.
Advertisement
Table of Contents
Summary of Contents for RTITraq 103
- Page 1 Model 103 GSM/GPRS/GPS Vehicle Tracker Thank you for purchasing RTITraq. Please read this manual carefully before using this product, to ensure proper operation. Please note that all specifications and information contained herein are subject to change without prior notice. Any changes will be integrated into the latest release.
-
Page 2: Table Of Contents
Contents Table of Contents Introduction............................3 Applications.............................3 Hardware Description........................4 Specifications...........................5 Installation............................5 SIM Card Installation........................6 Turn on the RTITraq........................7 GSM/GPS LED Indicators.......................7 Initialization............................7 Change Password...........................7 Auto Authorization..........................7 Authorization............................8 Delete Authorization.........................8 Single Locating..........................8 Auto Track............................8 Cancel Auto Track..........................9 Get Location in Absolute Street Address..................9 Location-Based Service (LBS) .......................9... -
Page 3: Introduction
Symptoms & Solutions........................14 Introduction The RTITraq is based on the GSM/GPRS network and GPS satellite positioning system, which sets multiple functions of security, positioning, monitoring surveillance, emergency alarms and tracking. It can track and monitor remote targets by SMS or internet. -
Page 4: Hardware Description
Hardware Description (1)GSM Antenna connector (2)SIM card slot (3)SIM card slot Pop-up switch (4)Monitor jack (5)GPS Antenna connector (6)Sensor jack (7)External harness connection jack (8)Power/GSM/GPS LED indicator (9)Backup battery switch (10) Remote controller receiver antenna (Optional, For model B only) -
Page 5: Specifications
Specifications Dimensions 3.27” x 2.125” x 1.02” (83*54*26mm) Weight 0.26 lb. (120g) Network GSM/GPRS Band 850/900/1800/1900MHz GSM/GPRS Module SIM900B GPS Module SIRF3 chip GPS Sensitivity -159dBm GPS Accuracy 5 meters GPS Start time Cold status 45s / Warm status 35s / Hot status 1s Operating Voltage 12 V to 24V Backup battery... -
Page 6: Installation
Install in a location that is free of water and dust. Locate the 10-position harness and insert into the corresponding connector of the RTITraq, then connect the wires into the vehicle circuits as shown below: Wiring diagram 1. Note: The orange wire can be connected to the original car horn; it can also be connected to a separate siren (purchased separately). -
Page 7: Sim Card Installation
PIN numbers can be locked. The SMS format must be in TXT format (the unit cannot recognize PDU format). Turn on the RTITraq Connect the positive (RED) and ground (BLACK) wires to the 12V or 24V vehicle power supply, then wait for 1 minute after connecting to confirm that the tracker is operating properly. -
Page 8: Auto Authorization
Reply: noadmin ok Note: If you want to track the target RTITraq when it enters into another country, you must add the country code before the cell phone number. Single Locating If no authorized numbers have been established, any phone number calling the RTITraq will reply with an SMS, including the current latitude and longitude information. -
Page 9: Auto Track
Get Location in Absolute Street Address You must set up the APN of your local GSM network for the SIM card in the RTITraq before using this function. If there is a user name and password established for GPRS login, please refer to 5.27 and 5.28 to configure the APN, user name and password for GPRS login. -
Page 10: Set Monitor Mode
Set Monitor Mode Command: monitor+password Reply: monitor ok! Note: The factory default mode is Tracker mode. Set Tracker Mode Command: tracker+password Reply: tracker ok! Note: This is the default mode. Set Geo-Fence Command: stockade+password+space+lat,lon;lat,lon Reply: stockade ok Note: First lat/lon = upper left corner; second lat/lon = lower right corner Cancel Geo-Fence Command: nostockade+password... -
Page 11: Alarm Reports
Alarm Reports Alarm Type Alarm Message Comment Low Battery low battery+lat./long Power Off power alarm+lat./long Driver SOS Button help me!+lat./long Unit will stop sending message if any authorized number replies “help me! Geo-fence stockade+geoinfo Movement move ok Overspeed speed+3digit-speed+geoinfo Cut Off the Fuel and Power System Command: stop+password Reply:... -
Page 12: Alarms During An Armed State
Set Silent Mode Command: silent+password” Reply: silent ok! Note: The siren will not be sounded after an alarm is triggered, but RTITraq will continue to send alarm SMS messages to authorized numbers. Cancel Silent Mode Command: loud+password Reply: loud ok! Note: The siren will be sounded locally after an alarm is triggered. -
Page 13: Imei Checking
Command: up+password+space+user+space+password Reply: user, password ok! Note: 123456 is the default RTITraq password, jonnes is the user name for GPRS login, 666666 is the password for GPRS login. IP and Port Setup Command: adminip+password+space+ipaddress+space+portnumber Reply:... - Page 14 PC-based tracking software, which can be downloaded from www.roboticstech.com. This is a free application. Precautions 1. Please follow these instructions to ensure reliable RTITraq operation: 2. Keep the unit dry. Any liquid, i.e. rain, moisture, etc. may destroy or damage the internal circuitry.
