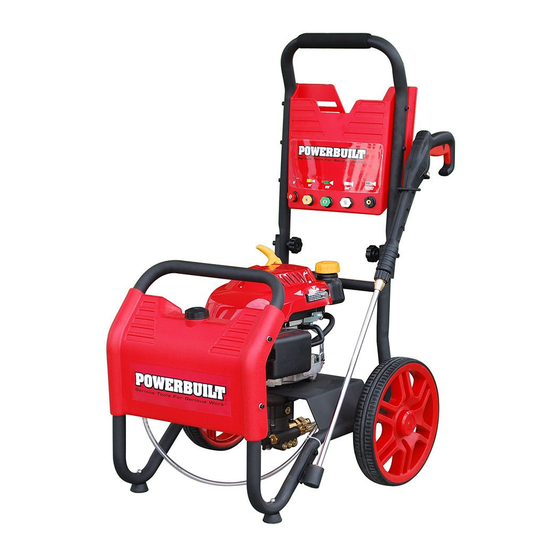

Powerbuilt EGS0252 Instruction Manual

2400psi / 12lpm waterblaster
Hide thumbs
Table of Contents

Advertisement

Quick Links

©COPYRIGHT 2010 ALLTRADE TOOLS, LLC.
1431 VIA PLATA
LONG BEACH, CA 90810-1462 USA
Printed in China
EGS0252 – 2400 PSI Washerblaster_Rev 9/20/2010

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EGS0252 and is the answer not in the manual?

Questions and answers

Summary of Contents for Powerbuilt EGS0252

  • Page 1 ©COPYRIGHT 2010 ALLTRADE TOOLS, LLC. 1431 VIA PLATA LONG BEACH, CA 90810-1462 USA Printed in China EGS0252 – 2400 PSI Washerblaster_Rev 9/20/2010...

  • Page 2: Instruction Manual

    MODEL EGS0252 2400PSI / 12LPM WATERBLASTER INSTRUCTION MANUAL THIS MANUAL CONTAINS IMPORTANT INFORMATION REGARDING SAFETY, OPERATION, MAINTENANCE AND STORAGE OF THIS PRODUCT. BEFORE USE, READ CAREFULLY AND UNDERSTAND ALL CAUTIONS, WARNINGS, INSTRUCTIONS AND PRODUCT LABELS. FAILURE TO DO SO COULD RESULT IN SERIOUS PERSONAL INJURY AND/OR PROPERTY DAMAGE.

  • Page 3: Table Of Contents

    TABLE OF CONTENTS CONGRATULATIONS! ......... 2 INTRODUCTION .

  • Page 4: Congratulations

    STORAGE ..........27-29 ENGINE .
  • Page 5 DANGER indicates an imminently hazardous situation which, if not avoided, could result in death or serious injury. WARNING indicates a potentially hazardous situation which, if not avoided, could result in death or serious injury. CAUTION indicates a potentially hazardous situation which, if not avoided, could result in minor or moderate injury.

  • Page 6: Important Information About This Manual

    EXPLOSION HAZARD: Petrol and its vapors are extremely flammable and explosive. Fire or explosion from these vapors can cause severe burns or even death. ROTATING PARTS: Starter and other rotating parts on this tool can entangle loose clothing, long hair and accessories resulting in moderate to severe injury.

  • Page 7: Unpacking & Inspection

    UNPACKING & INSPECTION After opening the carton, unpack your new Waterblaster and related parts & acces- sories. Please inspect it carefully for any damage that may have occurred during transit. Do not operate this Waterblaster if damaged during ship- ment, handling or misuse. Damage could result in bursting, which can cause serious injury or property damage.
  • Page 8 Keep work area clean and well lit. Messy areas and cluttered workbenches invite personal injury and/or property damage. Clear all work areas of unneces- sary tools, debris, furniture, etc. Make sure the work area is well ventilated. Never operate in an enclosed area. Do not place objects on top or against the tool.

  • Page 9: Safety Rules For Petrol Engines

    Keep protective guards in place and in proper working condition. Maintain tools and equipment with care. They will function better and more safely when kept clean and in good working condition. Keeping the tool clean, dry, and free of grime will add to its life and performance. Do not use the tool for applications other than specified.

  • Page 10: Symptoms Of Carbon Monoxide Poisoning

    SYMPTOMS OF CARBON MONOXIDE POISONING Carbon monoxide (CO) is a colorless, odorless, tasteless, extremely toxic gas that can KILL in a matter of minutes. Breathing air containing carbon monoxide produces symptoms of headache, dizziness, loss of muscular control, a sleepy feeling and finally coma.
  • Page 11 Unintentional sparking can result in fire or electric shock. Failure to observe this warning can result in property damage, severe burns and/or death. • Ensure spark plug is in place before attempting to start engine. • Ensure muffler is secured to engine before starting. •...

  • Page 12: Making Adjustments Or Repairs To The Engine

    MAKING ADJUSTMENTS OR REPAIRS TO THE ENGINE Excessively high operating speeds increase risk of injury and damage to engine. Excessively low speeds produce heavy load on engine. • DO NOT attempt to alter pre-set governed speed. Engine governor is factory set to supply optimum output horse power (HP) when running at governed speed.

  • Page 13: Storing Petrol Or Equipment With Petrol In Petrol Tank

    STORING PETROL OR EQUIPMENT WITH PETROL IN PETROL TANK Store away from furnaces, stoves, water heaters, clothes dryers, and all other appliances with pilot lights or other ignition sources. These appliances can heat petrol tanks and ignition sources can ignite petrol vapors. SAFETY RULES FOR WATERBLASTER RISK OF FIRE OR EXPLOSION Always store petrol away from the Waterblaster and in an...
  • Page 14 RISK OF INJURY Waterblaster produces fluid pressures and velocities high enough to pene- trate human and animal flesh which could result in serious injury or ampu- tation. Ensure all connections are tightened securely. Inspect all hoses to ensure they are not damaged or kinked. Loose connections or dam- aged hoses can result in injection injuries.
  • Page 15 DO NOT use acids, toxic or corrosive chemicals, poisons, insecticides, flamma- ble solvents or bleach with Waterblaster. Use of these chemicals can result in damage to equipment or serious injury or death. DO NOT direct spray toward electrical outlets, switches or products connected to electrical service.

  • Page 16: Functional Description

    FUNCTIONAL DESCRIPTION 2400 PSI / 12 LPM WATERBLASTER FEATURES: 1. Spray Wand 16. Pressure Nozzles (5) 2. Spray Gun 17. Detergent tank Cap 3. Foldable Handle 18. Pump Breather Plug 4. Carburetor 19. Gun Holder kit (Top) 5. Petrol Tank Cap 20.

  • Page 17: Waterblaster Terminology

    WATERBLASTER TERMINOLOGY Following are common terms associated with the use of waterblasters: PSI: Pounds per square inch – common unit measure used for water pressure, air pressure, hydraulic pressure and pounds of force. LPM: Liters per minute – common unit measure used for flow rate of water. Bypass Mode: In bypass mode, high pressure pump recirculates water because spray gun trigger is not squeezed.

  • Page 18: Pressure Hose To Pressure Pump

    8. Pull the handle lock pin and fully raise the GUN HOLDER (TOP) handle upright. LOCK NUT Release and snap the BOLT lock pin into its lock- 2400 PSI / 12 LPM ing hole in the frame. HANDLE 9. Assemble the top and LOCK PIN bottom gun holders WHEEL (2)

  • Page 19: Selecting The Right Nozzle For The Job

    SELECTING THE RIGHT NOZZLE FOR THE JOB To prevent damage to your surface and to select an appropriate nozzle size for your application, always start with lowest pressure nozzle size (White) and continue changing to the higher nozzle size until the best work result is achieved.

  • Page 20: Pressure Pump To Water Supply

    1. To attach, insert nozzle into female quick-disconnect spray wand and press to snap in the nozzle. 2. To detach, slide down slip ring on female quick-disconnect to eject the nozzle. SLIP RING PRESSURE PUMP TO WATER SUPPLY 1. Connect the garden hose to the water supply and turn water sup- ply on to fill the hose with water and also remove any debris in the hose.

  • Page 21: Adding Engine Oil

    4. Use the oil level glass window on the side of the pump to ensure that pump oil is at mid point or above. 5. Add oil to pressure pump if level is below the prescribed level. Use (10W 30) oil.

  • Page 22: Using Waterblaster At High Altitudes

    WHEN ADDING PETROL TO WATERBLASTER, OBSERVE THE FOLLOWING: • DO NOT use unapproved petrol such as E85 (85% ethanol/15% petrol). • DO NOT mix oil with petrol. • DO NOT modify engine to run on alternate fuels. • Turn Waterblaster OFF and let it cool for at least two minutes before removing petrol cap.

  • Page 23: Operating

    DO NOT run the pump without the water supply connect- ed and turned on. Damage to the Waterblaster resulting from failure to follow this instruction WILL void the warranty. 3. For your protection, wear protective safety glasses (not provided). 4. Move the Waterblaster OUTSIDE in a fully VENTILATED area. 5.

  • Page 24: Using The Spray Gun

    The high pressure stream of water that this equipment produces can cut through skin and its underlying tissues, leading to possible amputation. Spray gun traps high water pressure, even when the motor is stopped and water is disconnected, which can cause injury. Kickback from spray gun can cause you to fall.

  • Page 25: Pressure Adjustment

    meters away from cleaning surface. • If you get spray nozzle too close, especially using high pressure mode, you may damage surface being cleaned. • DO NOT get closer than 0.15 meters when cleaning tires. PRESSURE ADJUSTMENT Increase distance: To vary the pressure on the surface being cleaned, vary the distance between spray wand and the surface being cleaned.

  • Page 26: Shutting Down

    6. Allow detergent to "soak in" for 3-5 minutes before washing and rinsing. Reapply as needed to prevent surface from drying. Do Not allow detergent to dry on surface (prevents streaking). TO RINSE: 1. Please refer to the correct way to replace with an appropriate high pressure nozzle (see "SELECTING THE RIGHT NOZZLE").

  • Page 27: Maintenance

    Never turn off water supply with engine running. This will cause the pressure pump to overheat resulting in internal damage. Waterblaster MUST be properly stored. Refer to next pages for proper storage instructions. MAINTENANCE Regular maintenance will improve performance and extend life of Waterblaster. Waterblaster’s warranty does not cover items that have been subjected to operator abuse or negligence.
  • Page 28 CHECKING PRESSURE PUMP OIL: 1. Check oil site gauge on pressure pump. Oil should cover site gauge. 2. Remove dipstick/oil plug from crankcase and wipe clean. LEVEL BREATHER 3. Oil level is correct if it covers lower half of dipstick. WINDOW PLUG CHANGING PRESSURE PUMP OIL:...

  • Page 29: Storage

    CLEANING WATERBLASTER: Daily or before use inspections should include areas around and underneath Waterblaster looking for signs of petrol or oil leaks. Preventative maintenance should be taken if leaks are found. Clean accumulated debris from outside and inside Waterblaster. Ensure all linkages, springs and other engine controls are kept clean.

  • Page 30: Pressure Pump

    TO PROTECT AGAINST RUST FORMATION DURING STORAGE, OIL THE CYLINDER BORE: • Remove spark plug and pour approximately 15 ml of clean engine oil into the cylinder. • Install spark plug. • Make sure engine ON/OFF switch is OFF. Slowly pull the starter cord 2 to 3 times to distribute and coat the cylinder bore with oil.

  • Page 31: Waterblaster

    4. Make sure engine ON/OFF switch is OFF. Slowly pull engine starter cord several times until antifreeze comes out of pressure hose connection of pressure pump. DO NOT start engine at this time. 5. Remove hose from water inlet of pressure pump. WATERBLASTER 1.

  • Page 32: Troubleshooting Guide

    TROUBLESHOOTING GUIDE Problem Probable Cause Solution 1. Out of petrol. 1. Fill petrol tank. Engine shuts down when running. 2. Low Engine Oil 2. Add oil. 1. Engine On/Off set to 1. Set switch to “ON” “OFF” position. position. 2. Petrol valve is in 2.
  • Page 33 Problem Probable Cause Solution 1. Carburetor is running 1. Coutact authorised Engine “hunts” or falters. too rich or too lean. service facility. 1. Cylinder pressure is 1. Coutact authorised low. service facility. Engine lacks power. 2. Dirty air cleaner. 2. Replace air filter. 1.
  • Page 34 Problem Probable Cause Solution 1. Wrong size spray 1. See "SELECTING THE nozzle. RIGHT NOZZLE" section. 2. Chemical hose/filter 2. Clean hose/filter. clogged. 3. Chemical screen not in 3. Ensure end of chemi- chemical. cal hose is fully sub- Pump will not draw merged into chemicals.
  • Page 35 Problem Probable Cause Solution 1. Nozzle obstructed. 1. Clean Nozzle (See Maintenance) Pump pulsates 2. Air in the system 2. Squeeze trigger to remove air. GENERAL INFO: • Use fresh high quality unleaded petrol (minimum 87 octane) Petrol • Pump oil: Use only 30 Weight Non detergent oil. •...

  • Page 36: Specifications

    • Do not allow water to freeze in pressure pump, spray gun, spray wand or hoses. SPECIFICATIONS Max Pressure 2400PSI Max Water Flow 12LPM Pump Type Triplex Engine/Type Powerbuilt XT210 /OHV HP/RPM 7 / 3600 Displacement 207CC Petrol/Detergent Tank Capacity 3.6 / 3.8Liter Pressure Hose 10Meter Low Oil Sensor...

  • Page 37: Year Limited Warranty

    Express and Exclusive Limited Warranty to Original Retail Buyer Alltrade Tools LLC (hereinafter "Alltrade") expressly warrants to the original retail purchaser of the accompanying POWERBUILT Waterblaster and no one else all parts of the product (except those parts referred to below which are specifically excluded from such warranty (see Exclusions) to be free from defects in materials and workmanship for a period of one year from the original date of purchase.
  • Page 38 The use of other than genuine POWERBUILT Repair Parts will VOID the warranty. WARRANTY DISCLAIMERS EXCLUSION AND DISCLAIMER OF ALL OTHER EXPRESS WARRANTIES, GUAR-...
  • Page 39 LISTED HEREIN IS MADE WITH REGARD TO THIS PRODUCT. ALL WARRANTIES AND/OR IMPLIED WARRANTIES, GUARANTIES AND/OR REPRESENTATIONS BY ALLTRADE AND/OR ITS REPRESENTATIVE(S) REGARDING THE DESIGN, MANU- FACTURE, PURCHASE, USE AND/OR OPERATION OF THE PRODUCT OR ANY COM- PONENT THEREOF SOLD HEREUNDER, REGARDLESS OF WHETHER ANY SUCH WARRANTY, GUARANTY AND/OR REPRESENTATION, WRITTEN OR ORAL, ARISES BY OPERATION OF LAW AND/OR EQUITY AND/OR BY ANY ACT OR OMISSION OF ALLTRADE AND/OR ITS REPRESENTATIVES.
