ASSEMBLY AND MAINTENANCE MANUAL
INSTINCT

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the INSTINCT and is the answer not in the manual?

Questions and answers

Summary of Contents for Cruise Carbon INSTINCT

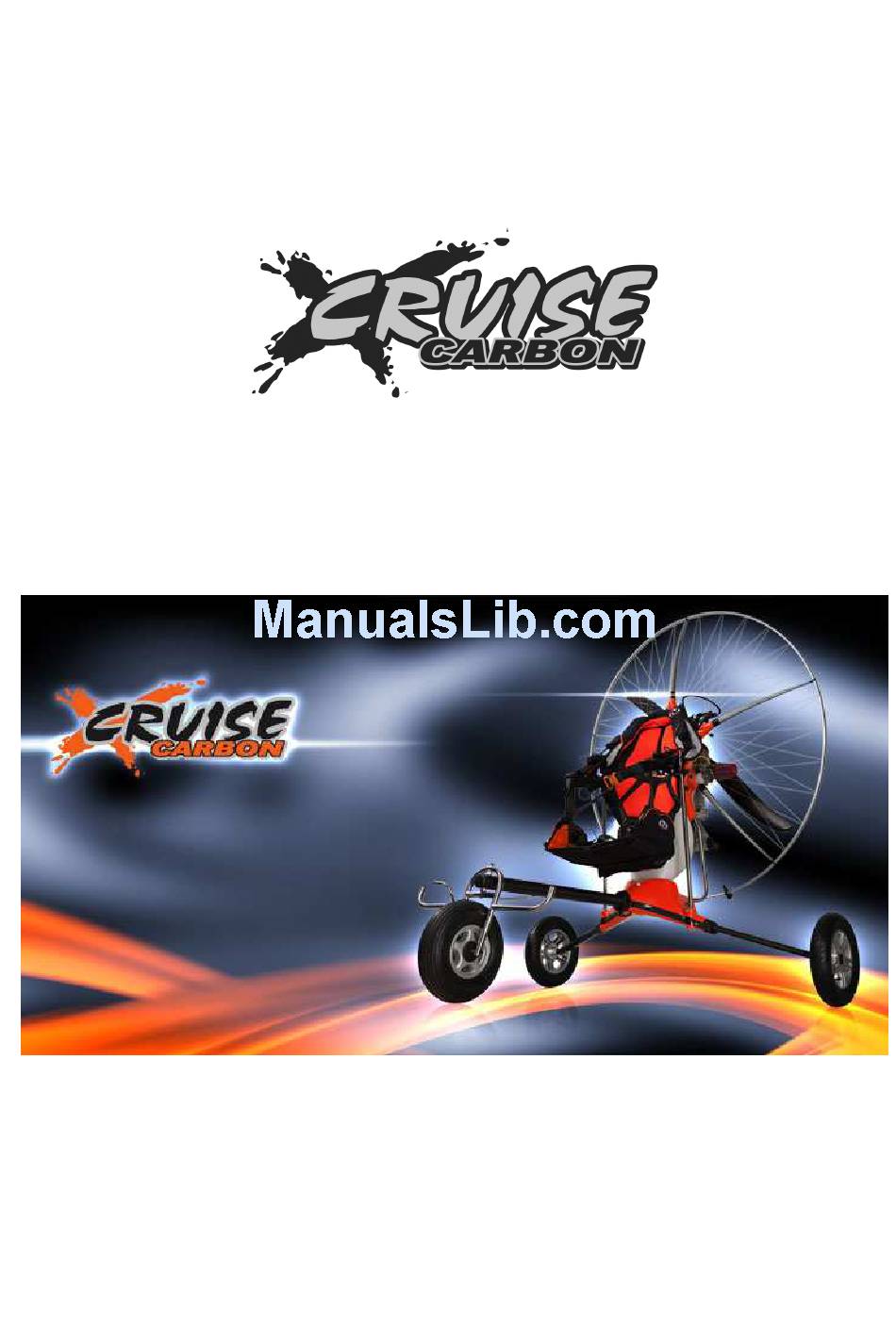

  • Page 1 ASSEMBLY AND MAINTENANCE MANUAL INSTINCT...

  • Page 2: Table Of Contents

    CONTENT Safe flying rules Manual Important notices Amendments to the manual Dimensions Landing gear (type, parameters) Operating limitations Normal procedures Pre-flight preparation Trike assembly Installation of the paramotor Line holders frame string installation Pre-flight check Takeoff Landing Periodical maintenance Transportation rules Packing Long time storage rules Certification...

  • Page 3: Safe Flying Rules

    Safe flying rules Observe UL aircraft regulations. Do not overestimate your pilot skills and never show off. Use open areas for emergency landing training. Watch the weather forecast carefully. Do not plan long flights, when storms, fogs or frost are forecasted. Watch fuel level (flight time and real consumption).

  • Page 4: Manual

    MANUAL This manual is written by the manufacturer of the MPG. All records must be readable, permanent and none of the pages must be pulled out. This filled-in book is a part of technical documentation. Total flight time, number of starts and latest issued mandatory bulletins must be transferred to the new book.

  • Page 5: Dimensions

    DIMENSIONS 1650 mm 500 mm 300 mm 1600 mm last update 18.10.2011...

  • Page 6: Landing Gear (Type, Parameters)

    Landing gear (type, parameters) type CRUISE CARBON body laminated colour orange back axles Carbon sandwich central axle tube Aluminium, Carbon frame stainless steel wheels Aluminium, spoke joints quickjoints with locks Maximum load 175 kg All landing gear undergoes control tests before release. All connecting elements are checked with appropriate care.

  • Page 7: Pre-Flight Preparation

    PRE-FLIGHT PREPARATION Trike assembly Základní částí je skelet basic skeleton Vytáhneme zajišťovací kolíky ze skeletu dva přední ajeden zadní take out two rear and one front secure pins front he skeleton Zasuneme přední nápravu do skeletu insert the front axle into skeleton Vsuneme rám insert the frame Zašroubujeme a zajistíme ve skeletu...
  • Page 8 Assembly of the frame for the trike Cruise Carbon Instinct Frame components Instead of original harness hinges put on horizontal struts of the frame for CCI Slide in new horizontal struts into vertical struts and fix it by locking pins Disassemble frame bottom struts from the paramotor last update 18.10.2011...
  • Page 9 Then reassemble bottom frame arche of the paramotor Place paramotor with harness and all assembled parts of the CCI frame into the trike shell Fix the frame in the shell by front and back safety pins of Cruise Carbon Trike last update 18.10.2011...
  • Page 10 Line holders and frame string instalation The line holder is installed on the back arch (in the flight direction) of the protective paramotor frame. The purpose is to protect the lines from damage by propeller, and the frame itself from the pressure in the lines running around the frame during take off. Instalation: Drill two holes, upper hole is 10cm far from the 1.Gripping of wire in the skeleton...
  • Page 11 4.Below hole is 20cm far from 5. Two grippings of frame string the frame connection 20 cm last update 18.10.2011...

  • Page 12: Pre-Flight Check

    PRE-FLIGHT CHECK frame intact, assembly, securing body integrity axles intact, correct insertion, securing secure front landing gear pipe – screw with snap clamp frame in skeleton, 2x front and 1x rare pin frame in skeleton of paramotor, 2x pin seat on the frame 2x pin upper seat anchor wheels correct tyre inflation 2.5 MPa...

  • Page 13: Takeoff

    - We recommend replacing the brake-shoe lining as soon as the brakes become less effective. The Cruise Carbon landing gear requires a regular pre-flight check and an annual check by the manufacturer or technician authorized to extend the validation of the technical capability...

  • Page 14: Transportation Rules

    TRANSPORTATION RULES Assembled trike Engine must stand on the tank and frame together. It must not be supported by frame only Fix tightly by shell or engine part (It must not be fixed by the frame!) Secure properly from emergency of fall or damage Unpacked PACKING packed trike...

  • Page 15: Long Time Storage Rules

    uložíme přední nápravu kolem do výřezu uložíme rám zadním obloukem dopředu, v tašce a zajistíme suchým zipem pomocí rychlospojek jej připneme fit front axle wheel into cutout in the trike k řídítkům přední nápravy bag and secure with velcro place the frame the rear-bend to the front and secure with joins to the front axle handlebar packed trike...
  • Page 17 last update 18.10.2009...
  • Page 18 REMOVABLE LANDING GEAR NIRVANA TRIKE CRUISE CARBON INSTINCT COMPONENTS last update 18.10.2009...
  • Page 19 Frame Instinct 05 09 01 Front fork 05 02 00 050216 050210 050204 050204 050200 050211 050223 050222 050213 050212 050219 050204 050204 last update 18.10.2009...
  • Page 20 Back axles 05 03 xx 050305-L 050302-L 050306-R 050301-R last update 18.10.2009...
  • Page 21 Shell Cruise Carbon and front axle 05 04 xx 050401 050408A/050408B 050402 050402 050703 050403 050412 050404 050405 050411 050409 050408A/050408B last update 18.10.2009...
  • Page 22 Front wheel 05 05 00 050501 050506 050505 050213 050212 050504 050503 050509 050507 050511 Back wheels 05 06 00 050603 050606 050605 050604 050602-L 050601-R last update 18.10.2009...
  • Page 23 Transport bag 05 07 01 last update 18.10.2009...
  • Page 24 Taxi tandem extension for trike 05 08 00 050828 050809 050117 010917 010912 050204 050409 050411 050808 050405 050117 010915 050204 050204 050117 050204 050803 050802 050807 050807 050805 last update 18.10.2009...
  • Page 25 Ski set 05 08 10 last update 18.10.2009...
  • Page 26 010912 Pružinka spojky sedačky + Cruise Carbon / Connector spring 050000 Tříkolka Cruise Carbon / Trike Cruise Carbon 050100 Rám vč. přední vidlice Cruise Carbon komplet /Frame incl. front fork 050104, 050105 PLTV Rozpěrka (L+P) Cruise Carbon/ Struts páir 050107 Zátka - Pouzdro rozpěrky Cruise Carbon/ Plug...
  • Page 27 Taška na tříkolku Cruise Carbon/ Transport bag 050702 Lanko výztuhy rámu Cruise Carbon/ Frame string 050703 Nálepka / Sticker "CRUISE CARBON" 2/0 / Sticker 050901 Rám Instinct – set 5 dílů / Instinct Frame – set 5 parts last update 18.10.2009...
  • Page 28 050204 Zátka - rameno vidlice Cruise Carbon/ Plug 050206 Rameno pružiny řízení Cruise Carbon 050216 Šroub - osa vidlice - tříkolka Cruise Carbon/ Axle screw 050807 Ložisko Cruise Carbon Taxi/ Bearing 050405 Zátka - Trubka přední nápravy Cruise Carbon/ Plug 050409 Úchyt pružiny řízení...
  • Page 29 OPERATING RECORDS SERVICE LIST List of mandatory checks performed, repairs, important part replacements, signature Operation (reason) date flight hours – checked last update 18.10.2009...
  • Page 30 List of mandatory checks performed, repairs, important part replacements, signature Operation (reason) date flight hours – checked last update 18.10.2009...

  • Page 31: Record Of Bulletin Implementations Or Mandatory Changes

    RECORD OF BULLETIN IMPLEMENTATIONS OR MANDATORY CHANGES serial bulletin performed – date note number number signature last update 18.10.2009...

  • Page 32: Notes

    NOTES: last update 18.10.2009...
  • Page 33 NOTES: last update 18.10.2009...

  • Page 34: Equipment

    EQUIPMENT Trike Cruise Carbon Shell cover Transport bag Harness connectors Frame reinforcement strings Line holder User Manual OPTIONAL EQUIPMENT Tandem extension TAXI Tandem passenger harness Tandem spreads Powerfly, 4 Pcs Ski transport bag last update 18.10.2009...

  • Page 35: Warranty

    WARRANTY The warranty covers manufacture and material faults for all parts of this trike. This product is cowered by 1 year manufacturers’ warranty The warranty does not cover any damages caused by theft. It does not cover any broken or destroyed parts due to incorrect use of the MPG, use in unsuitable weather conditions, wrong assembly of mechanical parts and damages caused by falls.
  • Page 36 NIRVANA SYSTEMS s.r.o., Jateční 523, 760 01 Zlín, Czech Republic tel.: +420 577226616, fax: +420 577019117, sms: +420 775917001 e-mail: info@nirvana.cz, http://www.nirvana.cz last update 18.10.2009...
