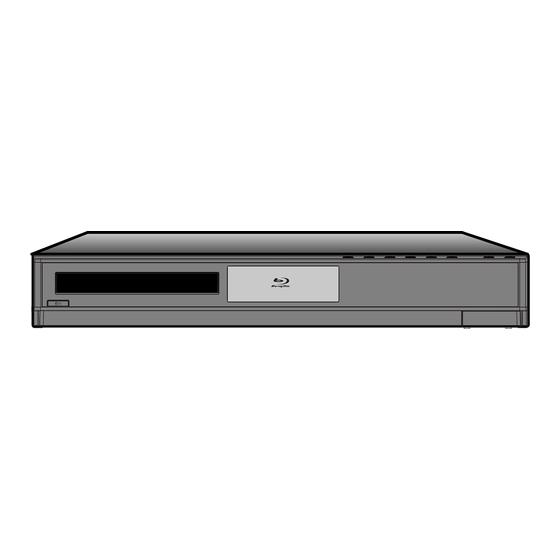

- Page 1 NETWORK MEDIA SYSTEM TH-BD50 Consist of XV-THBD50, SP-THBD50F, SP-THBD50C and SP-THBD50W INSTRUCTIONS LVT2099-029A [UJ]...
- Page 2 Warnings, cautions and others CAUTION To reduce the risk of electrical shocks, fire, etc.: 1. Do not remove screws, covers or cabinet. 2. Do not expose this appliance to rain or moisture. CAUTION The 1/' button in any position does not disconnect the mains line.
- Page 3 CAUTION — Proper Ventilation To avoid risk of electric shock and fire and to protect from damage, locate the apparatus as follows: Top/Front/Back/Sides: No obstructions should be placed in the areas shown by the dimensions below. Bottom: Place on the level surface. Maintain adequate air path for ventilation by placing on a stand with a height of 10 cm or more.
- Page 4 [European Union only]...
- Page 5 Notes on Copyrights Because AACS (Advanced Access Content System) is approved as content protection sys- tem for BD format, similar to use of CSS (Content Scramble System) for DVD format, certain restric- tions are imposed on playback, analogue signal output, etc., of AACS protected contents. The operation of this product and restrictions on this product may vary depending on your time of pur- chase as those restrictions may be adopted...
-
Page 6: Table Of Contents
Contents Introduction ....7-14 About the Symbol Display ... . .7 Symbols Used in this Manual ... . .7 Notes on Discs . -
Page 7: Introduction
Introduction To ensure proper use of this product, please read this owner’s manual carefully and retain for future reference. This manual provides information on the operation and maintenance of your player. Should the unit require service, contact an authorized service loca- tion. -
Page 8: Playable Discs
Playable Discs Blu-ray Disc - Discs such as movies that can be pur- chased or rented. - BD-R/RE discs that contain audio titles, DivX, MP3, WMA, or Photo files. DVD-VIDEO Discs such as movies that can be pur- chased or rented. DVD-R - Video mode and finalized only - Supports the dual layer disc also... -
Page 9: Bd-Rom Disc Features
BD-ROM Disc Features BD-ROM Discs can store 25 GB (single layer) or 50 GB (dual layer) on a single sided disc - about 5 to 10 times the capacity of a DVD. BD-ROM Discs also support the highest quality HD video available in the industry (up to 1920 x 1080) - Large capacity means no compromise on video quality. -
Page 10: Compatibility Notes
Compatibility Notes Because BD-ROM are a new format, certain disc, digital connection and other compatibility issues are possible. If you experience compatibility prob- lems, please contact an authorized Customer Service Centre. Viewing high-definition content and up-converting standard DVD content may require an HDMI- capable input or HDCP-capable DVI input on your display device. -
Page 11: Front Panel
Front Panel a Operation buttons Z (OPEN/CLOSE) Opens or closes the disc tray. N / X (PLAY / PAUSE) Starts playback. Pause playback temporarily, press again to exit pause mode. x (STOP) Stops playback. When a menu is displayed, this button works as "ENTER". -
Page 12: Rear Panel
Rear Panel a AC Power Cord Plug into the power source. b SPEAKER Connetors Connect the speakers. c Cooling Fan d FM Antenna connector Connect the FM antenna. e DIGITAL AUDIO IN (COAXIAL) Connect to digital (coaxial) audio equipment. f VIDEO OUT Connect to a TV with video inputs. -
Page 13: Remote Control
Remote Control INPUT: Changes the input source. (FM, AM, AUX, PORTABLE, OPTI- CAL, COAXIAL, HDMI IN 1, HDMI IN TUNER: Selects the system’s tuner directly. (1/'): Switches the player ON or OFF. OPEN/CLOSE (Z): Opens and clos- Remote Control Operation Point the Remote Control at the remote sensor and press the buttons. -
Page 14: Attaching The Speakers To The Player
Attaching the speakers to the player a You will have received six speaker cables. Each one is color-coded by a band near each end and connects one of the six speakers to the player. b Connect the wires to the player. Match each wire’s colored band to the same col- ored connection terminal on the rear of the player. -
Page 15: Installation And Setup
Installation and Setup Connections to Your TV Make one of the following connections, depending on the capabilities of your existing equipment. Tips: Depending on your TV and other equipment you wish to connect, there are various ways you could connect the player. Use only one of the connections described below. -
Page 16: Hdmi Connection
HDMI connection If you have a HDMI TV or monitor, you can connect it to this player using a HDMI cable. 1. Connect the HDMI jack on the player to the HDMI jack on a HDMI compatible TV or monitor (H). 2. -
Page 17: Internet Connection
Internet connection This player can be connected to a local area net- work (LAN) via the LAN port on the rear panel. After making the physical connection the player needs to be set up for network communication. This is done from the [Setup] menu — see “[NETWORK] Menu”... -
Page 18: Resolution Setting
Resolution Setting The player provides several output resolutions for HDMI OUT and COMPONENT VIDEO OUT jacks. You can change the resolution using [Setup] menu or pressing the RESOLUTION button in Home menu or Setup Menu. Note: Since several factors affect the resolution of video output, see “Available resolution according to resolution setting”... - Page 19 HDMI OUT connection • For the 480i resolution setting, real output resolution of HDMI OUT will change to 480p. • If you select a resolution manually and then connect the HDMI jack to TV and your TV does not accept it, the resolution setting is set to [Auto]. •...
-
Page 20: Setting The Sound Mode
Setting the sound mode You can select a suitable sound mode. Press SOUND repeatedly until the desired mode appears on the front panel display or the TV screen. The setting the sound mode is not available when [HDMI Audio] is set to [On] (see page 23). [Bypass] mode: Software with multichannel sur- round audio signals is played according to the way it was recorded. -
Page 21: Using A Usb Flash Drive
Using a USB Flash Drive This unit can play the movie, music and photo files contained on the USB Flash Drive. Insert/Remove a USB Flash Drive USB Flash Drive Inserting a USB Flash Drive Insert straight-in until it fits into place. Removing a USB Flash Drive Withdraw the USB Flash Drive carefully. -
Page 22: Initial Settings
Initial Settings By using the Setup menu, you can make various adjustments to items such as picture and sound. You can also set a language for the subtitles and the Setup menu, among other things. For details on each Setup menu item, see pages 22 to 26. To display and exit the Menu: Press HOME and the Home Menu appears. -
Page 23: [Language] Menu
[LANGUAGE] Menu Display Menu Select a language for the [Setup] menu and on- screen display. Disc Menu / Disc Audio / Disc Subtitle Select the language you prefer for the audio track (disc audio), subtitles, and the disc menu. [Original] – Refers to the original language in which the disc was recorded. -
Page 24: [Lock] Menu (Parental Control)
[LOCK] Menu (Parental Control) The [LOCK] settings affect only BD and DVD play- back. To access the any features in [LOCK] settings, you must enter the 4-digit security code you have created. If you have not entered a password yet, you are prompted to do so. -
Page 25: [Network] Menu
[NETWORK] Menu The [NETWORK] settings are needed to use the BD Live and feature. Some BD-ROM discs may enable you to access special BD-ROM sites, if you connect the player to the Internet. For example, if a BD-ROM site includes content such as links to future movie trailers, you can watch the downloaded on-line content on the player. -
Page 26: [Others] Menu
[OTHERS] Menu Skin Changes the background of the initial screen. Initialize You can reset the player to its original factory set- tings, initialize the BD storage or deactivate the play- [Factory Set] – If you need to, you can reset the player to all its factory settings. -
Page 27: Listening To Music From Your Portable Audio Player
Listening to music from your portable audio player You can enjoy the sound of your portable audio player from the speakers of the system. 1. Connect the headphones (or line out ) jack of the portable audio player into the PORT. IN on the rear panel of this unit: 3.5 mm stereo miniplug cable... -
Page 28: Using Hdmi In Jacks
Using HDMI IN jacks You can enjoy the pictures and sound of your component with the HDMI OUT jack. 1. Connect the HDMI OUT jack of your component into the HDMI IN 1 or 2 jack on the rear panel of this unit. -
Page 29: Antenna Connection
Antenna Connection Connect the supplied FM/AM antenna for listening to the radio. Connect the AM Loop antenna to the AM antenna connector. Connect the FM Wire antenna to the FM antenna connector.connector. AM Loop Antenna (supplied) Notes: To prevent noise pickup, keep the AM Loop antenna away from the unit and other components. -
Page 30: Operations
Operations General playback features 1. Load your chosen disc in the tray, with the playback side down. 2. Start playback using the HOME menu (see page 21). Buttons Operations OPEN / CLOSE (Z) Opens or closes the disc tray. N (PLAY) Starts the playback. - Page 31 General playback features (Continued) Buttons Operations REPEAT Playing repeatedly: During playback, press REPEAT repeatedly to select a desired repeat mode. DVD, BD, AVCHD: Chapter/Title/Off Audio CD, MP3, WMA: Track/All/Off Note: If you press > once during Repeat Chapter/Track playback, the repeat playback cancels. Repeating a specific portion (A-B): Selected portion will be repeated continually.
-
Page 32: Additional Features
Additional features If a disc menu screen is displayed AVCHD The menu screen may be displayed first after loading a disc which contains a menu. Use b / B / v / V buttons to select the title/chapter you want to view, then press ENTER to start play- back. -
Page 33: Hearing A Different Audio
Hearing a different audio AVCHD DivX During playback, press DISPLAY to display the play- back menu. Use v V to select the [Audio] option then use b B to select desired audio language or audio track. Notes: • Some discs allow you to change audio selections only via the disc menu. -
Page 34: Displaying Disc Information On-Screen
Displaying Disc Information On-Screen You can display various information about the disc loaded on-screen. 1. Press DISPLAY to show various playback information. The items displayed differ depending on the disc type or playing status. 2. During BD-ROM or DVD playback, you can select an item by pressing v / V and change or select the setting by pressing b / B. - Page 35 • It may take up to several minutes to load and start enjoying BD-Live contents. • Depending on the disc, the BD-Live function may not be operated if [BD-LIVE connection] option is set to [Partially Permitted]. In this case, set [BD-LIVE connection] option to [Permitted] (See page 25.) •...
-
Page 36: Playing A Movie
Playing a movie The player can play movie files on the disc/USB device and video contents recorded on a DVD- RW(VR mode) discs. Before playing movie files, read “Movie file requirement” Note: • When the USB device is connected and a disc is inserted simultaneously, the menu for selecting a media will appear. -
Page 37: Listening To Music
Listening to music The player can play Audio CDs and MP3/WMA files. Before playing MP3/WMA files, read “MP3/WMA audio file requirement”. Note: • When the USB device is connected and a disc is inserted simultaneously, the menu for selecting a media will appear. -
Page 38: Presetting The Radio Stations
Presetting the Radio Stations You can preset 50 stations for FM and AM (MW). Before tuning, make sure that you have turned down the volume. 1. Press TUNER to select FM or AM (MW). 2. Press TUNING.(-/+) to choose the station. 3. -
Page 39: Viewing A Photo
Viewing a photo This unit can play a photo files. Before playing photo files, read “Photo file requirement”. Note: • When the USB device is connected and a disc is inserted simultaneously, the menu for selecting a media will appear. Select a media then press ENTER. -
Page 40: Options During Viewing A Photo File In Full Screen
Options during viewing a photo file in full screen You can use various options during viewing a picture in full screen. Use v V b B to select an option and use the options as described below. a Use b B to advance to the previous or next file. -
Page 41: Reference
Reference Controlling a TV with the Supplied Remote Control You can control the volume, input source, and power state of your JVC TV with the supplied Remote Control. You can control your TV using the buttons below. TV Control Buttons... -
Page 42: Language Codes
Language Codes Use this list to input your desired language for the following initial settings: [Disc Audio], [Disc Subtitle] and [Disc Menu]. Language Code Language Abkhazian 6566 Fiji Afar 6565 Finnish Afrikaans 6570 French Albanian 8381 Frisian Ameharic 6577 Galician Arabic 6582 Georgian... -
Page 43: Troubleshooting
Troubleshooting Symptom • The power cord is disconnected. No power. The power is on, but • No disc is inserted. the player does not work. No picture. • The TV is not set to receive DVD signal output. • The video cable is not connected securely. -
Page 44: Troubleshooting
Troubleshooting Symptom • The signal strength of the stations is Radio stations cannot be tuned in. too weak (when tuning in with automatic tuning). Resetting the Player If you observe any of the following symptoms. When the Player is plugged in, but the power will not turn on or off. •... -
Page 45: Specifications
Specifications General Power requirements: AC 110 - 240 V, 50/60 Hz Power consumption (in operation): 130 W (on standby): Less than 1W Dimensions (W x H x D): Approx. 430 x 76 x 379 mm without foot Net Weight (Approx.): 4.8 kg Operating temperature: 41 °F to 95 °F (5 °C to 35 °C) - Page 46 Specifications System Laser: Signal system: Frequency response: Signal-to-noise ratio: Harmonic distortion: Dynamic range: LAN port: Speakers Front/ Rear speaker Type: Impedance Rated: Input Power: Max. Input power: Net Dimensions (W x H x D): Net Weight: Center speaker Type: Impedance Rated: Input Power: Max.
-
Page 47: Open Source Software Notice
Open source software notice This product includes • Freetype library : copyright © 2003 The FreeType Project (www.freetype.org). • libpng library : copyright © 2004 Glenn Randers-Pehrson • Zlib compression library: Copyright © 1995-2002 Jean-loup Gailly and Mark Adler. • Expat library : copyright © 2006 expat maintainers. •... - Page 48 0909SKMLGEEGL P/N: MFL62863582...
