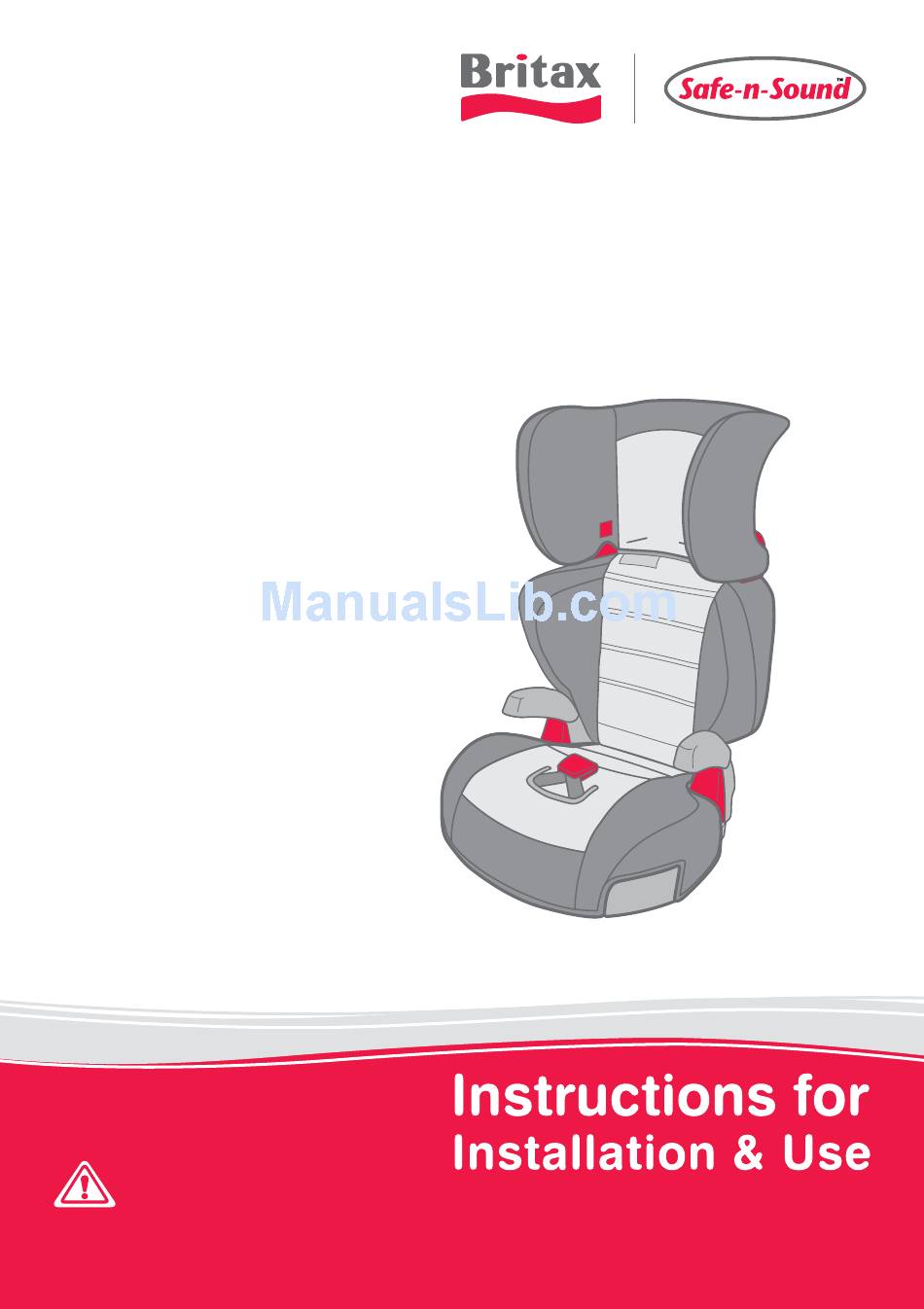

Britax Hi-Liner SG Instructions For Installation And Use Manual

Child booster seat
Hide thumbs Also See for Hi-Liner SG:
Table of Contents

Advertisement

Quick Links

See also: Manual
INFORMATION FOR BUYERS:
To be used with either a lap-sash seat
belt or an add-on accessory Child
Harness by children whose shoulders
Hi-Liner SG™
are above the lower shoulder height
marker with head restraint in lowest
position (approximately 4 years of
age) until child's shoulders reach the
Child Booster Seat
upper shoulder height marker with
Series Number: 4830/A/2010
head restraint in highest position
(approximately 6 to 8 years of age).
Suitable for use only with the
Safe-n-Sound™Protecta
PLUS™Harness Series 220/2010 or
Babylove EzyGo Harness™ Series
BL220/2010 Child Harnesses.
IMPORTANT:
KEEP THIS BOOKLET IN THE PLACE PROVIDED ON THE CHILD RESTRAINT

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Hi-Liner SG and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Britax Hi-Liner SG

Summary of Contents for Britax Hi-Liner SG

  • Page 1 INFORMATION FOR BUYERS: To be used with either a lap-sash seat belt or an add-on accessory Child Harness by children whose shoulders Hi-Liner SG™ are above the lower shoulder height marker with head restraint in lowest position (approximately 4 years of age) until child’s shoulders reach the...
  • Page 2 INTRODUCTION INDEX Page This Booster Seat is designed for use by children from approximately 4 years of age up to approximately 6 to 8 years of age in vehicles using a lap-sash seat belt or with a seat INTRODUCTION belt and Child Harness. It must not be used with just a lap only seat belt as the upper body of the child is not protected.
  • Page 3 • Use the restraint exactly as shown in the instructions. • Securely stow all heavy objects, feeding bottles, cup holders, etc that could become missiles during an accident and cause injury to any occupant. • Supervision of children is needed because they may be able to undo buckles and adjusters.

  • Page 4: Shoulder Height Markers

    SHOULDER HEIGHT MARKERS & SHOULDER HEIGHT MARKERS & A GROWING CHILD THE NEXT SEAT IMPORTANT: Follow this advice. Label A Smaller Child - Lower Marker When moving from a child restraint with in-built harness the child’s shoulders will be in line with or above the Lowest Marker (label A) with the headrest in the lowest position, if the child’s shoulders are below this marker...

  • Page 5: Special Features

    SPECIAL FEATURES SPECIAL FEATURES 1. Car's Anchor Fitting 2. Adjustable Height Headrest 3. Car Seat Belt 4. Padded Cover for Comfort 5. Booster Seat Belt path recess area 6. Booster Seat Belt path indicator 7. Pull-Out cup holder (1 each side) 8.

  • Page 6: Suitable For Use

    SUITABLE FOR USE HOW TO SETUP ADJUSTING THE HEADREST To be used with either a lap-sash seatbelt or an add-on accessory Child Harness by children whose shoulders are above the Lower Shoulder Height Marker with head restraint A. The headrest can be adjusted to lock into different height in the lowest position (approximately 4 years of age) until their shoulders reach the Upper locations.

  • Page 7: Adjusting Slideguard Clip Position

    HOW TO INSTALL HOW TO SETUP ADJUSTING THE INSTALLING INTO VEHICLE SLIDEGUARD™CLIP POSITION A. Position the restraint in the car forward facing in the chosen seating position. Adjust the headrest to the A. Adjust the crotch straps for the SLIDEGUARD™clip to correct height for your child (refer to page 11).

  • Page 8: Seat Belt Without Child Harness

    HOW TO USE HOW TO USE C. Engage seat belt buckle and tongue Sash belt Ensure both USING LAP-SASH SEAT BELT WITHOUT CHILD HARNESS ensuring there are no twists in across the lap and sash the belt. If the seat belt buckle is chest and A.

  • Page 9: To Remove Child

    HOW TO USE HOW TO USE IMPORTANT: Always ensure the seat belt is firmly fitted to the hips and thighs and the sash belt is Adjust headrest so it is close to the shoulders. diagonally across the chest. Seat belt across the chest and through the sash The SLIDEGUARD™clip must always be used when the child is using the booster seat as it guides.

  • Page 10: Using With A Child Harness

    HOW TO USE HOW TO USE USING WITH A CHILD HARNESS (PURCHASED SEPARATELY) INSTALLING SAFE-N-SOUND PROTECTA PLUS™ HARNESS WITH EXTENSION STRAP INTO VEHICLE This booster seat is only suitable for use with Safe-n-Sound™Protecta PLUS™Harness Series 220/2010 or Babylove EzyGo Harness™ Series BL220/2010. Refer to the instruction An adjustable extension strap is supplied with the Child Harness.

  • Page 11: Installing The Harness

    HOW TO USE HOW TO USE Choosing Method of Installation C. Lengthen the Child Left hand Strap Harness using the The Harness can be installed using either of the following methods. Cross Strap adjuster under the Method 1 - Using a lap sash seat belt in conjunction with Gated Slide (provided with child cover (see the Child Attachment Clip harness) to convert to a lap belt.
  • Page 12 HOW TO USE HOW TO USE USING LAP-SASH SEAT BELT WITH THE CHILD HARNESS E. Hook the Attachment Clip from the Hook the Attachment Clip Child Harness onto the Versa- onto Versa Tether Catch (Using Gated Slide provided with Child Harness.) Tether™...
  • Page 13 HOW TO USE HOW TO USE FITTING THE GATED SLIDE TO THE LAP-SASH SEAT BELT D. Feed the straps through the Gated Slide to remove any slack. A. Hold the lap and sash straps together and fold as shown right. Outer Slide the inner strap into the Gated Hollow side...
  • Page 14 HOW TO USE HOW TO USE USING LAP SEAT BELT WITH THE CHILD HARNESS D. Engage the seat belt tongue to the buckle and adjust the seat belt to sit firmly but Fit the Child Harness as detailed on page 18. comfortably around the child's pelvis.
  • Page 15 HOW TO USE HOW TO USE TO REMOVE RESTRAINT FROM VEHICLE TO REMOVE CHILD Attachment Clip A. If a Child Harness is used, feed seat belt out through Disengage seat belt tongue Child Harness. and buckle, remove the lap portion of seat belt from the B.

  • Page 16: Maintenance/Cleaning

    CARE & MAINTENANCE HOW TO CLEAN REGULAR CARE OF THIS RESTRAINT: TO REMOVE COVER Please check the following items regularly to ensure the safety of your child: A. To remove main cover, unhook elastics at the rear A. Check the webbing for fraying. of the seat and unhook B.
  • Page 17 ACCESSORIES HOW TO CLEAN TO REPLACE COVER MESSY MAT SEAT PROTECTOR INSTRUCTIONS 1. Align and fit headrest cover over seat and re-attach elastic loops at the rear of the seat Place ribbed or pocket end of the Messy in 4 places. Feed SLIDEGUARD™clip through the cover. Mat seat protector on edge of car seat, smooth back toward seat join (’A’) and fit 2.

  • Page 18: Pre-Installation

    PRE-INSTALLATION ANCHOR FITTING PRE-INSTALLATION Consult the vehicle owner’s handbook for location of anchorage fittings or anchorage IF THE CAR IS FITTED WITH CHILD RESTRAINT UPPER ANCHORAGE points and the possible use of spacers. Some vehicles may have an anchor fitting fitted by ANCHORAGE POINT FITTING the vehicle manufacturer.
  • Page 19 ADVICE ON THE CORRECT LENGTH BOLT. • Hi-Liner SG™ is the first Expandable Booster Seat designed with slots in the seat cover and shell. Hi-Liner SG is compatible with Safe-n-Sound Protecta PLUS™ Harness for added safety.

  • Page 20: In Case Of Accident

    Our Crash Exchange Terms and Application form are accessible on our website. Please committee CS/85 advise that this statement applies whether a child was in visit www.britax.com.au for further information. the child restraint or not. A severe crash, we consider as being one where the main body structure of the vehicle is distorted.
  • Page 21 The Babylove & EzyGo Harness trademarks are the property of Nursery Elegance Pty. Ltd. (Australia). We reserve the right to alter this product without notice. © 1995-2010 Britax Childcare Pty. Ltd. This product is covered by Australian and overseas patent applications. Patents pending. Part No. 2200339...
