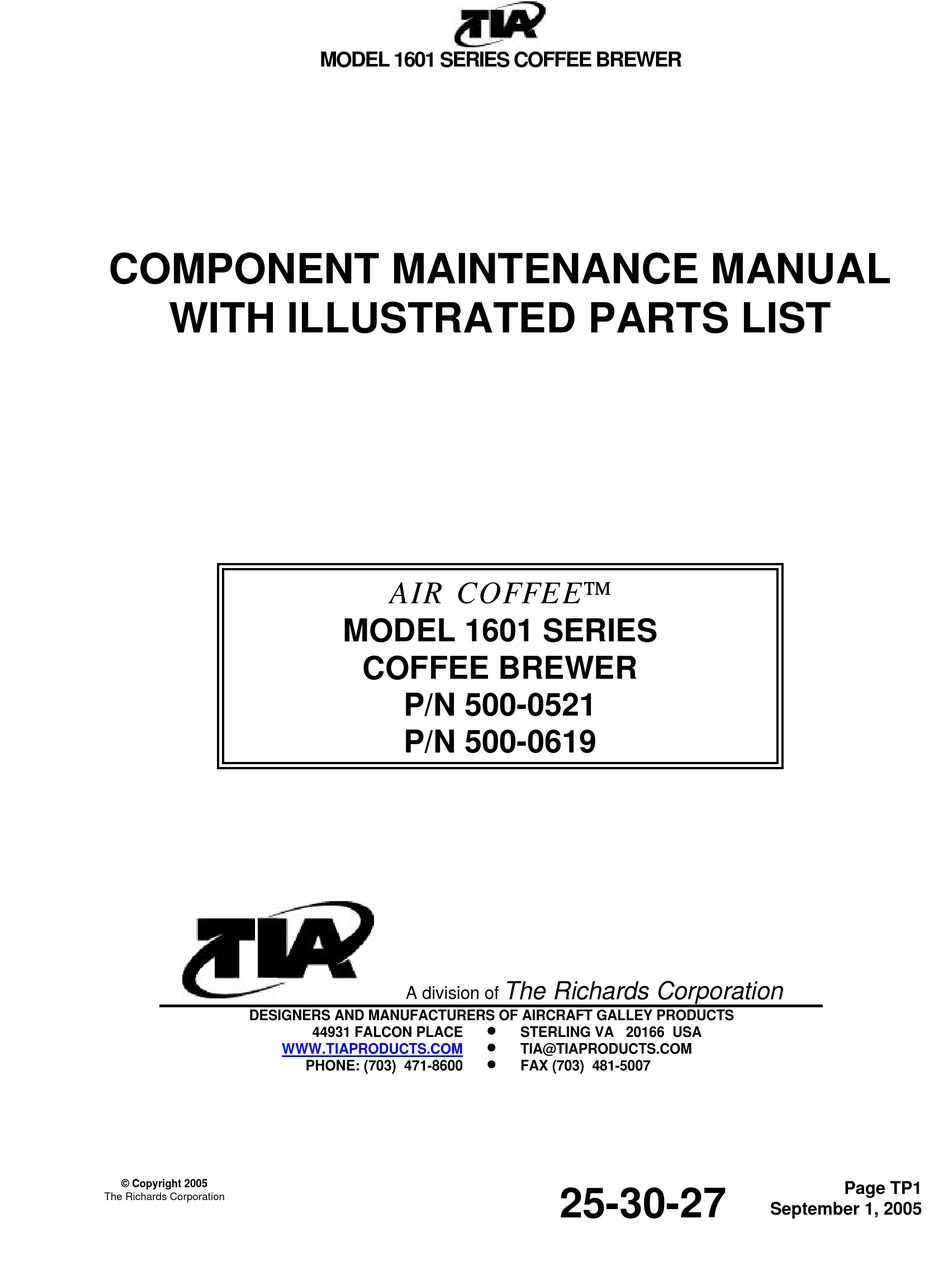

COMPONENT MAINTENANCE MANUAL
WITH ILLUSTRATED PARTS LIST
DESIGNERS AND MANUFACTURERS OF AIRCRAFT GALLEY PRODUCTS
© Copyright 2005
The Richards Corporation

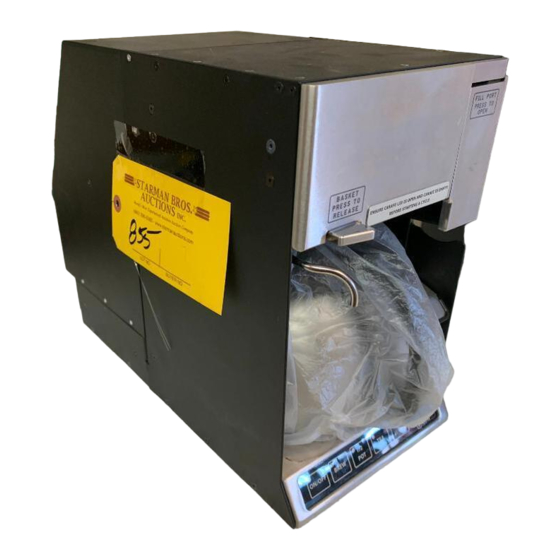

MODEL 1601 SERIES COFFEE BREWER
AIR COFFEE™
MODEL 1601 SERIES
COFFEE BREWER
P/N 500-0521
P/N 500-0619
A division of
44931 FALCON PLACE
WWW.TIAPRODUCTS.COM
PHONE: (703) 471-8600
The Richards Corporation
l
STERLING VA 20166 USA
l
TIA@TIAPRODUCTS.COM
l
FAX (703) 481-5007
25-30-27
Page TP1
September 1, 2005
