INSTALLATION, OPERATION & MAINTENANCE INSTRUCTIONS FOR
1000
Natural Gas Scrubber
PRODUCT
NGS-4
10 SCFM
Outlet

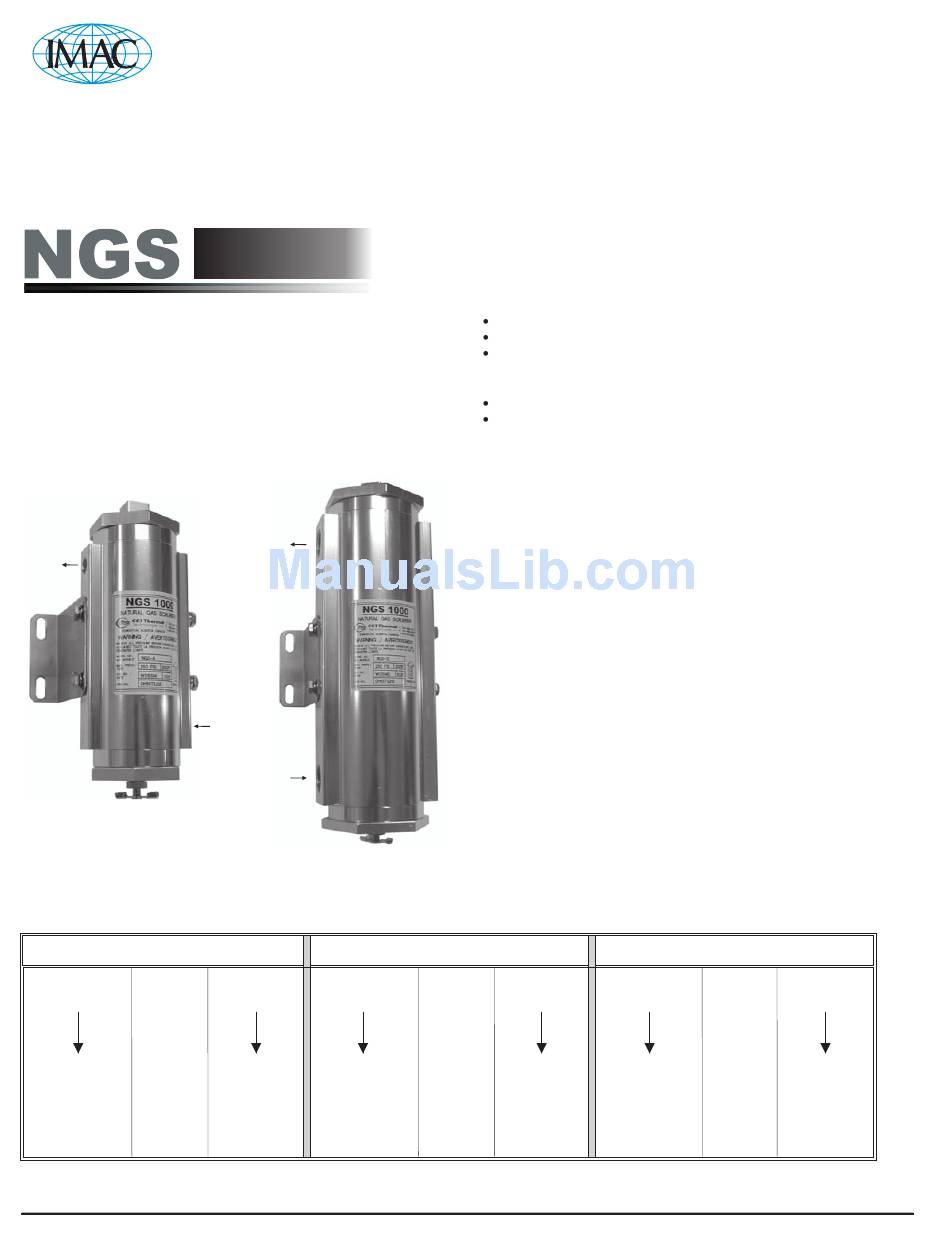

Figure 1. NGS 1000
Natural Gas Scrubber
Two sizes available NGS-4 and NGS-12
Table 1. Natural Gas Scrubber, Cartridge, and Mounting Kit Coded Numbering System.
Gas Scrubber
NGS
-
Natural Gas
Scrubber
1-800-955-4GAS
Phone: (215) 946-2200
Fax: (215) 943-2984
NGS 1000 NATURAL GAS SCRUBBERS
10 AND 25 SCFM UNITS
NEW
NGS-12
25 SCFM
Outlet
Inlet
Inlet
Cartridge
4
NGC
4 = 10 SCFM
Natural Gas
12 = 25 SCFM
Cartridge
A Leader in Advanced Heating Solutions
sales@imacsystems.com
APPLICATION
Designed specifically for industrial applications with natural gas
supply lines such as:
Cata-Dyne™ Series MKII, WX, and BX heaters
Enclosure systems
Instrument gas pre-heaters
STANDARD PRODUCT FEATURES
CRN Certified (#0H6573.213) to 250 psi and 200°F
Two sizes available
SIZE 4, 10 SCFM, ؼ" NPT
SIZE 12, 25 SCFM , Ø ¾" NPT
MOUNTING OPTIONS
With appropriate brackets, the NGS 1000 natural gas scrubber can
be installed in an existing piping system or it can be bolted to a
wall/panel using the factory supplied stainless steel wall mounting
kit.
FEATURES
CRN CERTIFIED #0H6573.213
Max. Pressure = 250 psi
Max. Temperature = 200°F
Min. Temperature = -40°F
Flow Rates: 10 SCFM to 25 SCFM
SAE/ORB o-ring design.
BENEFITS
Extend the life of your Cata-Dyne™ infrared heater if sour gas or
moisture is present.
Low-pressure drop at rated flow.
Mounting Kit
-
4
NGS
4 = 10 SCFM
Natural Gas
12 = 25 SCFM
Scrubber
-
K
K = Mounting
Kit
