STEELE PRODUCTS SP-PB101 Owner's Manual

230181
Model:72551
Table of Contents
Technical data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
General safety rules . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Specific safety rules for the table saw . . . . . . . . . . . . . . . . . . . . . . . . . . .
Electrical information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

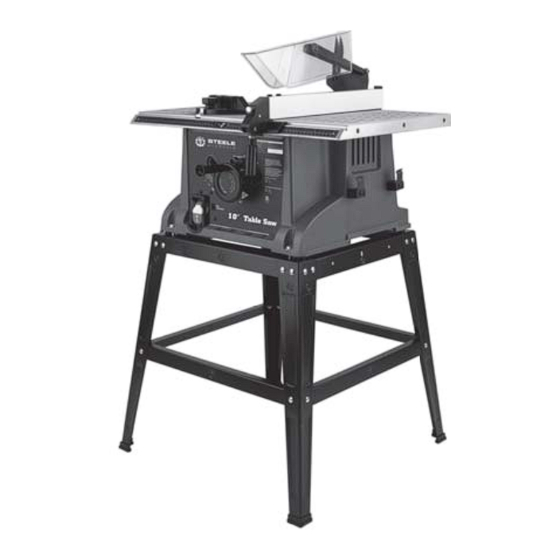

Know your table saw . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Assembly and adjustments . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Replacement parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Push stick pattern . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Push stick pattern . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Technical data
Motor :
Motor speed :
Overload protection :
Table size :
Blade
Maximum depth of cut at 90° :
Maximum depth of cut at 45° :
Maximum width of dado :
Net weight :
120V, 15A, 60Hz
5000RPM (no load)
Yes
16" x 26" (406 x 660mm)
10" (254mm carbide-tipped;
5/8" (15.9mm arbor
3" (76.2mm)
2-1/2" (63.5mm)
1/2" (12.7mm)
50lb (23kg)
2
General safety rules
Safety is a combination of common sense, staying alert and knowing how your table saw works.
2
SAVE THE SESAFETY INSTRUCTIONS.
3
WARNING: To avoid mistakes that could cause serious injury, do not plug in the table saw
until the following steps have been read and understood.
5
1.READ and become familiar with this entire instruction manual. LEARN the tool's applications,
7
limitations, and possible hazards.
9
2.AVOID DANGEROUS CONDITIONS. Do not use power tools in wet or damp areas or expose them
to rain. Keep work areas well-lit.
10
3.DO NOT use power tools in the presence of flammable liquids or gases.
20
4.ALWAYS keep your work area clean, uncluttered, and well-lit. DO NOT work on floor surfaces that
are slippery with sawdust or wax.
26
5.KEEP BYSTANDERS AT A SAFE DISTANCE from the work area, especially when the tool is
28 operating.NEVER allow children or pets near the tool.
6.DO NOT FORCE THE TOOL to do a job for which it was not designed.
29
7.DRESS FOR SAFETY. Do not wear loose clothing, gloves, neckties, or jewelry (rings,watches, etc.)
when operating the tool. Inappropriate clothing and items can get caught in moving parts and draw
30
you in. ALWAYS wear non-slip footwear and tie back long hair.
32
8.WEAR A FACE MASK OR DUST MASK as the sawing operation produces dust.
34
WARNING: Dust generated from certain materials can be hazardous to your health. Always
operate the saw in a well-ventilated area and provide for proper dust removal. Use dust
collection systems whenever possible.
9.ALWAYS remove the power cord plug from the electrical outlet when making adjustments, changing
parts, cleaning or working on the tool.
10.KEEP GUARDS IN PLACE AND IN WORKING ORDER.
11.AVOID ACCIDENTAL START-UPS. Make sure the power switch is in the OFF position before plugging
in the power cord.
12.REMOVE ADJUSTMENT TOOLS. Always make sure all adjustment tools are removed from the saw
before turning it on.
13.NEVER LEAVE ARUNNING TOOL UNATTENDED. Turn the power switch to OFF. Do not leave the
tool until it has come to a complete stop.
3
