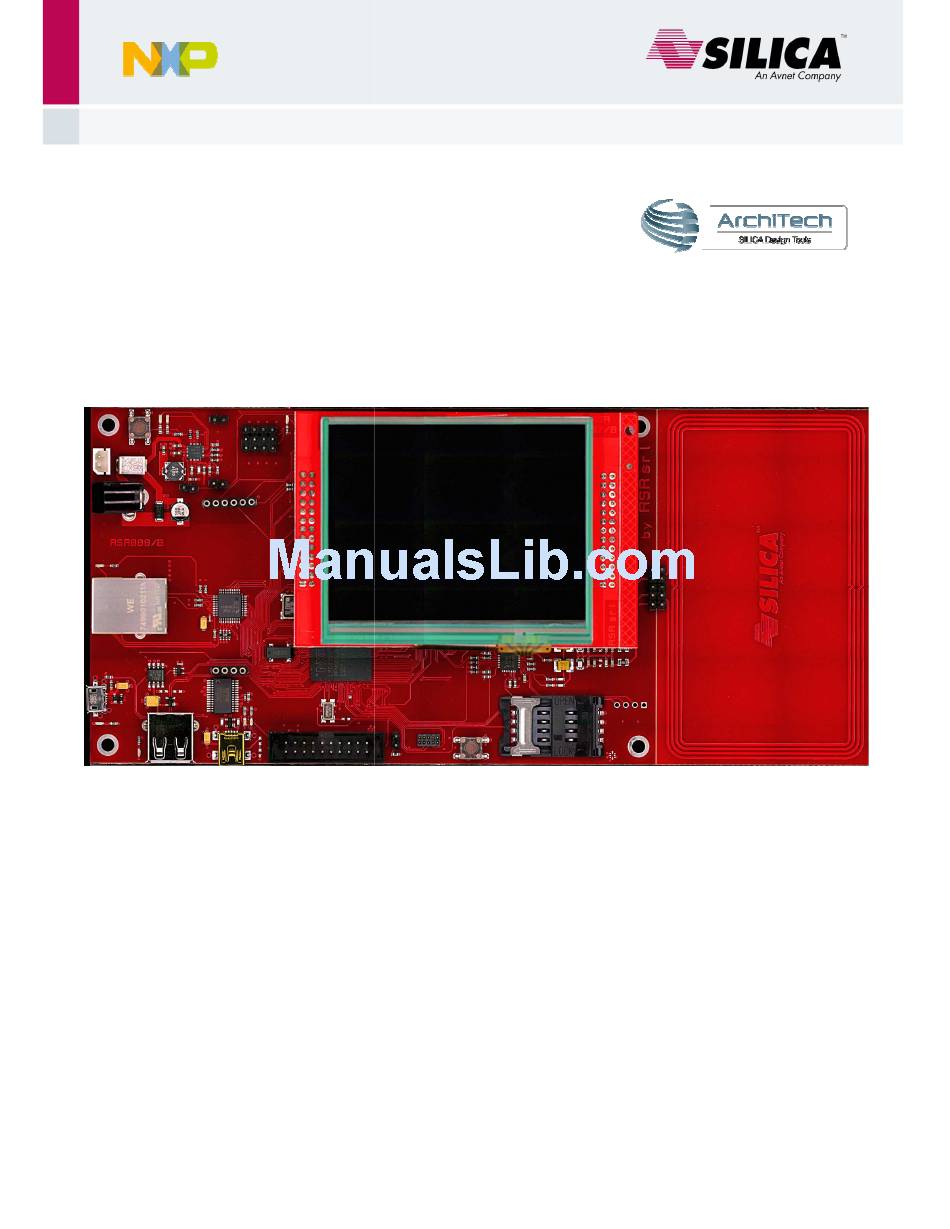

- Page 1 Silica Silica Seriz II Board Quick Start Guide Quick Start Guide...
-
Page 2: Table Of Contents
General Description ........................... 4 Development Environment : LPCXpresso ....................5 3.1.1 Requirements ..........................5 3.1.2 Software Installation ........................5 3.1.3 Source code ..........................7 Seriz II Connectors / Switches Description ....................8 Revision History Rev. Date Description 31.12.2012 Starting revision 09.03.2013 Changed directory of emWin unzip 22.11.2013... -
Page 3: Open The Package
1 Open the package The board is delivered with an application preloaded. This demo application will check for the card type and show electronic business cards (vCard) information if present. To run the demo simply connect a USB cable to the MINI USB connector The application will start, showing a simple presentation of the board. -
Page 4: General Description
2 General Description Seriz II has been designed to enable rapid and secure RFID and NFC development. More than the board is also showing the benefits of using Cortex M4 in RFID applications. • NXP CORTEX M4 LPC4350 • Enhanced Security •... -
Page 5: Development Environment : Lpcxpresso
3 Development Environment : LPCXpresso 3.1.1 Requirements Operating system: Microsoft® Windows - XP (SP2 or greater) Microsoft® Windows - Vista 32-bit Microsoft® Windows - Windows 7 32-bit LPCXpresso (4.3.0_1023 ) - http://ics.nxp.com/lpcxpresso/ Eclipse Based IDE, using GNU compiler LPCXLink- http://ics.nxp.com/lpcxpresso/ Used as JTAG Debugger 3.1.2 Software Installation •... - Page 6 249750 lwip_ram_Silica_SerizII.axf You built the image, now you can upload it and run it on Seriz II. The configuration Silica_SerizII is built to run in the processor RAM which is big enough to fit projects up to 128kB, which is the maximum size of the LPCXpresso free compiler.
-
Page 7: Source Code
3.1.3 Source code The application is based on the LPCOpen, a set of libraries and applications available from NXP. These libraries will provide a Hardware Abstraction layer – HAL - ( see the lib_lpc_board ) which enable different application software and examples to run on different hardware. Using the same structure, other examples for the LPCOpen library can be easily ported on SerizII, providing a tool to develop not only RFID applications but also generic applications. -
Page 8: Seriz Ii Connectors / Switches Description
4 Seriz II Connectors / Switches Description The hardware documentation is located in a project folder (projdir)\lib_lpc_board\lpc_board\boards_18xx_43xx\Silica_SerizII\Doc\ Jumer list J1, J8 Power the antenna measurement unit ( optional ) J2, J3, J4, J5 Boot configuration Power the Ethernet PHY J9,J13...
