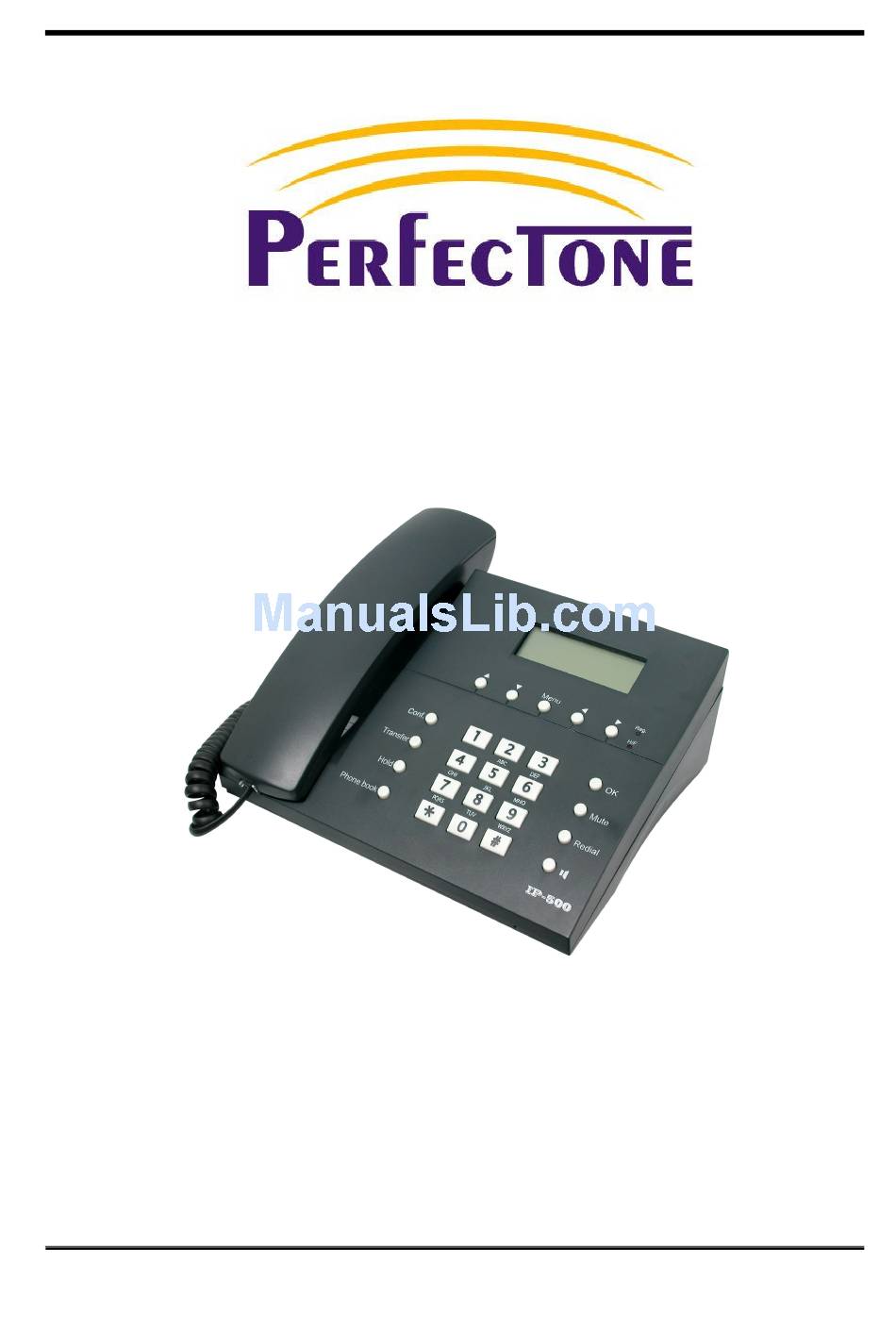

IP500 User Manual
IP 500 Internet Phone
IP 500 Internet
IP 500 Internet
IP 500 Internet
[VoIP]
[VoIP]
[VoIP]
[VoIP]
User Manual
Phone
Phone
Phone
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the IP 500 and is the answer not in the manual?

Questions and answers

Summary of Contents for Perfectone IP 500

  • Page 1 IP500 User Manual IP 500 Internet Phone IP 500 Internet Phone IP 500 Internet IP 500 Internet Phone Phone [VoIP] [VoIP] [VoIP] [VoIP] User Manual...

  • Page 2: Table Of Contents

    IP500 User Manual Index Introduction..........................3 Hardware Overview....................... 3 Software Overview ........................ 3 Operating requirements: ....................... 4 Electric requirements: ......................4 Size: ............................4 Phone diagram ........................4 Keypad description........................ 5 Installating the IP Phone ......................5 Setup the VoIP Phone by Keypad..................... 8 Keypad Setting List .......................

  • Page 3: Introduction

    IP500 User Manual 1. Introduction IP is abbreviation of Internet Protocol. An IP phone is a telephone transporting voice by grouping data package of IP protocol. IP phone can be used on IP Networks from an enterprise-wise LAN to a city-wide WAN.

  • Page 4: Operating Requirements

    IP500 User Manual Voice Quality • VAD(Voice Activity Detection) CNG(Comfortable Noise Generator) LEC(Line Echo Canceller) Packet Loss Compensation Adaptive Jitter Buffer Security • HTTP 1.1 basic/digest authentication for Web setup MD5 for SIP authentication (RFC2069/ RFC 2617) Configuration • Web Browser Telnet Keypad Configuration Firmware Upgrade...

  • Page 5: Keypad Description

    IP500 User Manual 1. Up key 2. Down key 3. Menu 4. Left key 5. Right Key 6. Conference 7. Transfer 8. Hold 9. Phone book 10. Confirm 11. Mute 12. Redial 13. Speaker 14. Number key 15. Reg LED 16.
  • Page 6 IP500 User Manual Before installing your IP phone, it is useful to know what kind of IP addressing your LAN or router is using. 2.1 What is the IP addressing of your network? Most networks, including the Internet, use identification codes IP (Internet Protocol) addresses to identify and locate the devices that share their services.
  • Page 7 IP500 User Manual...

  • Page 8: Setup The Voip Phone By Keypad

    IP500 User Manual 3. Setup the VoIP Phone by Keypad The configuration of the VoIP phone can be set by the keypad on the unit. Keypad Setting List 1. Phone Book Search:Search Phone Book. Add entry:Add new phone number to phone book Speed dial:Add speed dial phone number to speed dial list.
  • Page 9 IP500 User Manual Ringer Ringer volume: Ringer volume setting from 0~15 (max.). Ringer type: Ringer tone selection from 1~4. Auto Dial: Set Auto Dial time from 3~9 seconds. 4. Network WLAN Setup IP Type Fixed IP client DHCP client PPPoE client Fixed IP setting IP Address Subnet mask...
  • Page 10 IP500 User Manual Second realm Activation User name Display name Register name Register password Proxy server Proxy Domain server Outbound proxy Third realm Activation User name Display name Register name Register password Proxy server Proxy Domain server Outbound proxy Codec Codec type G.711 uLaw G.711 aLaw...
  • Page 11 IP500 User Manual 7. Administrator Auto Config Config mode Disable TFTP TFTP server: Setting the TFTP server IP address. FTP server: Setting the FTP server IP address FTP Login Name: Setting the FTP login name FTP Password: Setting the FTP password Default setting System Authentication: To do the SIP setting from Keypad, need to input the password first.

  • Page 12: Setup The Voip Phone By Web Browser

    IP500 User Manual 4. Setup the VoIP Phone by Web Browser The VoIP Phone provides a built-in web server. You can use Web browser to configure the VoIP Phone. First please input the IP address in the Web page. In the end of IP address, please add the port number “:9999”.

  • Page 13: Phone Book

    IP500 User Manual Phone Book 4.3.1 In Phone Book contains Phone Book and Speed Dial Settings. You can setup the Phone Book and Speed Dial number. The Phone Book can store 140 phone numbers and the Speed Dial can store 10 phone numbers. If you want to use Speed Dial you just dial the speed dial number (from 0~9) then press “#”.

  • Page 14: Phone Setting

    IP500 User Manual Phone Setting 4.4.1 In Phone Setting contains Call Forward, SNTP Settings, Volume Settings, Melody Settings, Block Setting, and Auto Dial Setting functions. 4.4.2 Call Forward function: you can setup the phone number you want to forward in this page. There are three type of Forward mode.
  • Page 15 IP500 User Manual 4.4.3 SNTP Setting function: you can setup the primary and second SNTP Server IP Address, to get the date/time information. Also you can base on your location to set the Time Zone, and how long need to synchronize again. When you finished the setting, please click the Submit button. 4.4.4 Volume Setting function: you can setup the Handset Volume, Ringer Volume, and the Handset Gain.
  • Page 16 IP500 User Manual 4.4.6 Block Setting function: you can setup the Block Setting to keep the phone slience. You can choose Always Block or Block a period. Always Block: All incoming call will be blocked until disable this feature. Block Period: Set a time period and the phone will be blocked during the time period. If the “From”...

  • Page 17: Network

    IP500 User Manual Symbol explan: x or X 0,1,2,3,4,5,6,7,8,9 Replace rule:If replace prefix code is ON and prefix number is matched with rule then 005 will replace prefix. Auto Dial Time : Stop dialing after seconds then send dial number out. Dial Plan: When match with pattern then send dial number out but if fisrt digit is ‘0’...
  • Page 18 IP500 User Manual 4.6.2 Network Status: You can check the current Network setting in this page. 4.6.3 WAN Settings: You can configure the VoIP Phone Network setting in this page. You can choose Brigde or NAT for the LAN mode. If you set the Bridge On, then the two Fast Ethernet ports will be transparent.
  • Page 19 IP500 User Manual 4.6.5 DDNS Setting: You can configure the DDNS setting in this page. You need to have the DDNS account and input the informations properly. You can have a DDNS account with a public IP address then others can call you via the DDNS account. But now most of the VoIP applications are work with a SIP Proxy Server.

  • Page 20: Sip Settings

    IP500 User Manual 4.6.6 VLAN Settings: ou can set the VLAN setting in this page. There are two parts in this page. First one is to set the packets related to the IP Phone, and the second parts is if you use the VLAN setting in the NAT Mode.
  • Page 21 IP500 User Manual You can dial the VoIP phone to your friends via first enable SIP account and receive the phone from these three SIP accounts. First you need click Active to enable the Service Domain, then you can input the following items: Display Name: you can input the name you want to display.
  • Page 22 IP500 User Manual 4.7.3 Port Settings: you can setup the SIP and RTP port number in this page. Each ISP provider will have different SIP/RTPport setting, please refer to the ISP to setup the port number correctly. When you finished the setting, please click the Submit button.
  • Page 23 IP500 User Manual 4.7.4 Codec Settings: you can setup the Codec priority, RTP packet length, and VAD function in this page. You need to follow the ISP suggestion to setup these items. When you finished the setting, please click the Submit button. 4.7.5 Codec ID Settings: you can set the Codec ID to meet the other device’s requirement.

  • Page 24: Nat Trans

    IP500 User Manual 4.7.7 RPort Function: you can setup the RPort Enable/Disable in this page. To change this setting, please following your ISP information. When you finished the setting, please click the Submit button. 4.7.8 Other Settings: you can setup the Hold by RFC, Voice/SIP QoS and SIP expire time in this page. To change these settings please following your ISP information.

  • Page 25: System Authority

    IP500 User Manual 4.9.2 Auto Config: you can setup the Auto Configuration to Disable, Enable by TFTP or FTP, and auto configuration TFTP or FTP Server IP address in this page. This function can automatically download the configure file to setup your VoIP Phone. When you finished the setting, please click the Submit button.

  • Page 26: Save Change

    IP500 User Manual 4.11 Save Change 4.11.1 In Save Change you can save the changes you have done. If you want to use new setting in the VoIP Phone, You have to click the Save button. After you click the Save button, the VoIP Phone will automatically restart and the new setting will effect.

  • Page 27: Reboot

    IP500 User Manual 4.13 Reboot 4.13.1 Reboot function you can restart the VoIP Phone. If you want to restart the VoIP Phone, you can just click the Reboot button, then the VoIP Phone will automatically.

  • Page 28: Setup The Voip Phone By Using Console (Hyper Terminal)

    IP500 User Manual 5. Setup the VoIP Phone by usingTelnet (only suppurt Windonw xp) Configure On the PC choose Start>Run, and then type telnet 192.168.1.100 into Run field in popuping Run dialog. Or input telnet 192.168.1.100 in the DOS window. Then the following information will be displayed.

  • Page 29: Login Into The Voip Phone

    IP500 User Manual Login into the VoIP Phone Press “Enter” and the hyper terminal will show the “Login: “. Input “root” and press the “Enter” button. Then hyper terminal will show the “Password: “. Input “test” and press the “Enter” button. Now you already login the VoIP Phone.

  • Page 30: Using Cli Command To Configure The Voip Phone

    IP500 User Manual Using CLI command to configure the VoIP Phone CLI command list as below: Itno Command Description Show CLI Command ARP Configuration ipconfig Interface Configuration save Save to flash reboot Reboot exit Exit debugmode Enter Debug Mode update Update Flash Code/RAM auth Change User Name and Password...
  • Page 31 IP500 User Manual ipconfig –ifN function N is 0, 1, 2 Itno Command Description Show 'ipconfig -ifN' Option Set Host Type Set MAC Address Set IP Address Set Net Mask Set Gateway -dns0 Set Primary DNS server -dns1 Set Secondary DNS server Set Default Route -nat Set NAT...
  • Page 32 IP500 User Manual auth function Itno Command Description Show 'auth' Option -admin Change Administrator user name/password -sys0 Change System user0 user name/password -sys1 Change System user1 user name/password -sys2 Change System user2 user name/password -sys3 Change System user3 user name/password -sys4 Change System user4 user name/password -norm0...
  • Page 33 IP500 User Manual sip function Itno Command Description Show 'sip' Option -proxy0 sip -proxy0 -proxy1 sip -proxy1 -proxy2 sip -proxy2 -upnp sip -upnp on/off/show -exts sip -exts sip upnp external-port -extr sip -extr rtp upnp external-port -sipp sip udp port -rtpp sip rtp port -stun...
  • Page 34 IP500 User Manual vlan function Itno Command Description Show 'vlan' Option Tx Vlan setting Rx Vlan setting (null) Show Vlan Setting time function Itno Command Description Show 'Time' Option Modify Time: hour:min:sec Modify date: year:mon:date (null) Show Data & Time mactab function is to show MAC learning table.
  • Page 35 IP500 User Manual weblogo function Itno Command Description Show 'weblogo' Option Vender Logo -off Crystal media Logo (null) Show weblogo Setting dsp function is to show dsp code type. addport function is to add Nat Port Mapping cid function Itno Command Description Show 'cid' Option...

  • Page 36: Phone Function List

    IP500 User Manual 6. Phone function list When your VoIP Phone is configured properly, you can make a phone call to your friend located in the same service provider. If you want to make a phone call, you can dial the phone number then press “#” button to start to dial the phone number or wait for a while then system will dial the number automatically.
  • Page 37 IP500 User Manual Appendix Get a FWD account The website is www.freeworlddialup.com; you can apply an account to use the VoIP communication. You can follow the instruction to input the information. After you finished, you will receive a mail sent by the FWD mail system, you will get the account information in the mail.
