Summary of Contents for greenmomit momit Smart

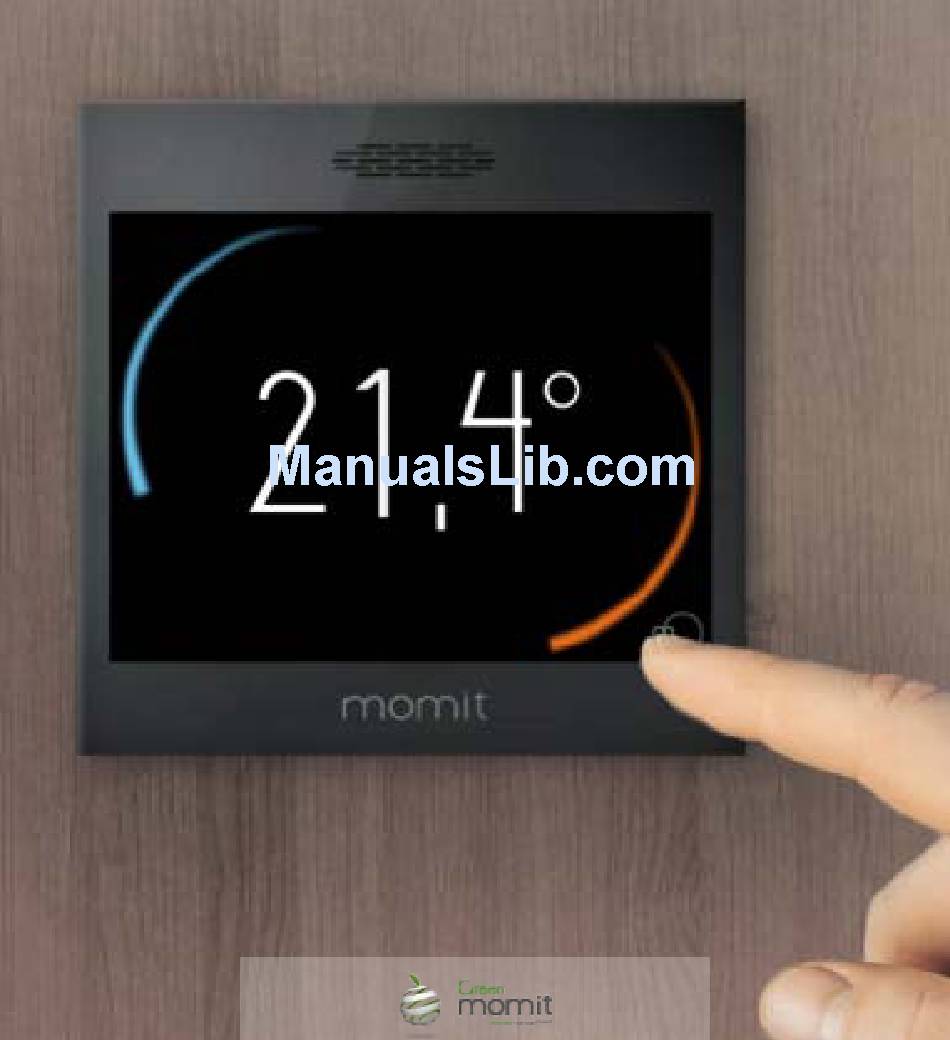

- Page 1 Smart Thermostat User guide...
-
Page 2: Table Of Contents
Contents Main menu 1. Home 2. Main menu a. Raise/lower temperature b. Use c. Calendar c.1 Programming c.2 Holidays First connection d. Set-up 1. Welcome to momitST d.1 General set-up 2. Language d.2 Parameters 3. Loading d.2.1 Safety temperature 4. User conditions d.2.2 Calibration 5. -
Page 3: First Connection
First connection The first time you connect your momit Smart Thermostat, a series of screens will appear, which will take you through the initial device set-up. -
Page 4: Welcome To Momitst
Welcome Welcome to momit Smart Thermostat, the intelligent WIFI thermostat. Language Start by selecting your desired language, a mandatory step before you can proceed. SET-UP Language Deutsch English Español Français Italiano Portugués delete accept... -
Page 5: Loading
You must accept these in order to continue. User Conditions By accepting, you are agreeing to comply with the user conditions when using the momit Smart Thermostat. Before continuing, you may consult the user conditions at www.greenmomit.com I do not accept... -
Page 6: Country
Country To conduct a proper study of the energy consumption, you must select a destination SET-UP country. Country A B C D E F G H I J K L M N O P Q R S T U V Y Z delete accept Postcode... -
Page 7: Date/Time
Date/time Select the current date and time to start pro- gramming the thermostat. SET-UP momit Smart Thermostat will automatically Date/Time update the time when appropriate. DD/MM/YY MM/DD DD/MM HHMM 1 2 3 4 5 6 7 8 9 0 delete... -
Page 8: User Account
Email Enter the email address you want to use to ac- cess your momit Smart Thermostat. SET-UP E-mail q w e r t y u i o p a s d f g h j k l ñ... -
Page 9: User Password
User password Create a personal password in order to con- trol your thermostat. It must contain at least SET-UP 6 characters. User Password Please enter your user password q w e r t y u i o p a s d f g h j k l ñ z x c v b n m ?123 space... -
Page 10: Network Name
Network name Enter the name of the WiFi you want to con- nect to. SET-UP Network WiFi network name q w e r t y u i o p a s d f g h j k l ñ z x c v b n m ?123 space DONE... -
Page 11: Enter Password
Smart Thermostat. a s d f g h j k l ñ z x c v b n m... - Page 12 Check connection TECHNICAL momit server ERROR accept If the error status shown in the image appears on your screen, this means that the thermostat was un- able to connect to the server. If it does not switch to the “OK” status after 30 seconds, you must try again to connect to the WiFi.
-
Page 13: Momit Designs
momit Designs Using the side buttons, you may browse through the designs and select the one you want by clicking in the centre of the screen. 6 display modes: Standard Simple Elegant Retro Maya Minimalist Elegant... - Page 14 momit Designs Temperature reading MAYA The tens and units are shown in the bottom left. The tens are represent- Tens ed by hollow circles, while the units are represented by solid circles. Units Decimals MINIMALIST 0 1 2 3 4 5 6 7 8 9 In this case, 3 bars appear: the mid- Tens...
-
Page 15: Main Menu
Main menu Once the initial set-up has been com- pleted upon first connecting your momit Smart Thermostat, every subsequent time that the device is turned on, you will be taken directly to the main menu. -
Page 16: Home
Home Welcome to momit Smart Thermostat, the in- telligent WIFI thermostat. Main menu The following options appear in the main menu: RAISE/LOWER TEMPERATURE - This option will appear if you give the screen a single tap. CALENDAR SET-UP MOMIT DESIGN... -
Page 17: Raise/Lower Temperature
Main menu RAISE/LOWER TEMPERATURE With a single tap on the screen, the “+” and symbols will appear. “–” ° 21.4 Use these symbols to select the desired temperature, and once selected, click OK. SET-UP Allows you to select the Heating, A/C or Off function. -
Page 18: Calendar
Main menu CALENDAR This section shows the calendar pro- gramme. The colour red indicates heating, and the blue A/C. The hours appear at the top and the days on the left. There are two options in the Calendar: PROGRAMMING HOLIDAYS PROGRAMMING Programming To programme the calendar, select the... -
Page 19: Holidays
Main menu HOLIDAYS CALENDAR When a holiday period is configured, mo- mit Smart Thermostat will turn off the air- Holidays conditioning systems until the return date. Going Coming back Disable SET-UP SET-UP GENERAL SET-UP PARAMETERS General ADVANCED TECHNICAL Parameters Advanced Technical... -
Page 20: General Set-Up
Main menu GENERAL SET-UP GENERAL SET-UP Allows you to access: Language - Language - Country - Postcode Country - Date/time - Email Postcode Date/Time Email PARAMETERS Parameters d.2.1 Safety temperature d.2.2 Calibration d.2.3. °F / °C Safety temperature Calibration °F/°C... -
Page 21: Safety Temperature
Main menu PARAMETERS d.2.1 Safety temperature In heat status the temperature is between 8° and 30º and in cold status it is between 15° and 40°. If the temperature rises above or falls below these ranges, the thermostat will enter into safety mode, opening or closing the relay to prevent damage to the systems. -
Page 22: Advanced
Main menu ADVANCED ADVANCED Allows you to turn the modes on and off: momit Modes d.3.1 Smart d.3.2 Presence Smart d.3.3 Ambient Presence d.3.4 Standby Ambient Standby delete accept d.3.1 Smart Smart mode automatically learns your routines of use, configuring itself based on this data. This mode will operate after 3 manual modifications have been made to an active calendar slot. -
Page 23: Technical
Main menu TECHNICAL TECHNICAL SET-UP Allows you to access: d.4.1 Technical information Technical Information d.4.2 Last connection d.4.3 Network Last Connection d.4.4 Network d.4.5 Reset Reset d.4.1 Technical information d.4.2 Last connection TECHNICAL TECHNICAL Technical Information Last connection Firmware Version 10 The last time your momit device was WiFi 802.11 b/a 2.4 GHz online was:... -
Page 24: D.4.3 Network
Main menu d.4.3 Network d.4.4 MAC TECHNICAL TECHNICAL Detect Networks The address of your momit device is: Manual entry of WiFi network Check connection delete accept delete accept d.4.5 Reset TECHNICAL Reset Do you want to reset the momit device? delete accept... -
Page 25: Minimum Requirements
MINIMUM REQUIREMENTS momit Smart Thermostat allows you to control heat- ing and air-conditioning systems using potential-free relays for a simple two-wire installation. The control cir- cuit of the systems to be managed must not exceed the maximum operating values of the thermostat relays, de-... - Page 26 www.greenmomit.com...
