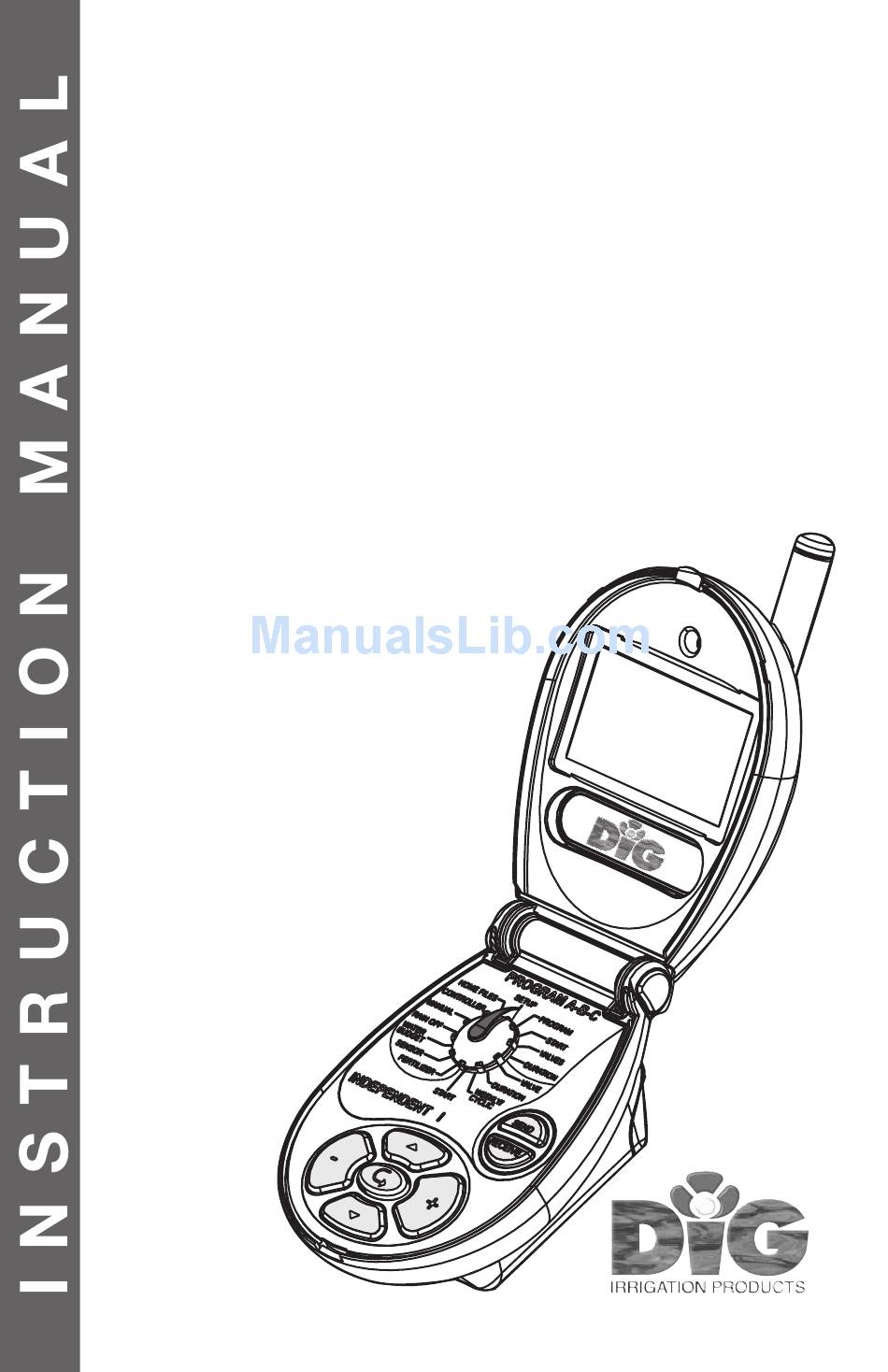

DIG 600C Instruction Manual

Radio remote control handset
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Radio Remote Control Handset
The 600 Series remote control handset and controller is a wireless system comprised of a
mobile, battery operated remote handset commanding numerous controllers. Operating
range between the remote control handset and the controllers is up to 300' line of sight.
Remote Handset Features
• Remote handset with selector is user friendly and easily operated
• Large liquid crystal display
• 4 optional languages: English, Spanish, Italian and French
• Operates numerous controllers
• The remote stores the memory of up to 50 controllers
• Weekly or cyclic irrigation programs for an
individual valve or a group of valves
• A fertilization program available for each valve
separately
• Optional change of the irrigation duration in
percentage (water budgeting)
• Rain Off from 1-99 days
• 8 start times per day for each program
or individual valve
• Irrigation duration from 1 minute up to 9 hours
• An irrigation cycle from once a day up to
every 30 days
• Option for manual computerized operation of
each separate valve or a group of valves
• Powered by 4, AA (1.5-volt) batteries
• Permanent memory
Model 600C

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 600C and is the answer not in the manual?

Questions and answers

Summary of Contents for DIG 600C

  • Page 1 Model 600C Radio Remote Control Handset The 600 Series remote control handset and controller is a wireless system comprised of a mobile, battery operated remote handset commanding numerous controllers. Operating range between the remote control handset and the controllers is up to 300' line of sight.

  • Page 2: Table Of Contents

    FCC COMPLIANCE TABLE OF CONTENTS CAUTION: The user should make no field changes or modifications to the unit. Any change or 1. Introduction …………………………………………………………………………4 modification to the equipment will void the user's authority to operate the unit, and render the equipment in violation of FCC part 15. Any tampering with this product will void the 2.

  • Page 3: Introduction

    The Remote is easily operated by a selector and five buttons. You can save programs in home files Thank you for purchasing a DIG 600C Remote Control Handset. This manual is designed to help set (up to 3 programs), or send the programs directly to a controller. Programs that were sent to the up the 600C handset.

  • Page 4: Inserting Batteries Into The Remote

    3. INSERTING BATTERIES INTO THE REMOTE 5. PROGRAM A-B-C Open the cover of the battery compartment, 5.1 IRRIGATION PROGRAM FOR A GROUP OF VALVES using the designated lever. The Remote offers two valve programming options: Insert the batteries (4 AA, 1.5V) as shown in 1.

  • Page 5: Start Time

    5.3 START TIME to remove a valve from the program (the triangle disappears). This screen will not display valve numbers that were selected for another program. Use this screen to set the start time of the selected program. You have two options: 1.

  • Page 6: Weekly Programming

    6.3 WEEKLY PROGRAMMING Delay – You start the irrigation cycle after a delay of 0-30 days. Press . The cursor appears under the number of days. Use to set the number of days up to the beginning of the first cycle. 0 Selecting Irrigation Days –...

  • Page 7: Percentage (%)

    9. PERCENTAGE (%) to select the desired controller (according to code number). Use to select the desired operation (see all the options on the next page). After you select the option, send the Irrigation Percentage – Change the command to the controller – press SEND. The Remote displays SENDING in the bottom line. If the Irrigation Duration in % message is transmitted, Successfully Sent is displayed.

  • Page 8: Controller

    12.3 CLEAR OR ERASE PROGRAM 12. CONTROLLER Used to erase the program you are editing. 12.1 CONTROLLER OPERATION Turn the selector to CONTROLLER Communication between the remote and the position controller is established in this mode. NOTE: Clear erases complete program Turn the selector to CONTROLLER from the editor.

  • Page 9: Rename Controller

    12.6 RENAME CONTROLLER 12.8 RECEIVE PROGRAM FROM CONTROLLER Used to change the name of a controller. Used to read the existing program from the controller in the field, in order to review or Turn the selector to CONTROLLER make changes. position Turn the selector to CONTROLLER Press...

  • Page 10: Home Files

    13. HOME FILES 14. SUMMARY – PROGRAMMING THE SYSTEM Summary of Operations 1. Initial programming and sending program to a controller in the field In this mode you can save up to 4 files (programs) in the memory of the remote. You a.

  • Page 11: Warranty

    DIG CORPORATION. There are no warranties which extend beyond the description on the face hereof. In the case of purchase of the product for use other than, for irrigation purposes, DIG CORPORATION hereby disclaims any implied warranties including any warranties of merchantability and fitness for a particular purpose.
