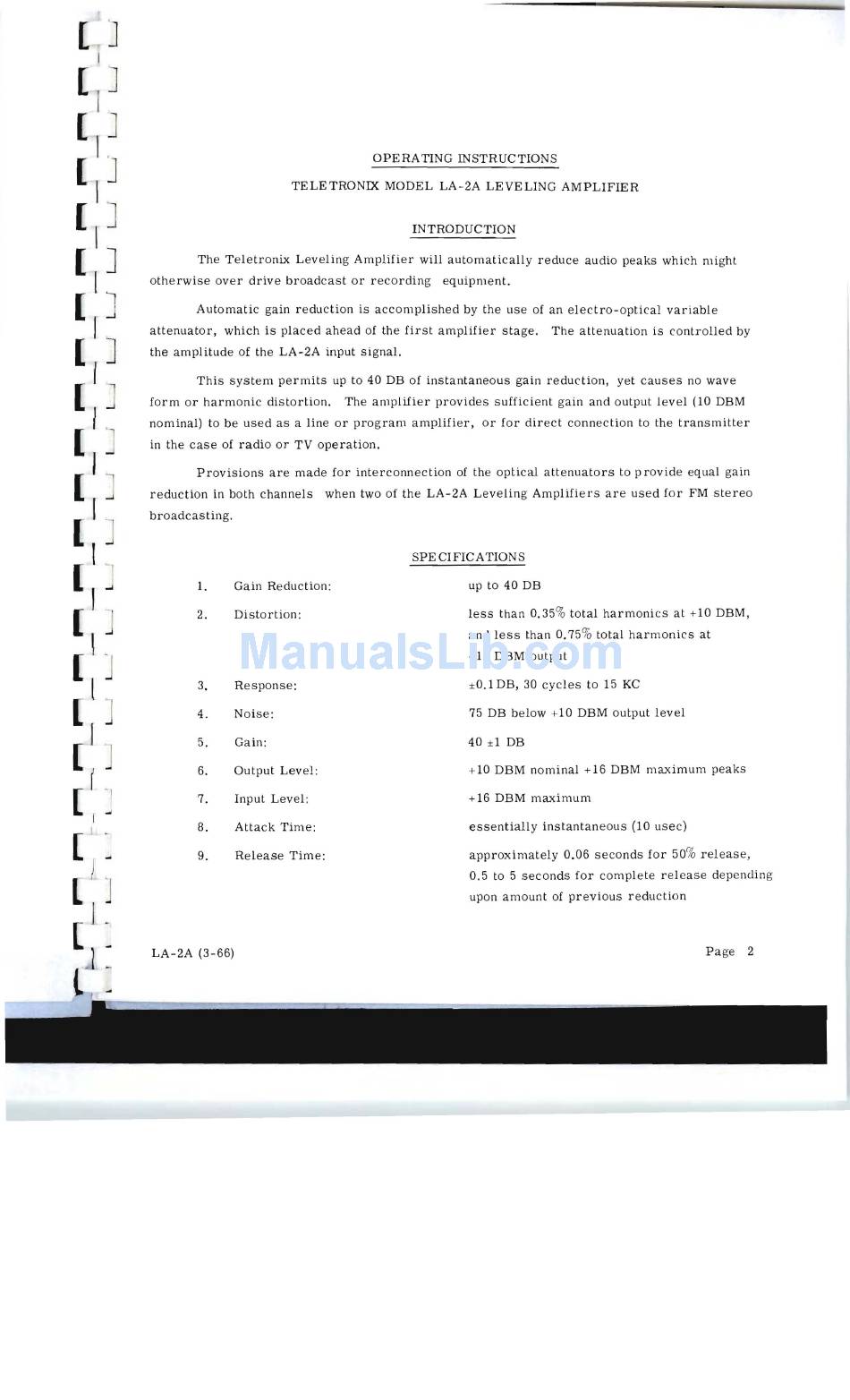

OPERATING INSTRUCTIONS
[I
J
TELETRONIX MODEL LA-2A LEVELING AMPLIFIER
[I
J
INTRODUCTION
The Teletronix Leveling Amplifier will automatically reduce audio peaks which might
[I
J
otherwise over drive broadcast or recording equipment.
Automatic gain reduction is accomplished by the use of an electro-optical variable
[rJ
attenuator, which is placed ahead of the first amplifier stage. The attenuation is controlled by
the amplitude of the LA-2A input signal.
[I
J
[I
This system permits up to 40 DB of instantaneous gain reduction, yet causes no wave
form or harmonic distortion. The amplifier provides sufficient gain and output level (10 DBM
[I
nominal) to be used as a line or program amplifier, or for direct connection to the transmitter
in the case of radio or TV operation.
[I
Provisions are made for interconnection of the optical attenuators to provide eq ual gain
reduction in both channels when two of the LA-2A Leveling Amplifiers are used for FM stereo
broadcasting.
[I
SPE CIFICATIONS
1.
Gain Reduction:
up to 40 DB
[I
J
[
2.
Distortion:
less than 0.35% total harmonics at +10 DBM,
and less than 0.75 % total harmonics at
[I
+16 DBM output
3. Response:
±0.1 DB, 30 cycles to 15 KC
[I
4. Noise:
75 DB below +10 DBM output level
[I
5.
Gain:
40 ±1 DB
6. Output Level :
+10 DBM nominal +16 DBM maximum peaks
r
_I
7.
Input Level:
+16 DBM maximum
[
1
~
8. Attack Time:
essentially instantaneous (10 usee)
[
9. Release Time:
approximately 0.06 seconds for 50% release,
