Hyco 12D Operation Instructions

OSCILLATING DESK FAN 12D/16D
READ AND SAVE THESE INSTRUCTIONS
CAUTION
Read Rules for Safe Operation and Instructions Carefully.
WARNING
If the supply cord is damaged, it must be replaced by manufacturer or its service agent or a similarly qualified
person in order to avoid a hazard.
.

RULES FOR SAFE OPERATION

1. Never insert fingers, pencils, or any other object through the grille when fan is running.
2. Disconnect fan when moving from one location to another.
3. Disconnect fan when removing grilles for cleaning.
4. Be sure fan is on a stable surface when operating to avoid overturning.
5. DO NOT get the fan wet; it may create an electrical safety hazard.

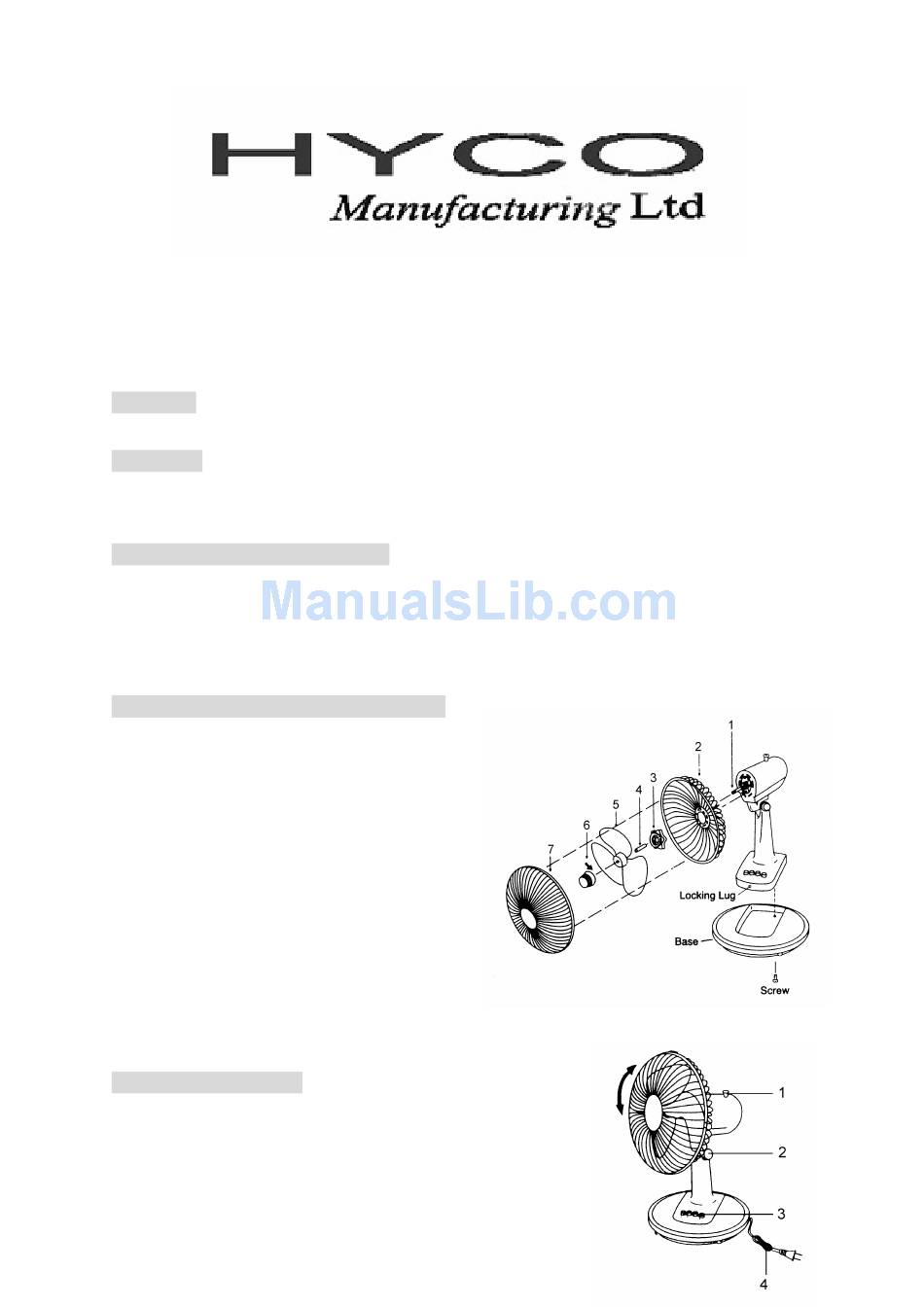

ASSEMBLY OF BLADE AND GRILLES

1. Unscrew the spinner clockwise and the nut counter-
clockwise then remove both of them.
2. Set the rear grille in the proper position with handle
up.
3. Screw on plastic nut tightly to attach rear grille.
4. Discard PVC sleeve on motor shaft.
5. Install the blade onto the motor shaft until it reaches
the retaining pin.
6. Screw spinner on to motor shaft counter clockwise.
7. Unscrew the locking screw mounted on the rear grille.
Mount front grille onto rear grille with the small round
holes on the top matched for the passage of locking
screw. Fix both grilles with clips and then use screw driver to tighten the locking screw.

ASSEMBLY OF BASE

1. Detach screw from base of the fan.
2. Match locking lug to base.
3. Tighten the screw from the base to lock the fan and base.
Version 1.1 August 2007
3 SPEED
Operation Instructions
