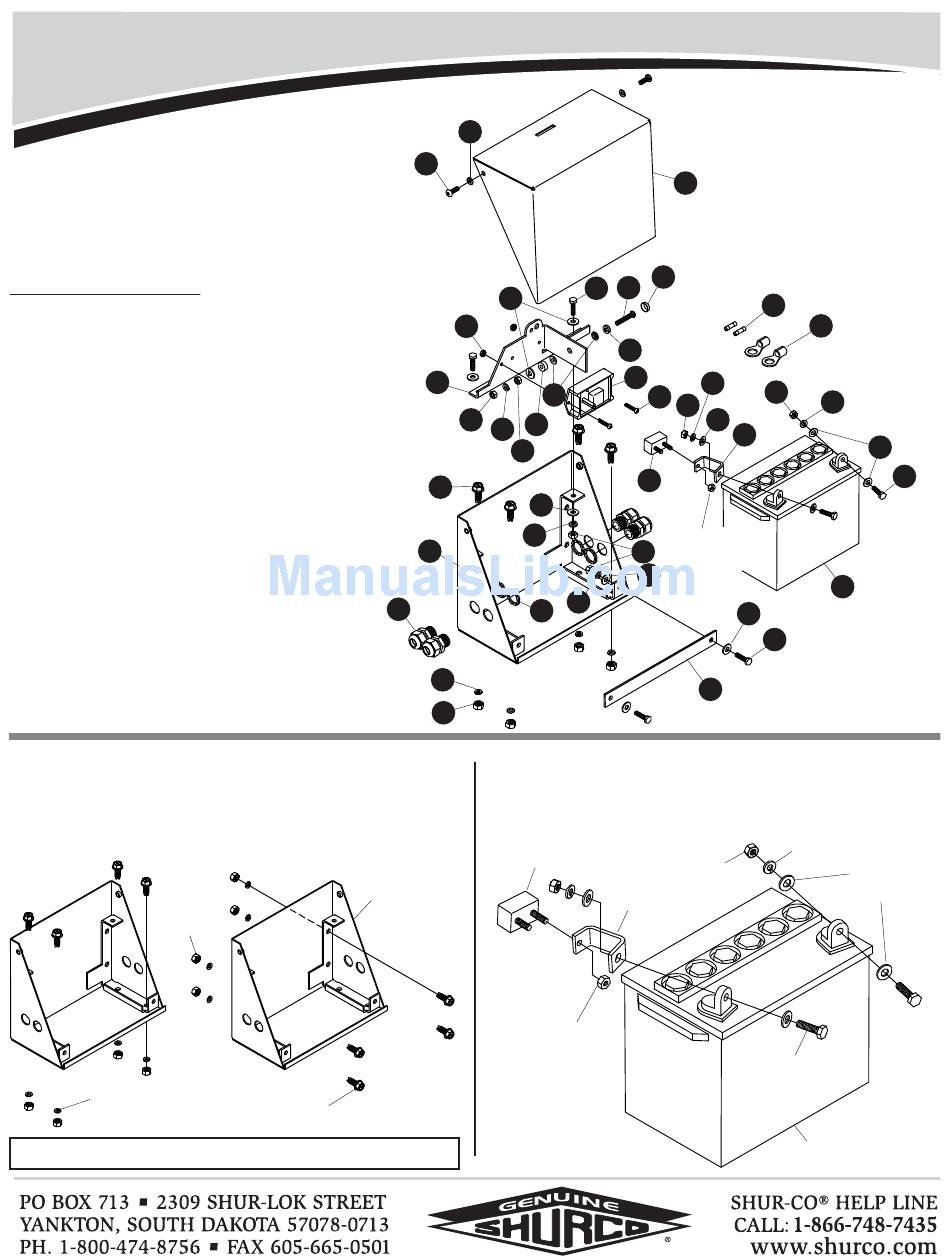

Installation Instructions - Battery Box & Trickle Charger
Item Part #
Description
1.
1119783 Battery Box Bottom - Trickle
2.
3.
1117740 Battery Box Hold Down Bracket
4.
1117739 Battery Box Front Bracket
5.
1117741 Battery Clip
6.
7.
1704161 Solar Gel Battery
8.
1700381 Cap Screw - 1/4" x 1"
9.
1700408 Hex Nut - 1/4"
10. 1700427 Flat Washer - 1/4"
11. 1700436 Lock Washer - 1/4"
12. 1704152 Dome Nut - 1/2"
13. 1704187 Lock Nut - 1/2"
14. 1704354 Modifi ed-Reset Circuit Breaker - 40 Amp
15. 1703244 Ring Terminal - 6 Ga. x 3/8" Stud
16. 1704154 Parallel Connector - 16-14 Ga. #6
17. 1703327 Button Hd. Cap Screw - 1/4" x 5/8"
18. 1702654 Round Hd. Machine Screw - #10 x 1"
19. 1702653 Nut/Machine Screw w/Washer - #10
20. 1704238 Button Hd. Cap Screw - 1/4" x 1 1/2"
21. 1118250 Plastic Washer - Orange
22. 1704263 Nylon Shoulder Washer - 1/4"
23. 1704310 Flat Bottom Washer - 1/4"
24. 1704311 Snap-Cap - 12-12 Black
25. 1700400 Self-Tapping Screw - 3/8" x 1"
26. 1700434 Lock Washer - 3/8"
27. 1700407 Hex Nut - 3/8"
Battery Box Bottom
STEP 1: Using either bottom holes or back holes in battery box
bottom as a guide, mark hole locations on trailer. Drill
5/16" holes and fasten battery box bottom to trailer with
3/8" x 1" self-tapping screws, lock washers and nuts.
3/8"
NUT
3/8"
LOCK
WASHER
NOTE: Install backer plate if trailer wall is less than 1/8" thick.
12
BATTERY BOX
BOTTOM
3/8"
1"
-
X
SELF
TAPPING SCREW
11
17
8
10
19
3
22
9
21
11
9
25
10
11
1
11
13
26
27
Battery Clip & Circuit Breaker
STEP 2: Fasten battery clip and circuit breaker to battery with
1/4" cap screws, fl at washers, lock washers and nuts
as shown. Fasten circuit breaker with nut provided.
CIRCUIT BREAKER
SUPPLIED
/
W
CIRCUIT
BREAKER
2
24
20
16
23
6
8
9
18
9
11
10
14
FASTENER
9
SUPPLIED
/
W
CIRCUIT
10
BREAKER
10
8
4
1/4"
NUT
BATTERY CLIP
1/4"
1"
X
CAP SCREW
P/N 1119781 Rev. B
15
11
10
8
7
1/4"
LOCK WASHER
1/4"
FLAT
WASHER
BATTERY
