Summary of Contents for SolarFocus Technology Power+
- Page 1 Power+ Lighted Cover User Guide For Kindle Touch (Version 1.0)
-
Page 2: Table Of Contents
Contents: License Agreement One-year limited warranty How to install your e-reader into the Lighted cover? How to charge the Lighted cover reserve battery and your e-reader at the same time? How to switch on the LED reading lamp? How to switch off the LED reading lamp? How to transfer the energy from the Lighted cover reserve battery to your e-reader? How to transfer documents or data to your computer or from your computer to your e-reader? How to remove your e-reader from Lighted cover? -
Page 3: License Agreement
1. Device and Software Use of the Software. You may use the Software only on a Lighted cover provide by Solarfocus Technology Co. Ltd. You may not separate any individual component of the Software for use on another device or computer, may not transfer it for use on another device or computer or use it, or any portion of it, over a network, and may not sell, rent, lease, lend, distribute, or sublicense or otherwise assign any rights to the Software in whole or in part. -
Page 4: One-Year Limited Warranty
NO. 90, SEC.1, XINTAI 5TH RD. XIZHI DIST., NEW TAIPEI CITY, TAIWAN, R.O.C.. However, if this Device was sold by an authorized reseller of SolarFocus Technology Co. Ltd., then this Warranty is provided by that authorized reseller. For the terms and conditions of purchase at those resellers, please refer to their individual policies. The provider of this warranty is sometimes referred to herein as "we."... -
Page 5: How To Install Your E-Reader Into The Lighted Cover

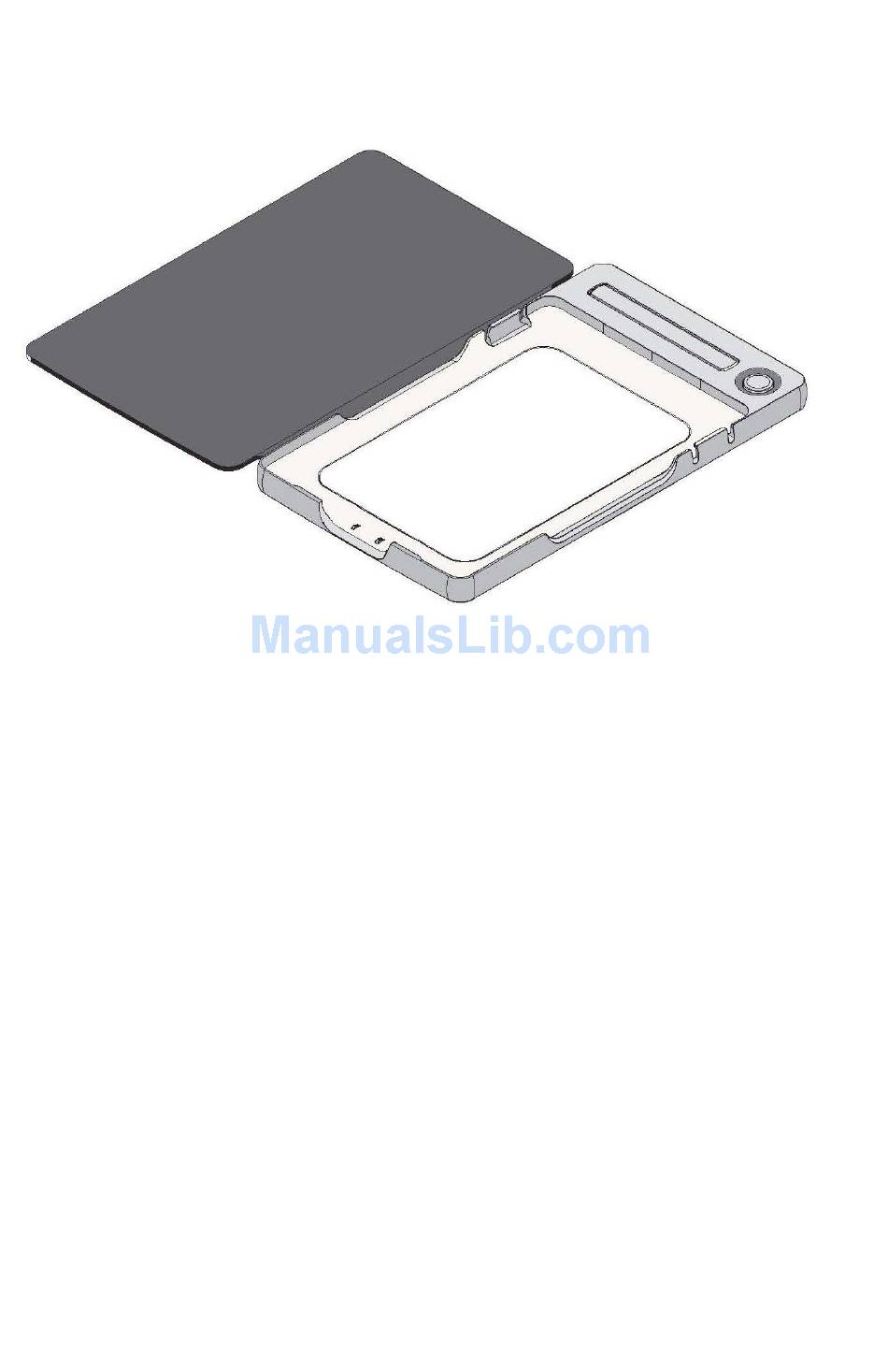

How to install your e-reader into the Lighted cover? Slide your e-reader bottom into the Lighted cover lower part clamps. Use two hands to push two upper corner of e-reader plastic frame into the Lighted cover upper clamps. Attention: Push on the e-reader screen is restricted. -
Page 6: How To Charge The Lighted Cover Reserve Battery And Your E-Reader At The Same Time
How to charge the Lighted cover reserve battery and your e-reader at the same time? Plug the micro USB end of USB cable in to the Lighted cover micro USB port (which is located at upper part of Lighted cover). Plug the USB end (bigger end) of the USB cable in to the powered computer or AC adaptor* USB port. -
Page 7: How To Switch On The Led Reading Lamp
How to switch on the LED reading lamp? Push the LED lamp release button, the LED lamp will pop up and switch on automatically. Note: The LED lamp will not switch on automatically when your e-reader is in the sleeping mode. -
Page 8: How To Switch Off The Led Reading Lamp
How to switch off the LED reading lamp? Push downward from the top side of LED lamp. When you hear the click sound, the LED lamp is off and locked in the slot. Note: The LED lamp will switch off automatically when your e-reader is going into the sleeping mode. -
Page 9: How To Transfer The Energy From The Lighted Cover Reserve Battery To Your E-Reader
How to transfer the energy from the Lighted cover reserve battery to your e-reader? Push the Lighted cover power button one time, the LED indicator will display firstly about 5 seconds to indicate the remained energy level of the Lighted cover reserve battery, then the LED will be blinking in red and transfer energy to your e-reader. To switch off the energy transfer manually, that is simply to push the Lighted cover power button one more time during the LED blinking in red color, the LED will display the remained energy level of Lighted cover reserve battery first for 5 seconds, then switch off. -
Page 10: How To Transfer Documents Or Data To Your Computer Or From Your Computer To Your E-Reader
How to transfer documents or data to your computer or from your computer to your e-reader? Plug the micro USB end of USB cable in to your e-reader micro USB port (which is located at lower part of Lighted cover). Plug the USB end (bigger end) of the USB cable in to the computer USB port. -
Page 11: How To Remove Your E-Reader From Lighted Cover
How to remove your e-reader from Lighted cover? Simply insert a small, thin (2~ 2.5 mm diameter), plastic or non-metallic object into the 4 slots on the side of Lighted cover, and gently release the e-reader. -
Page 12: Faq
FAQ: Why does my power+ Lighted cover reserve battery not charged when I used USB to charge it together with my e-reader? Most likely is you connected the USB cable to the e-reader’s USB port not the USB port on the Power+ Lighted cover. To work around is simply connect the USB cable to the Power+ Lighted cover’s USB port that located on the upper part of Power+ Lighted cover. -
Page 13: Technical Specification
Technical specification: Input connector: Micro USB B type connector Input voltage: 5Vdc +/- 5% Input current: 500mA (Max.) Built-in reserve battery: Lithium Polymer, 3.7V, 1500mAh Operation temperature: 32° to 95° Fahrenheit (0° to 35° Celsius) Product Dimensions: 8.03 x 4.8 x 0.8 inches (204 x 122 x 20.3 mm) Weight: 7.62 ounces, 216g Cover material: leather-like/leather/leatherette PU (polyurethane) Battery Safety:...
