Summary of Contents for Livio Radio LV001

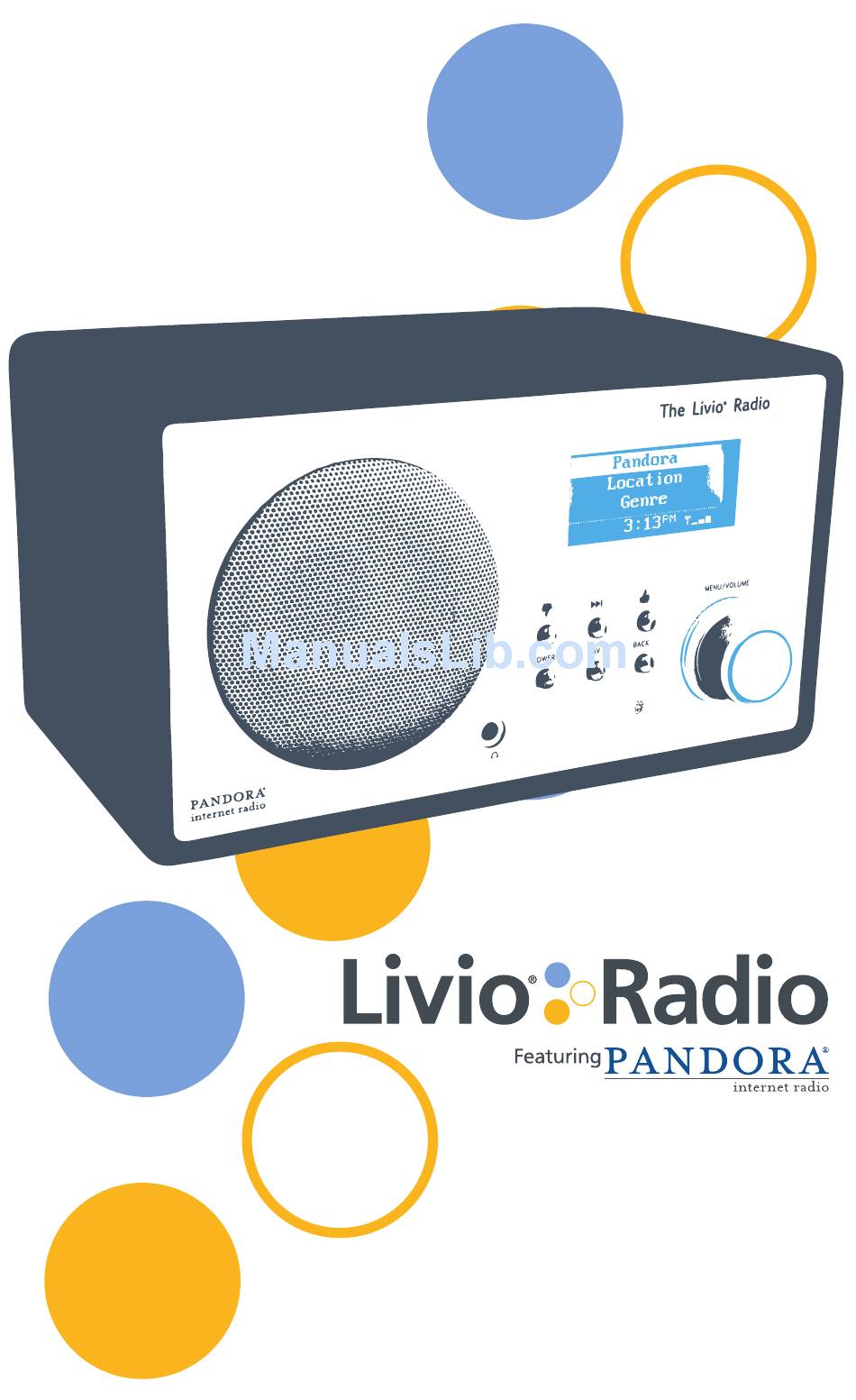

- Page 1 User Guide LV001 LV001-B Version 5.0 Software v257-a-865-a-122...
-
Page 3: Table Of Contents
User Guide COntents About Livio Radio Connect Livio to the Internet Wi-Fi and Internet connection tips Advanced settings About Pandora Connecting to Pandora World Internet stations Livio / Remote Controls Favorite stations Alarm Clock and sleep timer Audio Connections Menu Map... -
Page 4: About Livio Radio
Choose your Wi-Fi Internet connection from the list that appears. Linksis Ian Wifi Jessica Wireless Internet Radio Pandora Configure Location Auxiliary Input Genre * LV001only. LV001-B does not have an Ethernet port. Ethernet cable not included for LV001-B. For Help, go to www.LivioRadio.com/help... - Page 5 User Guide If your Wi-Fi Internet connection requires a password, Livio will ask you to enter WPA Key or enter WeP Key on Livio’s display. Wi-Fi passwords or Network Keys are case-sensitive. Enter the password character by character turning the knob (or using the up/down arrows on the remote) to go from character to character and pushing the knob in to select the desired character once such character appears in the center of the screen.
-
Page 6: Wi-Fi And Internet Connection Tips
WIReLess netWORK (WI-FI) And InteRnet COnneCtIOn tIPs For best setup results, start with the Livio in the same room as the router. After the initial setup feel free to test the Livio's reception around the house. The Livio will indicate it has successfully connected to the Internet when the clock automatically updates to the correct time of day. - Page 7 User Guide We recommend having a minimum of 50 percent reception or two bars present. To improve performance check possible sources of interference (electronics, thick walls, etc.) or rearrange the location of either the router or radio. A wireless repeater or signal booster can also drastically improve reception.
-
Page 8: Advanced Settings
Livio or the wireless connection. After plugging in your ethernet connection, disconnect and reconnect the power connector on your radio to reboot. If your Livio works when using the Ethernet cable (LV001 only), it probably means a setting needs to be changed in your wireless configuration. - Page 9 User Guide Write down your Wireless MAC Address from Livio _ _ : _ _ : _ _ : _ _ : _ _ : _ _ MAC addresses use only numbers 0-9 and only letters A, B, C, D, E, and F. Write down wireless MAC address, not the wired Ethernet MAC address.
-
Page 10: About Pandora
Listen to your stations on your Livio or on the Web at Pandora.com COnneCtInG tO PAndORA The Livio Radio has been designed to help you to listen to your Pandora Radio stations. To create a new Pandora account or log into ®... -
Page 11: World Internet Stations
User Guide A "Pandora Reset" will remove any account that has been synced to your radio. If a "Pandora Reset" has been performed then repeat the Connecting to Pandora instructions. WORLd InteRnet stAtIOns search for stations by Location Select Location World from the Internet Radio menu. First choose a continent, then a country, and if applicable a state or region. -

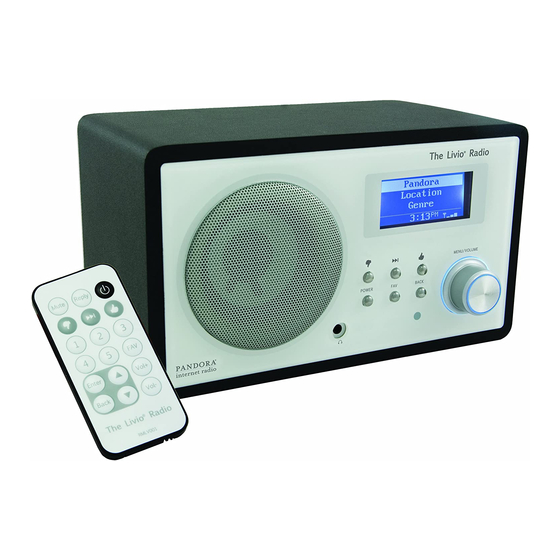

Page 12: Livio / Remote Controls
LIVIO / ReMOte COntROLs A. Power On/OFF B. Pandora controls Provide feedback or skip Pandora music. use the thumbs Up button to tell Pandora that you like the song playing. use the thumbs down button to tell Pandora that you do NOT like the song playing. - Page 13 User Guide d. Reply This button is used to send feedback to Pandora and to other Internet radio stations. When listening to Internet radio stations, use to delete Favorites or find similar stations. use it while listening to Pandora to the show song details, bookmark a song, bookmark an artist, provide feedback, or to receive more information about why Pandora is playing a particular song.
-
Page 14: Favorite Stations
Repeat for minutes. set the alarm clock The Livio Radio has 5 alarms. To find the alarm clock menu repeat the steps above, selecting set Alarms. Each alarm (1-5) may be set for a desired time. Select frequency (Once, every day, Weekly, Weekdays, or Weekend.) Then select alarm... -
Page 15: Audio Connections
AUX In / RCA Out (fixed) / Aux Out (fixed) / headphone (variable) FCC ID:VSAPX6000I00002 Power For connecting to or connecting external wired Internet (LV001 only) audio devices, including MP3 players For connecting to an external powered speaker system Still having trouble? Call 1-877-97-LIVIO for assistance. - Page 16 Livio into any auxiliary input jack on a boombox, home stereo, or television. These inputs are usually marked with an “IN” or “INPuT” and may also be colored red and white. STEREO LINE OUT HOME STEREO LIVIO RADIO STEREO LINE IN SPEAKERS SPEAKER WIRE ADAPTER...
-
Page 17: Menu Map
User Guide MenU MAP Internet Radio Pandora Stations Create Station Pandora Reset Location World Continent Country (List) genre World genre List Search World Search Entry Field Auxiliary Input: Plays music from the audio input on the back of the Livio setting Network Config Version... -
Page 18: Specifications
Amplifier Output Peak 7 Watts Speaker Type 3” 4 ohm Magnetic Voice Coil In the Box The Livio Radio with built in Wi-Fi antenna Remote Control Power Adapter 6-foot Ethernet Internet Cable (LV001 only) user Helper For Help, go to www.LivioRadio.com/help... -
Page 19: Notes
User Guide nOtes ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ Still having trouble? Call 1-877-97-LIVIO for assistance. - Page 20 ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ _____________________________________________________ For Help, go to www.LivioRadio.com/help...
-
Page 21: Safety Instructions & Warnings
User Guide sAFetY InstRUCtIOns & WARnInGs TO PREVENT FIRE OR SHOCK HAZARD, DO NOT uSE THIS PLug WITH AN EXTENSION CORD, RECEPTACLE OR OTHER OuTLET uNLESS THE BLADES CAN BE FuLLy INSERTED TO PREVENT BLADE EXPOSuRE. TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTuRE. - Page 22 This Class B digital apparatus complies with Canadian ICES-003. Cet appareil numerique de la classe B est conforme a la NMB-003 du Canada. For Warranty or service Livio Radio, LLC 3136 Hilton Rd Ferndale, MI 48220 (248) 591-0333 help@livioradio.com www.livioradio.com/help...
-
Page 23: Warranty
User Guide WARRAntY Livio Radio (“Livio”) Limited Consumer Warranty United states of America Livio warrants all Radio Products sold by Livio (each “Product”) to be free of defects in material and workmanship, subject to the following conditions: The duration of Livio’s warranty with respect to each Product is limited to one (1) year from the date of sale to the original consumer purchaser. - Page 24 11. Environmental conditions, including excessive temperature or humidity 12. Service by any entity other than a Livio authorized repair facility 13. use of the Product in conjunction with any non-Livio branded accessory 14. Other improper application, installation, or operation of this Product 15.
- Page 26 Need help? www.LivioRadio.com/help...
