Summary of Contents for Alva Nanoface

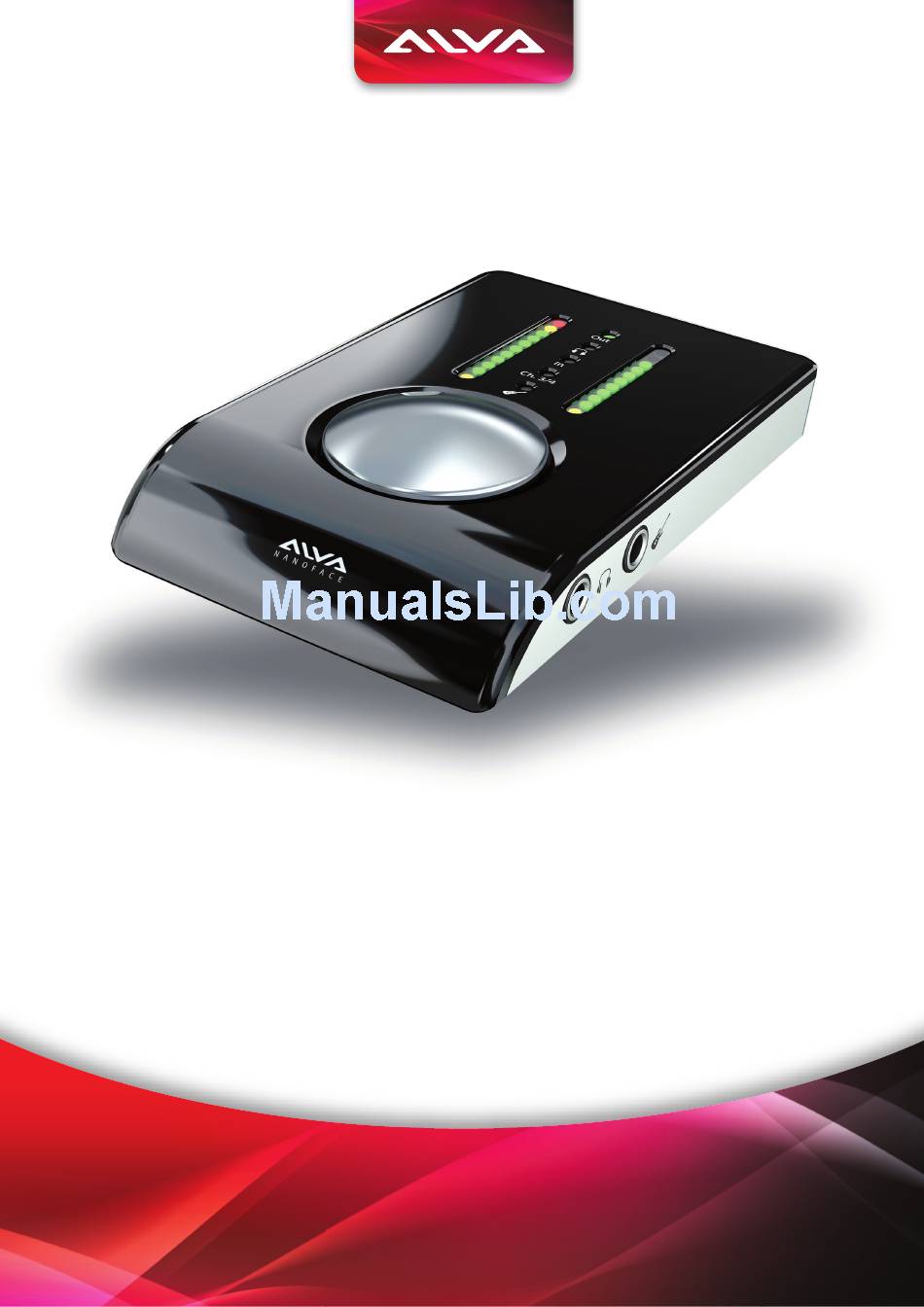

- Page 1 Nanoface Control Panel Guide...
- Page 2 Nanoface Control Panel Guide When you have updated the Nanoface to firmware v1.1.2, you are ready to use the latest Nanoface control panel. Please read the following for control panel operation instructions. The control panel supports both Windows and Mac; please follow the “Driver Installation” instructions in the Nanoface Manual (page 14-15 for Windows or page 16-17 for Mac).
- Page 3 The Latest Control panel has two modes, “Easy Mode” and “Expert Mode” “Easy Mode” offers simple control of the features of the Nanoface. You cannot control the input gain or output levels in Easy Mode, it only toggles (ON/OFF) the available functions. You can still adjust the gain and output levels on the Nanoface by using the built-in knob.
- Page 4 Features of “Easy Mode”: 1. Turn phantom power (48V) on/off for the analog inputs 1/2 (microphones) 2. Switch analog input 2 to the Hi-Z instrument input (“guitar input”) 3. Select headphones output source channels 1/2 or 3/4 4. Turn zero latency hardware monitoring ON and OFF 5.
- Page 5 Features of Expert Mode: 1. Turn phantom power (48V) on/off for the analog inputs 1/2 (microphones), and control preamp gain settings. You have control of preamp gain from 0dB up to 50.5dB for the microphone. 2. Switch analog input 2 to the Hi-Z instrument input (“guitar input”). You have control of preamp gain from 0dB up to 50.5dB for the input.
- Page 6 4. Set attenuation for output 1/2 (7.75dBu@ 0dB FS: 100 Ohm output impedance) 5. Turn zero latency hardware monitoring ON and OFF 6. Select headphones output source channels 1/2 or ¾...
- Page 7 7. Set attenuation for headset channel 1/2 or 3/4 (10dBu@ 0dB FS: 80 Ohm phones output impedance) 8. Switch to “Easy Mode” 9. Check for new software updates. (Shows the currently installed driver and firmware version) 10. “About” shows the Nanoface “Driver Download” link and the version of the control panel.
- Page 8 Audio AG, (referred to as "licenser"), and it supersedes any prior proposal, representation, or understanding between the parties. If you do not agree to the terms of this EULA, do not install or use the ALVA Nanoface Driver and Control Panel.
