Axxess C4 Installation Manual

Wireless Motion Sensor

Installation Guide

for use with Control4

Mounting

Before mounting make sure the device is in
a location where you can still push the
button to join it to the ZigBee network. If it's
in a difficult to reach place view the
instructions for ZigBee networking and join
the device to the network before
mounting.
A

Ball Mount

For installation in corners, or where device
needs to be tilted use the ball mount of
suitable length.
A

Overview

The Axxess Wireless Motion Sensor can be
f u l l y i n c o r p o r a t e d i n t o C o n t r o l 4
automation and control projects. It has the
viewing angle and range to cover all typical
applications, and the additional capability
to detect light levels and temperature and,
optionally, even humidity.

Included

Motion Sensor Device
1 1" ball mount
1 1.5" ball mount
2 batteries
2 mounting screws

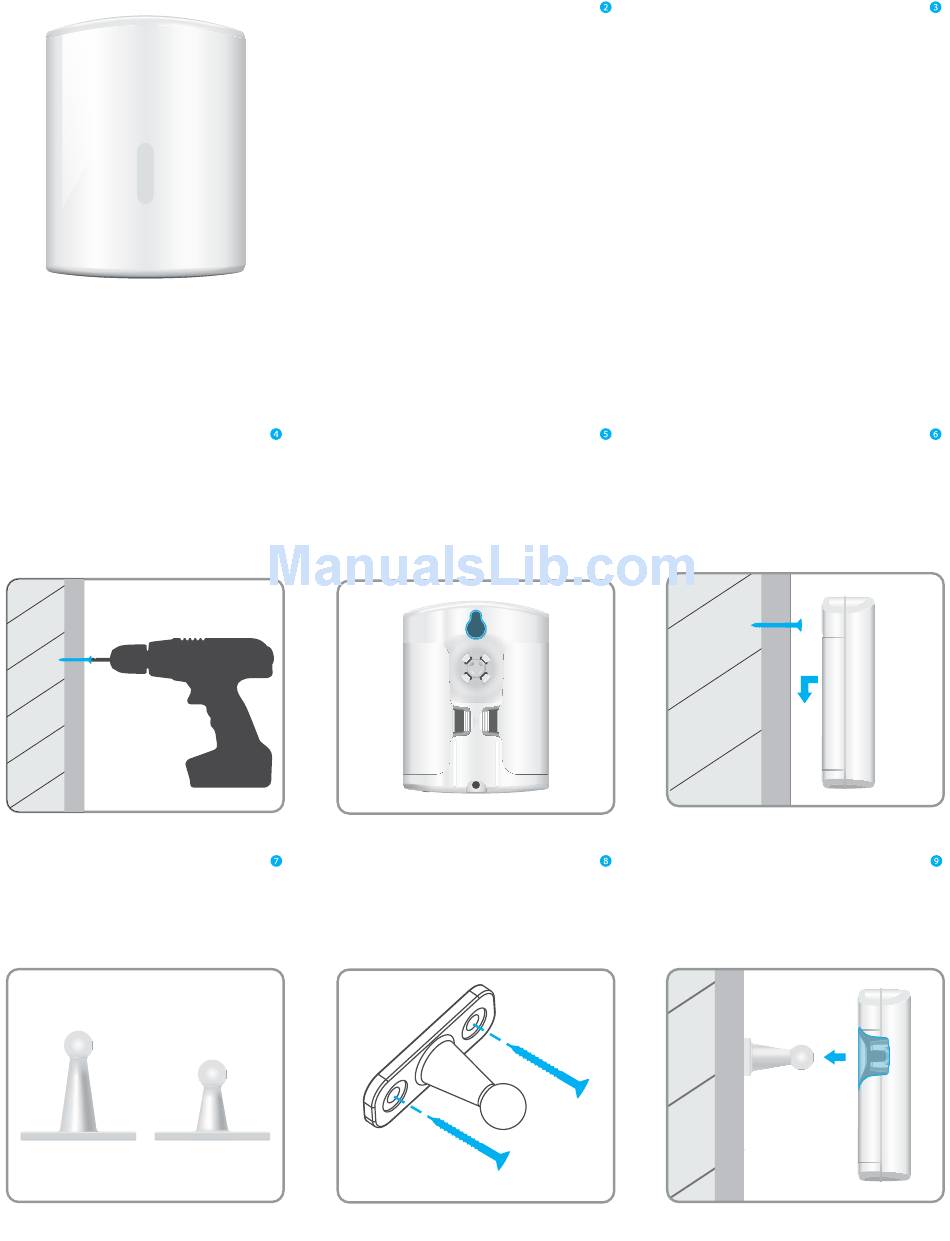

Keyhole Mount

Screw one of the provided screws into the
wall until the head protrudes just enough
for the keyhole shape on the back of the
motion sensor to fit snugly. Depending on
wall material and location, consider using a
wall anchor.
B
Screw ball mount to the wall with the
screws provided.
B

Battery and Power

This device ships with high density AA, 3.6V
Lithium batteries inserted.
The batteries have unique properties,
highly superior to alkaline or Li-ion bat-
teries, with their high energy density and
extra-wide operational temperature range.
When the device is not joined and in deep
sleep, the batteries' unique chemistry main-
tains the highest output quality by
periodically "exercising" for a moment. This
keeps them fresh and ready for immediate
use. We advise against removing and
storing the batteries separately.
Batteries can be purchased online. A
common brand is TADIRAN. Distributors
can be found on their website.
Battery Life: 2.5 Years
Fit the motion sensor on the screw and slide
down until snug. If the motion sensor is
loose remove it and turn the screw in
further and try again.
C
Attach motion sensor to the ball mount by
attaching the clasp on the back of the
motion sensor to the ball mount.
C
