Page 1: User Guide

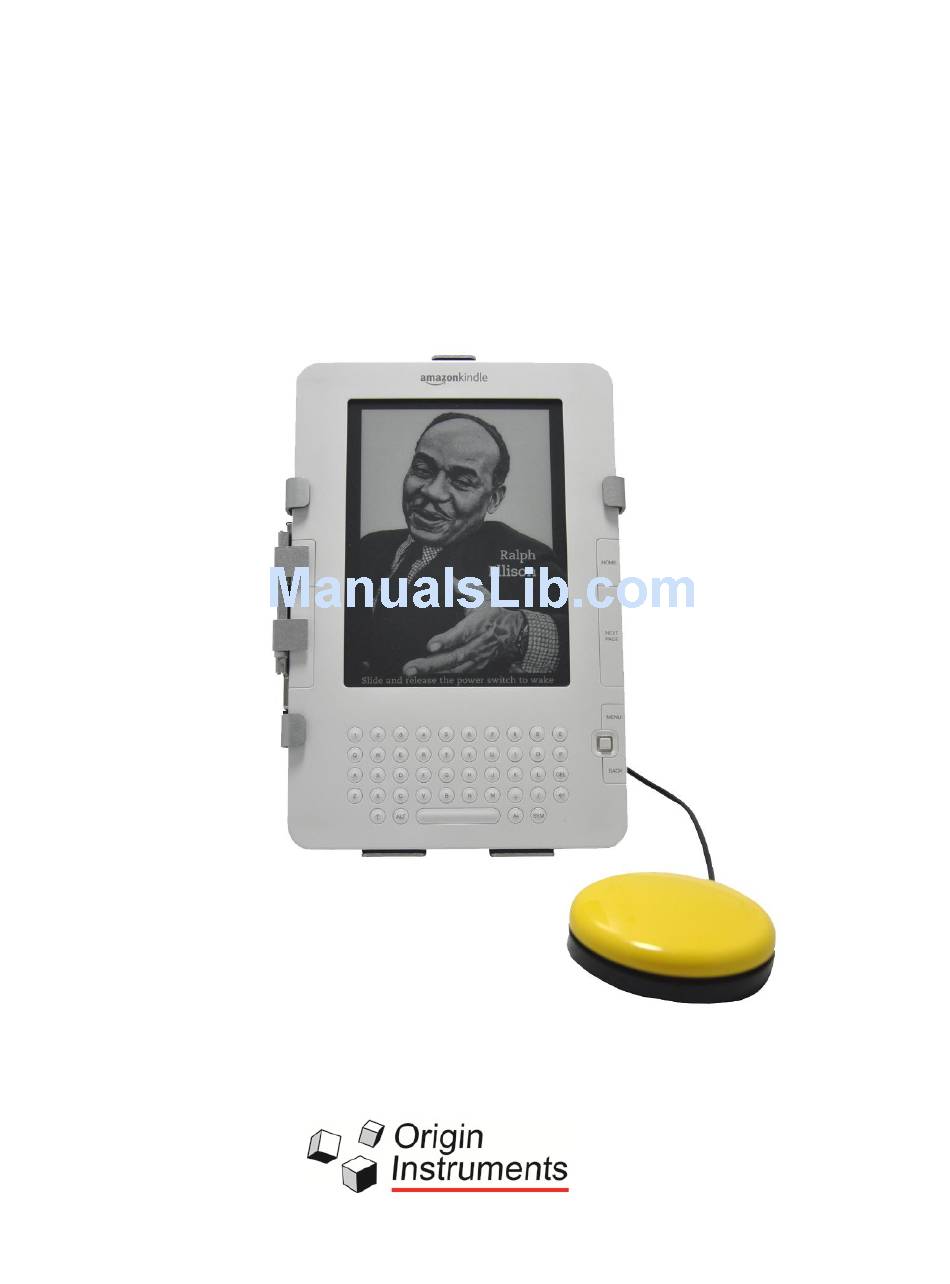

PageBot for Kindle ™ ™ Adaptive Switch Interface User Guide www.orin.com... -
Page 2: Legal Notices
Origin Instruments is not responsible for any problems caused by unauthorized modification of this equipment. PageBot is a trademark of Origin Instruments Corporation. Kindle is a trademark of Amazon.com Inc. or its affiliates in the United States and/or other countries. All other designated trademarks and brands are the property of their respective owners. -
Page 3: Table Of Contents
PageBot for Kindle 2 User Guide Table of Contents Legal Notices ..............................2 FCC / CE Notice ..............................2 Introduction ................................ 4 Features ................................4 Package Contents ............................. 5 Installation Steps ............................... 5 Powering PageBot ............................. 6 Attaching Power Cord to PageBot: ......................... 6 Attaching Universal Mounting Arm ........................ -
Page 4: Introduction
Next Page and Previous Page buttons on the Kindle device enabling independent reading enjoyment in a variety of settings. NOTE: In this User Guide, “PageBot for Kindle 2” is often abbreviated as “PageBot” and “Kindle 2” is often abbreviated as “Kindle”. Features 1. Versatile Viewing PageBot’s combination universal mounting arm enables the Kindle to be positioned in a variety of... -
Page 5: Package Contents
1. PageBot frame 2. Universal mounting arm 3. User Guide NOTE: If any items are missing from your PageBot for Kindle package, please contact the Authorized Origin Instruments Channel Partner where you purchased the product or contact Origin Instruments directly Installation Steps 1. -
Page 6: Powering Pagebot
PageBot for Kindle 2 User Guide Powering PageBot External power is required for PageBot operations and can be provided by: 1. The Amazon power adapter that came with the Kindle plugged into the PageBot power connector. 2. A portable USB battery pack plugged into the PageBot power connector. -
Page 7: Attaching Universal Mounting Arm
PageBot for Kindle 2 User Guide Attaching Universal Mounting Arm The universal mounting arm ships unattached from the PageBot frame. Attach the mounting arm to the back of PageBot using the mounting screw on the mounting arm. Turn to firmly attach then position to hold the Kindle in an upright position on a flat surface or use the clamp to attach to tray, rail, etc. -
Page 8: Positioning Kindle 2 In Pagebot
PageBot for Kindle 2 User Guide Positioning Kindle 2 in PageBot 1. Loosen slider screw on the back of PageBot. 2. Extend slider open. 3. Place Kindle 2 inside of PageBot. 4. Slide Kindle to the left so it fits securely under the clamps and paddles. -
Page 9: Adjusting The Universal Mounting Arm
PageBot for Kindle 2 User Guide Adjusting the Universal Mounting Arm The Universal Mounting Arm can be used as a back leg of a tripod stand, and for mounting in various situations. To fine-tune the PageBot angle to a comfortable reading position, adjust the pan, tilt and angular adjustments. -
Page 10: Pagebot Dip Switch Settings
PageBot for Kindle 2 User Guide PageBot DIP Switch Settings PageBot integrates a compact four-position DIP Switch for setting user options. DIP Switch settings can be readily changed using one end of an extended paper clip. The factory default settings are all DIP Switches UP to support the following configuration: ... -
Page 11: Adaptive Switch Connection And Operation
The most prevalent connector type for adaptive switches is a standard 3.5mm plug which can be easily attached to PageBot. For information on the Sip/Puff Switch and Tap Switch offerings from Origin Instruments and to reference a resource list of adaptive switch vendors, see www.orin.com. -
Page 12: Usb Mouse And Wireless Mouse Connection And Operation
PageBot for Kindle 2 User Guide USB Mouse and Wireless Mouse Connection and Operation PageBot can also receive events from either USB wired and wireless mouse button operations to page forward (Next Page) or back (Previous Page). Attach either a USB wired or wireless mouse adapter to PageBot here. -
Page 13: Landscape Viewing And Font Adjustment
2. Be careful not to allow any liquid into or around the connector enclosure on the back of PageBot. Customer Support Customer support is provided by Origin Instruments during the hours of 8:30 a.m. to 5:30 p.m. Central Standard Time, Monday through Friday. -
Page 14: Warranty Information
Grand Prairie, TX 75050-2438 USA For repairs during warranty period, Origin Instruments will pay for the return of the product to the Customer if the shipment is to a location within the United States. For non-warranty repairs and for warranty repairs outside of the United States, the Customer will be responsible for paying all shipping charges, duties, taxes, and any other charges associated with the return of the product.
