INSTALLATION
• Towel rack

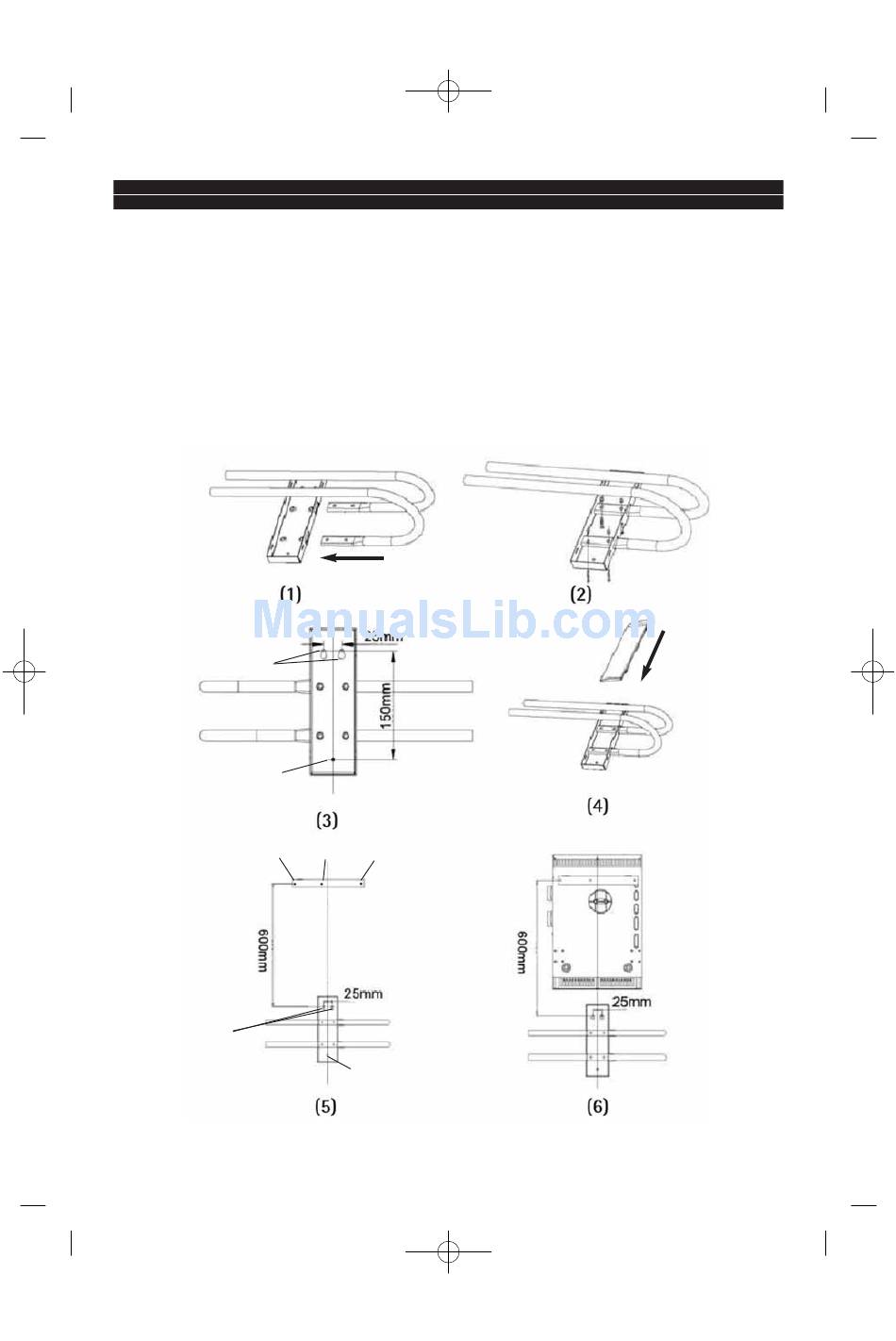

Fix the towel rack with the screw supplied. (picture 1) and (picture 2)
Mark the holes 1.2.and 3 with a pencil on the wall (picture 3)
Drill the holes, inster wall plug and hang the towl rack with screws.
Fix the cover. (picture 4)
• Fan heater
Mark the holes 5, 4 and 6 with a pencil on the wall at 600mm of distance from holes 2-3. (picture 5)
Drill the holes, instert wall plug and hang bar fixing with screws.
Put fan heater on the bar. (picture 6)
Holes 2 and 3
Hole 1
Hole 4 Hole 5 Hole 6
Hole 2 and 3
Hole 1
Make the electrical connexion
10
