ENERNET Corporation
T9000 Wireless Thermostat
User Setup Guide
AM
11: 20
F/C
Th
Day
Program
Run
Fan Auto
Clock
Fan
Up
COOL
OFF
O
Set Point
70
O
Light
Heat
Down
Cool
Pub No. 12401-051707
Copyright 2008

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the T9000 and is the answer not in the manual?

Questions and answers

Summary of Contents for Enernet T9000

  • Page 1 Pub No. 12401-051707 T9000 Wireless Thermostat User Setup Guide 11: 20 COOL Program Set Point Fan Auto Light Clock Heat Down Cool ENERNET Corporation Copyright 2008...
  • Page 2 ENSURE THAT FCC LABELING REQUIREMENTS ARE MET. NOTICE. THIS INCLUDES A CLEARLY VISIBLE LABEL ON THE OUTSIDE OF THE FINAL PRODUCT ENCLOSURE THAT IN NO EVENT WILL ENERNET CORPORATION BE LIABLE FOR DISPLAYS THE FOLLOWING: DAMAGES, INCLUDING LOST PROFITS, LOST SAVINGS OR OTHER...

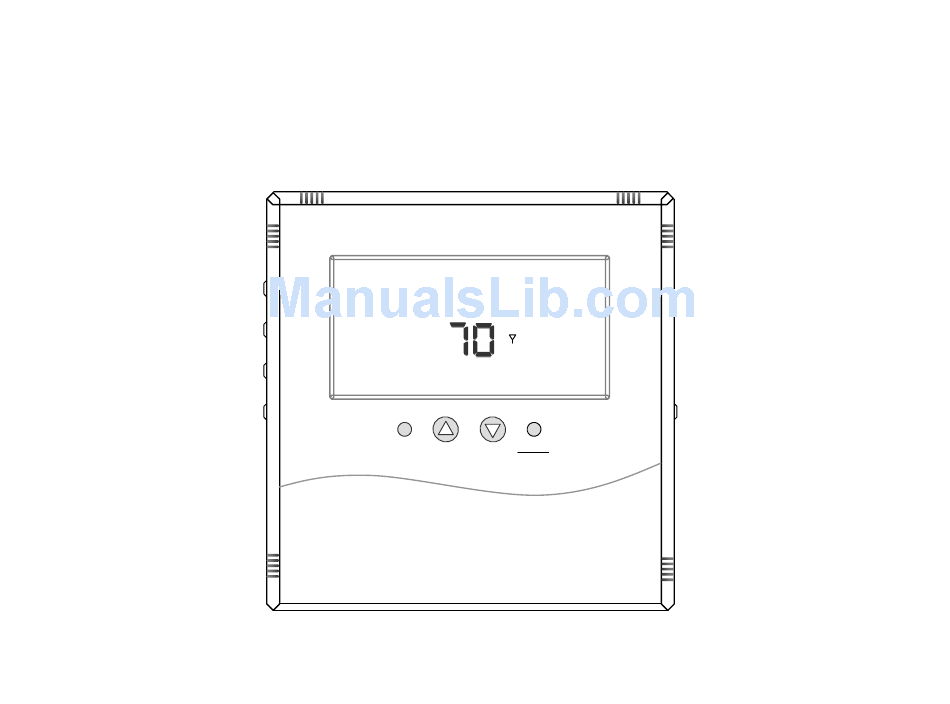

  • Page 3 T9000 — MODEL 124 Operation Guide 11: 20 COOL Program Set Point Fan Auto Light Clock Heat Down Cool Figure 1 — T9000 Front View ©2008 ENERNET Corporation • www.enernetcorp.com • 315-449-0839 Pub No. 12401-051707 / Page 1 of 17...
  • Page 4 Fan Auto information are typically not displayed. The second part of the Clock Light T9000 system is called a Remote Control Node or “RCN”. An RCN Heat Down interfaces with the HVAC equipment, and communicates with its Cool thermostat using unlicensed 900 MHz, radio frequency energy.
  • Page 5 Latches with new batteries. MOUNTING The T9000 operates with either 2 or 4 AA batteries. Four (4) Find a suitable location for mounting your thermostat, preferably batteries double the time between battery changes (the average an interior wall, centrally located within the conditioned space at user can expect 1 to 1.5 years of battery life).
  • Page 6 BUTTONS under manual or program control. A four button cluster is located on the front of the T9000. F / C - Toggles Fahrenheit Celsius display Program set up button Heat Run –...
  • Page 7 SETTING THE CLOCK Step 4 In all set up modes the T9000 will blink the display item you are Press the CLOCK button to keep all clock changes you've made about to change. The UP and DOWN buttons change settings, and resume normal operation.
  • Page 8 T9000 — MODEL 124 Operation Guide Step 2 WEEKEND DEFAULT PROGRAM TIMES AND TEMPERATURES Period Time Heat Cool Next the Morning period will blink. Use the UP or DOWN button to toggle through Morning, Day, Evening, or Night, stopping at the...
  • Page 9 T9000 — MODEL 124 Operation Guide Step 6 RUN BUTTON – Program / Manual Operation If you started with the Morning time period, the next period, Day, The RUN button toggles the thermostat between manual operating will now be blinking. Follow steps two, three, four, and five for mode and program operating mode.
  • Page 10 INSTALLING AND REMOVING NODES Step 1 A T9000 thermostat and Remote Control Node will not operate as Press the SW4-INSTALL button inside the thermostat. a system until they are linked together through the installation display will change to the Install Session screen shown in Figure process.
  • Page 11 T9000 — MODEL 124 Operation Guide Figure 8 – Internal Buttons Press HEAT/COOL to select Install. Internal T9000 buttons SW12-RESET SW4-INSTALL SW9-LINK HEAT PB1-NETWORK Used to uninstall the thermostat COOL from node(s) it has been linked to. SW12-RESET Install Master Reset – Returns Node thermostat to all factory defaults.
  • Page 12 T9000 — MODEL 124 Operation Guide At this point all selections have been made and nothing on the hears that initiates a Link Service Request. It is for this reason display should be blinking. You are now ready to install a node.
  • Page 13 T9000 — MODEL 124 Operation Guide When all nodes are installed press the SW4-INSTALL button to Uninstalling Nodes close the installation session and return to normal thermostat The procedure to remove will uninstall all nodes at once. operation. Step 1 If for any reason there was a problem encountered during the final Press the SW4-INSTALL button inside the thermostat.
  • Page 14 T9000 — MODEL 124 Operation Guide Thermostat Installation Reset In the event there is difficulty installing a node, perform the following: Step 1 Press the SW4-INSTALL button inside the thermostat. The Install 11: 20 Icon will flash. You only need to begin the installation session to COOL perform this reset.
  • Page 15 3-minute delay. T9000 thermostat?” Yes. In fact one T9000 thermostat can control up to eight (8) RCNs with each being given different node numbers. ©2008 ENERNET Corporation • www.enernetcorp.com • 315-449-0839...
  • Page 16 Use four (4) new themselves, but will never respond to or control another high quality AA batteries. If you are using the T9000 to control a thermostat in adjacent rooms, apartments, or neighboring homes.
  • Page 17 T9000 — MODEL 124 Operation Guide Figure 13 — T9000 Overview Time and day of week Indicates program period – Morning, Day, Evening, Night Toggles display - Fahrenheit Operating mode indication - HEAT, 11: 20 Celsius COOL COOL, OFF RF connection with a control node...
