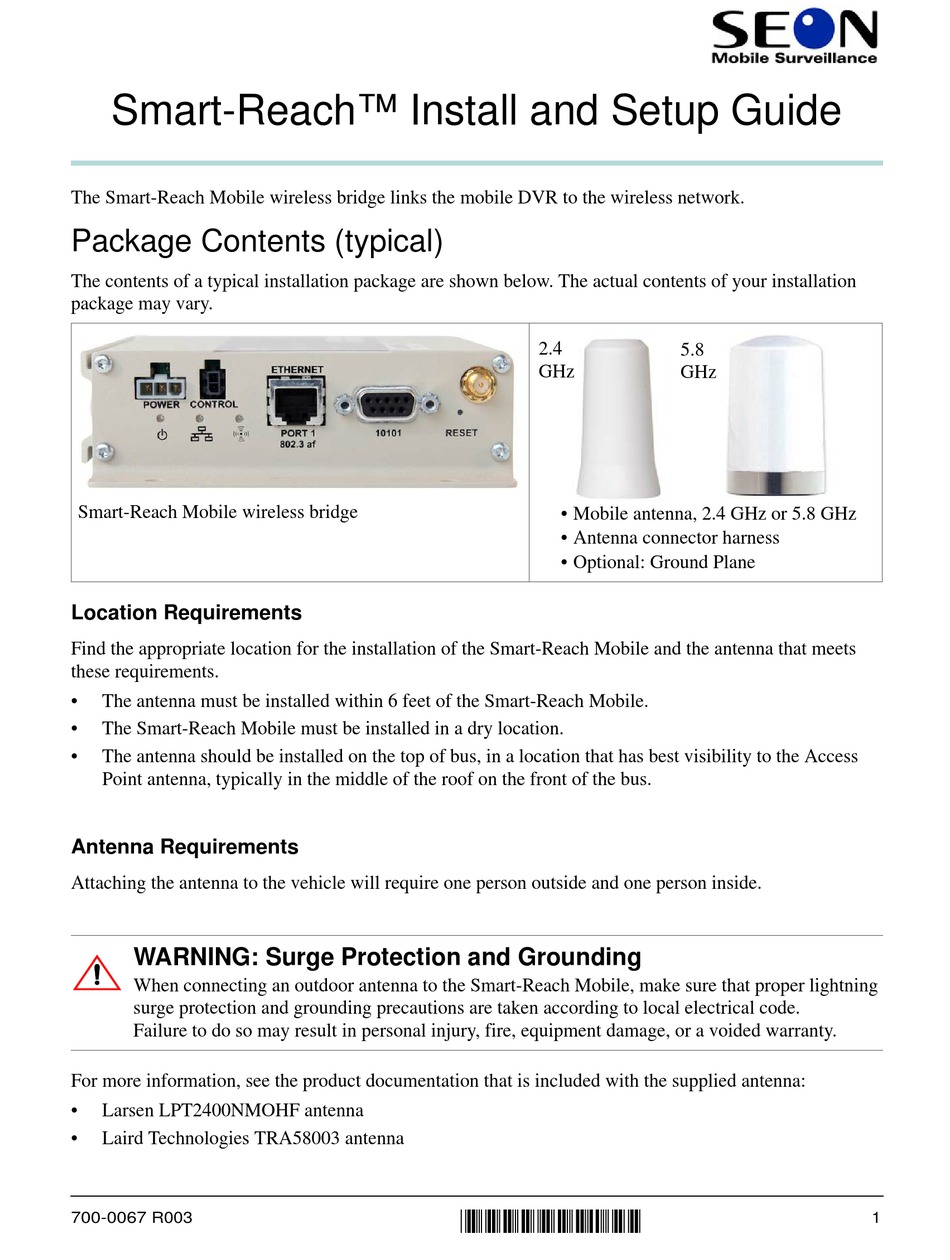

Smart-Reach™ Install and Setup Guide
The Smart-Reach Mobile wireless bridge links the mobile DVR to the wireless network.
Package Contents (typical)
The contents of a typical installation package are shown below. The actual contents of your installation
package may vary.
Smart-Reach Mobile wireless bridge
Location Requirements
Find the appropriate location for the installation of the Smart-Reach Mobile and the antenna that meets
these requirements.
• The antenna must be installed within 6 feet of the Smart-Reach Mobile.
• The Smart-Reach Mobile must be installed in a dry location.
• The antenna should be installed on the top of bus, in a location that has best visibility to the Access
Point antenna, typically in the middle of the roof on the front of the bus.
Antenna Requirements
Attaching the antenna to the vehicle will require one person outside and one person inside.
WARNING: Surge Protection and Grounding
When connecting an outdoor antenna to the Smart-Reach Mobile, make sure that proper lightning
surge protection and grounding precautions are taken according to local electrical code.
Failure to do so may result in personal injury, fire, equipment damage, or a voided warranty.
For more information, see the product documentation that is included with the supplied antenna:
• Larsen LPT2400NMOHF antenna
• Laird Technologies TRA58003 antenna
700-0067 R003
2.4
GHz
• Mobile antenna, 2.4 GHz or 5.8 GHz
• Antenna connector harness
• Optional: Ground Plane
*700-0067*
5.8
GHz
1
