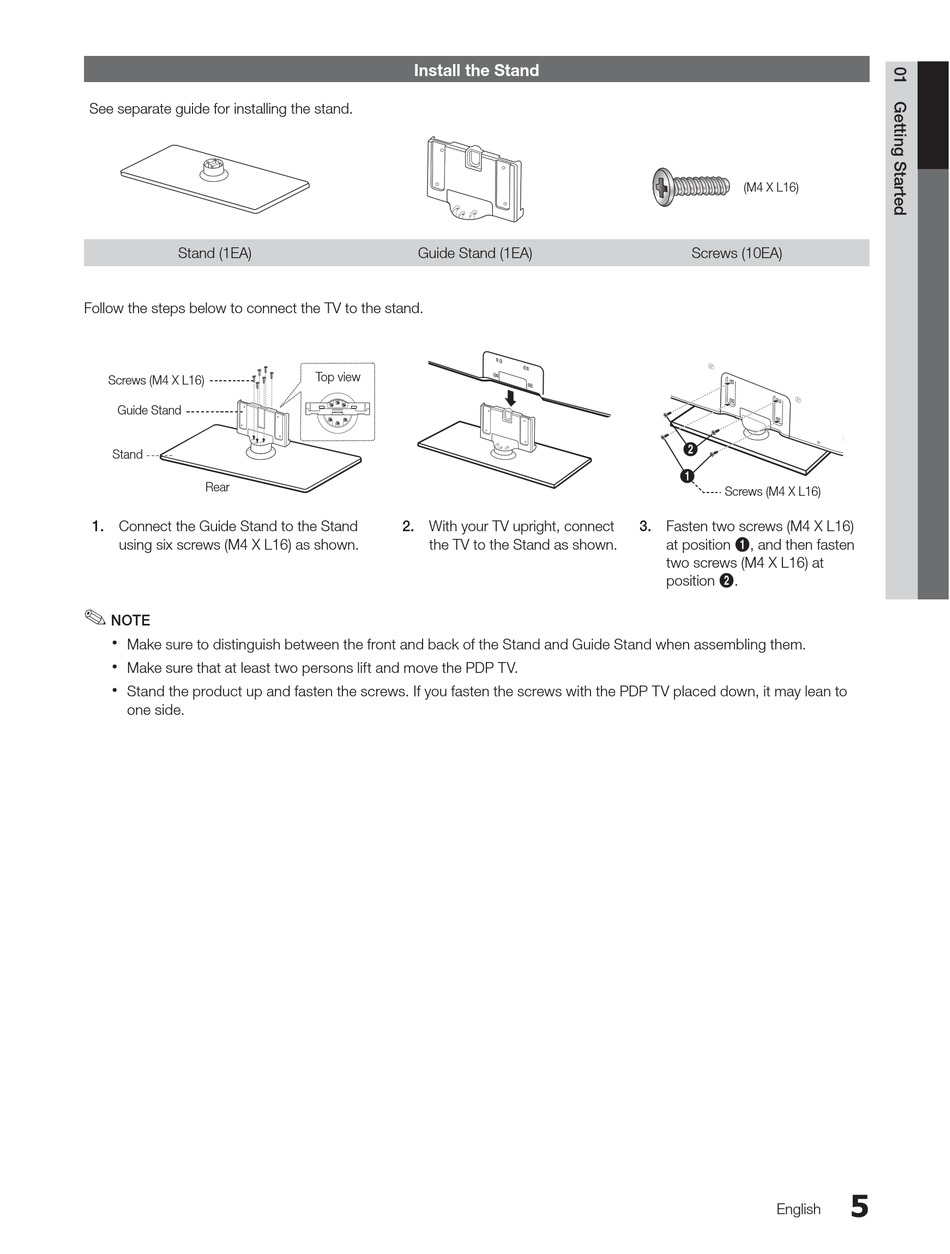

See separate guide for installing the stand.
Stand (1EA)
Follow the steps below to connect the TV to the stand.
Screws (M4 X L16)
Guide Stand
Stand
Rear
1. Connect the Guide Stand to the Stand
using six screws (M4 X L16) as shown.
NOTE
x
Make sure to distinguish between the front and back of the Stand and Guide Stand when assembling them.
x
Make sure that at least two persons lift and move the PDP TV.
x
Stand the product up and fasten the screws. If you fasten the screws with the PDP TV placed down, it may lean to
one side.

Install the Stand

Guide Stand (1EA)
Top view
2. With your TV upright, connect
the TV to the Stand as shown.
(M4 X L16)
Screws (10EA)
2
1
Screws (M4 X L16)
3. Fasten two screws (M4 X L16)
at position , and then fasten
two screws (M4 X L16) at
position .
English
