Display Screen

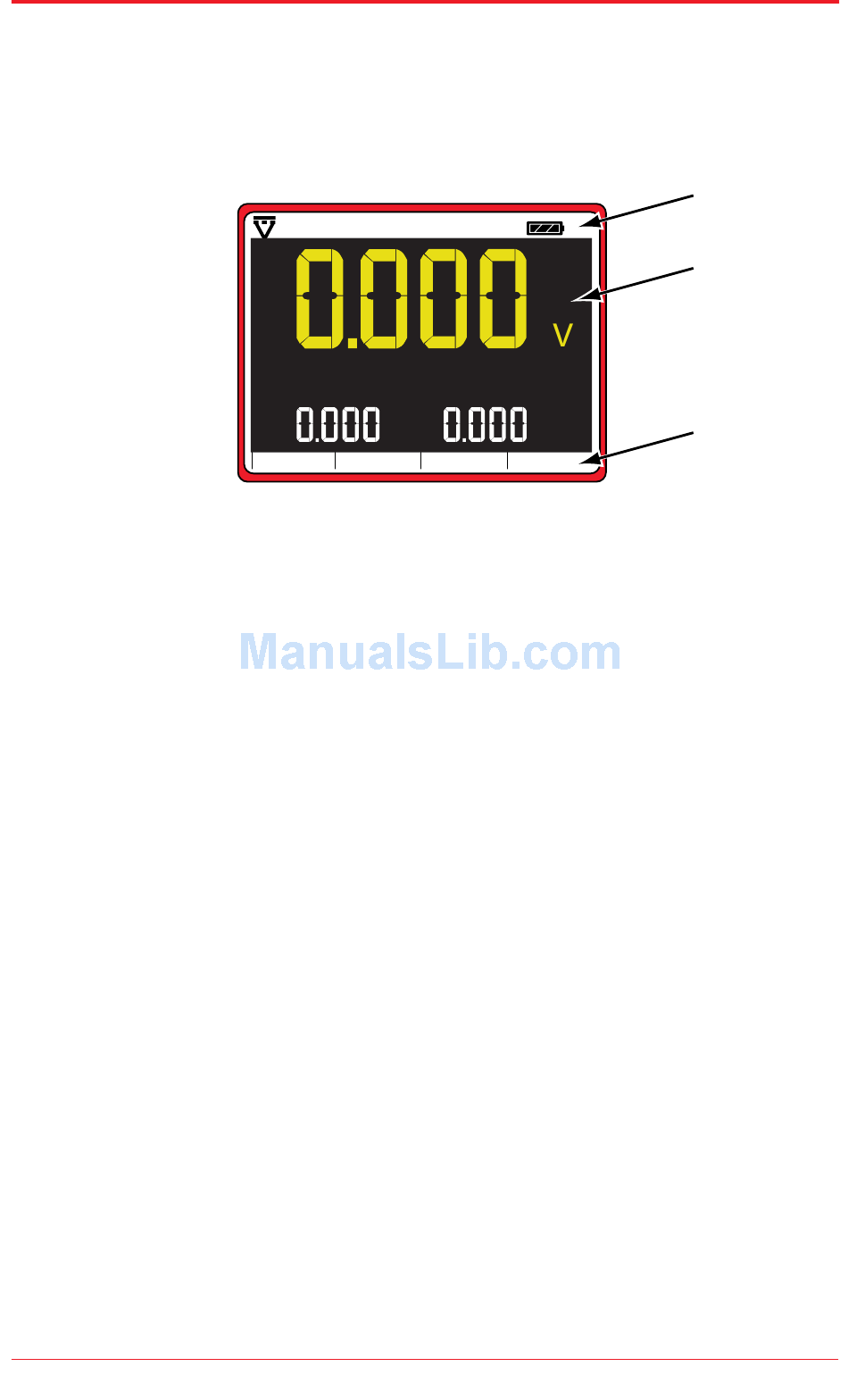

The M2 Scope/Meter has a color liquid crystal display (LCD) screen. A
typical test screen has 3 sections:
1— Status Toolbar
2— Main Body
3— Function Toolbar

Status Toolbar

Whenever the tool is turned on, an icon showing the test mode selected
with the Rotary Switch displays on the left-hand end of the toolbar. An icon
showing the state-of-charge of the internal battery display on the right side.
Recharge the internal battery when the display indicates a low charge.
To recharge the internal battery:
1. Connect the battery charger supplied with your M2 Scope/Meter
Kit to an appropriate service outlet.
2. Plug the small cable end into the single port on the top of the unit.
Main Body
The main body of the screen shows test results, and screens will vary by
test and tool setup.

Function Toolbar

The function toolbar shows the options available as Soft Key functions.
Available options vary based on the position of the Rotary Switch.
REL
V
F1 F2
Relative Freeze
DC
REF
V
F3 F4
Range
3
1
2
3
