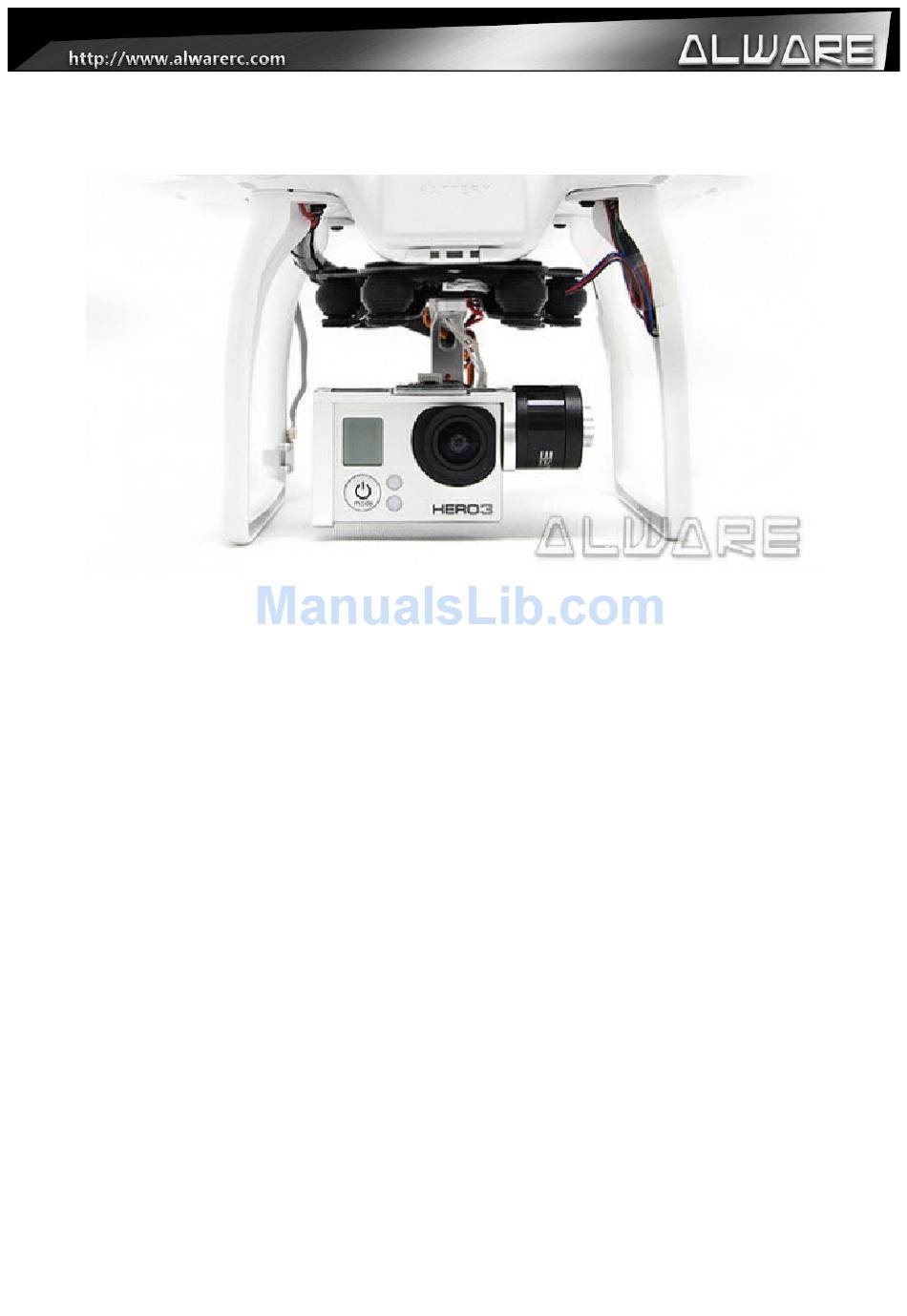

Page 1 Senrigan GP-35 Brushless Gimbal Instruction Manual Page 1 of 19...
Page 2: Table Of Contents
Contents 1. Introduction:................................3 2. Check List................................4 3. Equipment Required For Assembly........................5 4. Assembly Steps – Mechanism Parts........................6 5. Assembly Steps – IMU Mounting........................12 6. Assembly Steps – Power Connection and Manually Tilting................14 7. Assembly Steps – Setup Manual Tilting on NAZA..................16 8.
Page 3: Introduction
Last but not the least, GP-35 Gimbal comes with an AV Output cable which allows GoPro 3 camera to transmit the video signal down to the ground by using an FPV system(not included). So that you will see what you are exactly recording.
Page 4: Check List
2. Check List Please Check the Follow parts. BL Gimbal Controller with Top IMU Unit with Soft IMU Cable New BL Gimbal Motor 2208 Mounting Frame 1pcs 2pcs 1pcs CNC Metal Parts: Lower Damper Plate – 1pcs Rubber Tension Damper Balls A: Side Camera Cover 6pcs B: Upper Camera cover...
Page 5: Equipment Required For Assembly
3. Equipment Required For Assembly 1pcs Gopro3 Camera 1 complete set of DJI Phantom (Important: Before install GP-35 Gimbal on your Phantom, make sure it is flying properly with minimum vibration. Otherwise the Gimbal may not work properly and stably!)
Page 6: Assembly Steps - Mechanism Parts
4. Assembly Steps – Mechanism Parts Step 1. Step 2. Recognize the oriantation for the BL Gimbal Motor. Install a Motor Mount onto the Front Side of BL Gimbal Motor using M2.5x6mm Hex Cap Screws which is included with the motor. This is the Tilt Axis. (Apply little amount of Thread Locker when securing screw to metal parts.) Step 3.
Page 7 Step 5. Step 6. Install the Front Arm onto the Back Side of BL Complete assembly. Gimbal Motor using M2.5x6mm Hex Cap Screws which is included with the motor. (Apply little amount of Thread Locker when securing screw to metal parts.) Step 7.
Page 8 Step 9. Step 10. Install the Lower Damper Plate onto the Rear Arm Complete assembly. using Black Philip Screws. Pay attention to the installation direction of the Lower Damper Plate. (Apply little amount of Thread Locker when securing screw to metal parts.) Step 11.
Page 9 Step 13. Step 14. Insert 6pcs Rubber Tension Damper Balls into the Complete assembly. holes of Top Mounting Frame. Step 15. Step 16. Install the Top Mounting Frame onto the bottom side Remove the cover layer of the foam tap on the BL of Phantom using 2pcs Silver Philip Screws.
Page 10 Step 17. Step 18. Stick the BL Gimbal Controller board on the Top Install the Gopro 3 camera onto the Upper Camera Mounting Frame and secure it with 4pcs Nylon M3 cover using the Side Camera Cover and secure it with Nuts.
Page 11 Step 21. Step 22. Insert the Motor Cables of Tilt and Roll Motors into Connect the Titl and Roll Motors onto the Gimbal the Connector Cases included. Pay attention to the Controller Board. Follow the connect direction as position of each color of wires. shown above.
Page 12: Assembly Steps - Imu Mounting
Assembly Steps – IMU Mounting Step 1. Step 2. Prepare the IMU Unit. Connect one end of the IMU Cable onto the IMU port of the Gimbal Controller Board. Step 3. Step 4. Stick the IMU Unit onto the Upper Camera cover Connect the other end of the IMU Cable into the IMU using double-sided foam tape.
Page 13 Step 5. Step 5. Front view of GP-35 assembly. Side view of GP-35 assembly. Page 13 of 19...
Page 14: Assembly Steps - Power Connection And Manually Tilting
Assembly Steps – Power Connection and Manually Tilting Step 1. Step 2. Take off the Top cover of your Phantom. Please refer Solder the Male JST Connector to the Power cable of to the manual of DJI Phantom. the Phantom. (Important: Solder Red to red wire, and Make sure the Power cable in the Phantom is passing black to brown wire!)
Page 15 Step 5. Step 6. Insert 1-wire End connector of the into the casing of Insert the 1-wire End connector into F2 port of NAZA the Phantom. controller in the Phantom. (Pay attention to the position (use the Lowest Pin) of the connector.) Step 7.
Page 16: Assembly Steps - Setup Manual Tilting On Naza
Setup the Gimbal function of your Phantom as shown This is for reference only. (You can adjust these values above as to control the Tilt axis of GP-35 Gimbal with according to your own situation.) original Phantom Transmitter. Page 16 of 19...
Page 17 Step 6. You will use the additional Channel on the back of Or you can add the DJI Phantom Upgrade Kit in the Phantom's transmitter to control the Tilt Axis of GP-35 near future. (This is optional.) Gimbal. You can use or DIY a flat rod to control this channel, or you can order the DJI Phantom Upgrade Kit in the near future.
Page 18: Power On Steps
5 seconds for the Phantom and the Gimbal to performance the initialization. Step 3. If the initialization step is successful, GP-35 Gimabl will level the Gopro 3 Camera slowly for both Tilt and Roll axis. Otherwise power cycle the system and try again.
Page 19: Troubleshooting
10. Troubleshooting Q1: Why does the gimbal not stabilize the camera? A: Please refer to installation and make sure the IMU Unit is installed at right orientation and the motors are connected to the right pins. Q2: Why is the gimbal shaking? A: Usually it is caused be wrong IMU facing, please make sure it is facing down.
