Summary of Contents for Chitongda YL-007M2

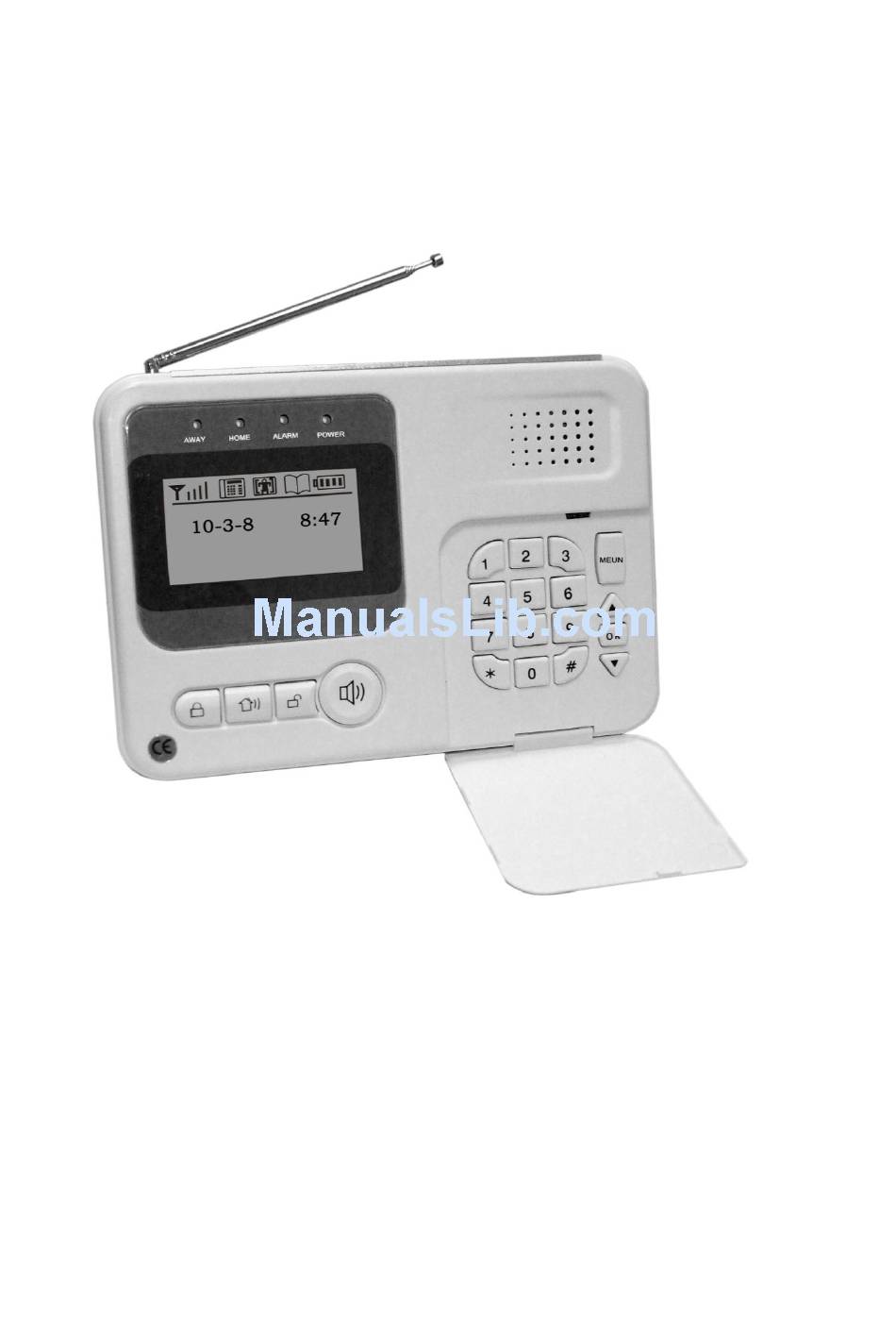

- Page 1 Intelligent GSM/PSTN Auto-Dial Alarm System Users’ Manual Before use please have a through reading of this book for right usage...
- Page 2 Forward Welcome to use intelligent GSM/PSTN auto-dial alarm system with powerful functions. Large LCD screen with English menu navigation function make the operation easier. It can call 5 users’ numbers by GSM/PSTN dual-network (PSTN first) when it alarming. Listening-in function is available for users by using mobile phone and telephone.
- Page 3 Menu Ⅰ、Features………………………………………………………… Ⅱ、Main Panel Button’s Function and Ports Introduction……… Ⅲ、Operation Manual……………………………………………… 1. Installation Setting…………………………………………… Basic Installation Direction…………………………….. Power on Direction……………………………………... Installation Direction…………………………………… Basic Setting Direction………………………………….. Detector Management……………………………….. 2. User Guide…………………………………………………….. 2.1 Test the alarm function……………………….. 2.2 Control the Monitor with Wireless Remote Controller…... 2.3 History Research……………………………………………...
- Page 4 Ⅰ、Main Panel Button’s Function and Ports Introduction 1. Dual-network (GSM&PSTN) alarm function, alarm information more safe; Intelligent recording PSTN first. 2. Large LCD screen with menu navigation function, by which users can operate it easily and directly. 3. Full-function keypad. Users can complete all the operations on the host. 4.
-
Page 5: Operation Manual

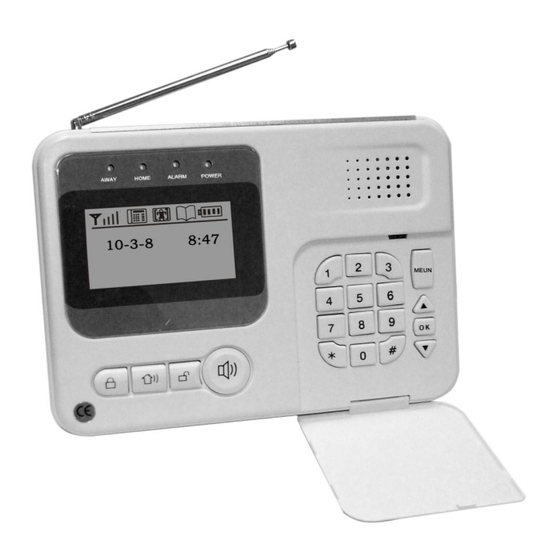

⑴ Status Indicator Lamp ⑵ LCD Screen ⑶ Power Switch ⑷ Number Button ⑸ Programming Button ⑹ Emergency Alarm ⑺ Disarm ⑻ Home Alarm ⑼ Out Alarm ⑽ Microphone ⑾ Function Button NOTE: 1) SIM Card Slot: click the yellow button near the SIM card seat, take out the card seat, put a effective SIM card in it and insert it back. - Page 6 1、Installation Setting 1.1 Basic Installation Direction 1) Prepare a useful SIM card; 2) Put the SIM card in the card seat on the back of the host; 3) Connect with telephone line; 4) Prolong the antenna and connect all the wired detectors with the host if any; 5) Connect with power and turn on the host;...
- Page 7 Show Battery Power Home Arm Out Arm System Alarming Conventional Paramater Setting Function On-Off Setting Record Message Wireless Detector Learing Code Zone Mode Setting Time and Date Setting Password Setting 1.3 Installation Direction 1）Installation of the Host a. Try to install the host in the center of the defense zone and prolong the antenna for getting more wireless signal receiving distance.
- Page 8 the battery into the part A , and then according to the show of sketch map to fis part A and part B (with screws) on the monitored door/window. It is better if the distance between them is closer (≤15mm between part A and part B ) NOTE: a.
- Page 9 “saved” in screen and with two beeps. Four short beeps shows failure. Please press 【 MENU】 to try it again. ◆ Exist System Setup Please press button 【 #】 to end the programming status after you finish your operations. System will exist automatically if there is any order within 30 seconds.
- Page 10 Ringing times: to set remote control ringing times. 00～12 times. 00 means turn off the remote control function. （Default Setting: 8 times ） Siren ring time: to set siren ring time when alarming. 00～30mins. 00 means turnoff the hooter whistle function. （Default Setting: 1 minute）...
- Page 11 will alarm when at Away Home mode. Default Setting for all modes: Immediate Note: wireless zone can be set 01～03 and wired zone can be set as 01～99. f 、System time and the time of timing arm/disarm setup: Enter system setting status and press button 【 ▲】 【 ▼】 or keypad 【 8】 to chose icon , press button 【OK】, then press button【▲】...
- Page 12 detectors in each defense zone. But the total number can’t over 99. ● Two beeps from the host but the total number won’t change if the wireless detector has been saved. ● Press button 【MENU】 after learning code. System will exit automatically if there is no wireless signal to learn within 2 minutes.
- Page 13 control, the system will exit remote control automatically and the host will hang up. 2.2 Control the Monitor with Wireless Remote Controller The remote controller has 4 keys: Disarm, Out Arm, Home Arm and Emergency Arm. ,a voice of beep can be heard from host, the light STATUS is Out Arm: press key Out Arm red (flash), 30 seconds later turns green (without flash), the icon will be showed in screen.
- Page 14 2.3 History search Input the correct password on the keypad (original password: 1234) and press button【MENU】, two beeps will be hear from the host. The home arm and out arm lights are turn on. You can see six icons in screen. Please press button 【▲】 【▼】 or keypad 【1】 to chose icon , and then press button【OK】to enter the history research page.
