Summary of Contents for Millenium 950

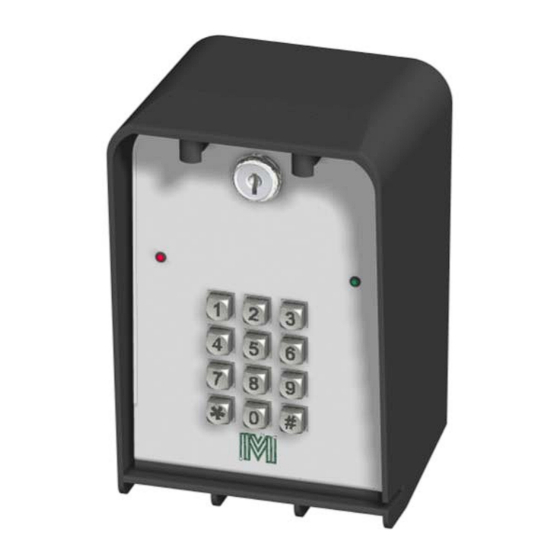

- Page 1 MODEL 950/951 Wired/Wireless Keypad INSTRUCTION MANUAL...
- Page 2 HINTS 1. Programming and set-up of the 950/951 keypad is accomplished via the keypad face and through the dip-switches located on the keypad circuit board. Refer to page 6 for a description/explanation on programming through the keypad face.
- Page 3 PARTS IDENTIFICATION Steel Mounting Plate Model 950/951 Keypad Keys (2 Included with each keypad) 9 Volt Battery Hardware Kit (Included with Wireless Model only) Screwdriver (Included with Wired Model only)
- Page 4 MOUNTING INFORMATION Keypad door and circuit board can be re- moved from the housing. To remove, make sure that door is completely open and slide it to the right while pulling away from the control box. Please remember to remove the door while mounting the control box so that the circuit board is always protected.
- Page 5 PROGRAMMING SUB-MODES Access Code Entry—Sub-Mode 1 Sub-Mode 1 is for entering new access codes. The Model 950 keypad will hold 1000 4 digit codes. 4 digit code range is ‘0001’ to ‘9991’ Access Code Removal—Sub-Mode 2 Sub-Mode 2 is used to delete individual 4 digit access codes from the keypad memory.
-
Page 6: Master Codes
Model 950/951 Keypad Programming Manual The very first time that you apply power to the keypad, you will hear a series of beeps followed by a regular repeating beep (1 beep at 3 second intervals) that lets you know you are in programming mode. - Page 7 CIRCUIT BOARD INFORMATION 1 Sound - OFF/ON 2 LEDs - OFF/ON Master Reset - Clears Master 3 Light - OFF/ON Code. Remove battery for 30 sec- onds, hold push button down while reconnecting battery. New 5 Three strikes your out - OFF/ON master code may now be pro- 6 Wireless Mode - OFF/ON grammed.
- Page 8 LIMITED TWO-YEAR WARRANTY Millennium Access Controls, Inc. manufactured products are warranted against defects for a period of 24 months from the date of purchase, providing recommended installation procedures are followed. This warranty is in lieu of all other warranties expressed or implied (some states do not allow limitations on how long an implied warranty lasts, so this limitation may not apply to you) and shall be considered void if damage was due to improper installation or use, connection to improper power source, or if damage was caused by fire, flood, or...
