Page 3: Table Of Contents

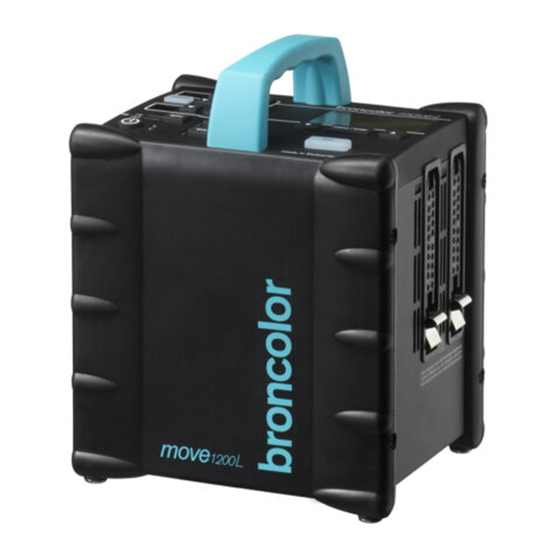

Vor dem Benutzen We are pleased you have chosen a broncolor Move 1200 L, which is a high-quality product in every re- spect. If used properly, it will render many years of good service. Please read all the information con- tained in these operating instructions carefully. -
Page 4: Important Safety Instructions
Allow the lamp to cool down for 10 minutes before replacing a halogen lamp or flash tube! > broncolor flash light systems should only be equipped with original broncolor flash tubes, original broncolor combustible and packing material, original broncolor accessories, and original broncolor spare parts! >... - Page 5 Service station. Incorrect assembly can cause dangerous contact voltages, even on connected units. > For all MobiLED lamps with the serial numbers N08, N10, N12 and O04, it is compulsory that they are modified in our Service station before use with the Move 1200 L power pack.
- Page 6 > For transporting a power pack use the original broncolor packing! shipping instructions for lamps: > For transporting a lamp use the original broncolor packing! Before shipping fit the transport pro- tection elements we supplied originally (foam elements and transport protection cover) to flash tubes, halogen lamps and protecting glasses.
-
Page 7: Scope Of Delivery
1. scOpe Of supply move 1200 l power pack – 31.016.XX Check whether the following items have been delivered: power pack move 1200 l charger protective bag (36.151.XX) (36.520.00) synchronisation cable continuous light adapter Operating instructions (34.111.00) (36.129.00) (Ba107.00) Move Operating instructions | Bedienungsanleitung | Mode d‘emploi... -
Page 8: Startup
2. startup 1. remove transport protection 2. press the "on / check" key 3. click the battery into place 4. switch on the power pack... -
Page 9: Operating Elements
3. Operating elements function On / Off (1) Switches the unit on and off. Sync socket / For release via the sync cable, or software update Mini USB (2) via Mini USB (only possible in Service station). Speed (3) For fast charging and flash times. See explanation in Chapter 8. -
Page 10: Infodisplay
4. infOdisplay Energy level in Joules or Watt seconds Total energy of both channels in f-stops Flash time for each lamp (at t0.1) Shows the parameter setting. For details of menu navigation, see Chapter 7 seq – displayed as soon as a sequence is selected in the menu mod –... -
Page 11: Battery
5. Battery 5.1 description of display on the battery Battery display illuminated Battery display blinks during operation Battery fully charged (100%) Battery half-full (ca. 50%) Battery almost empty (ca. 20%) Battery empty, please recharge (ca. 5%) during charging Battery empty and is being recharged Battery is 50% charged Battery is 80% charged Battery fully charged... - Page 12 5.2 care of the lithium battery During charging and discharging, the ambient temperature should be in the range 5° C – 35° C. Use of the battery at very low temperatures (below –10° C) may result in a severe loss of output. The battery has a deep-sleep mode and switches itself off after 72 hours unless it is inserted into a power pack so as to protect it against deep discharge.
-
Page 13: Overview Of The Main Menu Functions
6. OVerVieW Of main menu functiOns When you switch the power pack on, the main menu screen appears. From there you have access to various functions. The only menu language available is English. 1) To enter the main menu, press the "menu / enter" key (15). 2) Use the "... -
Page 14: Menu Navigation
7. menu naVigatiOn On pressing the menu key (15), you enter the main menu of the power pack. From there you have access to the various functions. example: change the time the modelling light is on from 10 s to continuous operation 1) Press the menu key (15) to enter the main menu. -
Page 15: Controlling Flash Times
8. cOntrOlling flash times With the Move 1200 L power pack, you can control the flash time in two different ways: 8.1 controlling flash times using the speed key Pressing the Speed key (3) reduces both the flash duration and the charging time for the power pack. -
Page 16: Release
8.3 Overview of flash times for opt, speed and min flash times at t 0.1 Output in Joules / Ws speed 1200 1 / 375 s 1 / 375 s 1 / 875 s 1 / 935 s 1 / 935 s 1 / 1310 s 1 / 2150 s 1 / 2300 s... -
Page 17: Special Functions
10. special functiOns 10.1 reset ((works settings) Press the "test" key (16) for 4 s. This resets all functions to the works settings. Resetting is ac- knowledged with a double beep. 10.2 submenu To enter the submenu for the power pack, hold the "menu / enter" key (15) pressed for 4 s. display Options description... -
Page 18: Information And Fault Signals
Lamp 1 or Lamp 2 is defective or not correctly connected Use broncolor tubes Please use only original broncolor flash tubes acoustic fault indicator If the flash fails to fire, a warning signal sounds for ca. 0.5 s and the display (2) for the appropriate lamp blinks. -
Page 19: Lamp Compatibility
13. lamp cOmpatiBility max. energie move 1200 l comments mobilite 1600 J Modification required (Service) mobilite 2 Modification required (Service) mobiled 1600 J Modification required (Service) for serial numbers: N08, N10, N12, O04 litos 2400 J picolite 1600 J Flash yes, modelling light no... -
Page 20: Mobiled
O04 must be modified in our service station before use with the move 1200 l power pack. 14.1 replacing flash tubes Before you change the flash tube, be sure to disconnect the lamp from the power pack! Plug-in flash tubes are used. -
Page 21: Maintenance / Repairs
15. maintenance / repairs Your broncolor power pack is a precision instrument and will give many years trouble-free opera- tion if treated with the appropriate care. However should a fault occur, please do not try to open the unit and repair it yourself. -
Page 22: Technical Data
16. technical data move 1200 l | 31.016.XX flash energy 1200 J f-stop at 2 m, 64 1 / 10 (with MobiLED) 100 isO, p70 reflector flash duration t 0.1 (t 0.5) fastest: 1 / 8’500 s (1 / 20’000 s) max. -
Page 23: Environmental Protection Information
18. guarantee All broncolor power packs, lamps, monolights and accessories have a high quality standard. We offer a two-year factory guarantee from the date of purchase (for the first owner) on the above bron- color products.
