GBIC Transceiver

Installation Guide

For 3Com Gigabit Interface Converter (GBIC) Transceivers
Description
The Gigabit Interface Converter (GBIC) ports on your system connect to
Gigabit Ethernet networks through a GBIC transceiver (Figure 1),
providing a high-speed connection over fiber-optic or copper cable. The
transceiver connects to the network using a fiber-optic duplex subscriber
connector (SC) or a RJ-45 connector. You can remove and replace the
transceiver with the system on (which is called hot-swapping).

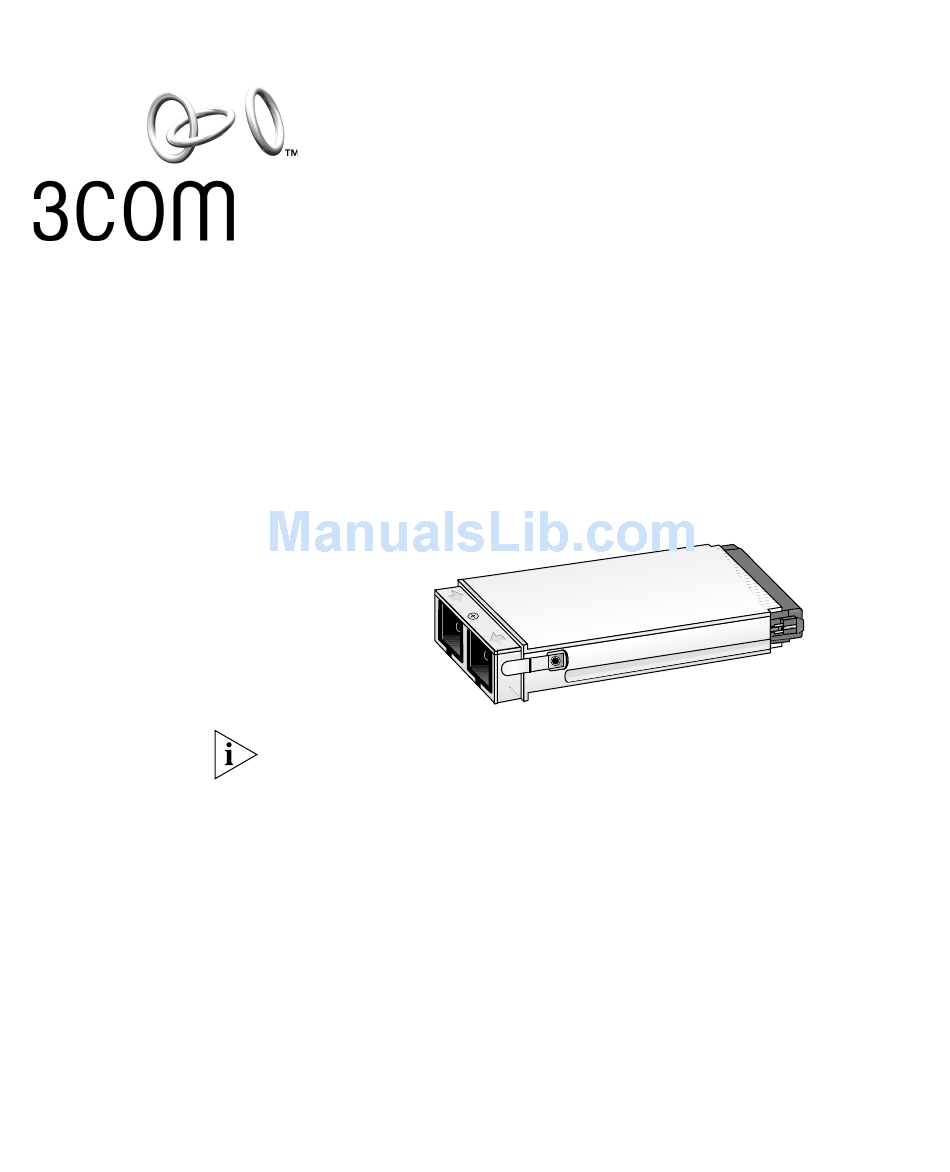

Figure 1 GBIC Fiber-Optic Transceiver
To ensure optimal performance, compatibility, and regulatory compliance,
use only GBIC transceivers that 3Com supports. For a list of currently
supported GBICs, see this 3Com Web site:
http://www.3com.com/products/en_US/prodlist.jsp?tab=cat&pathtype=purch
ase&cat=227&selcat=LAN+Switches+%28Modular%29
For the most up-to-date information about this and other 3Com
products, always see the User Guides and Release Notes at this 3Com
Web site:
http://www.3com.com/products/en_US/prodlist.jsp?tab=cat&pathtype=supp
ort&cat=227&selcat=LAN+Switches+%28Modular%29&family=526

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GBIC and is the answer not in the manual?

Questions and answers

Related Manuals for 3Com GBIC

Summary of Contents for 3Com GBIC

  • Page 1: Installation Guide

    (which is called hot-swapping). Figure 1 GBIC Fiber-Optic Transceiver To ensure optimal performance, compatibility, and regulatory compliance, use only GBIC transceivers that 3Com supports. For a list of currently supported GBICs, see this 3Com Web site: http://www.3com.com/products/en_US/prodlist.jsp?tab=cat&pathtype=purch ase&cat=227&selcat=LAN+Switches+%28Modular%29...
  • Page 2 Connection to multimode fiber through a conditioned launch cable To ensure optimal performance, compatibility, and regulatory compliance, use only conditioned launch cables that 3Com supports. For a list of currently supported conditioned launch cables, see this 3Com Web site: http://www.3Com.com/gigabit_ethernet/gbics Table 2 shows the transmission ranges for each connection.

  • Page 3: Safety Precautions

    Do not touch any connections inside the chassis with your hands or fingers. Fiber Safety Precautions The GBIC fiber ports on your system use lasers. To ensure your safety when you install or work with these GBIC systems, read and comply with the precautions in this section.

  • Page 4: Inserting The Transceiver

    Installation into other chassis is the same except that the chassis ports may be oriented vertically. Figure 2 Inserting the GBIC Transceiver in a Switch 4007 GBIC port GEN Interface Duplex SC module connector 3 Gently slide the transceiver into the GBIC port until it clicks into place.

  • Page 5: Troubleshooting

    GBICs, see this 3Com Web site: http://www.3com.com/gigabit_ethernet/gbics No LED Error If the GBIC LED does not light after you insert it into the chassis, remove Corrective action the GBIC and re-insert it. If the transceiver is not working properly, the system displays an appropriate error message, as described in the following sections.
  • Page 6 The system uses checksum error detection to verify the integrity of the Meaning GBIC data. If the system detects a problem with the data, it displays an error message that indicates a checksum failure. Although this condition does not necessarily indicate that the GBIC...
  • Page 7 WARNING The GBIC in Port xx is NOT approved by 3Com & may violate electromagnetic emission or safety requirements for your country. Refer to 3Com's web page (www.3com.com/gigabit_ethernet/gbics) for our current approved list.

  • Page 8: Imited Warranty

    3Com warrants to the end user (“Customer”) that this hardware product will be free from defects in workmanship and materials, under normal use and service, for one (1) year from the date of purchase from 3Com or its authorized reseller.

  • Page 9: Limitation Of Liability

    3Com registered trademarks are registered in the United States and may or may not be registered in other countries. 3Com, the 3Com logo, CoreBuilder, and SuperStack are registered trademarks of 3Com Corporation.
  • Page 10 GBIC Transceiver Installation Guide...
