  • Page 1 SRX-WR150WH...

  • Page 3: Table Of Contents

    TABLE OF CONTENTS 1. ABOUT THIS GUIDE.......................3 1.1 Navigation of the User’s Guide .................... 3 2. PRODUCT OVERVIEW....................3 2.1 Introduction..........................3 2.2 Features..........................3 2.3 Panel Layout .......................... 4 2.3.1 Front Panel............................4 2.3.2 Rear Panel ............................5 3. HARDWARE INSTALLATION ..................6 3.1 Hardware Installation ......................

  • Page 4: Copyright Statement

    No part of the specifications may be reproduced in any form or by any means or used to make any derivative such as translation, transformation, or adaptation without permission from Network One Distribution. If you want to know more about our products information, please visit our website at http://www.serioux.com Copyrights 2013 by Network One Distribution. All rights reserved.

  • Page 5: About This Guide

    1. ABOUT THIS GUIDE Thank you very much for purchasing this Wireless Router. This guide will introduce the features of this device and tell you how to connect, use and configure the Router to connect with Internet. Please follow the instructions in this guide to avoid affecting the Router’s performance by improper operation.

  • Page 6: Panel Layout

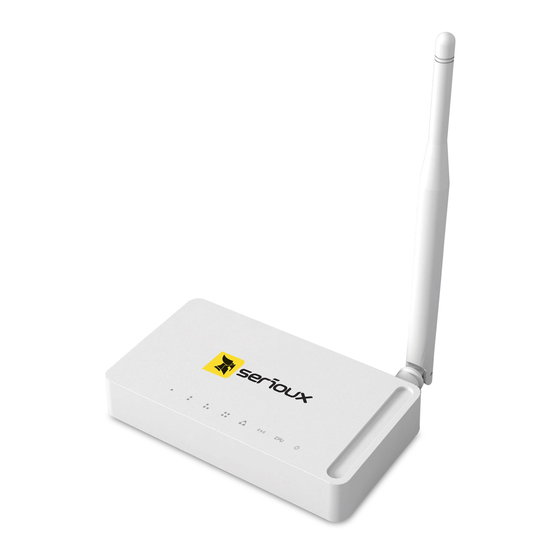

    2.3 Panel Layout 2.3.1 Front Panel The front panel of the Router consists of 8 LEDs, which is designed to indicate connection status. POWER This indicator lights blue when the hub is receives power, otherwise it is off. This indicator blinks blue when Router powered on. This indicator lights blue when there are wireless devices connected and WLAN transmitting data to WLAN Router.

  • Page 7: Rear Panel

    2.3.2 Rear Panel The figure below shows the rear panel of the router. The Power socket is where you will connect the power adapter. DC IN RST: With the router powered on, press and hold the button until the CPU LED becomes quick-flash from slow-flash.

  • Page 8: Hardware Installation

    3. HARDWARE INSTALLATION 3.1 Hardware Installation For those computers you wish to connect with Internet by this router, each of the computers must be properly connected with the router through provided UTP LAN Cables. 1. Connect the provided UTP LAN cable to one of the router’s LAN port. 2.
  • Page 9 If the result displayed is similar to that shown in above figure, it means that the connection between your PC and the Router has been established. If the result displayed is similar to that shown in the above figure, it means that your PC has not connected to the Router successfully.

  • Page 10: Connecting To Internet

    4. CONNECTING TO INTERNET This chapter introduces how to configure the basic functions of your router to access Internet. 4.1 Accessing Web page Connect to the Router by typing 192.168.1.1 in the address field of Web Browser. Then press Enter key. It will show up the following page that requires you to enter valid User Name and Password: Enter admin for User Name and Password, both in lower case letters.

  • Page 11: Changing Password

    V1.0. 2012-11-22 Copyright(C) 2012 by Network One Distribution. All rights reserved. 4.2 Changing Password First, we recommend that you change the password to protect the security of your router. Please go to Management—Password change the password required to log into your Router.

  • Page 12: Setup Wizard

    4.3 Setup Wizard Setup Wizard is provided as part of the web configuration utility. Users can simply follow the step-by-step process to get the Wireless Router configuration ready to run in 3 easy steps by clicking on the Setup Wizard on the left navigation menu. Then the following screen will appear.

  • Page 13: Dynamic Ip Address

    Click Next button, you will see the following page: SRX-WR150WH Host Name: defines the DNS host name. By default, it is SERIOUX. MAC Address: MAC address is the physical address of your computer’s network card. Generally, every network card has one unique MAC address.

  • Page 14: Pppoe

    Click Next to go to the Wireless Setting page, on this page, you can only change the SSID name and set the Pass Phrase (wireless password). SERIOUX SRX-WR150WH Click Finish to complete the Setup Wizard. Now you can surf Internet and enjoy the best wireless experience brought by this router.

  • Page 15: Advanced Settings

    Wireless settings. Also, you could get the current running firmware version or firmware related information from this presentation. V1.0. 2012-11-22 SRX-WR150WH Device Information Company Web Site: shows our company’s website. System run time: shows how long the system has run.

  • Page 16: Network Settings

    Network Name (SSID): displays the SSID of the Router. 5.2 Network Settings 5.2.1 WAN Interface This page is used to configure the parameters for the WAN port of your Access Point. Since we have discussed this setting on Setup Wizard, here we introduce how to configure MTU. SRX-WR150WH...

  • Page 17: Lan Interface

    192.0.0.x to 223.255.255.x. Class C network netmask uses 24 bits to identify the network and 8 bits to identify the host. Domain Name: this is optional, by default, it is SERIOUX. DNS Relay: you can choose to enable or disable this function. By default, it is Enable selected.
  • Page 18 Starting IP Address: displays the start IP Address of the range that will be assigned to each computer connected with the router. Ending IP Address: displays the ending IP Address of the range that will be assigned to each computer connected with the router. Lease Time: the IP addresses given out by the DHCP server will only be valid for the duration specified by the lease time.

  • Page 19: Tcp/Ip Status

    5.2.4 TCP/IP Status This page displays the LAN and WAN interface settings of this router. Please see below: 5.3 Wireless 5.3.1 Wireless Status This page displays the current wireless status of the router. SRX-WR150WH...

  • Page 20: Wireless Basic Settings

    On this page, you could configure the parameters for Wireless LAN clients that may connect to your Access Point. SRX-WR150WH Network Mode: This option allows you to choose the radio standard for operation of your Router. 802.11b and 802.11g are old 2.4GHz mode, while 802.11n is the latest standard based on faster Orthogonal Frequency Division Multiplexing (OFDM) modulation.

  • Page 21: Wireless Security Settings

    SRX-WR150WH Select SSID: if you have defined many SSIDs, please choose the one that you want to set security for. By default, it is SERIOUX. MAC Access Control: you could choose to disable this function, or allow/deny. Access List: click Add MAC address button, it will show you the following page: If you choose allow, then type in the MAC address that you want to allow to access your wireless network.

  • Page 22: 802.1X

    Authentication Type: filed relates only to the WEP security option. One of the following authentication modes should be selected if WEP security method is used: Open System—station is authenticated automatically by AP (selected by default). Shared Key—station is authenticated after the challenge, generated by AP. WEP Key Length: 64-bit (selected by default) or 128-bit WEP Key length should be selected if WEP security method is used.

  • Page 23: Wpa/Wpa2

    IP Address: enter the IP address of RADIUS server. Port: the UDP port number that the RADIUS server that is used to authenticate the messages sent between them. Shared Secret: it works like a password. RADIUS: Remote Authentication Dial-In User Service (RADIUS) is a security authentication client/server protocol that supports authentication, authorization and accounting, which is widely used by Internet Service Providers.

  • Page 24: Wds Settings

    Key, either 8~63 ASCII characters, such as 012345678..(or 64 Hexadecimal digits leading by 0x, such as “0x321253abcde…”). Key Renewal Method: you can choose to disable this function or choose to renew by time or packet. Key Renewal Interval: please set the renewal interval. Note: Since WEP has been proved vulnerable, you may consider using WPA2 for the most secure connection.

  • Page 25: Wps Configuration Setup

    5.3.5 WPS Configuration Setup WPS (Wi-Fi Protected Setup) provides easy procedure to make network connection between wireless station and wireless access point with the encryption of WPA and WPA2. It is enabled by default. UUID: Universally Unique Identifier. Enable Proxy: you can choose to enable Proxy or disable this function. By default, it is enabled.

  • Page 26: Repeater Settings

    5.3.6 Repeater Settings SRX-WR150WH Network Name (SSID): if you set this router as an AP-client, you need to define the Wireless Name. BSSID: Basic SSID. This is optional. Channel: this option provides selectable channel numbers. EXT Channel: you could choose Low or Upper.
  • Page 27 BG Protection Mode: Background Protection Mode, by default, it is Auto selected. Basic Data Rates: you can choose the wireless data rate. This router provides three options. Be default, it is Default (1-2-5.5-11Mbps). Beacon Interval: By default, it is set to 100ms. Higher Beacon interval will improve the device’s wireless performance and is also power-saving for client side.

  • Page 28: Firewall

    20/40 BssCoexSupport: by default, it is enabled. Support 20/40 at the same time. IGMP Snooping: if you enable this function, multicast traffic will be forwarded to ports that have members of that group. Disabling IGMP snooping will make multicast traffic treated in the same manner as broadcast traffic.

  • Page 29: Access Control

    firewall of this router helps to protect your local network against attack from unauthorized outsiders. It also restricts users in the local network from accessing the Internet. Furthermore, it can filter out specific packets that trigger the router to build an unwanted outgoing connection.

  • Page 30: Ip/Port Filtering

    5.4.2 IP/Port Filtering Depending on whether there is an existing Internet connection, or in other words “the WAN link status is up or down”. You can restrict certain types of data packets from your local network to Internet through the Gateway on this page. You can select to enable or disable IP/Port Filtering function.

  • Page 31: Url Filtering

    This router allows you to disable MAC Filtering function or allow/deny MAC address listed. MAC Name: the name of the computer with the MAC you entered. MAC Address: you can enter the MAC addresses that you want to deny or allow. DHCP Client: display the information about one DHCP client.

  • Page 32: Virtual Server

    Enable/Disable: you can choose to enable or disable this function. Name: please enter the name of the defined network application/service. Trigger Port: type in the starting & ending ports number of the service. Trigger type: Specify the transport layer protocol. It could be TCP, UDP or both. Public Port: type in the public port number.

  • Page 33: Dmz

    5.4.7 DMZ DMZ means Demilitarized Zone. It can be enabled and used as a place where services can be placed such as Web Servers, Proxy Servers and E-mail Servers such that these services can still serve the local network and are at the same time isolated from it for additional security.

  • Page 34: Ddns

    5.5.2 DDNS DDNS means Dynamic Domain Name System. The ISP often provides you with a dynamic IP address when you connect to the Internet via your ISP. It means that the public IP address assigned to your router changes each time you access the Internet. The Dynamic DNS feature lets you assign a domain name to a dynamic WAN IP address.

  • Page 35: Time Zone Settings

    5.5.3 Time Zone Settings This page allows you to maintain the system time by synchronizing with a public time server over the Internet. 22th, November. 2012 17:26:00 (GMT+02:00) Bucharest Local Time: it shows the current time by default. Enable NTP: NTP means Network Time Protocol which is used to make the computer time synchronized with its server or clock source, such as Quartz and GPS.

  • Page 36: System Log

    5.5.4 System Log This page can be used to set remote log server and show the system log. Click Log Settings button, it will display the page below: Remote Syslog Server / IP Address: enter an IP address that allows syslog remote sending function while System log messages are sent to a remote server.

  • Page 37: Upgrade Firmware

    5.5.5 Upgrade Firmware This page allows you to upgrade the Access Point firmware to new version. Please note, DO NOT power off the device during the upload because it may crash the system. 2012-11-22 Current Firmware Version: shows the current firmware version. Firmware Date: the date that you upgrade the current firmware.

  • Page 38: Password

    5.5.7 Password This page allows you to change the password to login web interface of this router. Also you can enable or disable the Remote Management function here. Remote Management: if you enable this function, you can manage the router remotely. IP Address: Enter the IP Address that you allow to manage the router remotely.
